DIN 980 Fasteners
Hexagon Nut DIN 980 Specifications, DIN Standard 980 Hex nuts, DIN 980 Self-locking Nut Dimension, DIN 980 Prevailing Torque Nut, Hex DIN 980 Hex Lock Nut Size, Self Locking Hex Nuts DIN 980 Dealer, Threaded Din 980 Hexagon Nut Manufacturer in India.
Din 980 Equivalent Material, Din-980 Hexagon Nuts, DIN 980 Nut dimensions Chart, DIN 980 standard PDF, Threaded Din 980 Self Locking Nuts in Mumbai, DIN 980 Threaded Hex Nuts Size, Din 980 Hex Lock Nut at Best Price, DIN 980 Specifications India.

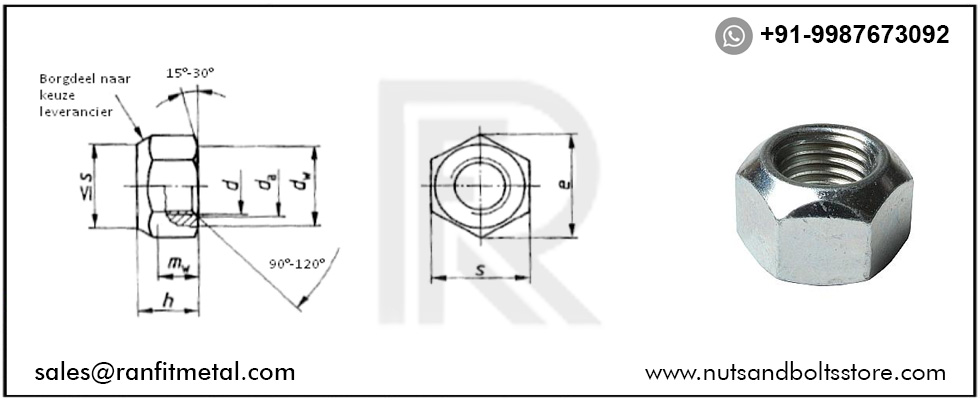

DIN 980 Dimensions Chart
| Thread Diameter |
s (mm) |
h (mm) |
m (mm) |
Standard Pitch (mm) |
Fine Pitch (mm) |
Extra Fine Pitch (mm) |
|---|---|---|---|---|---|---|
| M4 | 7 | 4 | 2.5 | 0.7 | - | - |
| M5 | 8 | 5 | 3.5 | 0.8 | - | - |
| M6 | 10 | 6 | 4.5 | 1.0 | - | - |
| M8 | 13 | 8 | 6.0 | 1.25 | 1.0 | - |
| M10 | 17 | 10 | 7.5 | 1.5 | 1.25 | 1.0 |
| M12 | 19 | 12 | 8.5 | 1.75 | 1.5 | 1.25 |
| M14 | 22 | 14 | 11.5 | 2.0 | 1.5 | - |
| M16 | 24 | 16 | 12.5 | 2.0 | 1.5 | - |
| M18 | 27 | 18 | 14.0 | 2.5 | 2.0 | 1.5 |
| M20 | 30 | 20 | 15.4 | 2.5 | 2.0 | 1.5 |
| M22 | 32 | 22 | 16.9 | 2.5 | 2.0 | 1.5 |
| M24 | 36 | 24 | 18.5 | 3.0 | 2.0 | 1.5 |
| M27 | 41 | 27 | 20.8 | 3.0 | 2.0 | 1.5 |
| M30 | 46 | 30 | 23.1 | 3.5 | 2.0 | 1.5 |
| M33 | 50 | 3 | 25.4 | 3.5 | 2.0 | 1.5 |
| M36 | 55 | 36 | 27.2 | 4.0 | 2.0 | 1.5 |
All measurements in millimeters (mm)
