Super Duplex Steel UNS S32750 / S32760 Fasteners
SDSS UNS S32750 Threaded Stud, Super Duplex 2507 Steel Structural Bolts, Super Duplex Steel UNS S32760 Plain Washer Stockholder, Super Duplex Stainless Steel UNS S32750 Hexagon Nut Suppliers in India.
Ranfit Metal & Alloys is a known supplying and manufacturing firm that offers a wide range of Super Duplex 2507 Fasteners, which needs to be turned and worked at slow speeds and low feed rates. Super Duplex Stainless Steel 2507 Fasteners should be quenched after forging from a temperature of 1450 Degree F (790 Degree C) minimum. Super Duplex UNS S32750 Fasteners has excellent corrosion resistance together with increased strength and hardness. Super Duplex UNS S32760 Fasteners also has excellent corrosion resistance in an extensive range of natural and chemical environments. Super Duplex 2507 Nuts has approximately three times the yield strength and double times the tensile strength. Plus, Super Duplex 2507 Bolts can be further strengthened by cold working prior to precipitation hardening. Super Duplex 2507 Stud Bolts is possible, however, to develop a magnetic layer on the surface of the material during processing.
Resistance to hydrogen sulfide makes Super Duplex 2507 Washers useful in sour-gas environments making it extremely popular in the oil patch. Super Duplex 2507 Screws is used in Pump Shafts, Valve Components, and more. The thermal processing in Super Duplex 2507 Round Bars used to effect precipitation is commonly called age hardening or ageing. Super Duplex 2507 Bars have a greater tendency toward stress-corrosion cracking in some environments when in the age-hardened condition. Super Duplex 2507 Rods has the combination of very low corrosion rates in high-velocity sea water and high strength.
Super Duplex Steel UNS S32750 Threaded Stud, SDSS DIN 1.4410 Eye Bolts, Super Duplex Grade UNS S32760 Lock Nut, Super Duplex SAF 2507 Fasteners Manufacturer in India.
Super Duplex Steel 2507 Fasteners Specification
| Grade | Super Super Duplex Steel 2507 (UNS S32750/S32760) |
|---|---|
| Super Duplex Steel 2507 Fasteners Specifications | ASTM A479/ ASME SA479 |
| Super Duplex Steel UNS S32750/S32760 Fasteners size | Bolt / Screw Size : M3 - M56 | 3/6" to 2" | Custom Sizes Nuts Size : M3 - M56 | 3/6" to 2" | Custom Sizes Washers Size : M3 - M56 | 3/6" to 2" | Custom Sizes Machine Screws Size : M1.6 - M12 Self Tapping Screw Size : No.2 - No. 14 |
| Super Duplex Steel UNS S32750/S32760 Fasteners Length | 3 mm to 200 mm |
| Super Duplex Steel UNS S32750/S32760 Studs, Bolts, Threads | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard of Super Super Duplex Steel UNS S32750 / S32760 Fasteners | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard Super Duplex Steel 2507 Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Super Duplex Steel 2507 Hex nuts |
| Form of Super Duplex Steel UNS S32750/S32760 Fasteners | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Super Duplex Steel UNS S32750/S32760 Bolting | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Super Duplex Steel UNS S32750/S32760 Bolts | Six-Lobe,Phillips,Phillips/Slot, Slotted etc |
| Packing of SS Super Duplex Steel UNS S32750/S32760 Fasteners | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Super Super Duplex Steel UNS S32750 / S32760 Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Super Super Duplex Steel UNS S32750 / S32760 Fasteners finishing | Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Stainless Steel, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
Super Duplex Steel 2507 Fasteners Equivalent Grades
| Super Duplex | Common Name | Related Specifications | ||
|---|---|---|---|---|
| European DIN | UNS | ASTM/ASME | ||
| Super Duplex Steel | SAF 2507® | 1.4410 | S32750/S32760 | A479 / SA479 / F53 |
Chemical Composition of Super Duplex Steel 2507 Fasteners
| Grade | C | N | P | Si | Mn | Mo | Fe | Cr | S | Ni |
| S32750/S32760 | 1.0 | 0.03 | 0.02 | 2.0 | 3.0 – 3.5 | 22.0 – 23.0 | 0.03 | 4.5 – 6.5 | 0.14 – 0.2 | Bal |
Mechanical Properties of Super Super Duplex Steel UNS S32750 / S32760 Fasteners
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) | Hardness Rockwell C (HR C) |
| UNS S32750/S32760 | 795 | 550 | 15 | 32max |
Types of Super Super Duplex Steel UNS S32750 / S32760 Fasteners
Super Duplex Steel UNS S32750 / S32760 Stud Anchor

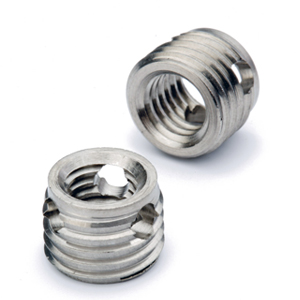

Super Duplex Steel UNS S32750 / S32760 Threaded Inserts

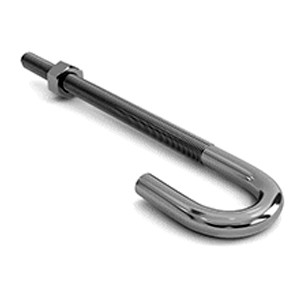

Super Duplex Steel UNS S32750 / S32760 J Bolts
Super Duplex Steel UNS S32750 / S32760 Nuts
Super Duplex Steel UNS S32750 / S32760 Bolts
Super Duplex Steel UNS S32750 / S32760 Washers
Super Duplex Steel UNS S32750 / S32760 Stud Bolts
Super Duplex Steel UNS S32750 / S32760 Screws
Super Duplex Steel UNS S32750 / S32760 Dowel Pins
Super Duplex Steel UNS S32750 / S32760 Threaded Hanger Bolt
Super Duplex Steel UNS S32750 / S32760 Hexagon Cap Screw
Super Duplex Steel UNS S32750 / S32760 Star Washers

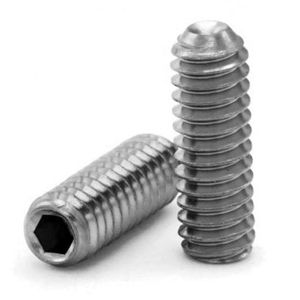

Super Duplex Steel UNS S32750 / S32760 Socket Set Screw

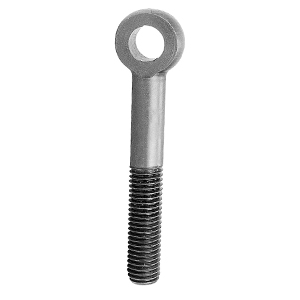

Super Duplex Steel UNS S32750 / S32760 Eye Bolts

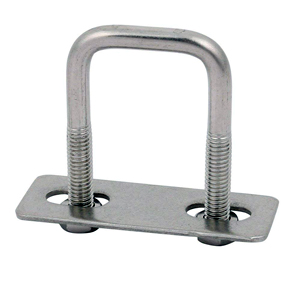

Super Duplex Steel UNS S32750 / S32760 Square U-Bolts

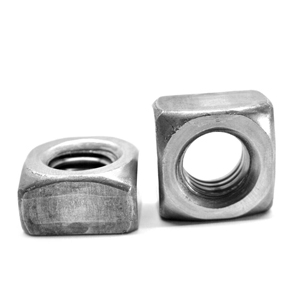

Super Duplex Steel UNS S32750 / S32760 Square Nuts

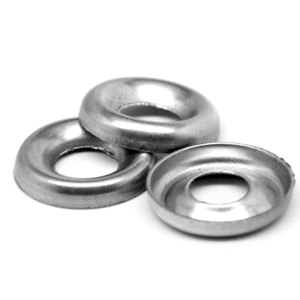

Super Duplex Steel UNS S32750 / S32760 Countersunk Washers

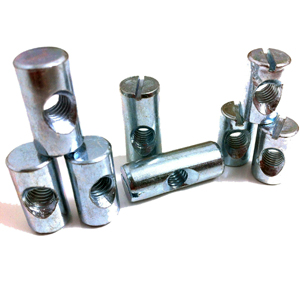

Super Duplex Steel UNS S32750 / S32760 Barrel Nuts
ASTM A193/A194 Super Super Duplex Steel UNS S32750 / S32760 Fasteners Forms & Availability
| Products | Size | |
|---|---|---|
| ASTM A479 / SA479 Super Duplex Steel UNS S32750/S32760 Stud Bolt | ASTM A479 / SA479Super Duplex Steel UNS S32750/S32760 Bolts | Sizes M3 - M56 | 3/6" to 2" |
| ASTM A479 / SA479 Super Duplex Steel UNS S32750/S32760 Punched Washer | ASTM A479 / SA479 Super Duplex Steel UNS S32750/S32760 Pan Head Screw | |
| ASTM A479 / SA479 Super Duplex Steel UNS S32750/S32760 Square Nut | ASTM A479 / SA479 Super Duplex Steel UNS S32750/S32760 Insert Nuts | |
| ASTM A479 / SA479 Super Duplex Steel UNS S32750/S32760 Welding Studs | ASTM A479 / SA479 Super Duplex Steel UNS S32750/S32760 Pan Head Screw | |
| ASTM A479 / SA479 Super Duplex Steel UNS S32750/S32760 Cap Screw | ASTM A479 / SA479 Super Duplex Steel UNS S32750/S32760 Foundation Bolts | |
| ASTM A479 / SA479 Super Duplex Steel UNS S32750/S32760 Threaded Rod | ASTM A479 / SA479 Super Duplex Steel UNS S32750/S32760 Hex Head Bolts | |
| ASTM A479 / SA479 Super Duplex Steel UNS S32750/S32760 Nuts | ASTM A479 / SA479 Super Duplex Steel UNS S32750/S32760 Washers | |
| ASTM A479 / SA479 Super Duplex Steel UNS S32750/S32760 Fender Washer | ASTM A479 / SA479 Super Duplex Steel UNS S32750/S32760 Lock Nut | |
| ASTM A479 / SA479 Super Duplex Steel UNS S32750/S32760 Countersunk Slotted Screw | ASTM A479 / SA479 Super Duplex Steel UNS S32750/S32760 Double Ended Stud | |
Super Super Duplex Steel UNS S32750 / S32760 Hex Bolt Dimensions
| Nominal Size (D) | Body Diameter | Head Thickness ASTM A193 | Acro ASTM A193 The Flats | Acro ASTM A193 Corners | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
SS 321 Nuts Dimensions
| Nominal Size or Basic Major Thread Diameter | F | G | H | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Width Across Flats | Width Across Corners | Thickness | |||||||
| Basic | Max | Min | Max | Min | Basic | Max | Min | ||
| 1/4 | .2500 | 1/2 | .500 | .488 | .577 | .556 | 15/64 | .250 | .218 |
| 5/16 | .3125 | 9/16 | .562 | .546 | .650 | .622 | 19/64 | .314 | .280 |
| 3/8 | .3750 | 11/16 | .688 | .669 | .794 | .763 | 23/64 | .377 | .341 |
| 7/16 | .4375 | 3/4 | .750 | .728 | .866 | .830 | 27/64 | .441 | .403 |
| 1/2 | .5000 | 7/8 | .875 | .850 | 1.010 | .969 | 31/64 | .504 | .464 |
| 9/16 | .5625 | 15/16 | .938 | .909 | 1.083 | 1.037 | 35/64 | .568 | .526 |
| 5/8 | .6250 | 1-1/16 | 1.062 | 1.031 | 1.227 | 1.175 | 39/64 | .631 | .587 |
| 3/4 | .7500 | 1-1/4 | 1.250 | 1.212 | 1.443 | 1.382 | 47/64 | .758 | .710 |
| 7/8 | .8750 | 1-7/16 | 1.438 | 1.394 | 1.660 | 1.589 | 55/64 | .885 | .833 |
| 1 | 1.0000 | 1-5/8 | 1.325 | 1.575 | 1.876 | 1.796 | 63/64 | 1.012 | .956 |
| 1-1/8 | 1.1250 | 1-13/16 | 1.812 | 1.756 | 2.093 | 2.002 | 1-7/64 | 1.139 | 1.079 |
| 1-1/4 | 1.2500 | 2 | 2.000 | 1.938 | 2.309 | 2.209 | 1-7/32 | 1.251 | 1.187 |
| 1-3/8 | 1.3750 | 2-3/16 | 2.188 | 2.119 | 2.526 | 2.416 | 1-11/32 | 1.378 | 1.460 |
| 1-1/2 | 1.5000 | 2-3/8 | 2.375 | 2.300 | 2.742 | 2.622 | 1-15/32 | 1.505 | 1.433 |
| 1-5/8 | 1.6250 | 2-9/16 | 2.562 | 2.481 | 2.959 | 2.828 | 1-19/32 | 1.632 | 1.556 |
| 1-3/4 | 1.7500 | 2-3/4 | 2.750 | 2.662 | 3.175 | 3.035 | 1-23/32 | 1.759 | 1.679 |
| 2 | 2.0000 | 3-1/8 | 3.125 | 3.025 | 3.608 | 3.449 | 1-31/32 | 2.013 | 1.925 |
| 2-1/4 | 2.2500 | 3-1/2 | 3.500 | 3.388 | 4.041 | 3.862 | 2-13/64 | 2.251 | 2.155 |
| 2-1/2 | 2.5000 | 3-7/8 | 3.875 | 3.750 | 4.474 | 4.275 | 2-29/64 | 2.505 | 2.401 |
| 2-3/4 | 2.7500 | 4-1/4 | 4.250 | 4.112 | 4.907 | 4.688 | 2-45/64 | 2.759 | 2.647 |
| 3 | 3.0000 | 4-5/8 | 4.625 | 4.475 | 5.340 | 5.102 | 2-61/64 | 3.013 | 2.893 |
| 3-1/4 | 3.2500 | 5 | 5.000 | 4.838 | 5.774 | 5.515 | 3-3/16 | 3.252 | 3.124 |
| 3-1/2 | 3.5000 | 5-3/8 | 5.375 | 5.200 | 6.207 | 5.928 | 3-7/16 | 3.506 | 3.370 |
| 3-3/4 | 3.7500 | 5-3/4 | 5.750 | 5.562 | 6.640 | 6.341 | 3-11/16 | 3.670 | 3.616 |
| 4 | 4.0000 | 6-1/8 | 6.125 | 5.925 | 7.073 | 6.755 | 3-15/16 | 4.014 | 3.862 |
ASTM / DIN Specification of Super Duplex Steel 2507 Fasteners
| ASTM A193 | ASTM A194 | ASTM F2281 |
| ASTM A193M | ASTM A194M | ASTM A962 |
| ASTM A320 | ASTM F593-13a | ASTM A962M |
| ASTM A320M | ASTM F594-15 | |
| DIN 580 | DIN 6914 | DIN 6921 |
| DIN 582 | DIN 3570 | DIN 603 |
| DIN 444 | DIN 7990 | DIN 2510 |
| DIN 939 | DIN 1B | DIN 976 |
| DIN 933 | DIN 529 | DIN 912 |
| DIN 931 | DIN 6325 |
Super Super Duplex Steel UNS S32750 / S32760 Fasteners Standard
| Hexagon Bolt / Set Screws | Stud Bolt | Hexagon Nuts | Socket Cap screws |
|---|---|---|---|
| DIN 931 | BS4882 | DIN 934 | DIN 912 |
| DIN 933 | DIN 976 | BS 1768 | DIN 6912 |
| BS 1768 | BS 1769 | DIN 7984 | |
| UNI 5731 | BS 1083 | ANSI B18.3 | |
| UNI 5739 | BS 3692 | ISO 4762 | |
| ISO 4014 | ISO 4032 | UNI 5931 | |
| ISO 4017 | ISO 4033 | BS 2470 | |
| BS 1769 | ANSI B18.2.2 | BS 4168 | |
| BS 3692 | |||
| ANSI B18.2.1 | |||
| Socket & Slotted Set Screws | Socket & Slotted Countersunk Screws | Studs | Washers |
| DIN 913 | DIN 963 | DIN 938 | DIN 125 |
| DIN 914 | DIN 7991 | DIN 939 | DIN 9021 |
| DIN 915 | BS 4168 | DIN 2510 | BS 4320 |
| DIN 916 | BS 1981 | BS 4439 | BS 3410 |
| DIN 551 | BS 483 | BS 2693 | |
| DIN 553 | BS 2470 | Spring Washers | |
| DIN 438 | DIN 127 | ||
| BS 4168 | BS 4464 | ||
| BS 1802 |
Super Super Duplex Steel UNS S32750 / S32760 Flat Washer Dimension Chart
| Size | Inside Diameter | Outside Diameter | Thickness |
|---|---|---|---|
| #2 | 3/32" | 1/4" | .020" |
| #4 | 1/8" | 5/16" | 1/32" |
| #8 | 3/16" | 7/16" | 3/64" |
| #10 | 7/32" | 1/2" | 3/64" |
| #6 | 5/32" | 3/8" | 3/64" |
| 1/4 | 9/32" | 5/8" | 1/16" |
| 3/8 | 13/32" | 13/16" | 1/16" |
| 7/16 | 15/32" | 59/64" | 1/16" |
| 1/2 | 17/32" | 1-1/16" | 3/32" |
| 9/16 | 19/32" | 1-3/16" | 3/32" |
| 5/16 | 11/32" | 11/16" | 1/16" |
| 1-3/4 | 1-7/8" | 4" | 3/16" |
| 5/8 | 21/32" | 1-5/16" | 3/32" |
| 3/4 | 13/16" | 1-1/2" | 9/64" |
| 7/8 | 15/16" | 1-3/4" | 9/64" |
| 1" | 1-1/16" | 2" | 9/64" |
| 1-1/8 | 1-3/16" | 2-1/4" | 9/64" |
| 1-1/4 | 1-5/16" | 2-1/2" | 5/32" |
| 1-1/2 | 1-7/16" | 3" | 3/16" |
| 1-5/8 | 1-3/4" | 3-3/4" | 3/16" |
| 2 | 2-1/8" | 4-1/2" | 3/16" |
Super Super Duplex Steel UNS S32750 / S32760 Plain Washer Dimension
| Size | Inside Diameter | Outside Diameter | Thickness |
|---|---|---|---|
| 3/16 | 1/4" | 9/16" | 3/64" |
| 1/4 | 5/16" | 3/4" | 1/16" |
| 3/8 | 7/16" | 1" | 5/64" |
| 7/16 | 1/2" | 1-1/4" | 5/64" |
| 1/2 | 9/16" | 1-3/8" | 7/64" |
| 9/16 | 5/8" | 1-1/2" | 7/64" |
| 5/8 | 11/16" | 1-3/4" | 9/64" |
| 3/4 | 13/16" | 2" | 5/32" |
| 5/16 | 3/8" | 7/8" | 5/64" |
| 7/8 | 15/16" | 2-1/4" | 1/64" |
| 1 | 1-1/16" | 2-1/2" | 11/64" |
| 1-1/8 | 1-1/4" | 2-3/4" | 11/64" |
| 1-1/4 | 1-3/8" | 3" | 11/64" |
| 1-3/8 | 1-1/2" | 3-1/4" | 3/16" |
| 1-5/8 | 1-3/4" | 3-3/4" | 3/16" |
| 1-3/4 | 1-7/8" | 4" | 3/16" |
| 2 | 2-1/8" | 4-1/2" | 3/16" |
| 2-1/2 | 2-5/8" | 4-1/2" | 3/16" |
| 3 | 3-1/8" | 5-1/2" | 9/32" |
| 1-1/2 | 1-5/8" | 3-1/2" | 3/16" |
Super Super Duplex Steel UNS S32750 / S32760 Washers Sizes
| Size | USS | SAE | ||||
|---|---|---|---|---|---|---|
| Inside Diameter (A) |
Outside Diameter (B) |
Thickness (C) |
Inside Diameter (A) |
Outside Diameter (B) |
Thickness (C) |
|
| #2 | - | - | - | 3/32" | 1/4" | 0.020" |
| #4 | - | - | - | 1/8" | 5/16" | 0.032" |
| #6 | - | - | - | 5/32" | 3/8" | 0.049" |
| #8 | - | - | - | 3/16" | 7/16" | 0.049" |
| #10 | - | - | - | 7/32" | 1/2" | 0.049" |
| #12 | - | - | - | 1/4" | 9/16" | 0.065" |
| 1/4" | 5/16" | 0.734" | 0.065" | 9/32" | 5/8" | 0.065" |
| 5/16" | 3/8" | 7/8" | 0.083" | 11/32" | 11/16" | 0.065" |
| 3/8" | 7/16" | 1" | 0.083" | 13/32" | 13/16" | 0.065" |
| 7/16" | 1/2" | 1-1/4" | 0.083" | 15/32" | 15/16" | 0.065" |
| 1/2" | 9/16" | 1-3/8" | 0.109" | 17/32" | 1-1/16" | 0.095" |
| 9/16" | 5/8" | 1-15/32" | 0.109" | 19/32" | 1-5/32" | 0.095" |
| 5/8" | 11/16" | 1-3/4" | 0.134" | 21/32" | 1-5/16" | 0.095" |
| 3/4" | 13/16" | 2" | 0.148" | 13/16" | 1-15/32" | 0.134" |
| 7/8" | 15/16" | 2-1/4" | 0.165" | 15/16" | 1-3/4" | 0.134" |
| 1" | 1-1/16" | 2-1/2" | 0.165" | 1-1/16" | 2" | 0.134" |
| 1-1/8" | 1-1/4" | 2-3/4" | 0.165" | - | - | - |
| 1-1/4" | 1-3/8" | 3" | 0.165" | - | - | - |
| 1-3/8" | 1-1/2" | 3-1/4" | 0.180" | - | - | - |
| 1-1/2" | 1-5/8" | 3-1/2" | 0.180" | - | - | - |
| 1-5/8" | 1-3/4" | 3-3/4" | 0.180" | - | - | - |
| 1-3/4" | 1-7/8" | 4" | 0.180" | - | - | - |
| 2" | 2-1/8" | 4-1/2" | 0.213" | - | - | - |

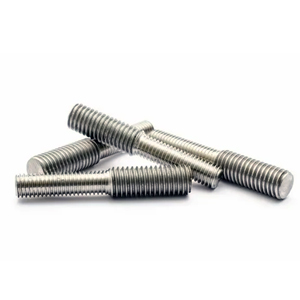

Super Super Duplex Steel UNS S32750 / S32760 Stud Bolt Size Chart
| Class 150 Flanges ASME B16.5 (Stud bolt sizes) | Length of Stud Bolts | |||||||
|---|---|---|---|---|---|---|---|---|
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in |
Ring Joint | |
| 1/2 | 3 1/2 | 2 3/8 | 5/8 | 4 | 1/2 | 2 1/4 | – | |
| 3/4 | 3 7/8 | 2 3/4 | 5/8 | 4 | 1/2 | 2 1/2 | – | |
| 1 | 4 1/4 | 3 1/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 1 1/4 | 4 5/8 | 3 1/2 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 1 1/2 | 5 | 3 7/8 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 2 | 6 | 4 3/4 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 2 1/2 | 7 | 5 1/2 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 | 7 1/2 | 6 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 1/2 | 8 1/2 | 7 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 4 | 9 | 7 1/2 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 5 | 10 | 8 1/2 | 7/8 | 8 | 3/4 | 3 3/4 | 4 1/4 | |
| 6 | 11 | 9 1/2 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 8 | 13 1/2 | 11 3/4 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 10 | 16 | 14 3/4 | 1 | 12 | 7/8 | 4 1/2 | 5 | |
| 12 | 19 | 17 | 1 | 12 | 7/8 | 4 3/4 | 5 1/4 | |
| 14 | 21 | 18 3/4 | 1 1/8 | 12 | 1 | 5 1/4 | 5 3/4 | |
| 16 | 23 1/2 | 21 1/4 | 1 1/8 | 16 | 1 | 5 1/4 | 5 3/4 | |
| 18 | 25 | 22 3/4 | 1 1/4 | 16 | 1 1/8 | 5 3/4 | 6 1/4 | |
| 20 | 27 1/2 | 25 | 1 1/4 | 20 | 1 1/8 | 6 1/4 | 6 3/4 | |
| 24 | 32 | 29 1/2 | 1 1/4 | 20 | 1 1/4 | 6 3/4 | 7 1/4 | |
| Class 300 Flanges ASME B16.5 | Length of Stud Bolts | |||||||
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in |
Ring Joint | |
| 1/2 | 3 3/4 | 2 5/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 3/4 | 4 5/8 | 3 1/4 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 | 4 7/8 | 3 1/2 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 1/4 | 5 1/4 | 3 7/8 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 1 1/2 | 6 1/8 | 4 1/2 | 7/8 | 4 | 3/4 | 3 1/2 | 4 | |
| 2 | 6 1/2 | 5 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 2 1/2 | 7 1/2 | 5 7/8 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 3 | 8 1/4 | 6 5/8 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 3 1/2 | 9 | 7 1/4 | 7/8 | 8 | 3/4 | 4 1/4 | 5 | |
| 4 | 10 | 7 7/8 | 7/8 | 8 | 3/4 | 4 1/2 | 5 | |
| 5 | 11 | 9 1/4 | 7/8 | 8 | 3/4 | 4 3/4 | 5 1/4 | |
| 6 | 12 1/2 | 10 5/8 | 7/8 | 12 | 3/4 | 4 3/4 | 5 1/2 | |
| 8 | 15 | 13 | 1 | 12 | 7/8 | 5 1/2 | 6 | |
| 10 | 17 1/2 | 15 1/4 | 1 1/8 | 16 | 1 | 6 1/4 | 6 3/4 | |
| 12 | 20 1/2 | 17 3/4 | 1 1/4 | 16 | 1 1/8 | 6 3/4 | 7 1/4 | |
| 14 | 23 | 20 1/4 | 1 1/4 | 20 | 1 1/8 | 7 | 7 1/2 | |
| 16 | 25 1/2 | 22 1/2 | 1 3/8 | 20 | 1 1/4 | 7 1/2 | 8 | |
| 18 | 28 | 24 3/4 | 1 3/8 | 24 | 1 1/4 | 7 3/4 | 8 1/4 | |
| 20 | 30 1/2 | 27 | 1 3/8 | 24 | 1 1/4 | 8 | 8 3/4 | |
| 24 | 36 | 32 | 1 5/8 | 24 | 1 1/2 | 9 | 10 | |
ANSI and/or ASME Standards Super Duplex Steel 2507 Fasteners (inch series)
| ASME B18.1.1 | Small Solid Rivets | ASME B18.8.1 | Clevis Pins and Cotter Pins |
|---|---|---|---|
| ASME B18.1.2 | Large Rivets | ASME B18.8.2 | Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins |
| ASME B18.2.1 | Square and Hex Bolts and Screws | ASME B18.9 | Plow Bolts |
| ASME B18.2.2 | Square and Hex Nuts | ASME B18.10 | Track Bolts and Nuts |
| ASME B18.2.6 | Fasteners for use in Structural Applications | ASME B18.11 | Miniature Screws |
| ASME B18.3 | Socket Cap, Shoulder and Set Screws | ASME B18.13 | Screws and Washer Assemblies (Sems) |
| ASME B18.5 | Round Head Bolts | ASME B18.15 | Forged Eyebolts |
| ASME B18.6.2 | Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws | ASME B18.17 | Wing Nuts, Thumb Screws and Wing Screws |
| ASME B18.6.3 | Machine Screws and Machine Screws Nuts | ASME B18.21.1 | Lock Washers |
| ASME B18.6.4 | Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws | ASME B18.22.1 | Plain Washers |
| ASME B18.7 | General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps | ASME B18.23.1 | Beveled Washers |
