Nickel Alloy 200 Fasteners, UNS N02200 Fasteners, Nickel 200 Drywall Screws, Nickel Alloy 200 Custom Nuts Manufacturer,Suppliers

Nickel 200 Fasteners

Nickel 200 Fasteners, Ni-200 Foundation Bolts, Nickel UNS N02200 Threaded Stud, Nickel Alloy 200 Structural Bolts Supplier & Exporter in India.

Ranfit Metal & Alloys is a known trader and manufacturer of Nickel Alloy 200 Fasteners, which features good ductility and thermal conductivity. Nickel 200 Fasteners can be used in temperatures up to 1000 degree F, as its melting point is 2370 degree F – 2460 degree F. Nickel 200 Fasteners is also resistant to stress corrosion cracking and pitting in most fresh and industrial waters. Forging of Nickel 200 Nuts may be carried out between 2150 Degree F (1175 Degree C) and 1200 Degree F (650 Degree C). In such environments, high chromium alloys like Nickel 201 Bolts should be considered. Nickel 200 Stud Bolts works in a range of alkaline and acidic environments. Nickel 200 Round Bars is often used to handle sulfuric acid up to 80 percent concentration at room temperature and up to 15 percent sulfuric acid at boiling temperatures. Nickel 200 Bars is used in components for the manufacture of salt production and chlorinated solvents. Nickel 200 Rods is often used in pumps, valves, marine fixtures, and piping systems for sea water applications.

Nickel UNS N02200 Fasteners is commonly used in applications with highly corrosive conditions. Nickel Werkstoff nr. 2.4066 Fasteners is also used in boiler feedwater heaters, process vessels and piping, and other heat exchangers. Alloy 200 Fasteners has corrosion resistance in an extensive range of marine and chemical environments. With the lower temperatures, Alloy 200 Fasteners produces higher mechanical properties and smaller grain size.

Alloy 200 Nut, Nickel Alloy 200 Hex Head Nut, Nickel 200 Hex Cap Screws, Nickel DIN 2.4066 Threaded Stud Manufacturer in India.

Nickel 200 Fasteners Specification

Grade	Nickel 200 (UNS N02200)
Nickel Alloy 200 Fasteners Specifications	ASTM F593, F594, F1554 / ASME SF593, F594, F1554
Nickel Alloy 200 Fasteners size	Bolt / Screw Size : M3 - M56 \| 3/6" to 2" \| Custom Sizes Nuts Size : M3 - M56 \| 3/6" to 2" \| Custom Sizes Washers Size : M3 - M56 \| 3/6" to 2" \| Custom Sizes Machine Screws Size : M1.6 - M12 Self Tapping Screw Size : No.2 - No. 14
Nickel Alloy 200 Fasteners Length	3 mm to 200 mm
Nickel Alloy 200 Studs, Bolts, Threads	UNF, BSW, BSF, METRIC, UNC, or as required
Standard of Nickel 200 Fasteners	DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard Nickel Alloy 200 Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Nickel Alloy 200 Hex nuts
Form of Nickel Alloy 200 Fasteners	Hex, Threading, Square, Round as per Gauge Etc.
Raw materials Source	JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc.
Threads Configuration	ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Certification	Dual Certified As per ASTM & ASME Codes
Dimensions	DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3
Threads	Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically
Test Certificate of Nickel Alloy 200 Bolting	as per EN 10204 / 3.1 Manufacturer Test Certificate
Additional Certifications	PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Production process	M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC
Head drive of Nickel Alloy 200 Bolts	Six-Lobe,Phillips,Phillips/Slot, Slotted etc
Packing of Nickel Alloy 200 Fasteners	IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Surface Coating	Ptfe Coated Nickel Alloy 200 Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating
Nickel Alloy 200 Fasteners finishing	Nickel Alloy 200 : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Nickel, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide,

Nickel 200 Fasteners Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Nickel 200	2.4066	N02200	NW 2200	NA 11	НП-2	N-100M	Ni 99.2

Chemical Composition of Nickel 200 Fasteners

Grade	C	Mn	Si	S	Cu	Fe	Ni
Nickel 200	0.15 max	0.35 max	0.35 max	0.01 max	0.25 max	0.40 max	99.0 min

Mechanical Properties of Nickel 200 Fasteners

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Nickel 200	8.9 g/cm3	1446 °C (2635 °F)	Psi – 67000 , MPa – 462	Psi – 21500 , MPa – 148	45 %

Types of Nickel 200 Fasteners

Nickel 200 Screws

Nickel 200 Dowel Pins

Nickel 200 Threaded Hanger Bolt

Nickel 200 Hexagon Cap Screw

Nickel 200 Nuts

Nickel 200 Bolts

Nickel 200 Washers

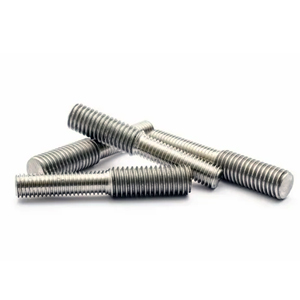

Nickel 200 Stud Bolts

Nickel 200 Star Washers

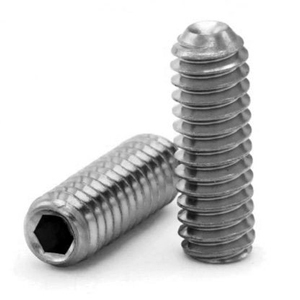

Nickel 200 Socket Set Screw

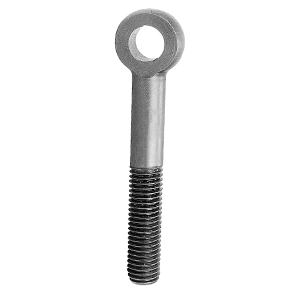

Nickel 200 Eye Bolts

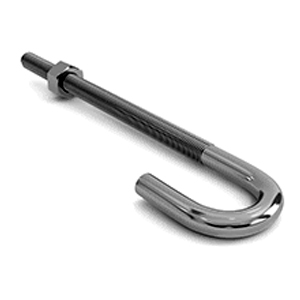

Nickel 200 J Bolts

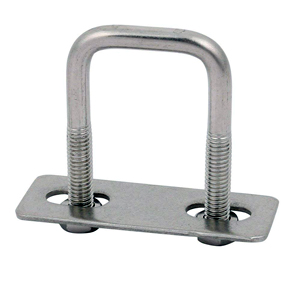

Nickel 200 Square U-Bolts

Nickel 200 Stud Anchor

Nickel 200 Threaded Inserts

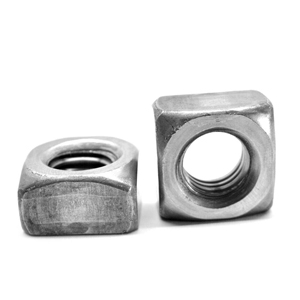

Nickel 200 Square Nuts

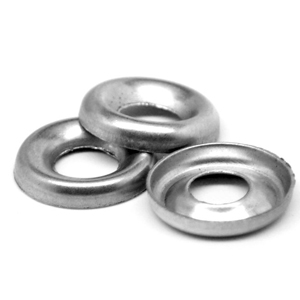

Nickel 200 Countersunk Washers

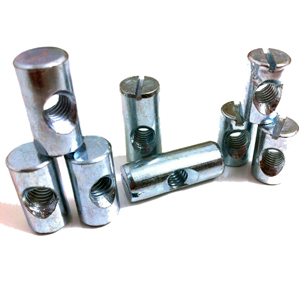

Nickel 200 Barrel Nuts

ASTM B160 / Nickel 200 Fasteners Forms & Availability

Products		Size
ASTM A160 / A164 200 Alloy Stud Bolt	ASTM A160 / A164 200 Alloy Bolts	Sizes M3 - M56 \| 3/6" to 2"
ASTM A160 / A164 200 Alloy Punched Washer	ASTM A160 / A164 200 Nickel Pan Head Screw
ASTM A160 / A164 200 Nickel Square Nut	ASTM A160 / A164 200 Alloy Insert Nuts
ASTM A160 / A164 200 Alloy Welding Studs	ASTM A160 / A164 200 Alloy Pan Head Screw
ASTM A160 / A164 200 Nickel® Alloy Cap Screw	ASTM A160 / A164 200 Nickel Foundation Bolts
ASTM A160 / A164 200 Alloy Threaded Rod	ASTM A160 / A164 200 Nickel Hex Head Bolts
ASTM A160 / A164 200 Nickel Nuts	ASTM A160 / A164 200 Nickel Washers
ASTM A160 / A164 200 Alloy Fender Washer	ASTM A160 / A164 200 Alloy Lock Nut
ASTM A160 / A164 200 Alloy Countersunk Slotted Screw	ASTM A160 / A164 200 Alloy Double Ended Stud

Nickel 200 Hex Bolt Dimensions

Nominal Size (D)	Body Diameter		Head Thickness ASTM B166		Acro ASTM B166 The Flats		Acro ASTM B166 Corners
	D (MAX)	D (MIN)	H (MAX)	H (MIN)	F (MAX)	F (MIN)	C (MAX)	C (MIN)
m10	10.00	9.78	6.63	6.17	17.00	15.73	18.48	17.77
m12	12.00	11.73	7.76	4.24	19.00	17.73	20.78	20.03
m14	14.00	13.73	9.09	8.51	22.00	20.67	24.25	23.35
m16	16.00	15.73	10.32	9.68	24.00	23.67	27.71	26.75
m20	20.00	19.67	12.88	12.12	30.00	29.16	34.64	32.95
m24	24.00	23.67	15.44	14.56	36.00	35.00	41.57	39.55
m30	30.00	29.67	19.48	17.92	46.00	45.00	53.12	50.85
m36	36.00	35.61	23.38	21.63	55.00	53.80	63.51	60.79
m42	42.00	41.38	26.97	25.03	65.00	62.90	75.06	71.71
m48	48.00	47.38	31.07	28.93	75.00	72.60	86.60	82.76
m56	56.00	55.26	36.2	33.80	85.00	82.20	98.15	93.71
m64	64.00	63.26	41.32	38.68	95.00	91.80	109.70	104.65
m72	72.00	71.26	46.45	43.55	105.00	101.40	121.24	115.60
m80	80.00	79.26	51.58	48.42	115.00	111.00	132.72	126.54
m90	90.00	89.13	57.74	54.26	130.00	125.50	150.11	143.07
m100	90.00	99.13	63.9	60.10	145.00	140.00	167.43	159.60

Nickel 200 Bolts Weight Chart

MM THREADS AS PER IS 1363/67
APPROXIMATE WEIGHT IN KGS FOR 100 NOS
LENGTH	DIAMETER
LENGTH	M 5	M 6	M 8	M 10	M 12	M 14	M 16	M 18	M 20	M 22
16 mm	0.448	0.743	1.590	3.211
20 mm	0.598	0.812	1.711	3.411	4.892
25 mm	0.660	0.897	1.871	3.660	5.252	8.170
30 mm	0.737	1.010	2.070	3.912	5.574	9.690	10.707		18.657
35 mm	0.804	1.120	2.271	4.223	5.974	10.000	11.416	16.026	19.608
40 mm	0.881	1.230	2.470	4.533	6.410	10.288	12.107	16.667	20.747
45 mm	0.958	1.340	2.671	4.840	6.859	10.504	12.821	17.241	21.739
50 mm	1.030	1.450	2.870	5.155	7.299	11.261	13.624	17.857	22.727	28.409
55 mm		1.560	3.071	5.464	7.740	11.628	14.409	18.868	23.810	30.120
60 mm		1.670	3.270	5.774	8.183	12.255	15.244	20.000	25.126	32.051
65 mm		1.781	3.472	6.083	8.621	12.626	16.026	21.008	26.455	34.014
70 mm		1.890	3.671	6.394	9.058	12.987	16.835	22.124	27.778	35.461
75 mm		2.000	3.873	6.702	9.506	13.228	17.606	23.256	29.070	39.063
80 mm		2.111	4.072	7.013	10.000	13.889	18.248	24.510	30.303	40.000
90 mm			4.472	7.634	10.917	14.925	19.841	26.042	33.113	41.667
100 mm			4.873	8.251	11.820	16.340	21.459	27.778	35.714	46.296
110 mm				8.881	12.723	17.730	23.041	31.250	38.168	47.170
120 mm				9.506	13.624	18.797	24.631	32.895	40.984	50.000
130 mm				10.101	14.535	20.000	26.316	34.722	43.478	52.632
140 mm				10.707	15.432	20.833	27.933	35.461	46.296	55.556
150 mm				11.312	16.340	22.222	29.412	37.594	48.544	58.824
160 mm				11.905	17.241	24.272	31.056	40.984	50.505	61.728
170 mm				12.500	18.116		32.680		53.191	64.935
180 mm				13.123	19.011	26.882	34.247		55.556	67.568
190 mm				13.736	19.920		35.971		58.140	70.423
200 mm				14.327	20.833	29.586	37.594	49.020	60.976	73.529
220 mm				15.528	22.624		40.650		65.789	79.365
240 mm				16.722	24.510		43.860		71.429	84.746
250 mm				17.301	25.381		45.455		74.627	87.719
260 mm				17.921	26.316		47.170		76.923	90.909
280 mm				19.157	28.090		50.505		81.967	98.039
300 mm				20.325	29.940		53.763		87.719	104.167
320 mm					31.646		56.818		92.593
340 mm					33.557		60.241		98.039
360 mm					35.211		63.291		104.167
380 mm					37.037		66.667		108.696
400 mm					39.063		69.444		113.636

Nickel 200 Nuts Dimensions

Nominal Size or Basic Major Thread Diameter		F			G		H
		Width Across Flats			Width Across Corners		Thickness
		Basic	Max	Min	Max	Min	Basic	Max	Min
1/4	.2500	1/2	.500	.488	.577	.556	15/64	.250	.218
5/16	.3125	9/16	.562	.546	.650	.622	19/64	.314	.280
3/8	.3750	11/16	.688	.669	.794	.763	23/64	.377	.341
7/16	.4375	3/4	.750	.728	.866	.830	27/64	.441	.403
1/2	.5000	7/8	.875	.850	1.010	.969	31/64	.504	.464
9/16	.5625	15/16	.938	.909	1.083	1.037	35/64	.568	.526
5/8	.6250	1-1/16	1.062	1.031	1.227	1.175	39/64	.631	.587
3/4	.7500	1-1/4	1.250	1.212	1.443	1.382	47/64	.758	.710
7/8	.8750	1-7/16	1.438	1.394	1.660	1.589	55/64	.885	.833
1	1.0000	1-5/8	1.325	1.575	1.876	1.796	63/64	1.012	.956
1-1/8	1.1250	1-13/16	1.812	1.756	2.093	2.002	1-7/64	1.139	1.079
1-1/4	1.2500	2	2.000	1.938	2.309	2.209	1-7/32	1.251	1.187
1-3/8	1.3750	2-3/16	2.188	2.119	2.526	2.416	1-11/32	1.378	1.460
1-1/2	1.5000	2-3/8	2.375	2.300	2.742	2.622	1-15/32	1.505	1.433
1-5/8	1.6250	2-9/16	2.562	2.481	2.959	2.828	1-19/32	1.632	1.556
1-3/4	1.7500	2-3/4	2.750	2.662	3.175	3.035	1-23/32	1.759	1.679
2	2.0000	3-1/8	3.125	3.025	3.608	3.449	1-31/32	2.013	1.925
2-1/4	2.2500	3-1/2	3.500	3.388	4.041	3.862	2-13/64	2.251	2.155
2-1/2	2.5000	3-7/8	3.875	3.750	4.474	4.275	2-29/64	2.505	2.401
2-3/4	2.7500	4-1/4	4.250	4.112	4.907	4.688	2-45/64	2.759	2.647
3	3.0000	4-5/8	4.625	4.475	5.340	5.102	2-61/64	3.013	2.893
3-1/4	3.2500	5	5.000	4.838	5.774	5.515	3-3/16	3.252	3.124
3-1/2	3.5000	5-3/8	5.375	5.200	6.207	5.928	3-7/16	3.506	3.370
3-3/4	3.7500	5-3/4	5.750	5.562	6.640	6.341	3-11/16	3.670	3.616
4	4.0000	6-1/8	6.125	5.925	7.073	6.755	3-15/16	4.014	3.862

ASTM / DIN Specification of Nickel Fasteners

ASTM A160	ASTM A164	ASTM F2281
ASTM A160M	ASTM A164M	ASTM A962
ASTM A320	ASTM F593-13a	ASTM A962M
ASTM A320M	ASTM F594-15
DIN 580	DIN 6914	DIN 6921
DIN 582	DIN 3570	DIN 603
DIN 444	DIN 7990	DIN 2510
DIN 939	DIN 1B	DIN 976
DIN 933	DIN 529	DIN 912
DIN 931	DIN 6325

Nickel 200 Fasteners Standard

Hexagon Bolt / Set Screws	Stud Bolt	Hexagon Nuts	Socket Cap screws
DIN 931	BS4882	DIN 934	DIN 912
DIN 933	DIN 976	BS 1768	DIN 6912
BS 1768		BS 1769	DIN 7984
UNI 5731		BS 1083	ANSI B18.3
UNI 5739		BS 3692	ISO 4762
ISO 4014		ISO 4032	UNI 5931
ISO 4017		ISO 4033	BS 2470
BS 1769		ANSI B18.2.2	BS 4168
BS 3692
ANSI B18.2.1
Socket & Slotted Set Screws	Socket & Slotted Countersunk Screws	Studs	Washers
DIN 913	DIN 963	DIN 938	DIN 125
DIN 914	DIN 7991	DIN 939	DIN 9021
DIN 915	BS 4168	DIN 2510	BS 4320
DIN 916	BS 1981	BS 4439	BS 3410
DIN 551	BS 483	BS 2693
DIN 553	BS 2470		Spring Washers
DIN 438			DIN 127
BS 4168			BS 4464
			BS 1802

Nickel 200 Flat Washer Dimension Chart

Size	Inside Diameter	Outside Diameter	Thickness
#2	3/32"	1/4"	.020"
#4	1/8"	5/16"	1/32"
#8	3/16"	7/16"	3/64"
#10	7/32"	1/2"	3/64"
#6	5/32"	3/8"	3/64"
1/4	9/32"	5/8"	1/16"
3/8	13/32"	13/16"	1/16"
7/16	15/32"	59/64"	1/16"
1/2	17/32"	1-1/16"	3/32"
9/16	19/32"	1-3/16"	3/32"
5/16	11/32"	11/16"	1/16"
1-3/4	1-7/8"	4"	3/16"
5/8	21/32"	1-5/16"	3/32"
3/4	13/16"	1-1/2"	9/64"
7/8	15/16"	1-3/4"	9/64"
1"	1-1/16"	2"	9/64"
1-1/8	1-3/16"	2-1/4"	9/64"
1-1/4	1-5/16"	2-1/2"	5/32"
1-1/2	1-7/16"	3"	3/16"
1-5/8	1-3/4"	3-3/4"	3/16"
2	2-1/8"	4-1/2"	3/16"

Nickel 200 Plain Washer Dimension

Size	Inside Diameter	Outside Diameter	Thickness
3/16	1/4"	9/16"	3/64"
1/4	5/16"	3/4"	1/16"
3/8	7/16"	1"	5/64"
7/16	1/2"	1-1/4"	5/64"
1/2	9/16"	1-3/8"	7/64"
9/16	5/8"	1-1/2"	7/64"
5/8	11/16"	1-3/4"	9/64"
3/4	13/16"	2"	5/32"
5/16	3/8"	7/8"	5/64"
7/8	15/16"	2-1/4"	1/64"
1	1-1/16"	2-1/2"	11/64"
1-1/8	1-1/4"	2-3/4"	11/64"
1-1/4	1-3/8"	3"	11/64"
1-3/8	1-1/2"	3-1/4"	3/16"
1-5/8	1-3/4"	3-3/4"	3/16"
1-3/4	1-7/8"	4"	3/16"
2	2-1/8"	4-1/2"	3/16"
2-1/2	2-5/8"	4-1/2"	3/16"
3	3-1/8"	5-1/2"	9/32"
1-1/2	1-5/8"	3-1/2"	3/16"

Nickel 200 Washers Sizes

Size	USS			SAE
Size	Inside Diameter (A)	Outside Diameter (B)	Thickness (C)	Inside Diameter (A)	Outside Diameter (B)	Thickness (C)

#2	-	-	-	3/32"	1/4"	0.020"
#4	-	-	-	1/8"	5/16"	0.032"
#6	-	-	-	5/32"	3/8"	0.049"
#8	-	-	-	3/16"	7/16"	0.049"
#10	-	-	-	7/32"	1/2"	0.049"
#12	-	-	-	1/4"	9/16"	0.065"
1/4"	5/16"	0.734"	0.065"	9/32"	5/8"	0.065"
5/16"	3/8"	7/8"	0.083"	11/32"	11/16"	0.065"
3/8"	7/16"	1"	0.083"	13/32"	13/16"	0.065"
7/16"	1/2"	1-1/4"	0.083"	15/32"	15/16"	0.065"
1/2"	9/16"	1-3/8"	0.109"	17/32"	1-1/16"	0.095"
9/16"	5/8"	1-15/32"	0.109"	19/32"	1-5/32"	0.095"
5/8"	11/16"	1-3/4"	0.134"	21/32"	1-5/16"	0.095"
3/4"	13/16"	2"	0.148"	13/16"	1-15/32"	0.134"
7/8"	15/16"	2-1/4"	0.165"	15/16"	1-3/4"	0.134"
1"	1-1/16"	2-1/2"	0.165"	1-1/16"	2"	0.134"
1-1/8"	1-1/4"	2-3/4"	0.165"	-	-	-
1-1/4"	1-3/8"	3"	0.165"	-	-	-
1-3/8"	1-1/2"	3-1/4"	0.180"	-	-	-
1-1/2"	1-5/8"	3-1/2"	0.180"	-	-	-
1-5/8"	1-3/4"	3-3/4"	0.180"	-	-	-
1-3/4"	1-7/8"	4"	0.180"	-	-	-
2"	2-1/8"	4-1/2"	0.213"	-	-	-

Nickel 200 Stud Bolt Size Chart

Class 150 Flanges ASME B16.5 (Stud bolt sizes)						Length of Stud Bolts
NPS	Outside Diameter of Flange	The diameter of Bolt Circle	The diameter of Bolt Holes	Number of Bolts	Diameter of Bolts	Raised Face 0.06 in	Ring Joint
1/2	3 1/2	2 3/8	5/8	4	1/2	2 1/4	–
3/4	3 7/8	2 3/4	5/8	4	1/2	2 1/2	–
1	4 1/4	3 1/8	5/8	4	1/2	2 1/2	3
1 1/4	4 5/8	3 1/2	5/8	4	1/2	2 3/4	3 1/4
1 1/2	5	3 7/8	5/8	4	1/2	2 3/4	3 1/4
2	6	4 3/4	3/4	4	5/8	3 1/4	3 3/4
2 1/2	7	5 1/2	3/4	4	5/8	3 1/2	4
3	7 1/2	6	3/4	4	5/8	3 1/2	4
3 1/2	8 1/2	7	3/4	8	5/8	3 1/2	4
4	9	7 1/2	3/4	8	5/8	3 1/2	4
5	10	8 1/2	7/8	8	3/4	3 3/4	4 1/4
6	11	9 1/2	7/8	8	3/4	4	4 1/2
8	13 1/2	11 3/4	7/8	8	3/4	4 1/4	4 3/4
10	16	14 3/4	1	12	7/8	4 1/2	5
12	19	17	1	12	7/8	4 3/4	5 1/4
14	21	18 3/4	1 1/8	12	1	5 1/4	5 3/4
16	23 1/2	21 1/4	1 1/8	16	1	5 1/4	5 3/4
18	25	22 3/4	1 1/4	16	1 1/8	5 3/4	6 1/4
20	27 1/2	25	1 1/4	20	1 1/8	6 1/4	6 3/4
24	32	29 1/2	1 1/4	20	1 1/4	6 3/4	7 1/4
Class 300 Flanges ASME B16.5						Length of Stud Bolts
NPS	Outside Diameter of Flange	The diameter of Bolt Circle	The diameter of Bolt Holes	Number of Bolts	Diameter of Bolts	Raised Face 0.06 in	Ring Joint
1/2	3 3/4	2 5/8	5/8	4	1/2	2 1/2	3
3/4	4 5/8	3 1/4	3/4	4	5/8	3	3 1/2
1	4 7/8	3 1/2	3/4	4	5/8	3	3 1/2
1 1/4	5 1/4	3 7/8	3/4	4	5/8	3 1/4	3 3/4
1 1/2	6 1/8	4 1/2	7/8	4	3/4	3 1/2	4
2	6 1/2	5	3/4	8	5/8	3 1/2	4
2 1/2	7 1/2	5 7/8	7/8	8	3/4	4	4 1/2
3	8 1/4	6 5/8	7/8	8	3/4	4 1/4	4 3/4
3 1/2	9	7 1/4	7/8	8	3/4	4 1/4	5
4	10	7 7/8	7/8	8	3/4	4 1/2	5
5	11	9 1/4	7/8	8	3/4	4 3/4	5 1/4
6	12 1/2	10 5/8	7/8	12	3/4	4 3/4	5 1/2
8	15	13	1	12	7/8	5 1/2	6
10	17 1/2	15 1/4	1 1/8	16	1	6 1/4	6 3/4
12	20 1/2	17 3/4	1 1/4	16	1 1/8	6 3/4	7 1/4
14	23	20 1/4	1 1/4	20	1 1/8	7	7 1/2
16	25 1/2	22 1/2	1 3/8	20	1 1/4	7 1/2	8
18	28	24 3/4	1 3/8	24	1 1/4	7 3/4	8 1/4
20	30 1/2	27	1 3/8	24	1 1/4	8	8 3/4
24	36	32	1 5/8	24	1 1/2	9	10

Nickel 200 Stud Bolt Torque Chart

Flange Size	B16.5 Class 150 RF/ Ring Gaskets					B16.5 Class 150 FF/ Full Face Gaskets
	Torque / Round (ft-lbs)			Stud Bolts Tighten Sequence		Torque / Round (ft-lbs)			Stud Bolts Tighten Sequence
	1st	2nd	Final	Dwg/No.	Bolt Size	1st	2nd	Final	*Dwg/No.**	Bolt Size
1/2″	10	20	30	4-bolt	1/2″	20	40	60	4-bolt	1/2″
3/4″	13	27	40	4-bolt	1/2″	20	40	60	4-bolt	1/2″
1″	15	30	50	4-bolt	1/2″	20	40	60	4-bolt	1/2″
1-1/4″	20	40	60	4-bolt	1/2″	20	40	60	4-bolt	1/2″
1-1/2″	20	40	60	4-bolt	1/2″	20	40	60	4-bolt	1/2″
2″	40	80	120	4-bolt	5/8″	40	80	120	4-bolt	5/8″
2-1/2″	40	80	120	4-bolt	5/8″	40	80	120	4-bolt	5/8″
3″	40	80	120	4-bolt	5/8″	40	80	120	4-bolt	5/8″
3-1/2″	40	80	120	8-bolt	5/8″	40	80	120	8-bolt	5/8″
4″	40	80	120	8-bolt	5/8″	40	80	120	8-bolt	5/8″
5″	60	120	200	8-bolt	3/4″	60	120	200	8-bolt	3/4″
6″	60	120	200	8-bolt	3/4″	60	120	200	8-bolt	3/4″
8″	60	120	200	8-bolt	3/4″	60	120	200	8-bolt	3/4″
10″	95	190	320	12-bolt	7/8″	95	190	320	12-bolt	7/8″
12″	95	190	320	12-bolt	7/8″	95	190	320	12-bolt	7/8″
14″	147	294	490	12-bolt	1″	147	294	490	12-bolt	1″
16″	147	294	490	16-bolt	1″	147	294	490	16-bolt	1″
18″	213	426	710	16-bolt	1-1/8″	213	426	710	16-bolt	1-1/8″
20″	213	426	710	20-bolt	1-1/8″	213	426	710	20-bolt	1-1/8″
24″	300		1,000	20-bolt	1-1/4″	300		1,000	20-bolt	1-1/4″

ANSI and/or ASME Standards Nickel Fasteners(inch series)

ASME B18.1.1	Small Solid Rivets	ASME B18.8.1	Clevis Pins and Cotter Pins
ASME B18.1.2	Large Rivets	ASME B18.8.2	Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins
ASME B18.2.1	Square and Hex Bolts and Screws	ASME B18.9	Plow Bolts
ASME B18.2.2	Square and Hex Nuts	ASME B18.10	Track Bolts and Nuts
ASME B18.2.6	Fasteners for use in Structural Applications	ASME B18.11	Miniature Screws
ASME B18.3	Socket Cap, Shoulder and Set Screws	ASME B18.13	Screws and Washer Assemblies (Sems)
ASME B18.5	Round Head Bolts	ASME B18.15	Forged Eyebolts
ASME B18.6.2	Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws	ASME B18.17	Wing Nuts, Thumb Screws and Wing Screws
ASME B18.6.3	Machine Screws and Machine Screws Nuts	ASME B18.21.1	Lock Washers
ASME B18.6.4	Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws	ASME B18.22.1	Plain Washers
ASME B18.7	General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps	ASME B18.23.1	Beveled Washers

Other Types of Nickel 200 Fasteners

Nickel DIN 2.4066 Nuts	Nickel GOST НП-2 Bolts
Alloy 200 Hex Head Bolt	Nickel UNS N02200 Socket Cap Screw
ANSI B18.2 Nickel Alloy 200 Carriage Bolt	200 Nickel Flange Bolt
Nickel Alloy 200 Elevator Bolt	200 Nickel Alloy Machine Bolt
200 Nickel Alloy NA 11 Fasteners Supplier	Nickel Alloy NW 2200 Alloy Bolted Joints
ASTM A160 Nickel 200 Bolted Joints	ASME SA160 Alloy 200 Fastener Supplier
Nickel Alloy NW 2200 Flat Washers	Nickel Alloy 200 Machine Fasteners Dealer
Nickel EN Ni 99.2 Hex Set Screw	Grade 200 Nickel Industrial Fasteners
Nickel UNS N02200 Nickel Wing Nuts	ASTM A160 Nickel Alloy 200 Coupling Nut
200 Nickel Mushroom Head Square Neck Bolts	Nickel DIN 2.4066 Allen Cap Screw Stockists

Nickel 200 Fasteners Manufacturer & Exporter
