ASTM A193 B6 Fasteners
ASTM A193 Grade B6 Nuts, ASTM A193 Grade B6 Stud Bolts, B6 SS Spring Washer, SS UNS S41000 Fasteners Suppliers in India.
Ranfit Metal & Alloys is a known manufacturer and distributor of ASTM A193 B6 Stainless Steel Fasteners, which are extremely resistant to break. ASTM A193 B6 Nuts can be availed by our valuable clients in bulk quantities at rock bottom price. ASTM A193 B6 Bolts has features like Dimensionally accurate, Easy fitting, Premium quality, Sturdy nature, Easy to use, No maintenance, and more. To make totally rust free, the fabrication of ASTM A193 B6 Stud Bolts is done using the best material, which is frequently used in many laboratories, operation theatres, clinics, hospitals, etc. With years of industry experience, we are deeply engrossed in offering a wide range of ASTM A193 B6 Washers, which are manufactured by our reliable team using optimum quality steel and latest technology.
Customers can purchase from us an extensive gamut of ASTM A193 B6 Screws, which are extensively used in various industrial applications. Our clients can avail this offered ASTM A193 B6 Round Bars at vary reasonable rate. In order to ensure their quality attributes, these ASTM A193 B6 Studs are strictly checked by our quality controllers on various parameters set by the industry. Our complete product range of ASTM A193 B6 Rods ensures even operations and has strong inner lining. These ASME SA 193 B6 Fasteners work well for smaller sizes and higher pressure temperature conditions.
AISI 410 Grade B6 Fasteners, Stainless Steel ASTM A193 Grade B6 Foundation Bolts, ASTM A193 Grade B6 Threaded Stud, SS ASTM A193 Grade B6 Structural Bolts Supplier & Exporter in India.
ASTM A193 B6 Bolts Specification
| Length | 3mm to 200mm |
|---|---|
| Size | M 02 to M 160, Custom Sizes |
| Specifications | ASTM A193 DIN, ASTM, BS and all International Standards |
| Dimensions | ASME B18.2.1, B18.3 |
| Threads Configuration | ASME B1.1 2A/3A Inch Unified Threads and B1.13M 6h Metric Coarse Threads |
| Form of Bolts | Hex, Threading, Square, Round as per Gauge Etc. |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Popular Types of Bolts | Hex Bolts, Flange Bolts, Hex Head Bolts, Lag Bolts, Square Bolts, Eye Bolts, U Bolts, T Bolts, Counter sunk Bolts etc. |
| SS Bolt Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Bolts | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Bolts | Six-Lobe,Phillips,Phillips/Slot, Slotted etc |
| Packing of Bolts | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Bolts Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Bolts finishing | Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
ASTM A193 B6 Bolts Equivalent Grades
| AISI | UNS | ASTM |
|---|---|---|
| 410 | 41000 | ASTM A193 GRADE B6 |
Chemical Composition of ASTM A193 B6 Bolts
| Element | B6 |
| Carbon | 0 – 0.15% |
| Manganese | 0 – 1.00% |
| Phosphorus, max | 0 – 0.040% |
| Sulfur, max | 0 – 0.03% |
| Silicon | 0 – 1.00% |
| Chromium | 11.5 – 13.5% |
| Nickel | – |
| Molybdenum | – |
Mechanical Properties of ASTM A193 B6 Bolts
| Tensile Strength/Ultimate Tensile Stress (UTS) – (Mpa) | 760 |
| Yield Strength/Proof Stress(0.2% Offset) (YS) – (Mpa) | 585 |
| Elongation in 4D (El) | 15 |
| Reduction | 50 |
| Hardness – (BHN) | 0 |
Stainless Steel ASTM A193 Grade B6 Recommended Nuts & Washers
| Bolting Grade | Nut Grade | Washer Grade |
|---|---|---|
| ASTM A193 Grade B6 | ASTM A194 Grade 6 | Mild Steel |
Types of ASTM A193 B6 Bolts
ASTM A193 B6 Hex Bolts
ASTM A193 B6 Allen Cap Bolts

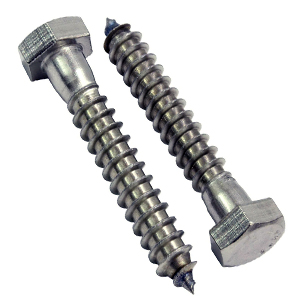

ASTM A193 B6 Lag Bolts

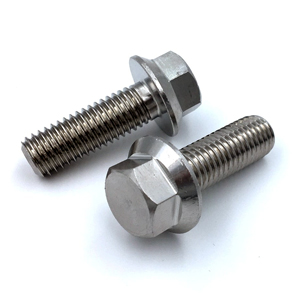

ASTM A193 B6 Flange Bolts
ASTM A193 B6 Hollow Allen Bolts
ASTM A193 B6 Anchor Bolts
ASTM A193 B6 J Bolts
ASTM A193 B6 U Bolts
ASTM A193 B6 Square Bolts
ASTM A193 B6 Carriage Bolts
ASTM A193 B6 Long Eye Bolts
ASTM A193 B6 Bolts Forms & Availability
| Products | Size | |
|---|---|---|
| ASTM A193 B6 Heavy Hex Bolts | ASTM A193 B6 Hollow Hex Bolts | M 02 to M 160, Custom Sizes |
| ASTM A193 B6 Hollow Allen Bolts | ASTM A193 B6 Machine Bolts | |
| ASTM A193 B6 Socket Head Bolts | ASTM A193 B6 Hex Flange Bolts | |
| ASTM A193 B6 Eye Bolts | ASTM A193 B6 Lag Bolts | |
| ASTM A193 B6 J Bolts | ASTM A193 B6 U Bolts | |
| ASTM A193 B6 Shoulder Bolts | ASTM A193 B6 Elevator Bolts | |
| ASTM A193 B6 Hanger Bolts | ASTM A193 B6 Allen Bolts | |
ASTM A193 B6 Fasteners Standard
| Hexagon Bolt / Set Screws | Stud Bolt | Hexagon Nuts | Socket Cap screws |
|---|---|---|---|
| DIN 931 | BS4882 | DIN 934 | DIN 912 |
| DIN 933 | DIN 976 | BS 1768 | DIN 6912 |
| BS 1768 | BS 1769 | DIN 7984 | |
| UNI 5731 | BS 1083 | ANSI B18.3 | |
| UNI 5739 | BS 3692 | ISO 4762 | |
| ISO 4014 | ISO 4032 | UNI 5931 | |
| ISO 4017 | ISO 4033 | BS 2470 | |
| BS 1769 | ANSI B18.2.2 | BS 4168 | |
| BS 3692 | |||
| ANSI B18.2.1 | |||
| Socket & Slotted Set Screws | Socket & Slotted Countersunk Screws | Studs | Washers |
| DIN 913 | DIN 963 | DIN 938 | DIN 125 |
| DIN 914 | DIN 7991 | DIN 939 | DIN 9021 |
| DIN 915 | BS 4168 | DIN 2510 | BS 4320 |
| DIN 916 | BS 1981 | BS 4439 | BS 3410 |
| DIN 551 | BS 483 | BS 2693 | |
| DIN 553 | BS 2470 | Spring Washers | |
| DIN 438 | DIN 127 | ||
| BS 4168 | BS 4464 | ||
| BS 1802 |
ANSI And/Or ASME Standards Bolts (Inch Series)
| Description | Standard | Measurement System |
|---|---|---|
| Square & Hex Head Bolts | ANSI/ASME B18.2.1 | Inch Series |
| Hex Head Bolts | ANSI/ASME B18.2.3.5M | Metric |
| Heavy Hex Bolts | ANSI/ASME B18.2.3.6M | Metric |
| Heavy Hex Structural Bolts | ANSI/ASME B18.2.3.7M | Metric |
| Square Head Bolts | ANSI/ASME B18.2.3.10M | Metric |
| Round Head Bolts | ANSI/ASME B18.5 | Inch Series |
| Round Head Short Square Neck Bolts | ANSI/ASME B18.5.2.1M | Metric |
| Round Head Square Neck Bolts | ANSI/ASME B18.5.2.2M | Metric |
| Round Head Square Neck Bolts With Large Head | ANSI/ASME B18.5.2.3M | Metric |
| Track Bolts | ANSI/ASME B18.10 | Inch Series |
| Forged Eye Bolts | ANSI/ASME B18.15 | Inch Series |
| Lifting Eye Bolts | ANSI/ASME B18.15M | Metric |
| Hex Head Bolts | DIN 931 | Metric |
| Heavy Hex Bolts | DIN 6914 | Metric |
| Countersunk Square Head Bolts With Short Neck | DIN 608 | Metric |
| Lifting Eye Bolts (Type A) | DIN 444A | Metric |
| Lifting Eye Bolts (Type B) | DIN 444B | Metric |
| Square Head Bolts With Collar | DIN 478 | Metric |
| Forged Lifting Eyes/Eye Bolts | DIN 580 | Metric |
| Carriage Bolts | DIN 603 | Metric |
| Flat Countersunk Nib Bolts | DIN 604 | Metric |
| Carriage Bolts | DIN 607 | Metric |
| U Bolts | DIN 3570 | Metric |
| Hex Flange Bolts | DIN 6921 | Metric |
| Plough Bolts with 2 Nibs | DIN 11014 | Metric |
| Hex Head Bolts with Shank | ISO 4014 | Metric |
| Hex Head Bolts with Nuts | ISO 4016 | Metric |
| Full Thread Hex Head Bolts | ISO 4017 | Metric |
| Hex Flange Bolts | ISO 4162 | Metric |
| Hex Flange Bolts | ISO 8100 | Metric |
| Hex Bolt With Flange | ISO 8102 | Metric |
| Hex Flange Bolts | ISO 15071 | Metric |
| Mushroom Head Square Neck Bolts | ISO 8677 | Metric |
| Fine Threaded Hex Head Bolts | ISO 8765 | Metric |
| Hex Head Bolts | IS 1363 Part 1 | Metric |
| Hex Head Bolts | IS 1363 Part 2 | Metric |
| Hex Head Bolts | IS 1364 Part 1 | Metric |
| Hex Head Bolts For Structural Joints | IS 6639 | Metric |
| Hex Head Transmission Tower Bolts | IS 12427 | Metric |
| Hexagon Flange Bolts | IS 15582 | Metric |
Property Class
| For Bolts & Screws | A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H |
| For Nuts | A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040 |
| For SHCS | F837B, F837C, F837E, F837 |
| For Threaded Rods | A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2 |
ASME SA193 B6 Heavy Hex Bolts Dimensions
| Diameter (D) | Body Diameter (D) | Across the Flats (F) | Across the Corners © | Head Height (H) | Thread Lengths (T) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| MAX | MIN | MAX | MIN | MAX | MIN | MAX | MIN | < 6” | > 6” | |
| 1/2 | 0.515 | 0.482 | 0.875 | 0.85 | 1.01 | 0.969 | 0.364 | 0.302 | 1.25 | 1.5 |
| 5/8 | 0.642 | 0.605 | 1.062 | 1.031 | 1.227 | 1.175 | 0.444 | 0.378 | 1.5 | 1.75 |
| 3/4 | 0.768 | 0.729 | 1.25 | 1.212 | 1.443 | 1.383 | 0.524 | 0.455 | 1.75 | 2 |
| 7/8 | 0.895 | 0.852 | 1.438 | 1.394 | 1.66 | 1.589 | 0.604 | 0.531 | 2 | 2.25 |
| 1 | 1.022 | 0.976 | 1.625 | 1.575 | 1.876 | 1.796 | 0.7 | 0.591 | 2.25 | 2.5 |
| 1 1/8 | 1.149 | 1.098 | 1.812 | 1.756 | 2.093 | 2.002 | 0.78 | 0.658 | 2.5 | 2.75 |
| 1 1/4 | 1.277 | 1.223 | 2 | 1.938 | 2.309 | 2.209 | 0.876 | 0.749 | 2.75 | 3 |
| 1 3/8 | 1.404 | 1.345 | 2.188 | 2.119 | 2.526 | 2.416 | 0.94 | 0.81 | 3 | 3.25 |
| 1 1/2 | 1.531 | 1.47 | 2.375 | 2.3 | 2.742 | 2.622 | 1.036 | 0.902 | 3.25 | 3.5 |
| 1 3/4 | 1.785 | 1.716 | 2.75 | 2.662 | 3.175 | 3.035 | 1.196 | 1.054 | 3.75 | 4 |
| 2 | 2.039 | 1.964 | 3.125 | 3.025 | 3.608 | 3.449 | 1.388 | 1.175 | 4.25 | 4.5 |
| 2 1/4 | 2.305 | 2.214 | 3.5 | 3.388 | 4.041 | 3.862 | 1.548 | 1.327 | 4.75 | 5 |
| 2 1/2 | 2.559 | 2.461 | 3.875 | 3.75 | 4.474 | 4.275 | 1.708 | 1.479 | 5.25 | 5.5 |
| 2 3/4 | 2.827 | 2.711 | 4.25 | 4.112 | 4.907 | 4.688 | 1.869 | 1.632 | 5.75 | 6 |
| 3 | 3.081 | 2.961 | 4.625 | 4.475 | 5.34 | 5.102 | 2.06 | 1.815 | 6.25 | 6.5 |
ASTM A193 B6 Bolts Dimensions
| **All measurements in millimeters** | ||||||||
|---|---|---|---|---|---|---|---|---|
| NOMINAL SIZE (D) | BODY DIAMETER | HEAD THICKNEASTM A193 | ACROASTM A193 THE FLATS | ACROASTM A193 CORNERS | ||||
| D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Most Common Types Of ASTM A193 B6 Stainless Steel Bolts
| A193 Grade B6 Stud Bolt | A193 B6 Stud Bolts |
| A193 B6 Lag Bolt | A193 B6 Stud Bolts |
| A193 Eye Bolt | SS B6 Plow Bolt |
| SA193 Nuts | A193 J Bolt |
| Stainless Steel B6 Threaded Rod | B6 Hanger Bolt |
| SS B6 Step Bolt | A 193 B6 Stud Bolt |
| ISO Approved A193 U Bolts | Stainless Steel B6 Studs |
| A 193 Tie Rod | A193 stud bolts |
| A 193 B6 Heavy Hex Bolts | A193 B6 Hex Nut |
| Stainless Steel B6 Draw Bolt | B6 Grub Screw |
| A193 B6 Anchor Bolt | B6 Shoulder Bolt |
| B6 Stainless Steel Stud bolts | A 193 B6 Studs |
ASTM A193 B6 Bolts Torque Chart
| Torque Specifications | ||||||
|---|---|---|---|---|---|---|
| Bolt Size Inches or # | Threads Per Inch | Standard Dry Torque in Inch-Pounds | ||||
| #2 | 56 | 2.5 | ||||
| 64 | 3.0 | |||||
| #3 | 48 | 3.9 | ||||
| 56 | 4.4 | |||||
| #4 | 40 | 5.2 | ||||
| 48 | 6.6 | |||||
| #5 | 40 | 7.7 | ||||
| 44 | 9.4 | |||||
| #6 | 32 | 9.6 | ||||
| 40 | 12.1 | |||||
| #8 | 32 | 19.8 | ||||
| 36 | 22.0 | |||||
| #10 | 24 | 22.8 | ||||
| 32 | 31.7 | |||||
| 1/4 | 20 | 75.2 | ||||
| 28 | 94.0 | |||||
| 5/16 | 18 | 132 | ||||
| 24 | 142 | |||||
| 3/8 | 16 | 236 | ||||
| 24 | 259 | |||||
| 7/16 | 14 | 376 | ||||
| 20 | 400 | |||||
| 1/2 | 13 | 517 | ||||
| 20 | 541 | |||||
| 9/16 | 12 | 682 | ||||
| 18 | 752 | |||||
| 5/8 | 11 | 1110 | ||||
| 18 | 1244 | |||||
| 3/4 | 10 | 1530 | ||||
| 16 | 1490 | |||||
| 7/8 | 9 | 2328 | ||||
| 14 | 2318 | |||||
| 1 | 8 | 3440 | ||||
| 14 | 3110 | |||||
| 1 1/8 | 7 | 413 | ||||
| 12 | 390 | |||||
| 1 1/4 | 7 | 523 | ||||
| 12 | 480 | |||||
| 1 1/2 | 6 | 888 | ||||
| 12 | 703 | |||||
ASTM A193 B6 Bolts Sizes
| ASTM A193 B6 Bolts size chart | ASTM A193 B6 Bolts size guide | ASTM A193 B6 Bolts dimensions |
|---|---|---|
| 3/8″-16 x 1″ Grade 5 Finish ASTM A193 B6 Bolts | 1/2″-13 x 1-1/2″ Grade 5 Finish ASTM A193 B6 Bolts | 1/4″-20 x 1″ Grade 5 Finish ASTM A193 B6 Bolts |
| 3/8″-16 x 1-1/4″ Grade 5 Finish ASTM A193 B6 Bolts | 3/8″-16 x 1-1/2″ Grade 5 Finish ASTM A193 B6 Bolts | 1/4″-20 x 3/4″ Grade 5 Finish ASTM A193 B6 Bolts |
| 1/2″-13 x 2″ Grade 8 Yellow Finish ASTM A193 B6 Bolts | 1/2″-13 x 2″ Grade 5 Finish ASTM A193 B6 Bolts | 1/2″-13 x 1-1/2″ Grade 8 Yellow Finish ASTM A193 B6 Bolts |
| 5/8″-11 x 2″ Grade 8 Yellow Finish ASTM A193 B6 Bolts | 1/4″-20 x 3/4″ Grade 18-8 Stainless Steel ASTM A193 B6 Bolts | 5/16″-18 x 1″ Grade 5 Finish ASTM A193 B6 Bolts |
| 3/8″-16 x 1″ Grade 8 Yellow Finish ASTM A193 B6 Bolts | 3/8″-16 x 1″ Grade 18-8 Stainless Steel ASTM A193 B6 Bolts | 3/8″-16 x 1-1/2″ Grade 8 Yellow Finish ASTM A193 B6 Bolts |
| 1/4″-20 x 1″ Grade 18-8 Stainless Steel ASTM A193 B6 Bolts | 5/8″-11 x 2″ Grade 5 Finish ASTM A193 B6 Bolts | 5/8″-11 x 2-1/2″ Grade 8 Yellow Finish ASTM A193 B6 Bolts |
| 3/8″-16 x 2″ Grade 5 Finish ASTM A193 B6 Bolts | 3/8″-16 x 1-1/4″ Grade 8 Yellow Finish ASTM A193 B6 Bolts |
ASTM A193 B6 Stainless Steel Bolts Weight Chart
| MM THREADS AS PER IS 1363/67 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| APPROXIMATE WEIGHT IN KGS FOR 100 NOS | ||||||||||
| LENGTH | DIAMETER | |||||||||
| M 5 | M 6 | M 8 | M 10 | M 12 | M 14 | M 16 | M 18 | M 20 | M 22 | |
| 16 mm | 0.448 | 0.743 | 1.590 | 3.211 | ||||||
| 20 mm | 0.598 | 0.812 | 1.711 | 3.411 | 4.892 | |||||
| 25 mm | 0.660 | 0.897 | 1.871 | 3.660 | 5.252 | 8.170 | ||||
| 30 mm | 0.737 | 1.010 | 2.070 | 3.912 | 5.574 | 9.690 | 10.707 | 18.657 | ||
| 35 mm | 0.804 | 1.120 | 2.271 | 4.223 | 5.974 | 10.000 | 11.416 | 16.026 | 19.608 | |
| 40 mm | 0.881 | 1.230 | 2.470 | 4.533 | 6.410 | 10.288 | 12.107 | 16.667 | 20.747 | |
| 45 mm | 0.958 | 1.340 | 2.671 | 4.840 | 6.859 | 10.504 | 12.821 | 17.241 | 21.739 | |
| 50 mm | 1.030 | 1.450 | 2.870 | 5.155 | 7.299 | 11.261 | 13.624 | 17.857 | 22.727 | 28.409 |
| 55 mm | 1.560 | 3.071 | 5.464 | 7.740 | 11.628 | 14.409 | 18.868 | 23.810 | 30.120 | |
| 60 mm | 1.670 | 3.270 | 5.774 | 8.183 | 12.255 | 15.244 | 20.000 | 25.126 | 32.051 | |
| 65 mm | 1.781 | 3.472 | 6.083 | 8.621 | 12.626 | 16.026 | 21.008 | 26.455 | 34.014 | |
| 70 mm | 1.890 | 3.671 | 6.394 | 9.058 | 12.987 | 16.835 | 22.124 | 27.778 | 35.461 | |
| 75 mm | 2.000 | 3.873 | 6.702 | 9.506 | 13.228 | 17.606 | 23.256 | 29.070 | 39.063 | |
| 80 mm | 2.111 | 4.072 | 7.013 | 10.000 | 13.889 | 18.248 | 24.510 | 30.303 | 40.000 | |
| 90 mm | 4.472 | 7.634 | 10.917 | 14.925 | 19.841 | 26.042 | 33.113 | 41.667 | ||
| 100 mm | 4.873 | 8.251 | 11.820 | 16.340 | 21.459 | 27.778 | 35.714 | 46.296 | ||
| 110 mm | 8.881 | 12.723 | 17.730 | 23.041 | 31.250 | 38.168 | 47.170 | |||
| 120 mm | 9.506 | 13.624 | 18.797 | 24.631 | 32.895 | 40.984 | 50.000 | |||
| 130 mm | 10.101 | 14.535 | 20.000 | 26.316 | 34.722 | 43.478 | 52.632 | |||
| 140 mm | 10.707 | 15.432 | 20.833 | 27.933 | 35.461 | 46.296 | 55.556 | |||
| 150 mm | 11.312 | 16.340 | 22.222 | 29.412 | 37.594 | 48.544 | 58.824 | |||
| 160 mm | 11.905 | 17.241 | 24.272 | 31.056 | 40.984 | 50.505 | 61.728 | |||
| 170 mm | 12.500 | 18.116 | 32.680 | 53.191 | 64.935 | |||||
| 180 mm | 13.123 | 19.011 | 26.882 | 34.247 | 55.556 | 67.568 | ||||
| 190 mm | 13.736 | 19.920 | 35.971 | 58.140 | 70.423 | |||||
| 200 mm | 14.327 | 20.833 | 29.586 | 37.594 | 49.020 | 60.976 | 73.529 | |||
| 220 mm | 15.528 | 22.624 | 40.650 | 65.789 | 79.365 | |||||
| 240 mm | 16.722 | 24.510 | 43.860 | 71.429 | 84.746 | |||||
| 250 mm | 17.301 | 25.381 | 45.455 | 74.627 | 87.719 | |||||
| 260 mm | 17.921 | 26.316 | 47.170 | 76.923 | 90.909 | |||||
| 280 mm | 19.157 | 28.090 | 50.505 | 81.967 | 98.039 | |||||
| 300 mm | 20.325 | 29.940 | 53.763 | 87.719 | 104.167 | |||||
| 320 mm | 31.646 | 56.818 | 92.593 | |||||||
| 340 mm | 33.557 | 60.241 | 98.039 | |||||||
| 360 mm | 35.211 | 63.291 | 104.167 | |||||||
| 380 mm | 37.037 | 66.667 | 108.696 | |||||||
| 400 mm | 39.063 | 69.444 | 113.636 | |||||||
Other Types of ASTM A193 B6 Bolts
| SS ASTM A193 Grade B6 Fasteners | SS ASTM A193 B6 Steel Washers |
| ASTM A193 B6 SS Flat Washers | ASTM A193 Grade B6 SS Finishing Washers |
| ASTM A193 Grade B6 Collated Screw | ASTM A193 B6 Long Bolts |
| SS ASTM A193 B6 U Bolts | SS ASTM A193 Grade B6 Thumb Screw |
| ASTM A193 Grade B6 Socket Screw | ASTM A193 B6 Steel Hex Nuts |
| ASTM A193 B6 Step Bolt | ASTM A193 Grade B6 Socket Cap Screw |
| SS ASTM A193 Grade B6 Studs Bolts | SS ASTM A193 B6 Socket Hexagon Head Screw |
| ASTM A193 B6 Threaded Stud | ASTM A193 Grade B6 Machine Screw |
| ASTM A193 Grade B6 T-Head Bolts | ASTM A193 B6 Allen Cap Screw |
| ASTM A193 B6 Stainless Steel Bolt | ASTM A193 Grade B6 Grub Screw |
