ASTM F593 Fasteners
ASTM F593 Fasteners, ASTM F593 Threaded Stud, SS ASME SF593 Structural Bolts Wholesaler, SS ASTM F593 Foundation Bolts Suppliers in India.
Ranfit Metals and Alloy is Manufacture and Supply ASTM F593 Nuts, Bolts, Stud Bolts, Washers. ASTM F593 Threaded Rod particular spreads compound and treated steel darting in items, for example, high weight ribs and high weight pipe fittings to get high temperature or high weight and consumption safe steels toughness and administration. ASTM F593 Nuts and ASTM F593 Screws are made from hardened steel, which has been extinguished and tempered to augment the quality. ASTM F593 Fasteners covers the synthetic and mechanical necessities for hex top screws, tempered steel screws and studs in distances across range from 1/4″ to 1-1/2″ comprehensive.
ASTM F593 Bolts are use for broadly useful, and are accessible in seven gatherings. ASTM F593 Stud planned for administration applications where general consumption obstruction required. ASTM F593 Hex Cap Screws otherwise called machine fasteners or hex screws are accessible in different fastener grade markings and qualities. Our ASTM F593 Nut Bolts are utilized to connect machine when consolidating materials. Ranfit Metals and Alloy make premium quality Bolts from different Grades with ASTM/ASME/DIN Standards and Specifications.
ASTM F593 Lock Nut, ASTM F593 Fasteners, ASTM F593 Marine Anchors, ASTM F593 SS Allen Cap Screw, ASTM F593-17 Nuts Supplier & Exporter in India.
ASTM F593 Fasteners Specification
| ASTM F593 Fasteners Specifications | ASTM F593 / ASME SF593 |
|---|---|
| ASTM F593 Fasteners size | Bolt / Screw Size : M3 - M56 | 3/6" to 2" | Custom Sizes Nuts Size : M3 - M56 | 3/6" to 2" | Custom Sizes Washers Size : M3 - M56 | 3/6" to 2" | Custom Sizes Machine Screws Size : M1.6 - M12 Self Tapping Screw Size : No.2 - No. 14 |
| ASTM F593 Fasteners Length | 3 mm to 200 mm |
| ASTM F593 Studs, Bolts, Threads | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard of ASTM F593 Fasteners |
DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard 6 Moly 254 Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 6 Moly 254 Hex nuts |
| Form of ASTM F593 Fasteners | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of ASTM F593 Bolting | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of ASTM F593 Bolts | Six-Lobe,Phillips,Phillips/Slot, Slotted etc |
| Packing of ASTM F593 Fasteners | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating |
Ptfe Coated ASTM F593 Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| ASTM F593 Fasteners finishing |
SMO : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Stainless Steel, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
ASTM F593 Equivalent Grades
| Alloy Group | Alloy Designation | Alloy Type |
|---|---|---|
| 1 | 303, 304, 304L, 305, 384, XM1, 18-9LW, 302HQ, 303Se | Austenitic |
| 2 | 316, 316L | Austenitic |
| 3 | 321, 347 | Austenitic |
| 4 | 430, 430F | Ferritic |
| 5 | 410, 416, 416Se | Martensitic |
| 6 | 431 | Martensitic |
| 7 | 630 (17-4) | Precipitation Hardening |
Chemical Composition of ASTM F593
| Element, max except as shown | Alloy Group 1, Type 304 | Alloy Group 2, Type 316 |
| Carbon | 0.08% | 0.08% |
| Manganese | 2.00% | 2.00% |
| Phosphorus | 0.045% | 0.045% |
| Sulfur | 0.030% | 0.030% |
| Silicon | 1.00% | 1.00% |
| Chromium | 18.0 to 20.0% | 16.0 to 18.0% |
| Nickel | 8.0 to 10.5% | 10.0 to 14.0% |
| Copper | 1.00% | |
| Molybdenum | 2.00 to 3.00% |
Mechanical Properties of ASTM F593
| Alloy Group | Condition | Marking | Diameter Range | Tensile, ksi | Yield, ksi min | Rockwell Hardness |
| 1 | AF | F593A | 1/4 to 1-1/2 | 65 to 85 | 20 | B85 max |
| A | F593B | 1/4 to 1-1/2 | 75 to 100 | 30 | B65 to 95 | |
| CW1 | F593C | 1/4 to 5/8 | 100 to 150 | 65 | B95 to C32 | |
| CW2 | F593D | 3/4 to 1-1/2 | 85 to 140 | 45 | B80 to C32 | |
| 2 | AF | F593E | 1/4 to 1-1/2 | 65 to 85 | 20 | B85 max |
| A | F593F | 1/4 to 1-1/2 | 75 to 100 | 30 | B65 to 95 | |
| CW1 | F593G | 1/4 to 5/8 | 100 to 150 | 65 | B95 to C32 | |
| CW2 | F593 | 3/4 to 1-1/2 | 85 to 140 | 45 | B80 to C32 |
Stainless Steel ASTM F593 Recommended Nuts & Washers
| Bolting Grade | Nut Grade | Washer Grade |
|---|---|---|
| ASTM F593 | ASTM F593 | SS 304 or SS 316 |
Types of ASTM F593 Fasteners

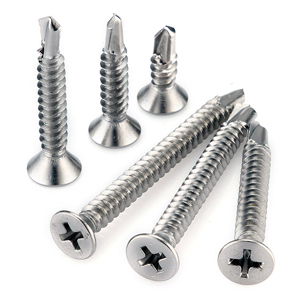

ASTM F593 Self Drilling Screws

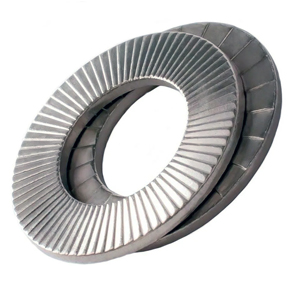

ASTM F593 Nord Lock Washers

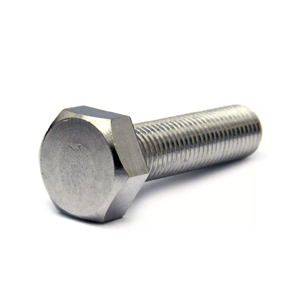

ASTM F593 Hex Bolts
ASTM F593 Dowel Pins

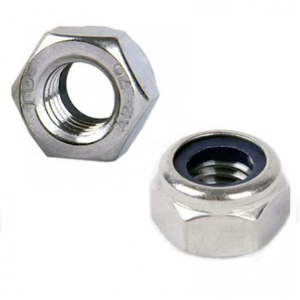

ASTM F593 Lock Nuts

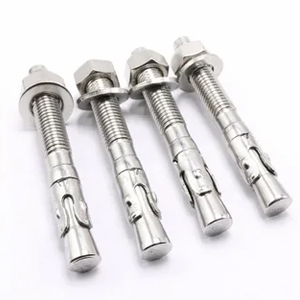

ASTM F593 Anchor Bolts

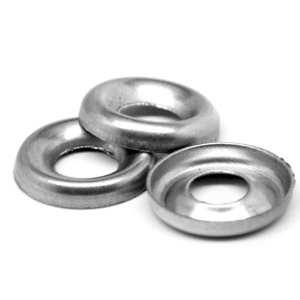

ASTM F593 Countersunk Washers

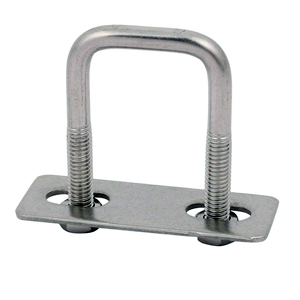

ASTM F593 Square U-Bolts
ASTM F593 Eye Bolts

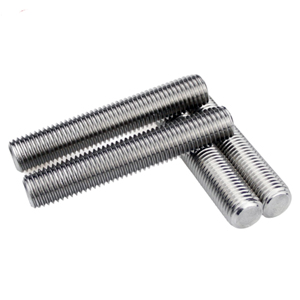

ASTM F593 Threaded Rod

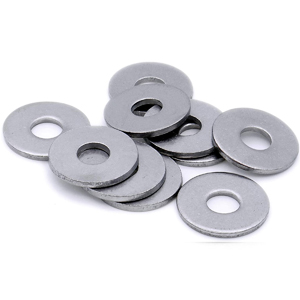

ASTM F593 Flat Washers

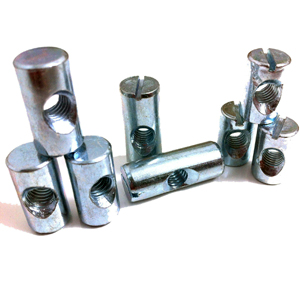

ASTM F593 Barrel Nuts

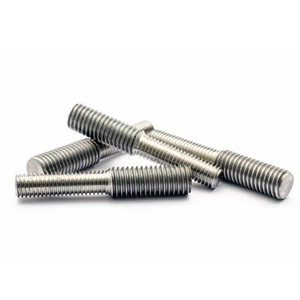

ASTM F593 Stud Anchors

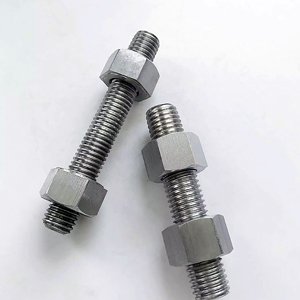

ASTM F593 Stud Bolts

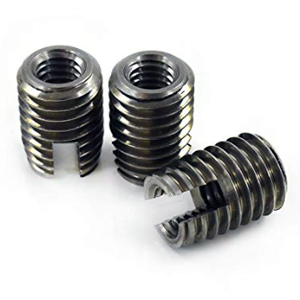

ASTM F593 Threaded Inserts

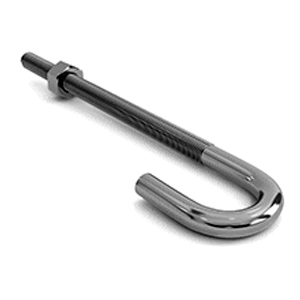

ASTM F593 J Type Bolt

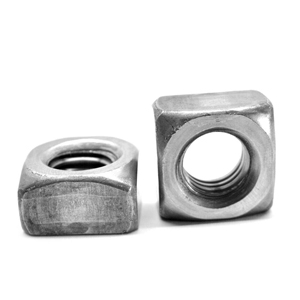

ASTM F593 Square Nuts

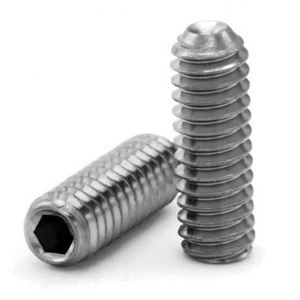

ASTM F593 Socket Set Screw
ASTM F593 Fasteners Forms & Availability
| Products | Size | |
|---|---|---|
| ASTM F593 Stud Bolt | ASTM F593 Bolts | Sizes M3 - M56 | 3/6" to 2" |
| ASTM F593 Punched Washer | ASTM F593 SMO Pan Head Screw | |
| ASTM A479 254 Stainless Square Nut | ASTM F593 Insert Nuts | |
| ASTM F593 Welding Studs | ASTM F593 Pan Head Screw | |
| ASTM F593 Stainless Cap Screw | ASTM F593 Stainless Foundation Bolts | |
| ASTM F593 Threaded Rod | ASTM F593 Stainless Hex Head Bolts | |
| ASTM F593 Stainless Nuts | ASTM F593 Stainless Washers | |
| ASTM F593 Fender Washer | ASTM F593 Lock Nut | |
| ASTM F593 Countersunk Slotted Screw | ASTM F593 Double Ended Stud | |
ASTM / DIN Specification of ASTM F593 Fasteners
| ASTM A479 | ASTM A194 | ASTM F2281 |
| ASTM A479M | ASTM A194M | ASTM A962 |
| ASTM A320 | ASTM F593-13a | ASTM A962M |
| ASTM A320M | ASTM F594-15 | |
| DIN 580 | DIN 6914 | DIN 6921 |
| DIN 582 | DIN 3570 | DIN 603 |
| DIN 444 | DIN 7990 | DIN 2510 |
| DIN 939 | DIN 1B | DIN 976 |
| DIN 933 | DIN 529 | DIN 912 |
| DIN 931 | DIN 6325 |
Property Class
| For Bolts & Screws | A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H |
| For Nuts | A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040 |
| For SHCS | F837B, F837C, F837E, F837 |
| For Threaded Rods | A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2 |
ASTM F593 Fasteners Standard
| Hexagon Bolt / Set Screws | Stud Bolt | Hexagon Nuts | Socket Cap screws |
|---|---|---|---|
| DIN 931 | BS4882 | DIN 934 | DIN 912 |
| DIN 933 | DIN 976 | BS 1768 | DIN 6912 |
| BS 1768 | BS 1769 | DIN 7984 | |
| UNI 5731 | BS 1083 | ANSI B18.3 | |
| UNI 5739 | BS 3692 | ISO 4762 | |
| ISO 4014 | ISO 4032 | UNI 5931 | |
| ISO 4017 | ISO 4033 | BS 2470 | |
| BS 1769 | ANSI B18.2.2 | BS 4168 | |
| BS 3692 | |||
| ANSI B18.2.1 | |||
| Socket & Slotted Set Screws | Socket & Slotted Countersunk Screws | Studs | Washers |
| DIN 913 | DIN 963 | DIN 938 | DIN 125 |
| DIN 914 | DIN 7991 | DIN 939 | DIN 9021 |
| DIN 915 | BS 4168 | DIN 2510 | BS 4320 |
| DIN 916 | BS 1981 | BS 4439 | BS 3410 |
| DIN 551 | BS 483 | BS 2693 | |
| DIN 553 | BS 2470 | Spring Washers | |
| DIN 438 | DIN 127 | ||
| BS 4168 | BS 4464 | ||
| BS 1802 |
ANSI and/or ASME Standards ASTM F593 Fasteners(inch series)
| ASME B18.1.1 | Small Solid Rivets | ASME B18.8.1 | Clevis Pins and Cotter Pins |
|---|---|---|---|
| ASME B18.1.2 | Large Rivets | ASME B18.8.2 | Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins |
| ASME B18.2.1 | Square and Hex Bolts and Screws | ASME B18.9 | Plow Bolts |
| ASME B18.2.2 | Square and Hex Nuts | ASME B18.10 | Track Bolts and Nuts |
| ASME B18.2.6 | Fasteners for use in Structural Applications | ASME B18.11 | Miniature Screws |
| ASME B18.3 | Socket Cap, Shoulder and Set Screws | ASME B18.13 | Screws and Washer Assemblies (Sems) |
| ASME B18.5 | Round Head Bolts | ASME B18.15 | Forged Eyebolts |
| ASME B18.6.2 | Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws | ASME B18.17 | Wing Nuts, Thumb Screws and Wing Screws |
| ASME B18.6.3 | Machine Screws and Machine Screws Nuts | ASME B18.21.1 | Lock Washers |
| ASME B18.6.4 | Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws | ASME B18.22.1 | Plain Washers |
| ASME B18.7 | General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps | ASME B18.23.1 | Beveled Washers |
ASTM F593 Fasteners Dimension
| ASTM F593 Bolt / Screw | M3 – M56 | 3/6" to 2" | Custom Sizes |
| ASTM F593 Threaded Rods/ Bars | M3 – M56 | 3/6" to 2" | Custom Sizes |
| ASTM F593 Nuts | M3 – M56 | 3/6" to 2" | Custom Sizes |
| ASTM F593 Washers | M3 – M56 | Custom Sizes |
| ASTM F593 Machine Screws | M1.6 – M12 |
| ASTM F593 Self Tapping Screw | No.2 – No. 14 |
ASTM F593 Bolt Dimensions
| Nominal Size (D) | Body Diameter | Head Thickness ASTM A193 | Acro ASTM A193 The Flats | Acro ASTM A193 Corners | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
ASTM F593 Bolt Torque Specifications
| Bolt Size Inches or # | Threads Per Inch | Standard Dry Torque in Inch-Pounds | |||||
|---|---|---|---|---|---|---|---|
| #2 | 56 | 2.5 | 2.6 | ||||
| 64 | 3.0 | 3.2 | |||||
| #3 | 48 | 3.9 | 4.0 | ||||
| 56 | 4.4 | 4.6 | |||||
| #4 | 40 | 5.2 | 5.5 | ||||
| 48 | 6.6 | 6.9 | |||||
| #5 | 40 | 7.7 | 8.1 | ||||
| 44 | 9.4 | 9.8 | |||||
| #6 | 32 | 9.6 | 10.1 | ||||
| 40 | 12.1 | 12.7 | |||||
| #8 | 32 | 19.8 | 20.7 | ||||
| 36 | 22.0 | 23.0 | |||||
| #10 | 24 | 22.8 | 23.8 | ||||
| 32 | 31.7 | 33.1 | |||||
| 1/4 | 20 | 75.2 | 78.8 | ||||
| 28 | 94.0 | 99.0 | |||||
| 5/16 | 18 | 132 | 138 | ||||
| 24 | 142 | 147 | |||||
| 3/8 | 16 | 236 | 247 | ||||
| 24 | 259 | 271 | |||||
| 7/16 | 14 | 376 | 393 | ||||
| 20 | 400 | 418 | |||||
| 1/2 | 13 | 517 | 542 | ||||
| 20 | 541 | 565 | |||||
| 9/16 | 12 | 682 | 713 | ||||
| 18 | 752 | 787 | |||||
| 5/8 | 11 | 1110 | 1160 | ||||
| 18 | 1244 | 1301 | |||||
| 3/4 | 10 | 1530 | 1582 | ||||
| 16 | 1490 | 1558 | |||||
| 7/8 | 9 | 2328 | 2430 | ||||
| 14 | 2318 | 2420 | |||||
| 1 | 8 | 3440 | 3595 | ||||
| 14 | 3110 | 3250 | |||||
| 1 1/8 | 7 | 413 | 432 | ||||
| 12 | 390 | 408 | |||||
| 1 1/4 | 7 | 523 | 546 | ||||
| 12 | 480 | 504 | |||||
| 1 1/2 | 6 | 888 | 930 | ||||
| 12 | 703 | 732 | |||||
ASTM F593 Nuts Dimension
| Nominal Size or Basic Major Thread Diameter | F | G | H | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Width Across Flats | Width Across Corners | Thickness | |||||||
| Basic | Max | Min | Max | Min | Basic | Max | Min | ||
| 1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | .226 | .212 |
| 5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
| 3/8 | .3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | .337 | .479 |
| 7/16 | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
| 1/2 | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
| 9/16 | .5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | .496 | .473 |
| 5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
| 3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
| 7/8 | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.ASTM A194 GR. 8 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2.356 | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
Other Types of ASTM F593 Fasteners
| ASTM F593 Self Drilling Screws | ASTM F593 Fine Fasteners |
| ASTM F593 Foundation Fasteners Supplier | ASTM F593 Fasteners Manufacturer |
| ASTM F593 Anchor Fasteners | ASTM F593 Hex Head Screw |
| ASTM F593 Sheet Metal Fasteners | ASTM F593 Industrial Fasteners |
| ASTM F593 Finished Hex Nut | ASTM F593 Elevator Bolts Manufacturer |
| ASTM F593 Jam Nuts Exporter | ASTM F593 Nuts |
| ASTM F593 S31254 Draw Bolts | ASTM F593 Concrete Screws |
| ASTM F593 Long Nut Stocks | ASTM F593 Heavy Studs |
| ASTM B479 ASTM F593 Fender Washers | ASTM F593 Industrial Studs |
| ASTM F593 Hex Head Bolt | ASTM F593 Socket Cap Screw |
