Stainless Steel 304/310/316 Refractory Anchors Manufacturer & Exporter

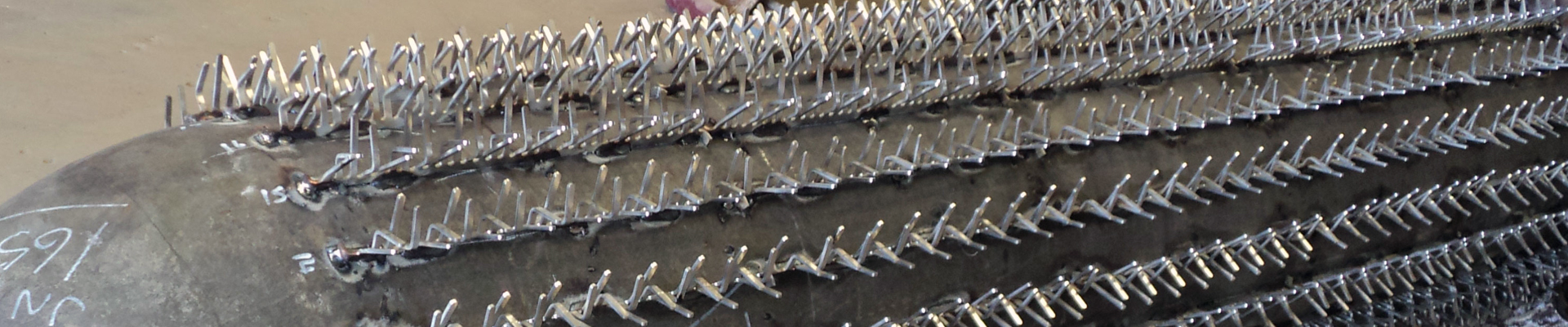

Refractory Anchors

Stainless Steel 304 Anchor, Stainless Steel 310 Anchor, Stainless Steel 316 Anchors, V Shape Anchors for Castable from India

bolts

Ranfit Metal & Alloys offer a wide range of stainless steel anchor that are manufactured in various specifications including grade of materials, dimensions, spacing patterns and welding methods. These anchors are fabricated using quality grade raw materials and advanced technology under the supervision of highly skilled professionals. It is reckoned for corrosion resistance, perfect finish, rugged construction, precise dimensions and durability. We offer this range of Stainless Steel Refractory Anchors in different specifications to meet the varied needs of clients.

Generally refractory anchors to be 66% to 75% of the lining depth however the anchors should not extend closer than 25 mm to the lining surface. Anchor spacing depends on the type of material used, the operating conditions and the physical characteristics of the unit being lined. Generally the more severe the operating conditions the closer the anchors should be spaced and spacing should also alter according to the material density.

Manufacturers, Exporters and Suppliers of Stainless Steel Refractory Anchors, Industrial Refractory Anchors, Refractory Anchors, Stainless Steel Refractory Anchors Suppliers in India.

Washers Specification

Standard IS/ANSI/ASME/DIN
Thickness 2.3 mm to 2.5 mm
Diameter 5-12 mm
Length Customized
Types of Refractory Anchor Y Shape Anchors, V Shape Anchors, Zig Zag Anchors, Brick Anchors, Spiral Y Anchors, Flat Anchors, Stud Anchors, U Shape Refractory Anchors, Crook Anchors, UV Shape Anchors
Stainless Steel Washers AISI 302, 304, 304L, 316, 316L, 310, 317, 317L, 321, 347, 410, 420,904L etc.

Our Refractory Anchor products list as follow

Shape Material Refractory Material Temperature Range Prime Use Weld Type
Refractory anchor shape - 1 on the white background.

Refractory anchor shape - 1

 304 S.S.
Mild Steel		 Lightweight Castable Below 1500°F Stacks, Ducts,
Process Heaters		 Hand Weld
Refractory anchor shape - 2 on the white background.

Refractory anchor shape - 2

 304 S.S.
Mild Steel		 Lightweight Castable Below 1500°F Stacks, Ducts,
Process Heaters		 Hand Weld
Refractory anchor shape - 3 on the white background.

Refractory anchor shape - 3

 304 S.S.
Mild Steel		 Lightweight Castable Below 1500°F Stacks, Ducts,
Process Heaters		 Hand Weld

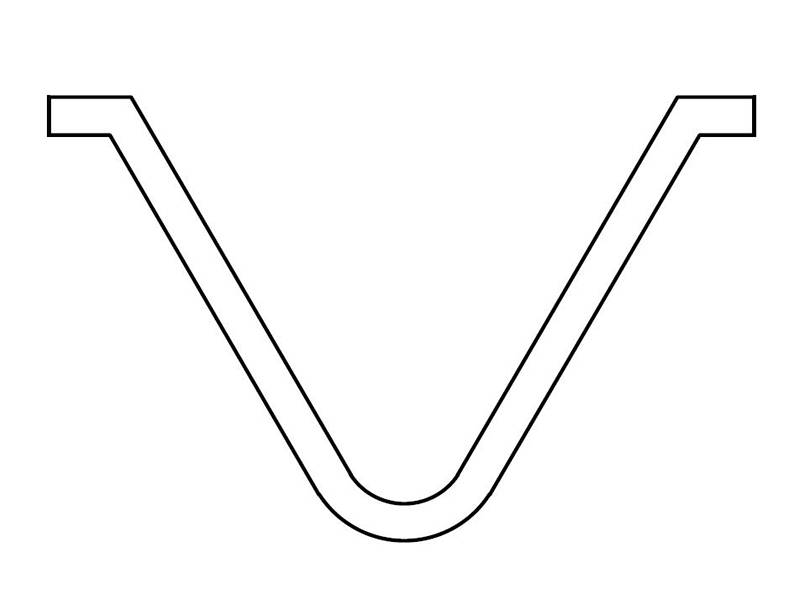

Refractory anchor shape - 4 on the white background.

Refractory anchor shape - 4

 304 S.S.
310 S.S.		 Low to Medium
Density
Castable		 Below 1800°F Stacks, Incinerators,
Reformers, Palletizing
Furnaces		 Hand Weld

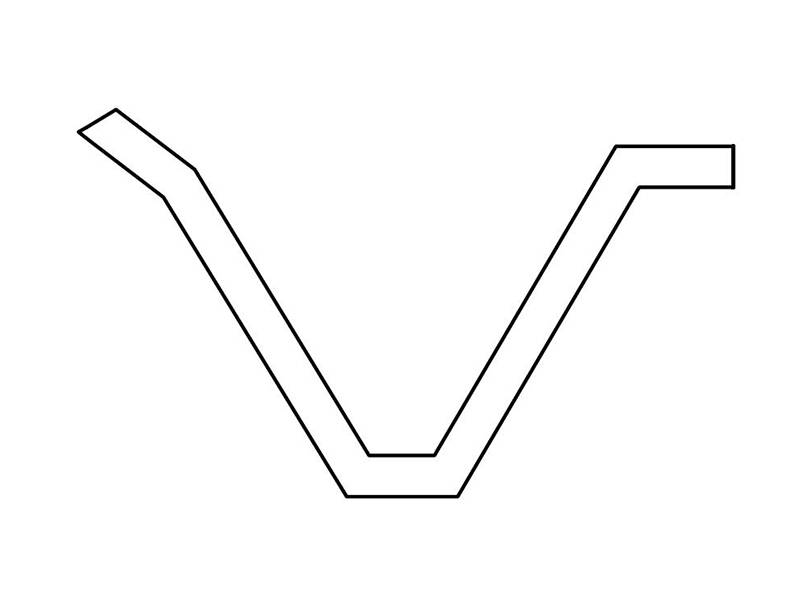

Refractory anchor shape - 5 on the white background.

Refractory anchor shape - 5

 304 S.S.
310 S.S.		 Low to Medium
Density
Castable		 Below 1800°F Stacks, Incinerators,
Reformers, Palletizing
Furnaces		 Hand Weld
Refractory anchor shape - 6 on the white background.

Refractory anchor shape - 6

 304 S.S.
310 S.S.		 Low to Medium
Density
Castable		 Below 1800°F Stacks, Incinerators,
Reformers, Palletizing
Furnaces		 Hand Weld
<Refractory anchor shape - 7 on the white background.

Refractory anchor shape - 7

 304 S.S.
310 S.S.		 Low to Medium
Density
Castable		 Below 1800°F Stacks, Incinerators,
Reformers, Palletizing
Furnaces		 Hand Weld
Refractory anchor shape - 8 on the white background.

Refractory anchor shape - 8

 304 S.S.
310 S.S.		 Low to Medium
Density
Castable		 Below 1800°F Stacks, Incinerators,
Reformers, Palletizing
Furnaces		 Hand Weld
Refractory anchor shape - 9 on the white background.

Refractory anchor shape - 9

 304 S.S.
310 S.S.		 Low to Medium
Density
Castable		 Below 1800°F Stacks, Incinerators,
Reformers, Palletizing
Furnaces		 Hand Weld
Refractory anchor shape - 10 on the white background.

Refractory anchor shape - 10

 304 S.S.
310 S.S.		 Low to Medium
Density
Castable		 Below 1800°F Stacks, Incinerators,
Reformers, Palletizing
Furnaces		 Hand Weld
Refractory anchor shape - 11 on the white background.

Refractory anchor shape - 11

 304 S.S.
310 S.S.		 Low to Medium
Density
Castable		 Below 1800°F Stacks, Incinerators,
Reformers, Palletizing
Furnaces		 Hand Weld

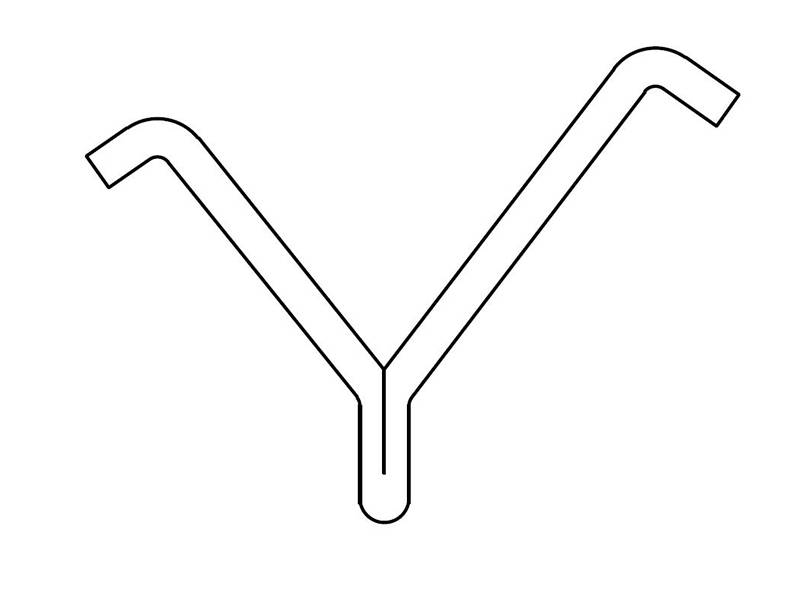

Refractory anchor shape - 12 on the white background.

Refractory anchor shape - 12

 304 S.S.
310 S.S.		 Low to Medium
Density
Castable		 Below 1800°F Stacks, Incinerators,
Reformers, Palletizing
Furnaces		 Hand Weld
Refractory anchor shape - 13 on the white background.

Refractory anchor shape - 13

 304 S.S.
310 S.S
330 S.S		 Medium to High
Density
Castable		 Over 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Transfer Lines		 Hand Weld
Refractory anchor shape - 14 on the white background.

Refractory anchor shape - 14

 304 S.S.
310 S.S
330 S.S		 Medium to High
Density
Castable		 Over 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Transfer Lines		 Hand Weld
Refractory anchor shape - 15 on the white background.

Refractory anchor shape - 15

 304 S.S.
310 S.S
330 S.S		 Medium to High
Density
Castable		 Over 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Transfer Lines		 Hand Weld
Refractory anchor shape - 16 on the white background.

Refractory anchor shape - 16

 304 S.S.
310 S.S
330 S.S		 Medium to High
Density
Castable		 Over 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Transfer Lines		 Hand Weld
Refractory anchor shape - 17 on the white background.

Refractory anchor shape - 17

 304 S.S.
310 S.S
330 S.S		 Medium to High
Density
Castable		 Over 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Transfer Lines		 Hand Weld
Refractory anchor shape - 18 on the white background.

Refractory anchor shape - 18

 304 S.S.
310 S.S
330 S.S		 Medium to High
Density
Castable		 Over 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Transfer Lines		 Hand Weld
Refractory anchor shape - 19 on the white background.

Refractory anchor shape - 19

 304 S.S.
310 S.S
330 S.S		 Medium to High
Density
Castable		 Over 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Transfer Lines		 Hand Weld
Refractory anchor shape - 20 on the white background.

Refractory anchor shape - 20

 304 S.S.
310 S.S
330 S.S		 Medium to High
Density
Castable		 Over 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Transfer Lines		 Hand Weld
Refractory anchor shape - 21 on the white background.

Refractory anchor shape - 21

 304 S.S.
310 S.S
330 S.S		 Medium to High
Density
Castable		 Over 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Transfer Lines		 Hand Weld
Refractory anchor shape - 22 on the white background.

Refractory anchor shape - 22

 304 S.S.
310 S.S.
316 S.S.
330 S.S.
601 Inconel		 High Density Castable
(Dual Component Linings)		 Over 2000°F Rotary Kilns,
Furnace Arches, Furnace Roofs,
Reactor Bottoms		 Hand Weld

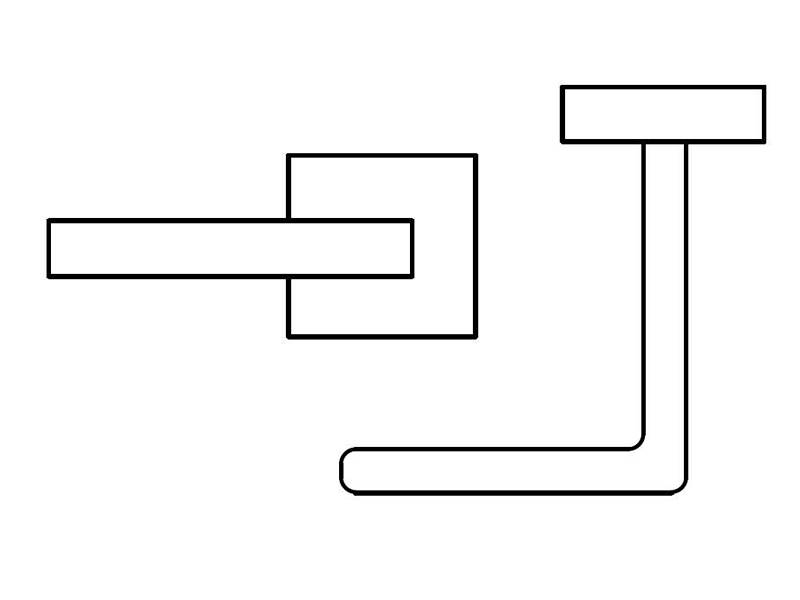

Refractory anchor shape - 23 on the white background.

Refractory anchor shape - 23

 304 S.S.
310 S.S.
316 S.S.
330 S.S.
601 Inconel		 High Density Castable
(Dual Component Linings)		 Over 2000°F Rotary Kilns,
Furnace Arches, Furnace Roofs,
Reactor Bottoms		 Hand Weld
Refractory anchor shape - 24 on the white background.

Refractory anchor shape - 24

 304 S.S.
310 S.S.
316 S.S.
330 S.S.
601 Inconel		 High Density Castable
(Dual Component Linings)		 Over 2000°F Rotary Kilns,
Furnace Arches, Furnace Roofs,
Reactor Bottoms		 Hand Weld
Refractory anchor shape - 25 on the white background.

Refractory anchor shape - 25

 304 S.S.
310 S.S.
316 S.S.
330 S.S.
601 Inconel		 High Density Castable
(Dual Component Linings)		 Over 2000°F Rotary Kilns,
Furnace Arches, Furnace Roofs,
Reactor Bottoms		 Hand Weld
Refractory anchor shape - 26 on the white background.

Refractory anchor shape - 26

 304 S.S.
310 S.S.
316 S.S.
330 S.S.
601 Inconel		 High Density Castable
(Dual Component Linings)		 Over 2000°F Rotary Kilns,
Furnace Arches, Furnace Roofs,
Reactor Bottoms		 Hand Weld
Refractory anchor shape - 27 on the white background.

Refractory anchor shape - 27

 304 S.S.
310 S.S.
316 S.S.
330 S.S.
601 Inconel		 High Density Castable
(Dual Component Linings)		 Over 2000°F Rotary Kilns,
Furnace Arches, Furnace Roofs,
Reactor Bottoms		 Hand Weld

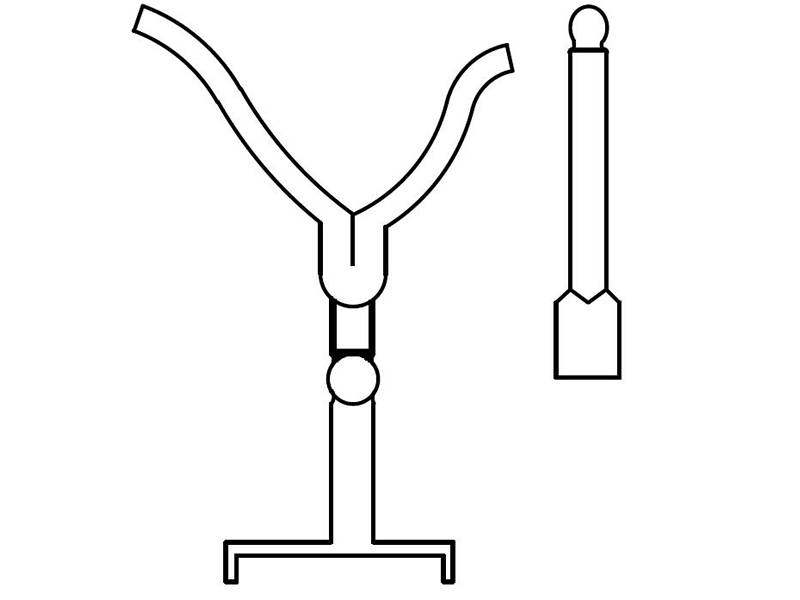

Refractory anchor shape - 28 on the white background.

Refractory anchor shape - 28

 304 S.S.
310 S.S.
316 S.S.
330 S.S.
601 Inconel		 High Density Castable
(Dual Component Linings)		 Over 2000°F Rotary Kilns,
Furnace Arches, Furnace Roofs,
Reactor Bottoms		 Hand Weld
Refractory anchor shape - 29 on the white background.

Refractory anchor shape - 29

 304 S.S.
310 S.S.
316 S.S.
330 S.S.
601 Inconel		 High Density Castable
(Dual Component Linings)		 Over 2000°F Rotary Kilns,
Furnace Arches, Furnace Roofs,
Reactor Bottoms		 Hand Weld

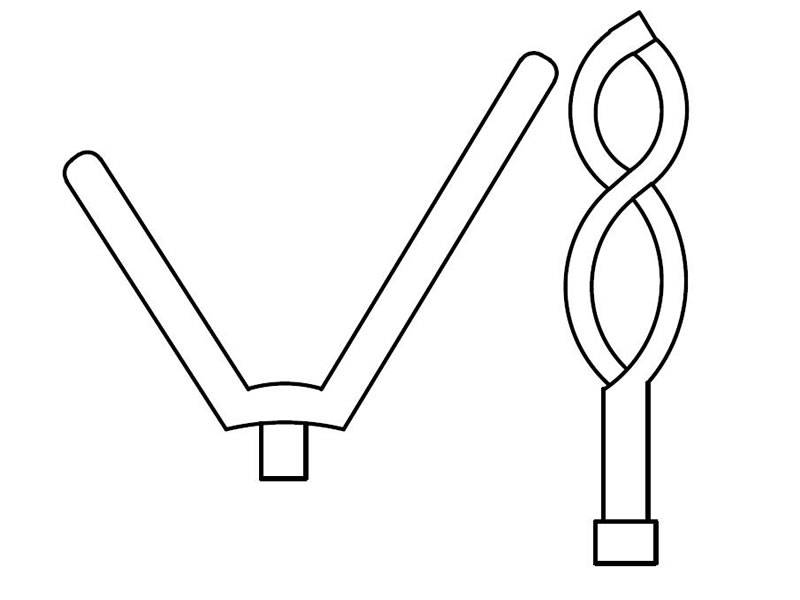

Refractory anchor shape - 30 on the white background.

Refractory anchor shape - 30

 304 S.S.
310 S.S.
316 S.S.
330 S.S.
601 Inconel		 High Density Castable
(Dual Component Linings)		 High Density Castable (Dual Component Linings) Rotary Kilns,
Furnace Arches, Furnace Roofs,
Reactor Bottoms		 Hand Weld
Refractory anchor shape - 31 on the white background.

Refractory anchor shape - 31

 304 S.S.
310 S.S.
601 Inconel		 Fibre Blanket,
Fibre Modules		 900° to 2250°F Heat Treat Furnaces,
Car Bottom Furnaces,
Rotary Hearth		 Stud Weld
Refractory anchor shape - 32 on the white background.

Refractory anchor shape - 32

 304 S.S.
310 S.S.
601 Inconel		 Fibre Blanket,
Fibre Modules		 900° to 2250°F Heat Treat Furnaces,
Car Bottom Furnaces,
Rotary Hearth		 Stud Weld
Refractory anchor shape - 33 on the white background.

Refractory anchor shape - 33

 Ceramic Fibre Blanket,
Fibre Modules		 900° to 2250°F Heat Treat Furnaces,
Car Bottom Furnaces,
Rotary Hearth		 N/A
Refractory anchor shape - 34 on the white background.

Refractory anchor shape - 34

 304 S.S.
310 S.S.		 Low to High Density Castable 1200° to 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Stacks, Incinerators		 Stud Weld
Refractory anchor shape - 35 on the white background.

Refractory anchor shape - 35

 304 S.S.
310 S.S.		 Low to High Density Castable 1200° to 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Stacks, Incinerators		 Stud Weld
Refractory anchor shape - 36 on the white background.

Refractory anchor shape - 36

 304 S.S.
310 S.S.		 Low to High Density Castable 1200° to 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Stacks, Incinerators		 Stud Weld
Refractory anchor shape - 37 on the white background.

Refractory anchor shape - 37

 304 S.S.
310 S.S.		 Low to High Density Castable 1200° to 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Stacks, Incinerators		 Stud Weld
Refractory anchor shape - 38 on the white background.

Refractory anchor shape - 38

 304 S.S.
310 S.S.		 Low to High Density Castable 1200° to 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Stacks, Incinerators		 Stud Weld
Refractory anchor shape - 39 on the white background.

Refractory anchor shape - 39

 304 S.S.
310 S.S.		 Low to High Density Castable 1200° to 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Stacks, Incinerators		 Stud Weld

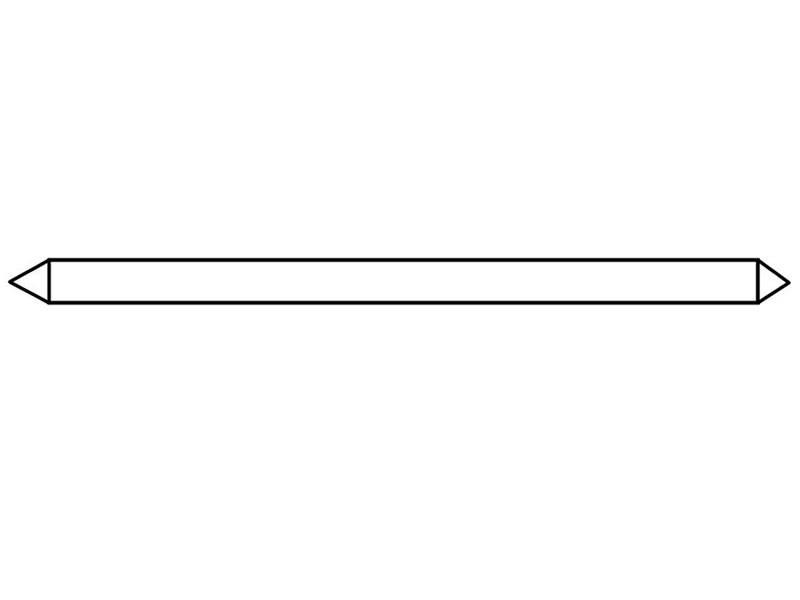

Refractory anchor shape - 40 on the white background.

Refractory anchor shape - 40

 304 S.S.
310 S.S.
Mild Steel		 Low to High Density Castable 600° to 1200°F Stacks Heat Treating Stud Weld

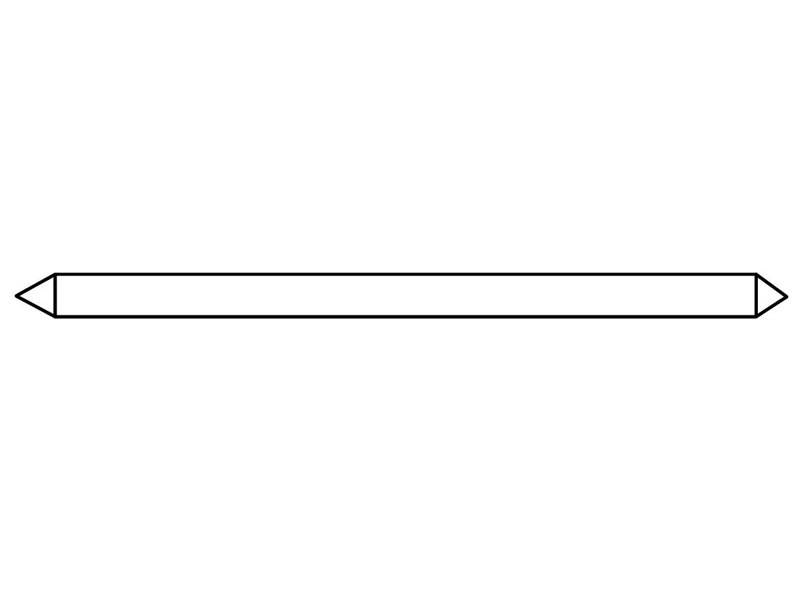

Refractory anchor shape - 41 on the white background.

Refractory anchor shape - 41

 304 S.S.
310 S.S.
Mild Steel		 Low to High Density Castable 600° to 1200°F Stacks Heat Treating Stud Weld
