Duplex Steel UNS S31803 & S32205 Fasteners
DSS UNS S31803 Threaded Stud, Duplex 2205 Structural Bolts, Duplex Steel UNS S32205 Plain Washer Stockholder, 2205 Duplex Steel D6-70 Bolts, Duplex Grade UNS S31803 Hexagon Nut Fasteners in India.
Ranfit Metals is a distinguished exporting and manufacturing firm that offers a range of Duplex UNS S31803 & S32205 Fasteners, which is good for sea water applications. Duplex UNS S31803 Fasteners are resistant to corrosion by many agents, including rapidly flowing seawater. It is a precipitation-hardenable nickel-copper alloy that combines the corrosion resistance with greater Duplex UNS S32205 Fasteners and hardness. Duplex 2205 Fasteners also has low permeability and is nonmagnetic to under -150 Degree F (-101 Degree C). Duplex Stainless Steel UNS S31803 Fasteners brings characteristics in respect to corrosion resistance, however, offers higher yield and tensile strength. We predominantly supply Duplex Stainless Steel UNS S32205 Fasteners, 2205 Duplex D6-70 Fasteners in the hot worked and precipitation treated condition. Due to added aluminum and titanium, Duplex Steel 2205 Nuts, Duplex Stainless Steel 2205 Fasteners has a greater strength and hardness.
Duplex Steel WNR 1.4662 Fasteners retains the excellent corrosion resistance with the added advantage of increased strength and hardness values that can be maintained up to 650 Degree C. The increased properties of Duplex S31803 Fasteners are obtained by heating under controlled conditions so that submicroscopic particles are precipitated throughout the matrix. Aluminum and titanium additions, plus controlled heat treat cycles, are responsible for the added strength of Duplex S32205 Fasteners, Duplex 2205 Bolt, which is a precipitation hardenable alloy with greater strength.
Duplex Steel UNS S31803 Threaded Stud, DSS DIN 1.4462 Eye Bolts, Duplex Stainless Steel UNS S32205 Lock Nut, 2205 Duplex D6-70 Nuts, Duplex SAF 2205 Fasteners Manufacturer in India.
Duplex Steel 2205 Fasteners Specification
| Grade | Duplex Steel 2205 (UNS S31803/S32205) |
|---|---|
| Duplex Steel 2205 Fasteners Specifications | ASTM A479/ ASME SA479 |
| Duplex Steel UNS S31803/S32205 Fasteners size | Bolt / Screw Size : M3 - M56 | 3/6" to 2" | Custom Sizes Nuts Size : M3 - M56 | 3/6" to 2" | Custom Sizes Washers Size : M3 - M56 | 3/6" to 2" | Custom Sizes Machine Screws Size : M1.6 - M12 Self Tapping Screw Size : No.2 - No. 14 |
| Duplex Steel UNS S31803/S32205 Fasteners Length | 3 mm to 200 mm |
| Duplex Steel UNS S31803/S32205 Studs, Bolts, Threads | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard of Duplex Steel UNS S31803 & S32205 Fasteners | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard Duplex Steel 2205 Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Duplex Steel 2205 Hex nuts |
| Form of Duplex Steel UNS S31803/S32205 Fasteners | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Duplex Steel UNS S31803/S32205 Bolting | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Duplex Steel UNS S31803/S32205 Bolts | Six-Lobe,Phillips,Phillips/Slot, Slotted etc |
| Packing of SS Duplex Steel UNS S31803/S32205 Fasteners | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Duplex Steel UNS S31803 & S32205 Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Duplex Steel UNS S31803 & S32205 Fasteners finishing | Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Stainless Steel, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
Duplex Steel 2205 Fasteners Equivalent Grades
| Duplex | Common Name | Related Specifications | ||
|---|---|---|---|---|
| European DIN | UNS | ASTM/ASME | ||
| Duplex Steel | SAF 2205® | 1.4462 | S31803/S32205 | F51/F60 |
Chemical Composition of Duplex Steel 2205 Fasteners
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S31803 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
| S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
Mechanical Properties of Duplex Steel UNS S31803 & S32205 Fasteners
| Element | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| S31803 / S32205 | 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
Types of Duplex Steel UNS S31803 & S32205 Fasteners
Duplex Steel UNS S31803 & S32205 Stud Anchor

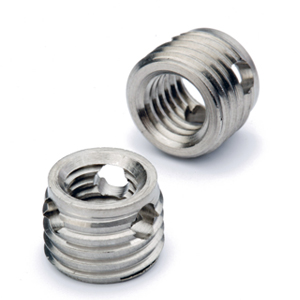

Duplex Steel UNS S31803 & S32205 Threaded Inserts

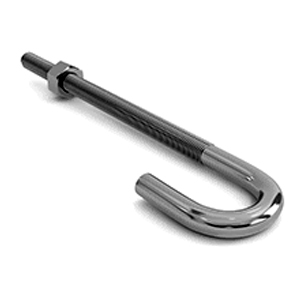

Duplex Steel UNS S31803 & S32205 J Bolts
Duplex Steel UNS S31803 & S32205 Nuts
Duplex Steel UNS S31803 & S32205 Bolts
Duplex Steel UNS S31803 & S32205 Washers

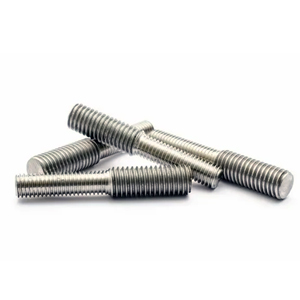

Duplex Steel UNS S31803 & S32205 Stud Bolts
Duplex Steel UNS S31803 & S32205 Screws
Duplex Steel UNS S31803 & S32205 Dowel Pins
Duplex Steel UNS S31803 & S32205 Threaded Hanger Bolt
Duplex Steel UNS S31803 & S32205 Hexagon Cap Screw
Duplex Steel UNS S31803 & S32205 Star Washers

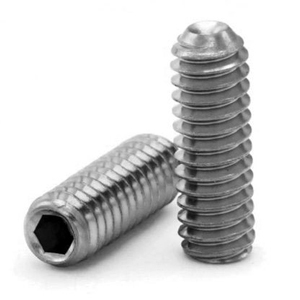

Duplex Steel UNS S31803 & S32205 Socket Set Screw

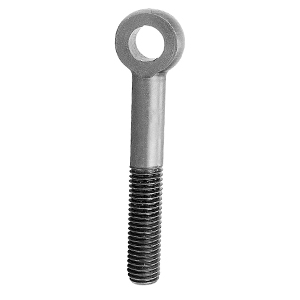

Duplex Steel UNS S31803 & S32205 Eye Bolts

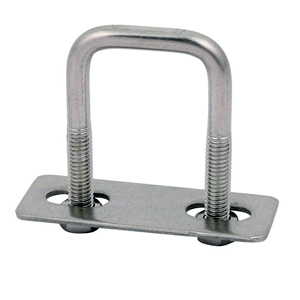

Duplex Steel UNS S31803 & S32205 Square U-Bolts

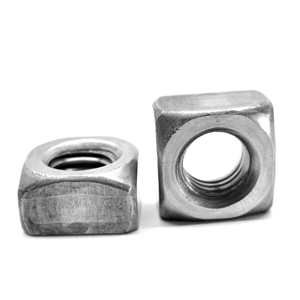

Duplex Steel UNS S31803 & S32205 Square Nuts

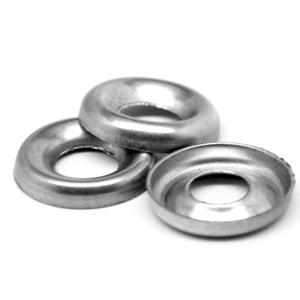

Duplex Steel UNS S31803 & S32205 Countersunk Washers

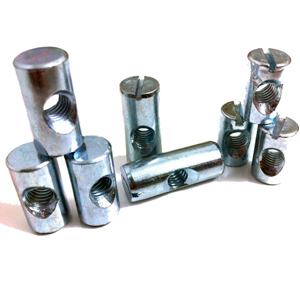

Duplex Steel UNS S31803 & S32205 Barrel Nuts
ASTM A193/A194 Duplex Steel UNS S31803 & S32205 Fasteners Forms & Availability
| Products | Size | |
|---|---|---|
| ASTM A479 / SA479 Duplex Steel UNS S31803/S32205 Stud Bolt | ASTM A479 / SA479Duplex Steel UNS S31803/S32205 Bolts | Sizes M3 - M56 | 3/6" to 2" |
| ASTM A479 / SA479 Duplex Steel UNS S31803/S32205 Punched Washer | ASTM A479 / SA479 Duplex Steel UNS S31803/S32205 Pan Head Screw | |
| ASTM A479 / SA479 Duplex Steel UNS S31803/S32205 Square Nut | ASTM A479 / SA479 Duplex Steel UNS S31803/S32205 Insert Nuts | |
| ASTM A479 / SA479 Duplex Steel UNS S31803/S32205 Welding Studs | ASTM A479 / SA479 Duplex Steel UNS S31803/S32205 Pan Head Screw | |
| ASTM A479 / SA479 Duplex Steel UNS S31803/S32205 Cap Screw | ASTM A479 / SA479 Duplex Steel UNS S31803/S32205 Foundation Bolts | |
| ASTM A479 / SA479 Duplex Steel UNS S31803/S32205 Threaded Rod | ASTM A479 / SA479 Duplex Steel UNS S31803/S32205 Hex Head Bolts | |
| ASTM A479 / SA479 Duplex Steel UNS S31803/S32205 Nuts | ASTM A479 / SA479 Duplex Steel UNS S31803/S32205 Washers | |
| ASTM A479 / SA479 Duplex Steel UNS S31803/S32205 Fender Washer | ASTM A479 / SA479 Duplex Steel UNS S31803/S32205 Lock Nut | |
| ASTM A479 / SA479 Duplex Steel UNS S31803/S32205 Countersunk Slotted Screw | ASTM A479 / SA479 Duplex Steel UNS S31803/S32205 Double Ended Stud | |
Duplex Steel UNS S31803 & S32205 Hex Bolt Dimensions
| Nominal Size (D) | Body Diameter | Head Thickness ASTM A193 | Acro ASTM A193 The Flats | Acro ASTM A193 Corners | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
SS 321 Nuts Dimensions
| Nominal Size or Basic Major Thread Diameter | F | G | H | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Width Across Flats | Width Across Corners | Thickness | |||||||
| Basic | Max | Min | Max | Min | Basic | Max | Min | ||
| 1/4 | .2500 | 1/2 | .500 | .488 | .577 | .556 | 15/64 | .250 | .218 |
| 5/16 | .3125 | 9/16 | .562 | .546 | .650 | .622 | 19/64 | .314 | .280 |
| 3/8 | .3750 | 11/16 | .688 | .669 | .794 | .763 | 23/64 | .377 | .341 |
| 7/16 | .4375 | 3/4 | .750 | .728 | .866 | .830 | 27/64 | .441 | .403 |
| 1/2 | .5000 | 7/8 | .875 | .850 | 1.010 | .969 | 31/64 | .504 | .464 |
| 9/16 | .5625 | 15/16 | .938 | .909 | 1.083 | 1.037 | 35/64 | .568 | .526 |
| 5/8 | .6250 | 1-1/16 | 1.062 | 1.031 | 1.227 | 1.175 | 39/64 | .631 | .587 |
| 3/4 | .7500 | 1-1/4 | 1.250 | 1.212 | 1.443 | 1.382 | 47/64 | .758 | .710 |
| 7/8 | .8750 | 1-7/16 | 1.438 | 1.394 | 1.660 | 1.589 | 55/64 | .885 | .833 |
| 1 | 1.0000 | 1-5/8 | 1.325 | 1.575 | 1.876 | 1.796 | 63/64 | 1.012 | .956 |
| 1-1/8 | 1.1250 | 1-13/16 | 1.812 | 1.756 | 2.093 | 2.002 | 1-7/64 | 1.139 | 1.079 |
| 1-1/4 | 1.2500 | 2 | 2.000 | 1.938 | 2.309 | 2.209 | 1-7/32 | 1.251 | 1.187 |
| 1-3/8 | 1.3750 | 2-3/16 | 2.188 | 2.119 | 2.526 | 2.416 | 1-11/32 | 1.378 | 1.460 |
| 1-1/2 | 1.5000 | 2-3/8 | 2.375 | 2.300 | 2.742 | 2.622 | 1-15/32 | 1.505 | 1.433 |
| 1-5/8 | 1.6250 | 2-9/16 | 2.562 | 2.481 | 2.959 | 2.828 | 1-19/32 | 1.632 | 1.556 |
| 1-3/4 | 1.7500 | 2-3/4 | 2.750 | 2.662 | 3.175 | 3.035 | 1-23/32 | 1.759 | 1.679 |
| 2 | 2.0000 | 3-1/8 | 3.125 | 3.025 | 3.608 | 3.449 | 1-31/32 | 2.013 | 1.925 |
| 2-1/4 | 2.2500 | 3-1/2 | 3.500 | 3.388 | 4.041 | 3.862 | 2-13/64 | 2.251 | 2.155 |
| 2-1/2 | 2.5000 | 3-7/8 | 3.875 | 3.750 | 4.474 | 4.275 | 2-29/64 | 2.505 | 2.401 |
| 2-3/4 | 2.7500 | 4-1/4 | 4.250 | 4.112 | 4.907 | 4.688 | 2-45/64 | 2.759 | 2.647 |
| 3 | 3.0000 | 4-5/8 | 4.625 | 4.475 | 5.340 | 5.102 | 2-61/64 | 3.013 | 2.893 |
| 3-1/4 | 3.2500 | 5 | 5.000 | 4.838 | 5.774 | 5.515 | 3-3/16 | 3.252 | 3.124 |
| 3-1/2 | 3.5000 | 5-3/8 | 5.375 | 5.200 | 6.207 | 5.928 | 3-7/16 | 3.506 | 3.370 |
| 3-3/4 | 3.7500 | 5-3/4 | 5.750 | 5.562 | 6.640 | 6.341 | 3-11/16 | 3.670 | 3.616 |
| 4 | 4.0000 | 6-1/8 | 6.125 | 5.925 | 7.073 | 6.755 | 3-15/16 | 4.014 | 3.862 |
ASTM / DIN Specification of Duplex Steel 2205 Fasteners
| ASTM A193 | ASTM A194 | ASTM F2281 |
| ASTM A193M | ASTM A194M | ASTM A962 |
| ASTM A320 | ASTM F593-13a | ASTM A962M |
| ASTM A320M | ASTM F594-15 | |
| DIN 580 | DIN 6914 | DIN 6921 |
| DIN 582 | DIN 3570 | DIN 603 |
| DIN 444 | DIN 7990 | DIN 2510 |
| DIN 939 | DIN 1B | DIN 976 |
| DIN 933 | DIN 529 | DIN 912 |
| DIN 931 | DIN 6325 |
Duplex Steel UNS S31803 & S32205 Fasteners Standard
| Hexagon Bolt / Set Screws | Stud Bolt | Hexagon Nuts | Socket Cap screws |
|---|---|---|---|
| DIN 931 | BS4882 | DIN 934 | DIN 912 |
| DIN 933 | DIN 976 | BS 1768 | DIN 6912 |
| BS 1768 | BS 1769 | DIN 7984 | |
| UNI 5731 | BS 1083 | ANSI B18.3 | |
| UNI 5739 | BS 3692 | ISO 4762 | |
| ISO 4014 | ISO 4032 | UNI 5931 | |
| ISO 4017 | ISO 4033 | BS 2470 | |
| BS 1769 | ANSI B18.2.2 | BS 4168 | |
| BS 3692 | |||
| ANSI B18.2.1 | |||
| Socket & Slotted Set Screws | Socket & Slotted Countersunk Screws | Studs | Washers |
| DIN 913 | DIN 963 | DIN 938 | DIN 125 |
| DIN 914 | DIN 7991 | DIN 939 | DIN 9021 |
| DIN 915 | BS 4168 | DIN 2510 | BS 4320 |
| DIN 916 | BS 1981 | BS 4439 | BS 3410 |
| DIN 551 | BS 483 | BS 2693 | |
| DIN 553 | BS 2470 | Spring Washers | |
| DIN 438 | DIN 127 | ||
| BS 4168 | BS 4464 | ||
| BS 1802 |
Duplex Steel UNS S31803 & S32205 Flat Washer Dimension Chart
| Size | Inside Diameter | Outside Diameter | Thickness |
|---|---|---|---|
| #2 | 3/32" | 1/4" | .020" |
| #4 | 1/8" | 5/16" | 1/32" |
| #8 | 3/16" | 7/16" | 3/64" |
| #10 | 7/32" | 1/2" | 3/64" |
| #6 | 5/32" | 3/8" | 3/64" |
| 1/4 | 9/32" | 5/8" | 1/16" |
| 3/8 | 13/32" | 13/16" | 1/16" |
| 7/16 | 15/32" | 59/64" | 1/16" |
| 1/2 | 17/32" | 1-1/16" | 3/32" |
| 9/16 | 19/32" | 1-3/16" | 3/32" |
| 5/16 | 11/32" | 11/16" | 1/16" |
| 1-3/4 | 1-7/8" | 4" | 3/16" |
| 5/8 | 21/32" | 1-5/16" | 3/32" |
| 3/4 | 13/16" | 1-1/2" | 9/64" |
| 7/8 | 15/16" | 1-3/4" | 9/64" |
| 1" | 1-1/16" | 2" | 9/64" |
| 1-1/8 | 1-3/16" | 2-1/4" | 9/64" |
| 1-1/4 | 1-5/16" | 2-1/2" | 5/32" |
| 1-1/2 | 1-7/16" | 3" | 3/16" |
| 1-5/8 | 1-3/4" | 3-3/4" | 3/16" |
| 2 | 2-1/8" | 4-1/2" | 3/16" |
Duplex Steel UNS S31803 & S32205 Plain Washer Dimension
| Size | Inside Diameter | Outside Diameter | Thickness |
|---|---|---|---|
| 3/16 | 1/4" | 9/16" | 3/64" |
| 1/4 | 5/16" | 3/4" | 1/16" |
| 3/8 | 7/16" | 1" | 5/64" |
| 7/16 | 1/2" | 1-1/4" | 5/64" |
| 1/2 | 9/16" | 1-3/8" | 7/64" |
| 9/16 | 5/8" | 1-1/2" | 7/64" |
| 5/8 | 11/16" | 1-3/4" | 9/64" |
| 3/4 | 13/16" | 2" | 5/32" |
| 5/16 | 3/8" | 7/8" | 5/64" |
| 7/8 | 15/16" | 2-1/4" | 1/64" |
| 1 | 1-1/16" | 2-1/2" | 11/64" |
| 1-1/8 | 1-1/4" | 2-3/4" | 11/64" |
| 1-1/4 | 1-3/8" | 3" | 11/64" |
| 1-3/8 | 1-1/2" | 3-1/4" | 3/16" |
| 1-5/8 | 1-3/4" | 3-3/4" | 3/16" |
| 1-3/4 | 1-7/8" | 4" | 3/16" |
| 2 | 2-1/8" | 4-1/2" | 3/16" |
| 2-1/2 | 2-5/8" | 4-1/2" | 3/16" |
| 3 | 3-1/8" | 5-1/2" | 9/32" |
| 1-1/2 | 1-5/8" | 3-1/2" | 3/16" |
Duplex Steel UNS S31803 & S32205 Washers Sizes
| Size | USS | SAE | ||||
|---|---|---|---|---|---|---|
| Inside Diameter (A) |
Outside Diameter (B) |
Thickness (C) |
Inside Diameter (A) |
Outside Diameter (B) |
Thickness (C) |
|
| #2 | - | - | - | 3/32" | 1/4" | 0.020" |
| #4 | - | - | - | 1/8" | 5/16" | 0.032" |
| #6 | - | - | - | 5/32" | 3/8" | 0.049" |
| #8 | - | - | - | 3/16" | 7/16" | 0.049" |
| #10 | - | - | - | 7/32" | 1/2" | 0.049" |
| #12 | - | - | - | 1/4" | 9/16" | 0.065" |
| 1/4" | 5/16" | 0.734" | 0.065" | 9/32" | 5/8" | 0.065" |
| 5/16" | 3/8" | 7/8" | 0.083" | 11/32" | 11/16" | 0.065" |
| 3/8" | 7/16" | 1" | 0.083" | 13/32" | 13/16" | 0.065" |
| 7/16" | 1/2" | 1-1/4" | 0.083" | 15/32" | 15/16" | 0.065" |
| 1/2" | 9/16" | 1-3/8" | 0.109" | 17/32" | 1-1/16" | 0.095" |
| 9/16" | 5/8" | 1-15/32" | 0.109" | 19/32" | 1-5/32" | 0.095" |
| 5/8" | 11/16" | 1-3/4" | 0.134" | 21/32" | 1-5/16" | 0.095" |
| 3/4" | 13/16" | 2" | 0.148" | 13/16" | 1-15/32" | 0.134" |
| 7/8" | 15/16" | 2-1/4" | 0.165" | 15/16" | 1-3/4" | 0.134" |
| 1" | 1-1/16" | 2-1/2" | 0.165" | 1-1/16" | 2" | 0.134" |
| 1-1/8" | 1-1/4" | 2-3/4" | 0.165" | - | - | - |
| 1-1/4" | 1-3/8" | 3" | 0.165" | - | - | - |
| 1-3/8" | 1-1/2" | 3-1/4" | 0.180" | - | - | - |
| 1-1/2" | 1-5/8" | 3-1/2" | 0.180" | - | - | - |
| 1-5/8" | 1-3/4" | 3-3/4" | 0.180" | - | - | - |
| 1-3/4" | 1-7/8" | 4" | 0.180" | - | - | - |
| 2" | 2-1/8" | 4-1/2" | 0.213" | - | - | - |
Duplex Steel UNS S31803 & S32205 Stud Bolt Size Chart
| Class 150 Flanges ASME B16.5 (Stud bolt sizes) | Length of Stud Bolts | |||||||
|---|---|---|---|---|---|---|---|---|
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in |
Ring Joint | |
| 1/2 | 3 1/2 | 2 3/8 | 5/8 | 4 | 1/2 | 2 1/4 | – | |
| 3/4 | 3 7/8 | 2 3/4 | 5/8 | 4 | 1/2 | 2 1/2 | – | |
| 1 | 4 1/4 | 3 1/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 1 1/4 | 4 5/8 | 3 1/2 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 1 1/2 | 5 | 3 7/8 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 2 | 6 | 4 3/4 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 2 1/2 | 7 | 5 1/2 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 | 7 1/2 | 6 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 1/2 | 8 1/2 | 7 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 4 | 9 | 7 1/2 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 5 | 10 | 8 1/2 | 7/8 | 8 | 3/4 | 3 3/4 | 4 1/4 | |
| 6 | 11 | 9 1/2 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 8 | 13 1/2 | 11 3/4 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 10 | 16 | 14 3/4 | 1 | 12 | 7/8 | 4 1/2 | 5 | |
| 12 | 19 | 17 | 1 | 12 | 7/8 | 4 3/4 | 5 1/4 | |
| 14 | 21 | 18 3/4 | 1 1/8 | 12 | 1 | 5 1/4 | 5 3/4 | |
| 16 | 23 1/2 | 21 1/4 | 1 1/8 | 16 | 1 | 5 1/4 | 5 3/4 | |
| 18 | 25 | 22 3/4 | 1 1/4 | 16 | 1 1/8 | 5 3/4 | 6 1/4 | |
| 20 | 27 1/2 | 25 | 1 1/4 | 20 | 1 1/8 | 6 1/4 | 6 3/4 | |
| 24 | 32 | 29 1/2 | 1 1/4 | 20 | 1 1/4 | 6 3/4 | 7 1/4 | |
| Class 300 Flanges ASME B16.5 | Length of Stud Bolts | |||||||
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in |
Ring Joint | |
| 1/2 | 3 3/4 | 2 5/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 3/4 | 4 5/8 | 3 1/4 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 | 4 7/8 | 3 1/2 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 1/4 | 5 1/4 | 3 7/8 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 1 1/2 | 6 1/8 | 4 1/2 | 7/8 | 4 | 3/4 | 3 1/2 | 4 | |
| 2 | 6 1/2 | 5 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 2 1/2 | 7 1/2 | 5 7/8 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 3 | 8 1/4 | 6 5/8 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 3 1/2 | 9 | 7 1/4 | 7/8 | 8 | 3/4 | 4 1/4 | 5 | |
| 4 | 10 | 7 7/8 | 7/8 | 8 | 3/4 | 4 1/2 | 5 | |
| 5 | 11 | 9 1/4 | 7/8 | 8 | 3/4 | 4 3/4 | 5 1/4 | |
| 6 | 12 1/2 | 10 5/8 | 7/8 | 12 | 3/4 | 4 3/4 | 5 1/2 | |
| 8 | 15 | 13 | 1 | 12 | 7/8 | 5 1/2 | 6 | |
| 10 | 17 1/2 | 15 1/4 | 1 1/8 | 16 | 1 | 6 1/4 | 6 3/4 | |
| 12 | 20 1/2 | 17 3/4 | 1 1/4 | 16 | 1 1/8 | 6 3/4 | 7 1/4 | |
| 14 | 23 | 20 1/4 | 1 1/4 | 20 | 1 1/8 | 7 | 7 1/2 | |
| 16 | 25 1/2 | 22 1/2 | 1 3/8 | 20 | 1 1/4 | 7 1/2 | 8 | |
| 18 | 28 | 24 3/4 | 1 3/8 | 24 | 1 1/4 | 7 3/4 | 8 1/4 | |
| 20 | 30 1/2 | 27 | 1 3/8 | 24 | 1 1/4 | 8 | 8 3/4 | |
| 24 | 36 | 32 | 1 5/8 | 24 | 1 1/2 | 9 | 10 | |
ANSI and/or ASME Standards Duplex Steel 2205 Fasteners (inch series)
| ASME B18.1.1 | Small Solid Rivets | ASME B18.8.1 | Clevis Pins and Cotter Pins |
|---|---|---|---|
| ASME B18.1.2 | Large Rivets | ASME B18.8.2 | Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins |
| ASME B18.2.1 | Square and Hex Bolts and Screws | ASME B18.9 | Plow Bolts |
| ASME B18.2.2 | Square and Hex Nuts | ASME B18.10 | Track Bolts and Nuts |
| ASME B18.2.6 | Fasteners for use in Structural Applications | ASME B18.11 | Miniature Screws |
| ASME B18.3 | Socket Cap, Shoulder and Set Screws | ASME B18.13 | Screws and Washer Assemblies (Sems) |
| ASME B18.5 | Round Head Bolts | ASME B18.15 | Forged Eyebolts |
| ASME B18.6.2 | Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws | ASME B18.17 | Wing Nuts, Thumb Screws and Wing Screws |
| ASME B18.6.3 | Machine Screws and Machine Screws Nuts | ASME B18.21.1 | Lock Washers |
| ASME B18.6.4 | Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws | ASME B18.22.1 | Plain Washers |
| ASME B18.7 | General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps | ASME B18.23.1 | Beveled Washers |
Other Types of Duplex Steel UNS S31803 & S32205 Fasteners
| DSS DIN 1.4462 Dock Washer | Duplex Steel UNS S31803 Customized Washer |
| Duplex Steel UNS S32205 Threaded Rod | DSS DIN 1.4462 Flange Lock Nut |
| Duplex Grade UNS S31803 Particle Board Screw Exporter | Duplex Stainless Steel UNS S32205 Concrete Screw |
| Duplex Stainless Steel UNS S32205 Thread Rolling Screw | Duplex Grade UNS S31803 Construction screws |
| DSS UNS S31803 Thread Cutting Screw | Duplex 2205 Countersunk Washer |
| Duplex SAF 2205 Tooth Lock Washer | DSS UNS S32205 Ogee Washer |
| Duplex Steel UNS S31803 Hex Washers | Duplex Steel UNS S31803 Split / Lock Washer Supplier |
| Duplex Steel UNS S32205 Hexagonal Washer | Duplex Steel UNS S32205 Self Locking Nuts |
| Wrought Austenitic DSS UNS S31803 Fasteners | UNS S31803 Duplex Steel Fender Washer at Best Price |
| UNS S32205 Duplex Steel Hanger Bolt Supplier | Suppliers of Duplex 2205 Draw Bolt |
