Alloy 20 Fasteners
Alloy 20 Industrial Fasteners, Alloy 20 Bolts, Alloy DIN 2.4660 Studs , Nickel Alloy 20 Screws, Carpenter 20 Heavy Hex Nuts Wholesaler Suppliers in India.
Ranfit Metal & Alloys is a known manufacturer of Alloy 20 Fasteners, which has outstanding resistance to both reducing and oxidizing media. Cold forming of Alloy 20 Nuts is the preferred method of forming. Alloy 20 Bolts exhibits excellent resistance to corrosive attack by seawater under stagnant and flowing conditions. Alloy 20 Stud Bolts can resist the grain boundary precipitate form when jointing heat affected zone, this performance made it can applied in many kinds of chemical processing. The omission of tungsten and a reduction in the iron content of Alloy 20 Washers is meant to increase thermal stability. The heat treatment of Alloy 20 Screws is carried out at 2050 Degree F (1120 Degree C) followed by water quench or rapid air cool. A hold time at the annealing temperature of 10 minutes to 30 minutes in Alloy 20 Round Bars is recommended, depending on the thickness of the structure.
Alloy 20 Studs should not be used in service temperatures above 1250 Degree F due to the formation of detrimental phases which form above this temperature. Because of high work-hardening rate of Alloy 20 Rods, only low surface-cutting speeds are possible compared with low-alloy standard austenitic stainless steel. Alloy UNS N08020 Fasteners is often chosen to solve stress corrosion cracking problems, which may occur with other stainless steel. Alloy WNR 2.4660 Fasteners excels in resisting corrosion to hot sulfuric acids and minimal carbide precipitation during welding.
Nickel Alloy 20 Threaded Rod, Carpenter® Alloy 20 Fasteners, ASME SF 594 Alloy 20 Nuts, AFNOR Z2NCUD31-20AZ Alloy 20 Fasteners Supplier & Exporter in India.
Alloy 20 Fasteners Specification
| 254 Fasteners Specifications | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
|---|---|
| Nickel Alloy 20 Fasteners size | Bolt / Screw Size : M3 - M56 | 3/6" to 2" | Custom Sizes Nuts Size : M3 - M56 | 3/6" to 2" | Custom Sizes Washers Size : M3 - M56 | 3/6" to 2" | Custom Sizes Machine Screws Size : M1.6 - M12 Self Tapping Screw Size : No.2 - No. 14 |
| Carpenter 20 Fasteners Length | 3 mm to 200 mm |
| Carpenter 20 Studs, Bolts, Threads | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard of Alloy 20 Fasteners | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard Carpenter 20 Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Carpenter 20 Hex nuts |
| Form of Carpenter 20 Fasteners | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Carpenter 20 Bolting | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Carpenter 20 Bolts | Six-Lobe,Phillips,Phillips/Slot, Slotted etc |
| Packing of Carpenter 20 Fasteners | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Alloy 20 Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Alloy 20 Fasteners finishing | Alloy 20 : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Stainless Steel, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
Alloy 20 Fasteners Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | EN |
| Alloy 20 | 2.4660 | N08020 | Z2NCUD31-20AZ | NiCr20CuMo |
Chemical Composition of Alloy 20 Fasteners
| Grade | Ni | C | Mo | Mn | Si | Fe | Cu | S | P | Cr |
| Alloy 20 | 32 – 38 | 0.02 max | 2 – 3 | 1 – 2 | 0.7 max | Bal | 3 – 4 | 0.005 max | 0.02 max | 19 – 21 |
Mechanical Properties of Alloy 20 Fasteners
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.1 g/cm3 | 1443 °C (2430 °F) | Psi – 35000 , MPa – 241 | Psi – 80000 , MPa – 551 | 30 % |
Types of Alloy 20 Fasteners
Alloy 20 Dowel Pins
Alloy 20 Lock Nuts

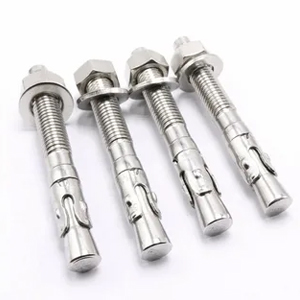

Alloy 20 Anchor Bolts

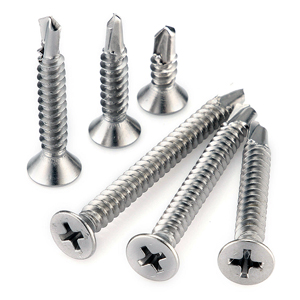

Alloy 20 Self Drilling Screws

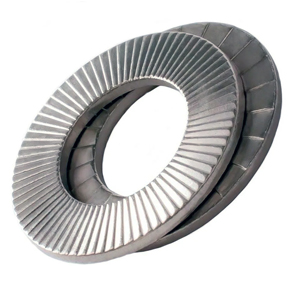

Alloy 20 Nord Lock Washers

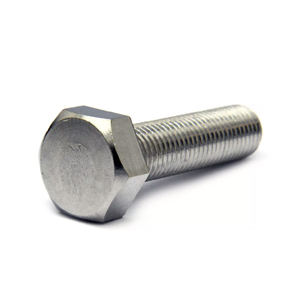

Alloy 20 Hex Bolts

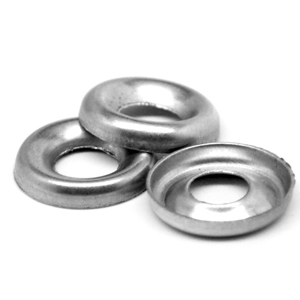

Alloy 20 Countersunk Washers

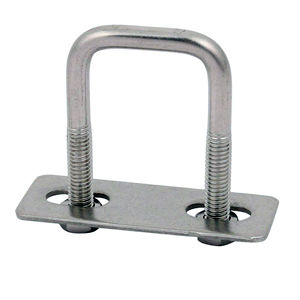

Alloy 20 Square U-Bolts

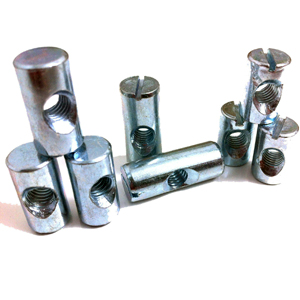

Alloy 20 Barrel Nuts

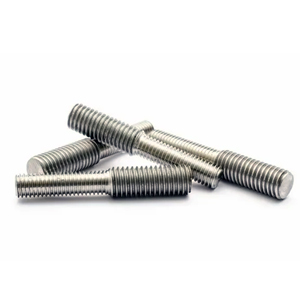

Alloy 20 Stud Anchors

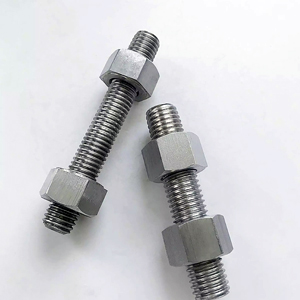

Alloy 20 Stud Bolts

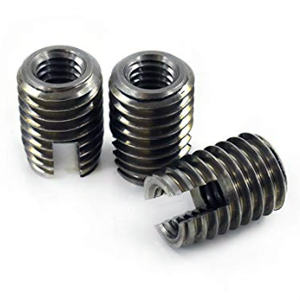

Alloy 20 Threaded Inserts

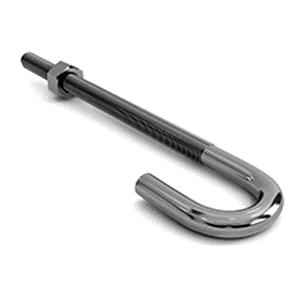

Alloy 20 J Type Bolt

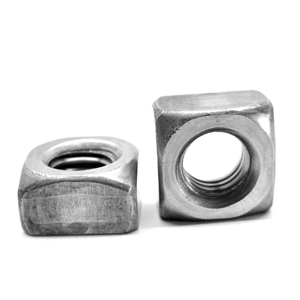

Alloy 20 Square Nuts

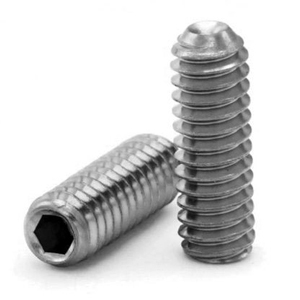

Alloy 20 Socket Set Screw

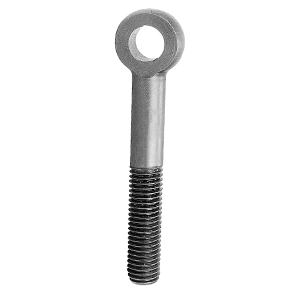

Alloy 20 Eye Bolts

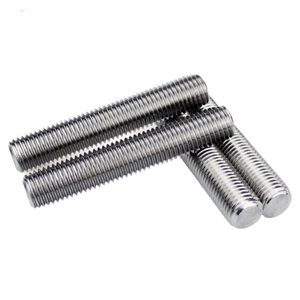

Alloy 20 Threaded Rod

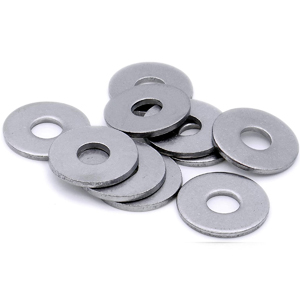

Alloy 20 Flat Washers
Alloy 20 Fasteners Forms & Availability
| Products | Size | |
|---|---|---|
| ASTM B574 Alloy 20 Stud Bolt | ASTM B574 Alloy 20® Alloy Bolts | Sizes M3 - M56 | 3/6" to 2" |
| ASTM B574 Alloy 20 Punched Washer | ASTM B574 Alloy 20 Pan Head Screw | |
| ASTM B574 Alloy 20 Square Nut | ASTM B574 Alloy 20 Insert Nuts | |
| ASTM B574 Alloy 20 Welding Studs | ASTM B574 Alloy 20 Pan Head Screw | |
| ASTM B574 Alloy 20 Cap Screw | ASTM B574 Alloy 20 Foundation Bolts | |
| ASTM B574 Alloy 20 Threaded Rod | ASTM B574 Alloy 20 Hex Head Bolts | |
| ASTM B574 Alloy 20 Nuts | ASTM B574 Alloy 20 Washers | |
| ASTM B574 Alloy 20 Fender Washer | ASTM B574 Alloy 20® Alloy Lock Nut | |
| ASTM B574 Alloy 20 Countersunk Slotted Screw | ASTM B574 Alloy 20 Double Ended Stud | |
ASTM / DIN Specification of Alloy 20 Fasteners
| ASTM A479 | ASTM A194 | ASTM F2281 |
| ASTM A479M | ASTM A194M | ASTM A962 |
| ASTM A320 | ASTM F593-13a | ASTM A962M |
| ASTM A320M | ASTM F594-15 | |
| DIN 580 | DIN 6914 | DIN 6921 |
| DIN 582 | DIN 3570 | DIN 603 |
| DIN 444 | DIN 7990 | DIN 2510 |
| DIN 939 | DIN 1B | DIN 976 |
| DIN 933 | DIN 529 | DIN 912 |
| DIN 931 | DIN 6325 |
Property Class
| For Bolts & Screws | A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H |
| For Nuts | A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040 |
| For SHCS | F837B, F837C, F837E, F837 |
| For Threaded Rods | A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2 |
Alloy 20 Fasteners Standard
| Hexagon Bolt / Set Screws | Stud Bolt | Hexagon Nuts | Socket Cap screws |
|---|---|---|---|
| DIN 931 | BS4882 | DIN 934 | DIN 912 |
| DIN 933 | DIN 976 | BS 1768 | DIN 6912 |
| BS 1768 | BS 1769 | DIN 7984 | |
| UNI 5731 | BS 1083 | ANSI B18.3 | |
| UNI 5739 | BS 3692 | ISO 4762 | |
| ISO 4014 | ISO 4032 | UNI 5931 | |
| ISO 4017 | ISO 4033 | BS 2470 | |
| BS 1769 | ANSI B18.2.2 | BS 4168 | |
| BS 3692 | |||
| ANSI B18.2.1 | |||
| Socket & Slotted Set Screws | Socket & Slotted Countersunk Screws | Studs | Washers |
| DIN 913 | DIN 963 | DIN 938 | DIN 125 |
| DIN 914 | DIN 7991 | DIN 939 | DIN 9021 |
| DIN 915 | BS 4168 | DIN 2510 | BS 4320 |
| DIN 916 | BS 1981 | BS 4439 | BS 3410 |
| DIN 551 | BS 483 | BS 2693 | |
| DIN 553 | BS 2470 | Spring Washers | |
| DIN 438 | DIN 127 | ||
| BS 4168 | BS 4464 | ||
| BS 1802 |
ANSI and/or ASME Standards Alloy 20 Fasteners(inch series)
| ASME B18.1.1 | Small Solid Rivets | ASME B18.8.1 | Clevis Pins and Cotter Pins |
|---|---|---|---|
| ASME B18.1.2 | Large Rivets | ASME B18.8.2 | Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins |
| ASME B18.2.1 | Square and Hex Bolts and Screws | ASME B18.9 | Plow Bolts |
| ASME B18.2.2 | Square and Hex Nuts | ASME B18.10 | Track Bolts and Nuts |
| ASME B18.2.6 | Fasteners for use in Structural Applications | ASME B18.11 | Miniature Screws |
| ASME B18.3 | Socket Cap, Shoulder and Set Screws | ASME B18.13 | Screws and Washer Assemblies (Sems) |
| ASME B18.5 | Round Head Bolts | ASME B18.15 | Forged Eyebolts |
| ASME B18.6.2 | Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws | ASME B18.17 | Wing Nuts, Thumb Screws and Wing Screws |
| ASME B18.6.3 | Machine Screws and Machine Screws Nuts | ASME B18.21.1 | Lock Washers |
| ASME B18.6.4 | Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws | ASME B18.22.1 | Plain Washers |
| ASME B18.7 | General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps | ASME B18.23.1 | Beveled Washers |
Alloy 20 Fasteners Dimension
| Alloy 20 Bolt / Screw | M3 – M56 | 3/6" to 2" | Custom Sizes |
| Alloy 20 Threaded Rods/ Bars | M3 – M56 | 3/6" to 2" | Custom Sizes |
| Alloy 20 Nuts | M3 – M56 | 3/6" to 2" | Custom Sizes |
| Alloy 20 Washers | M3 – M56 | Custom Sizes |
| Alloy 20 Machine Screws | M1.6 – M12 |
| Alloy 20 Self Tapping Screw | No.2 – No. 14 |
Alloy 20 Bolt Dimensions
| Nominal Size (D) | Body Diameter | Head Thickness ASTM A193 | Acro ASTM A193 The Flats | Acro ASTM A193 Corners | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Carpenter 20 Bolt Torque Specifications
| Bolt Size Inches or # | Threads Per Inch | Standard Dry Torque in Inch-Pounds | |||||
|---|---|---|---|---|---|---|---|
| #2 | 56 | 2.5 | 2.6 | ||||
| 64 | 3.0 | 3.2 | |||||
| #3 | 48 | 3.9 | 4.0 | ||||
| 56 | 4.4 | 4.6 | |||||
| #4 | 40 | 5.2 | 5.5 | ||||
| 48 | 6.6 | 6.9 | |||||
| #5 | 40 | 7.7 | 8.1 | ||||
| 44 | 9.4 | 9.8 | |||||
| #6 | 32 | 9.6 | 10.1 | ||||
| 40 | 12.1 | 12.7 | |||||
| #8 | 32 | 19.8 | 20.7 | ||||
| 36 | 22.0 | 23.0 | |||||
| #10 | 24 | 22.8 | 23.8 | ||||
| 32 | 31.7 | 33.1 | |||||
| 1/4 | 20 | 75.2 | 78.8 | ||||
| 28 | 94.0 | 99.0 | |||||
| 5/16 | 18 | 132 | 138 | ||||
| 24 | 142 | 147 | |||||
| 3/8 | 16 | 236 | 247 | ||||
| 24 | 259 | 271 | |||||
| 7/16 | 14 | 376 | 393 | ||||
| 20 | 400 | 418 | |||||
| 1/2 | 13 | 517 | 542 | ||||
| 20 | 541 | 565 | |||||
| 9/16 | 12 | 682 | 713 | ||||
| 18 | 752 | 787 | |||||
| 5/8 | 11 | 1110 | 1160 | ||||
| 18 | 1244 | 1301 | |||||
| 3/4 | 10 | 1530 | 1582 | ||||
| 16 | 1490 | 1558 | |||||
| 7/8 | 9 | 2328 | 2430 | ||||
| 14 | 2318 | 2420 | |||||
| 1 | 8 | 3440 | 3595 | ||||
| 14 | 3110 | 3250 | |||||
| 1 1/8 | 7 | 413 | 432 | ||||
| 12 | 390 | 408 | |||||
| 1 1/4 | 7 | 523 | 546 | ||||
| 12 | 480 | 504 | |||||
| 1 1/2 | 6 | 888 | 930 | ||||
| 12 | 703 | 732 | |||||
Alloy 20 Nuts Dimension
| Nominal Size or Basic Major Thread Diameter | F | G | H | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Width Across Flats | Width Across Corners | Thickness | |||||||
| Basic | Max | Min | Max | Min | Basic | Max | Min | ||
| 1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | .226 | .212 |
| 5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
| 3/8 | .3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | .337 | .479 |
| 7/16 | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
| 1/2 | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
| 9/16 | .5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | .496 | .473 |
| 5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
| 3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
| 7/8 | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.ASTM A194 GR. 8 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2.356 | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
Other Types of Alloy 20 Fasteners
| Alloy 20 Fasteners Manufacturer | Incoloy Alloy 20 Self Tapping Screw |
| Incoloy® Alloy 20 Countersunk Washers | Alloy UNS N08020 Threaded Stud |
| Alloy DIN 2.4660 Ogee Washers Exporter | Carpenter 20 Hexagonal Nuts |
| ASTM B 472 Alloy 20 Square Bolts | Incoloy® Alloy 20 U- Bolts Supplier |
| Alloy 20 Jam Nuts Exporter | Alloy 20 Plain Washers Supplier |
| ASME SB 472 Alloy 20 Studs | Nickel Alloy 20 Decking Screws |
| Alloy EN NiCr20CuMo Connector Bolts | ASTM B472 Alloy 20 Spring Washers |
| Nickel Alloy 20 T-Head Bolts | Alloy EN NiCr20CuMo IS/BS Eye Screws |
| Carpenter 20 Spring Nuts | Alloy DIN 2.4660 Fender Washers |
| Alloy UNS N08020 Machine Screws | ASME SB472 Alloy 20 Round Bend Hook Bolts |
