Inconel 600 Fasteners
Inconel UNS N06600 Threaded Stud, Inconel Alloy 600 Structural Bolts, Nickel Alloy 600 Plain Washer Stockholder, ASTM B166 Inconel 600 Hexagon Nut Supplier & Exporter in India.
Ranfit Metal & Alloys is a prominent supplier and manufacturer of Inconel Alloy 600 Fasteners, which is used in high temperature static applications. Inconel Nuts is well-known for its performance in extreme heat conditions. Inconel 600 Bolts has good corrosion resistance property for the oxidation, reduction, Nitric and other media. Inconel Stud Bolts has good oxidation resistance at high temperatures and resistance to chloride-ion stress-corrosion cracking. A nickel-chromium alloy, Inconel Washers is perfect for use in the heat treating industry. Inconel 600 Screws is a solid solution strengthened alloy used for applications that require corrosion and high temperature resistance. Inconel 600 Hex Nuts has chloride-ion stress corrosion cracking corrosion by high-purity water, and caustic corrosion. Inconel 600 Bars provides a standard material for the chemical industry and the automotive engine, airframe and aero-engine sectors. Inconel 600 Rods is used for furnace components, chemical and food processing. Inconel UNS N06600 Fasteners features superior strength and can be easily formed.
Alloy 600 Square Nuts are oxidation-corrosion-resistant materials well suited for service in extreme environments subjected to pressure and heat. Alloy 600 Bolts is highly versatile and can be used in everything from cryogenics to applications that present elevated temperatures. The high nickel content of Alloy 600 Washers provides good resistance to reducing environments. Alloy 600 Plain Washers is non-magnetic and readily weldable. Alloy 600 Stud Bolts is a nickel-based high temperature alloy possessing an excellent combination of high strength.
ASME SB166 Alloy 600 Threaded Rod, Inconel DIN 2.4816 Thread Rolling Screws, Inconel 600 Hex Nuts, Inconel Alloy 600 Flange Bolts Manufacturer in India.
Inconel 600 Fasteners Specification
| Grade | Inconel 600 (UNS N06600) |
|---|---|
| Inconel 600 Fasteners Specifications | ASTM B166 / ASME SB 166 |
| Inconel Alloy 600 Fasteners size | Bolt / Screw Size : M3 - M56 | 3/6" to 2" | Custom Sizes Nuts Size : M3 - M56 | 3/6" to 2" | Custom Sizes Washers Size : M3 - M56 | 3/6" to 2" | Custom Sizes Machine Screws Size : M1.6 - M12 Self Tapping Screw Size : No.2 - No. 14 |
| Inconel Alloy 600 Fasteners Length | 3 mm to 200 mm |
| Inconel Alloy 600 Studs, Bolts, Threads | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard of Inconel 600 Fasteners | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard Inconel® Alloy 600 Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Inconel Alloy 600 Hex nuts |
| Form of Inconel 600 Alloy Fasteners | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Inconel Alloy Bolting | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Inconel Alloy 600 Bolts | Six-Lobe,Phillips,Phillips/Slot, Slotted etc |
| Packing of Inconel Alloy 600 Fasteners | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Inconel 600 Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Inconel 600 Fasteners finishing | Inconel 600 : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Inconel Alloy, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
Inconel 600 Fasteners Equivalent Grades
| Alloy Grade | Common Name | Related Specification | |||
| British | European | ASTM | UNS | ||
| Inconel Alloy 600 | Inconel 600 ® | BS 3076 NA 14 | 2.4816 | B166 | N06600 |
Chemical Composition of Inconel 600 Fasteners
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015 max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
Mechanical Properties of Inconel 600 Fasteners
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.47 g/cm3 | 1413 °C (2580 °F) | 655 MPa, 95000 psi | 310 MPa, 45000 psi | 45 % |
Types of Inconel 600 Fasteners
Inconel 600 Nuts
Inconel 600 Bolts
Inconel 600 Washers

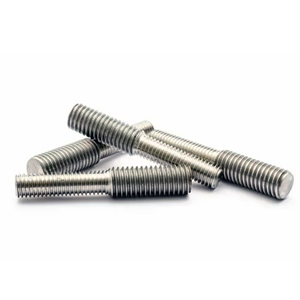

Inconel 600 Stud Bolts
Inconel 600 Screws
Inconel 600 Dowel Pins
Inconel 600 Threaded Hanger Bolt
Inconel 600 Hexagon Cap Screw
Inconel 600 Star Washers

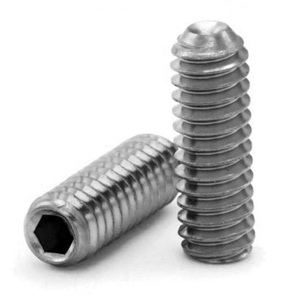

Inconel 600 Socket Set Screw

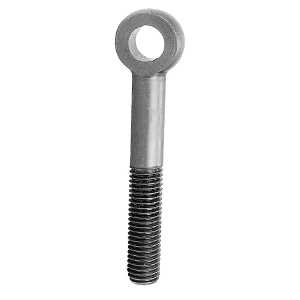

Inconel 600 Eye Bolts

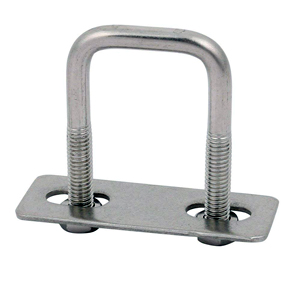

Inconel 600 Square U-Bolts
Inconel 600 Stud Anchor

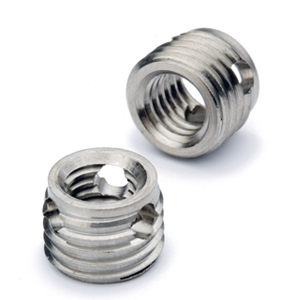

Inconel 600 Threaded Inserts

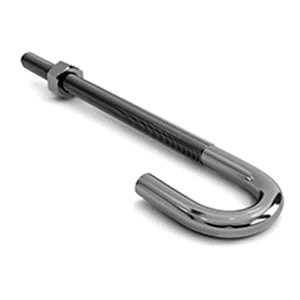

Inconel 600 J Bolts

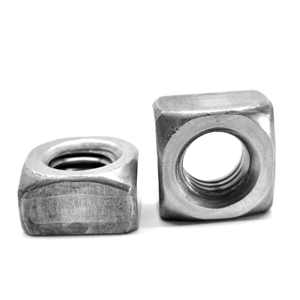

Inconel 600 Square Nuts

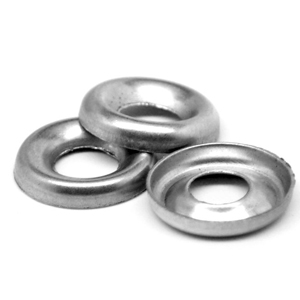

Inconel 600 Countersunk Washers

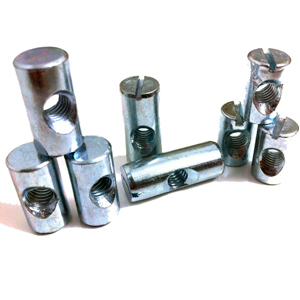

Inconel 600 Barrel Nuts
ASTM B166 / Inconel 600 Fasteners Forms & Availability
| Products | Size | |
|---|---|---|
| ASTM B166 / B446 Inconel Alloy 600 Stud Bolt | ASTM B166 / B446 Inconel® Alloy 600 Bolts | Sizes M3 - M56 | 3/6" to 2" |
| ASTM B166 / B446 Inconel Alloy 600 Punched Washer | ASTM B166 / B446 Inconel Alloy 600 Pan Head Screw | |
| ASTM B166 / B446 Inconel 600 Square Nut | ASTM B166 / B446 Inconel Alloy 600 Insert Nuts | |
| ASTM B166 / B446 Inconel Alloy 600 Welding Studs | ASTM B166 / B446 Inconel Alloy 600 Pan Head Screw | |
| ASTM B166 / B446 Inconel 600 Cap Screw | ASTM B166 / B446 Inconel 600 Foundation Bolts | |
| ASTM B166 / B446 Inconel Alloy 600 Threaded Rod | ASTM B166 / B446 Inconel 600 Hex Head Bolts | |
| ASTM B166 / B446 Inconel 600 Nuts | ASTM B166 / B446 Inconel 600 Washers | |
| ASTM B166 / B446 Inconel Alloy 600 Fender Washer | ASTM B166 / B446 Inconel® Alloy 600 Lock Nut | |
| ASTM B166 / B446 Inconel Alloy 600 Countersunk Slotted Screw | ASTM B166 / B446 Inconel Alloy 600 Double Ended Stud | |
Inconel 600 Hex Bolt Dimensions
| Nominal Size (D) | Body Diameter | Head Thickness ASTM A193 | Acro ASTM A193 The Flats | Acro ASTM A193 Corners | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Inconel 600 Bolts Weight Chart
| MM THREADS AS PER IS 1363/67 | ||||||||||
| APPROXIMATE WEIGHT IN KGS FOR 100 NOS | ||||||||||
| LENGTH | DIAMETER | |||||||||
| M 5 | M 6 | M 8 | M 10 | M 12 | M 14 | M 16 | M 18 | M 20 | M 22 | |
| 16 mm | 0.448 | 0.743 | 1.590 | 3.211 | ||||||
| 20 mm | 0.598 | 0.812 | 1.711 | 3.411 | 4.892 | |||||
| 25 mm | 0.660 | 0.897 | 1.871 | 3.660 | 5.252 | 8.170 | ||||
| 30 mm | 0.737 | 1.010 | 2.070 | 3.912 | 5.574 | 9.690 | 10.707 | 18.657 | ||
| 35 mm | 0.804 | 1.120 | 2.271 | 4.223 | 5.974 | 10.000 | 11.416 | 16.026 | 19.608 | |
| 40 mm | 0.881 | 1.230 | 2.470 | 4.533 | 6.410 | 10.288 | 12.107 | 16.667 | 20.747 | |
| 45 mm | 0.958 | 1.340 | 2.671 | 4.840 | 6.859 | 10.504 | 12.821 | 17.241 | 21.739 | |
| 50 mm | 1.030 | 1.450 | 2.870 | 5.155 | 7.299 | 11.261 | 13.624 | 17.857 | 22.727 | 28.409 |
| 55 mm | 1.560 | 3.071 | 5.464 | 7.740 | 11.628 | 14.409 | 18.868 | 23.810 | 30.120 | |
| 60 mm | 1.670 | 3.270 | 5.774 | 8.183 | 12.255 | 15.244 | 20.000 | 25.126 | 32.051 | |
| 65 mm | 1.781 | 3.472 | 6.083 | 8.621 | 12.626 | 16.026 | 21.008 | 26.455 | 34.014 | |
| 70 mm | 1.890 | 3.671 | 6.394 | 9.058 | 12.987 | 16.835 | 22.124 | 27.778 | 35.461 | |
| 75 mm | 2.000 | 3.873 | 6.702 | 9.506 | 13.228 | 17.606 | 23.256 | 29.070 | 39.063 | |
| 80 mm | 2.111 | 4.072 | 7.013 | 10.000 | 13.889 | 18.248 | 24.510 | 30.303 | 40.000 | |
| 90 mm | 4.472 | 7.634 | 10.917 | 14.925 | 19.841 | 26.042 | 33.113 | 41.667 | ||
| 100 mm | 4.873 | 8.251 | 11.820 | 16.340 | 21.459 | 27.778 | 35.714 | 46.296 | ||
| 110 mm | 8.881 | 12.723 | 17.730 | 23.041 | 31.250 | 38.168 | 47.170 | |||
| 120 mm | 9.506 | 13.624 | 18.797 | 24.631 | 32.895 | 40.984 | 50.000 | |||
| 130 mm | 10.101 | 14.535 | 20.000 | 26.316 | 34.722 | 43.478 | 52.632 | |||
| 140 mm | 10.707 | 15.432 | 20.833 | 27.933 | 35.461 | 46.296 | 55.556 | |||
| 150 mm | 11.312 | 16.340 | 22.222 | 29.412 | 37.594 | 48.544 | 58.824 | |||
| 160 mm | 11.905 | 17.241 | 24.272 | 31.056 | 40.984 | 50.505 | 61.728 | |||
| 170 mm | 12.500 | 18.116 | 32.680 | 53.191 | 64.935 | |||||
| 180 mm | 13.123 | 19.011 | 26.882 | 34.247 | 55.556 | 67.568 | ||||
| 190 mm | 13.736 | 19.920 | 35.971 | 58.140 | 70.423 | |||||
| 200 mm | 14.327 | 20.833 | 29.586 | 37.594 | 49.020 | 60.976 | 73.529 | |||
| 220 mm | 15.528 | 22.624 | 40.650 | 65.789 | 79.365 | |||||
| 240 mm | 16.722 | 24.510 | 43.860 | 71.429 | 84.746 | |||||
| 250 mm | 17.301 | 25.381 | 45.455 | 74.627 | 87.719 | |||||
| 260 mm | 17.921 | 26.316 | 47.170 | 76.923 | 90.909 | |||||
| 280 mm | 19.157 | 28.090 | 50.505 | 81.967 | 98.039 | |||||
| 300 mm | 20.325 | 29.940 | 53.763 | 87.719 | 104.167 | |||||
| 320 mm | 31.646 | 56.818 | 92.593 | |||||||
| 340 mm | 33.557 | 60.241 | 98.039 | |||||||
| 360 mm | 35.211 | 63.291 | 104.167 | |||||||
| 380 mm | 37.037 | 66.667 | 108.696 | |||||||
| 400 mm | 39.063 | 69.444 | 113.636 | |||||||
Inconel 600 Nuts Dimensions
| Nominal Size or Basic Major Thread Diameter | F | G | H | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Width Across Flats | Width Across Corners | Thickness | |||||||
| Basic | Max | Min | Max | Min | Basic | Max | Min | ||
| 1/4 | .2500 | 1/2 | .500 | .488 | .577 | .556 | 15/64 | .250 | .218 |
| 5/16 | .3125 | 9/16 | .562 | .546 | .650 | .622 | 19/64 | .314 | .280 |
| 3/8 | .3750 | 11/16 | .688 | .669 | .794 | .763 | 23/64 | .377 | .341 |
| 7/16 | .4375 | 3/4 | .750 | .728 | .866 | .830 | 27/64 | .441 | .403 |
| 1/2 | .5000 | 7/8 | .875 | .850 | 1.010 | .969 | 31/64 | .504 | .464 |
| 9/16 | .5625 | 15/16 | .938 | .909 | 1.083 | 1.037 | 35/64 | .568 | .526 |
| 5/8 | .6250 | 1-1/16 | 1.062 | 1.031 | 1.227 | 1.175 | 39/64 | .631 | .587 |
| 3/4 | .7500 | 1-1/4 | 1.250 | 1.212 | 1.443 | 1.382 | 47/64 | .758 | .710 |
| 7/8 | .8750 | 1-7/16 | 1.438 | 1.394 | 1.660 | 1.589 | 55/64 | .885 | .833 |
| 1 | 1.0000 | 1-5/8 | 1.325 | 1.575 | 1.876 | 1.796 | 63/64 | 1.012 | .956 |
| 1-1/8 | 1.1250 | 1-13/16 | 1.812 | 1.756 | 2.093 | 2.002 | 1-7/64 | 1.139 | 1.079 |
| 1-1/4 | 1.2500 | 2 | 2.000 | 1.938 | 2.309 | 2.209 | 1-7/32 | 1.251 | 1.187 |
| 1-3/8 | 1.3750 | 2-3/16 | 2.188 | 2.119 | 2.526 | 2.416 | 1-11/32 | 1.378 | 1.460 |
| 1-1/2 | 1.5000 | 2-3/8 | 2.375 | 2.300 | 2.742 | 2.622 | 1-15/32 | 1.505 | 1.433 |
| 1-5/8 | 1.6250 | 2-9/16 | 2.562 | 2.481 | 2.959 | 2.828 | 1-19/32 | 1.632 | 1.556 |
| 1-3/4 | 1.7500 | 2-3/4 | 2.750 | 2.662 | 3.175 | 3.035 | 1-23/32 | 1.759 | 1.679 |
| 2 | 2.0000 | 3-1/8 | 3.125 | 3.025 | 3.608 | 3.449 | 1-31/32 | 2.013 | 1.925 |
| 2-1/4 | 2.2500 | 3-1/2 | 3.500 | 3.388 | 4.041 | 3.862 | 2-13/64 | 2.251 | 2.155 |
| 2-1/2 | 2.5000 | 3-7/8 | 3.875 | 3.750 | 4.474 | 4.275 | 2-29/64 | 2.505 | 2.401 |
| 2-3/4 | 2.7500 | 4-1/4 | 4.250 | 4.112 | 4.907 | 4.688 | 2-45/64 | 2.759 | 2.647 |
| 3 | 3.0000 | 4-5/8 | 4.625 | 4.475 | 5.340 | 5.102 | 2-61/64 | 3.013 | 2.893 |
| 3-1/4 | 3.2500 | 5 | 5.000 | 4.838 | 5.774 | 5.515 | 3-3/16 | 3.252 | 3.124 |
| 3-1/2 | 3.5000 | 5-3/8 | 5.375 | 5.200 | 6.207 | 5.928 | 3-7/16 | 3.506 | 3.370 |
| 3-3/4 | 3.7500 | 5-3/4 | 5.750 | 5.562 | 6.640 | 6.341 | 3-11/16 | 3.670 | 3.616 |
| 4 | 4.0000 | 6-1/8 | 6.125 | 5.925 | 7.073 | 6.755 | 3-15/16 | 4.014 | 3.862 |
ASTM / DIN Specification of Inconel Fasteners
| ASTM B166 | ASTM B446 | ASTM F2281 |
| ASTM B166M | ASTM B446M | ASTM A962 |
| ASTM A320 | ASTM F593-13a | ASTM A962M |
| ASTM A320M | ASTM F594-15 | |
| DIN 580 | DIN 6914 | DIN 6921 |
| DIN 582 | DIN 3570 | DIN 603 |
| DIN 444 | DIN 7990 | DIN 2510 |
| DIN 939 | DIN 1B | DIN 976 |
| DIN 933 | DIN 529 | DIN 912 |
| DIN 931 | DIN 6325 |
Inconel 600 Fasteners Standard
| Hexagon Bolt / Set Screws | Stud Bolt | Hexagon Nuts | Socket Cap screws |
|---|---|---|---|
| DIN 931 | BS4882 | DIN 934 | DIN 912 |
| DIN 933 | DIN 976 | BS 1768 | DIN 6912 |
| BS 1768 | BS 1769 | DIN 7984 | |
| UNI 5731 | BS 1083 | ANSI B18.3 | |
| UNI 5739 | BS 3692 | ISO 4762 | |
| ISO 4014 | ISO 4032 | UNI 5931 | |
| ISO 4017 | ISO 4033 | BS 2470 | |
| BS 1769 | ANSI B18.2.2 | BS 4168 | |
| BS 3692 | |||
| ANSI B18.2.1 | |||
| Socket & Slotted Set Screws | Socket & Slotted Countersunk Screws | Studs | Washers |
| DIN 913 | DIN 963 | DIN 938 | DIN 125 |
| DIN 914 | DIN 7991 | DIN 939 | DIN 9021 |
| DIN 915 | BS 4168 | DIN 2510 | BS 4320 |
| DIN 916 | BS 1981 | BS 4439 | BS 3410 |
| DIN 551 | BS 483 | BS 2693 | |
| DIN 553 | BS 2470 | Spring Washers | |
| DIN 438 | DIN 127 | ||
| BS 4168 | BS 4464 | ||
| BS 1802 |
Inconel 600 Flat Washer Dimension Chart
| Size | Inside Diameter | Outside Diameter | Thickness |
|---|---|---|---|
| #2 | 3/32" | 1/4" | .020" |
| #4 | 1/8" | 5/16" | 1/32" |
| #8 | 3/16" | 7/16" | 3/64" |
| #10 | 7/32" | 1/2" | 3/64" |
| #6 | 5/32" | 3/8" | 3/64" |
| 1/4 | 9/32" | 5/8" | 1/16" |
| 3/8 | 13/32" | 13/16" | 1/16" |
| 7/16 | 15/32" | 59/64" | 1/16" |
| 1/2 | 17/32" | 1-1/16" | 3/32" |
| 9/16 | 19/32" | 1-3/16" | 3/32" |
| 5/16 | 11/32" | 11/16" | 1/16" |
| 1-3/4 | 1-7/8" | 4" | 3/16" |
| 5/8 | 21/32" | 1-5/16" | 3/32" |
| 3/4 | 13/16" | 1-1/2" | 9/64" |
| 7/8 | 15/16" | 1-3/4" | 9/64" |
| 1" | 1-1/16" | 2" | 9/64" |
| 1-1/8 | 1-3/16" | 2-1/4" | 9/64" |
| 1-1/4 | 1-5/16" | 2-1/2" | 5/32" |
| 1-1/2 | 1-7/16" | 3" | 3/16" |
| 1-5/8 | 1-3/4" | 3-3/4" | 3/16" |
| 2 | 2-1/8" | 4-1/2" | 3/16" |
Inconel 600 Plain Washer Dimension
| Size | Inside Diameter | Outside Diameter | Thickness |
|---|---|---|---|
| 3/16 | 1/4" | 9/16" | 3/64" |
| 1/4 | 5/16" | 3/4" | 1/16" |
| 3/8 | 7/16" | 1" | 5/64" |
| 7/16 | 1/2" | 1-1/4" | 5/64" |
| 1/2 | 9/16" | 1-3/8" | 7/64" |
| 9/16 | 5/8" | 1-1/2" | 7/64" |
| 5/8 | 11/16" | 1-3/4" | 9/64" |
| 3/4 | 13/16" | 2" | 5/32" |
| 5/16 | 3/8" | 7/8" | 5/64" |
| 7/8 | 15/16" | 2-1/4" | 1/64" |
| 1 | 1-1/16" | 2-1/2" | 11/64" |
| 1-1/8 | 1-1/4" | 2-3/4" | 11/64" |
| 1-1/4 | 1-3/8" | 3" | 11/64" |
| 1-3/8 | 1-1/2" | 3-1/4" | 3/16" |
| 1-5/8 | 1-3/4" | 3-3/4" | 3/16" |
| 1-3/4 | 1-7/8" | 4" | 3/16" |
| 2 | 2-1/8" | 4-1/2" | 3/16" |
| 2-1/2 | 2-5/8" | 4-1/2" | 3/16" |
| 3 | 3-1/8" | 5-1/2" | 9/32" |
| 1-1/2 | 1-5/8" | 3-1/2" | 3/16" |
Inconel 600 Washers Sizes
| Size | USS | SAE | ||||
|---|---|---|---|---|---|---|
| Inside Diameter (A) |
Outside Diameter (B) |
Thickness (C) |
Inside Diameter (A) |
Outside Diameter (B) |
Thickness (C) |
|
| #2 | - | - | - | 3/32" | 1/4" | 0.020" |
| #4 | - | - | - | 1/8" | 5/16" | 0.032" |
| #6 | - | - | - | 5/32" | 3/8" | 0.049" |
| #8 | - | - | - | 3/16" | 7/16" | 0.049" |
| #10 | - | - | - | 7/32" | 1/2" | 0.049" |
| #12 | - | - | - | 1/4" | 9/16" | 0.065" |
| 1/4" | 5/16" | 0.734" | 0.065" | 9/32" | 5/8" | 0.065" |
| 5/16" | 3/8" | 7/8" | 0.083" | 11/32" | 11/16" | 0.065" |
| 3/8" | 7/16" | 1" | 0.083" | 13/32" | 13/16" | 0.065" |
| 7/16" | 1/2" | 1-1/4" | 0.083" | 15/32" | 15/16" | 0.065" |
| 1/2" | 9/16" | 1-3/8" | 0.109" | 17/32" | 1-1/16" | 0.095" |
| 9/16" | 5/8" | 1-15/32" | 0.109" | 19/32" | 1-5/32" | 0.095" |
| 5/8" | 11/16" | 1-3/4" | 0.134" | 21/32" | 1-5/16" | 0.095" |
| 3/4" | 13/16" | 2" | 0.148" | 13/16" | 1-15/32" | 0.134" |
| 7/8" | 15/16" | 2-1/4" | 0.165" | 15/16" | 1-3/4" | 0.134" |
| 1" | 1-1/16" | 2-1/2" | 0.165" | 1-1/16" | 2" | 0.134" |
| 1-1/8" | 1-1/4" | 2-3/4" | 0.165" | - | - | - |
| 1-1/4" | 1-3/8" | 3" | 0.165" | - | - | - |
| 1-3/8" | 1-1/2" | 3-1/4" | 0.180" | - | - | - |
| 1-1/2" | 1-5/8" | 3-1/2" | 0.180" | - | - | - |
| 1-5/8" | 1-3/4" | 3-3/4" | 0.180" | - | - | - |
| 1-3/4" | 1-7/8" | 4" | 0.180" | - | - | - |
| 2" | 2-1/8" | 4-1/2" | 0.213" | - | - | - |
Inconel 600 Stud Bolt Size Chart
| Class 150 Flanges ASME B16.5 (Stud bolt sizes) | Length of Stud Bolts | |||||||
|---|---|---|---|---|---|---|---|---|
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in |
Ring Joint | |
| 1/2 | 3 1/2 | 2 3/8 | 5/8 | 4 | 1/2 | 2 1/4 | – | |
| 3/4 | 3 7/8 | 2 3/4 | 5/8 | 4 | 1/2 | 2 1/2 | – | |
| 1 | 4 1/4 | 3 1/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 1 1/4 | 4 5/8 | 3 1/2 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 1 1/2 | 5 | 3 7/8 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 2 | 6 | 4 3/4 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 2 1/2 | 7 | 5 1/2 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 | 7 1/2 | 6 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 1/2 | 8 1/2 | 7 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 4 | 9 | 7 1/2 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 5 | 10 | 8 1/2 | 7/8 | 8 | 3/4 | 3 3/4 | 4 1/4 | |
| 6 | 11 | 9 1/2 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 8 | 13 1/2 | 11 3/4 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 10 | 16 | 14 3/4 | 1 | 12 | 7/8 | 4 1/2 | 5 | |
| 12 | 19 | 17 | 1 | 12 | 7/8 | 4 3/4 | 5 1/4 | |
| 14 | 21 | 18 3/4 | 1 1/8 | 12 | 1 | 5 1/4 | 5 3/4 | |
| 16 | 23 1/2 | 21 1/4 | 1 1/8 | 16 | 1 | 5 1/4 | 5 3/4 | |
| 18 | 25 | 22 3/4 | 1 1/4 | 16 | 1 1/8 | 5 3/4 | 6 1/4 | |
| 20 | 27 1/2 | 25 | 1 1/4 | 20 | 1 1/8 | 6 1/4 | 6 3/4 | |
| 24 | 32 | 29 1/2 | 1 1/4 | 20 | 1 1/4 | 6 3/4 | 7 1/4 | |
| Class 300 Flanges ASME B16.5 | Length of Stud Bolts | |||||||
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in |
Ring Joint | |
| 1/2 | 3 3/4 | 2 5/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 3/4 | 4 5/8 | 3 1/4 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 | 4 7/8 | 3 1/2 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 1/4 | 5 1/4 | 3 7/8 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 1 1/2 | 6 1/8 | 4 1/2 | 7/8 | 4 | 3/4 | 3 1/2 | 4 | |
| 2 | 6 1/2 | 5 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 2 1/2 | 7 1/2 | 5 7/8 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 3 | 8 1/4 | 6 5/8 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 3 1/2 | 9 | 7 1/4 | 7/8 | 8 | 3/4 | 4 1/4 | 5 | |
| 4 | 10 | 7 7/8 | 7/8 | 8 | 3/4 | 4 1/2 | 5 | |
| 5 | 11 | 9 1/4 | 7/8 | 8 | 3/4 | 4 3/4 | 5 1/4 | |
| 6 | 12 1/2 | 10 5/8 | 7/8 | 12 | 3/4 | 4 3/4 | 5 1/2 | |
| 8 | 15 | 13 | 1 | 12 | 7/8 | 5 1/2 | 6 | |
| 10 | 17 1/2 | 15 1/4 | 1 1/8 | 16 | 1 | 6 1/4 | 6 3/4 | |
| 12 | 20 1/2 | 17 3/4 | 1 1/4 | 16 | 1 1/8 | 6 3/4 | 7 1/4 | |
| 14 | 23 | 20 1/4 | 1 1/4 | 20 | 1 1/8 | 7 | 7 1/2 | |
| 16 | 25 1/2 | 22 1/2 | 1 3/8 | 20 | 1 1/4 | 7 1/2 | 8 | |
| 18 | 28 | 24 3/4 | 1 3/8 | 24 | 1 1/4 | 7 3/4 | 8 1/4 | |
| 20 | 30 1/2 | 27 | 1 3/8 | 24 | 1 1/4 | 8 | 8 3/4 | |
| 24 | 36 | 32 | 1 5/8 | 24 | 1 1/2 | 9 | 10 | |
Inconel 600 Stud Bolt Torque Chart
| Flange Size |
B16.5 Class 150 RF/ Ring Gaskets | B16.5 Class 150 FF/ Full Face Gaskets | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | |||||||
| 1st | 2nd | Final | Dwg/No. | Bolt Size | 1st | 2nd | Final | Dwg*/No. | Bolt Size | |
| 1/2″ | 10 | 20 | 30 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 3/4″ | 13 | 27 | 40 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1″ | 15 | 30 | 50 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/4″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 2-1/2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3-1/2″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 4″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 5″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 6″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 8″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 10″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 12″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 14″ | 147 | 294 | 490 | 12-bolt | 1″ | 147 | 294 | 490 | 12-bolt | 1″ |
| 16″ | 147 | 294 | 490 | 16-bolt | 1″ | 147 | 294 | 490 | 16-bolt | 1″ |
| 18″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ |
| 20″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ |
| 24″ | 300 | 1,000 | 20-bolt | 1-1/4″ | 300 | 1,000 | 20-bolt | 1-1/4″ | ||
ANSI and/or ASME Standards Inconel Fasteners(inch series)
| ASME B18.1.1 | Small Solid Rivets | ASME B18.8.1 | Clevis Pins and Cotter Pins |
|---|---|---|---|
| ASME B18.1.2 | Large Rivets | ASME B18.8.2 | Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins |
| ASME B18.2.1 | Square and Hex Bolts and Screws | ASME B18.9 | Plow Bolts |
| ASME B18.2.2 | Square and Hex Nuts | ASME B18.10 | Track Bolts and Nuts |
| ASME B18.2.6 | Fasteners for use in Structural Applications | ASME B18.11 | Miniature Screws |
| ASME B18.3 | Socket Cap, Shoulder and Set Screws | ASME B18.13 | Screws and Washer Assemblies (Sems) |
| ASME B18.5 | Round Head Bolts | ASME B18.15 | Forged Eyebolts |
| ASME B18.6.2 | Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws | ASME B18.17 | Wing Nuts, Thumb Screws and Wing Screws |
| ASME B18.6.3 | Machine Screws and Machine Screws Nuts | ASME B18.21.1 | Lock Washers |
| ASME B18.6.4 | Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws | ASME B18.22.1 | Plain Washers |
| ASME B18.7 | General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps | ASME B18.23.1 | Beveled Washers |
Other Types of Inconel 600 Fasteners
| Inconel UNS N06600 Hex Coupling Nut | Inconel Alloy 600 Bolts |
| ASME SB166 Inconel 600 Hex Head Bolt | Inconel Alloy UNS N06600 Socket Cap Screw |
| ANSI B18.2 Inconel Alloy 600 Carriage Bolt | Inconel DIN 2.4816 Flange Bolt |
| Nickel Alloy 600 Elevator Bolt | ASTM B166 Inconel 600 Machine Bolt |
| Inconel BS 3076 NA 14 Fasteners Supplier | ANSI B18.2 600 Inconel Bolted Joints |
| Alloy 600 Bolted Joints | ASME SB166 Alloy Fastener Supplier |
| Inconel 600 Flat Washers | Inconel® Alloy 600 Machine Fasteners Dealer |
| Inconel DIN 2.4816 Hex Set Screw | Alloy 600 Industrial Fasteners |
| ASTM B166 Inconel Alloy 600 Coupling Nut | Inconel UNS N06600 Wing Nuts |
| Inconel® Alloy 600 Mushroom Head Square Neck Bolts | Nickel Alloy 600 Allen Cap Screw Stockists |
