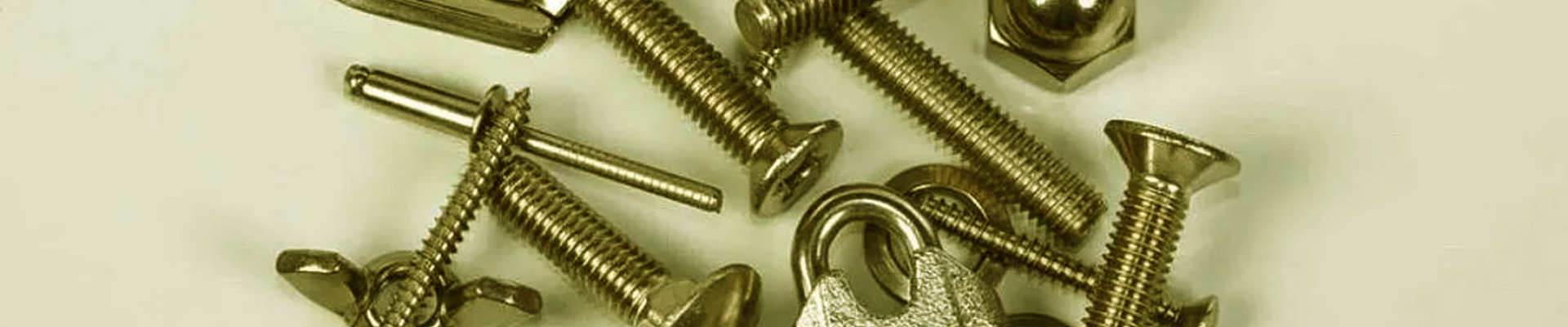

Phosphorous Bronze Fasteners
Phosphorous Bronze Lock Nut, Phosphorous Bronze Flat Washer, ASTM B111 Phosphorous Bronze Marine Anchors, ASTM C 54400 Phosphorous Bronze Countersunk Bolts Stockholder Suppliers in India.
Ranfit Metal & Alloys is a prominent supplier, manufacturer and exporter of Phosphorous Fasteners, which are highly efficient and reliable to use. Our quality personnel test this Phosphorous Nuts on a series of parameters to ensure quality. Phosphorous Bolts has features like Economical, Rust free, Quality assured, Sturdiness, Corrosion-resistance, Durability, Flawless finish, Dimensionally accurate, Easy to install, and more. We offer a wide range of high quality Phosphorous Stud Bolts at very affordable market price, which are further manufactured from very high grade steel that are sourced from our very reliable team. These Phosphorous Washers are fabricated from superior quality materials and provide constant performance.
We offer collection of supreme quality Phosphorous Screws with our expertise and experience in the field of manufacturing. Phosphorous Round Bars is widely used in the paper mills and other such industrial platforms. Phosphorous Bars offered can be made available by us in different thickness or as demanded by the customers. We provide this Phosphorous C54400 Fasteners in different sizes and length as per the requirements and demands of our clients, which further can also be made available as per industry standard. However, these Fasteners are a much better option in operating temperature environments in excess of 500 Degree C and therefore have its own merits.
ASTM C 54400 Phosphorous Bronze Hexagon Nut, Phosphorous Allen Cap Screw, Phosphorous Wing Nut, ASME SB111 Phosphorous Countersunk Bolts Supplier & Exporter in India.
Phosphorous Bronze Fasteners Specification
| Grade | UNS C52100, UNS C54400, UNS C51900, UNS C51000 |
|---|---|
| C54400 Phosphor Bronze Fasteners / Bolts Standard | IS, GB, BS, ASME, ANSI, DIN, ASTM JIS, UNI, ISO, and all International Standards |
| Phos Bronze Fasteners Material Specification | UNS C51100 Bolts, UNS C51000 Phosphor Bronze Eye Bolts |
| Length of Phosphor Bronze C51000 H08 Washer | 3 mm to 200 mm |
| Phosphor Bronze Fasteners/ Bolts Size | M8, M12, M36 M5, M2.5, M16, M2, M6, M4, M20, M3, M24, M30, M10, M14 to M160 |
| ASTM C54400 Phosphor Bronze Screw Standard: | ANSI – American National Standards Institute
ISO – International Organization for Standardization : JIS standards, ISO 4033, ISO 4032, UTS – Unified Thread Standard :NPT, UNF, NPTF, UNS, UNEF, UNC, DIN: 934, 931, 970, 933, |
| 510 Phosphor Bronze Bolts, Studs Threads: | UNC, METRIC, BSW, BSF, UNF or as required |
| SCOPE |
|
| Source of raw materials to manufacture Cda 510 Phosphor Bronze Bolts | JSPL, Tata Steel, Usha Martin, RINL, Mukund Steel, Dhamm Steeletc. |
| Head drive: | Slotted, Phillips, Six-Lobe, Phillips/Slot etc |
| C51000 Bronze Nut In Form of: | Threading as per Gauge, Round, Hex, Square Etc. |
| Phos Bronze Hex Bolt Thread | Metric Coarse |
| Phosphorous Bronze Fasteners finishing: | black oxide, Geometry, Zinc (yellow, white, blue, black), anodizing, Dacroment, plated zinc-nickel, nickel plated, Stainless steel: Passivated Self-Colour, Sherardized, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Mechanically Applied coating and some special one like DACROMET |
| C54400 Phosphor Bronze bolting Test Certificate: | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Ready stock available metric Phosphorous Bronze Fasteners |
|
| UNS C51000 Phosphor Bronze Bolts types | Phos Bronze Flange Bolts, Hex Bolts, Lag Bolts, Hex Head Bolts, Eye Bolts, Square Bolts, T Bolts, U Bolts, Counter sunk Bolts etc. |
| Production process | machining and CNC for Customized connecting element, hot forging M24-M100, M2-M24: Cold Froging, |
| C51000 Phosphor Bronze bolting materials Surface Coating: |
Manufacturer of all surface finishes in C510 Phosphor Bronze Stove including Galvanised, Zinc, Electroless Nickel, Sherardized, Geomet & PTFE, Dacromet. |
| C510 Phosphor Bronze Fasteners Packing: | IN BULK: pallet, canton, carton / Small Boxs / pallet, or customer request |
Phosphorous Bronze Fasteners Information
| CDA | ASTM | ASARCON | SAE | AMS | Federal | Military | Other |
| C54400 | B139 | – | J461 J463 | – | – | – | – |
Phosphorous Bronze Equivalent Grades
| CDA | ASTM | ASARCON | SAE | AMS | Federal | Military | Other |
|---|---|---|---|---|---|---|---|
| C95400 | B505 | QQ-C-390, G5; QQ-B-671, CLASS 3 |
MIL-B-16033, CLASS 3 | ALUMINUM BRONZE 9C | |||
| C95400 | B505 | QQ-C-390, G5; QQ-B-671, CLASS 3 |
MIL-B-16033, CLASS 3 | ALUMINUM BRONZE 9C | |||
| C54400 | B150-12 | J461 J463 | 4640 | QQ-C-465B AMD1 |
Chemical Composition of Phosphorous Bronze Fasteners
| Cu% | Sn% | Pb% | Zn% | Fe% | P% |
| Remainder | 3.50-4.50 | 3.00-4.00 | 1.50-4.50 | 0.10 | 0.01-0.50 |
Mechanical Properties of Phosphorous Bronze Fasteners
| Tensile Strength, min | 60 ksi | 415 MPa |
| Yield Strength @ .5% ext under load min | N/A | N/A |
| Elongation in 2 in. or 50 mm min, % | 10 | N/A |
| Brinell Hardness, min | N/A | N/A |
| Machinability Rating | 80% | N/A |
Physical Properties of Phosphorous Bronze Fasteners
| Density g/cm³< | 8.89< |
| Melting Temperature Range °C< | 920-1000< |
| Thermal Conductivity W/mK< | 86.5< |
| Electrical Resistivity μΩ.m15°C< | 9< |
| Coefficient of Thermal Expansion 0-250°C< | 17.3< |
| Relative Magnetic Permeability< | < 1.01< |
| Coefficient of Friction< |
Types of Phosphorous Bronze Fasteners

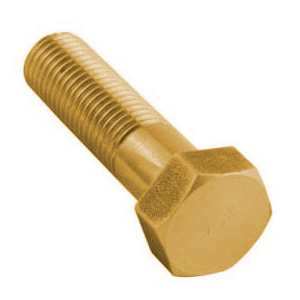

Phosphorous Bronze Hex Bolts

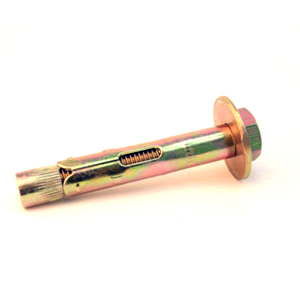

Phosphorous Bronze Anchor Bolts
Phosphorous Bronze Self Drilling Screws

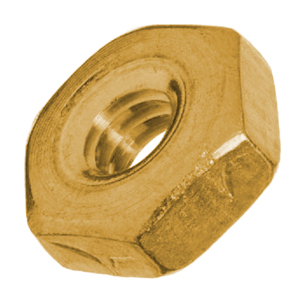

Phosphorous Bronze Hex Nuts

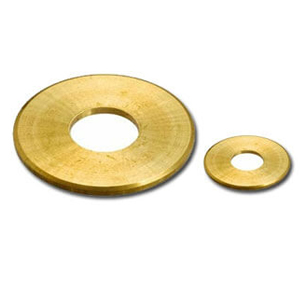

Phosphorous Bronze Flat Washers

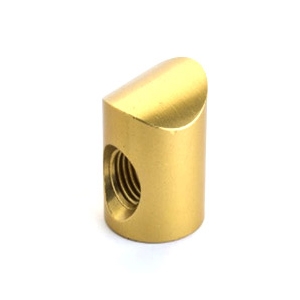

Phosphorous Bronze Barrel Nuts

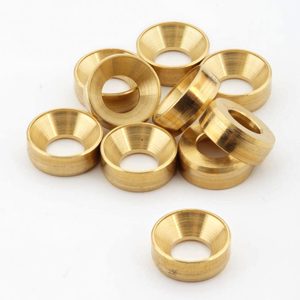

Phosphorous Bronze Countersunk Washers

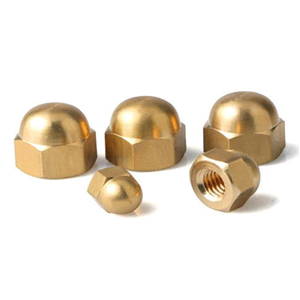

Phosphorous Bronze Dome/Accorn Nut

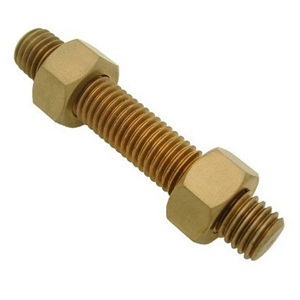

Phosphorous Bronze Stud Bolts

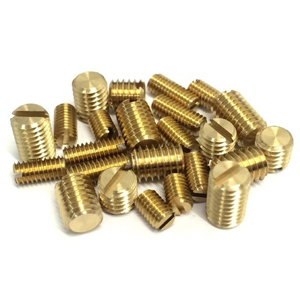

Phosphorous Bronze Socket Set Screw

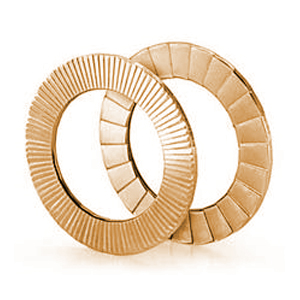

Phosphorous Bronze Nord Lock Washers

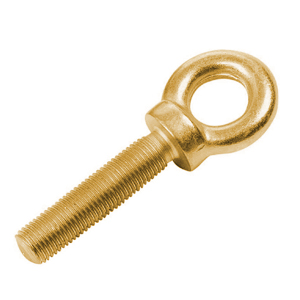

Phosphorous Bronze Eye Bolts

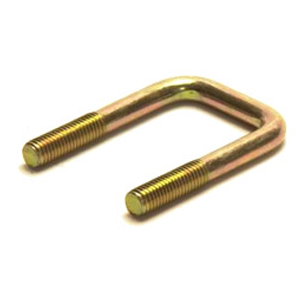

Phosphorous Bronze Square U-Bolts

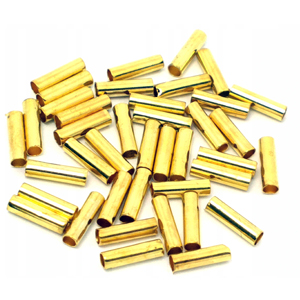

Phosphorous Bronze Dowel Pins

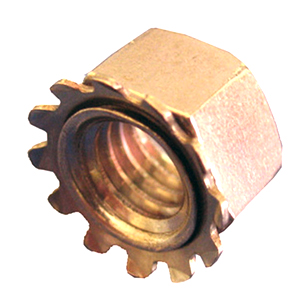

Phosphorous Bronze Lock Nuts

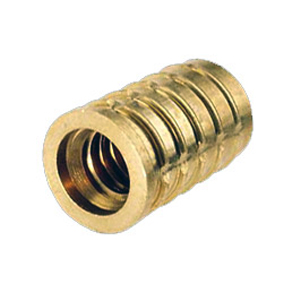

Phosphorous Bronze Threaded Inserts

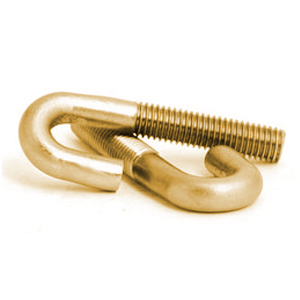

Phosphorous Bronze J Bolt

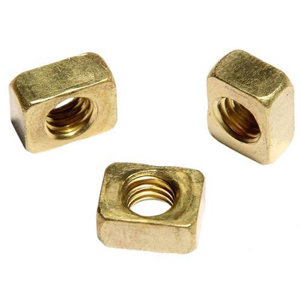

Phosphorous Bronze Square Nuts
Phosphorous Bronze Fasteners Forms & Availability
| Products | Size | |
|---|---|---|
| Phosphorous Bronze Stud Bolt | Phosphorous Bronze® Alloy Bolts | Sizes M3 - M56 | 3/6" to 2" |
| Phosphorous Bronze Punched Washer | Phosphorous Bronze Pan Head Screw | |
| Phosphorous Bronze Square Nut | Phosphorous Bronze Insert Nuts | |
| Phosphorous Bronze Welding Studs | Phosphorous Bronze Pan Head Screw | |
| Phosphorous Bronze Cap Screw | Phosphorous Bronze Foundation Bolts | |
| Phosphorous Bronze Threaded Rod | Phosphorous Bronze Hex Head Bolts | |
| Phosphorous Bronze Nuts | Phosphorous Bronze Washers | |
| Phosphorous Bronze Fender Washer | Phosphorous Bronze® Alloy Lock Nut | |
| Phosphorous Bronze Countersunk Slotted Screw | Phosphorous Bronze Double Ended Stud | |
DIN And ISO Designations Of 510 Phosphor Bronze Fasteners (Nut Bolts Screw Washer)
| DIN No. of Phosphorous Bronze Fasteners | Description |
|---|---|
| 85 | Slotted Pan Head Machine Screws |
| 84 | Slotted Cheese Head Machine Screws |
| 125A | Flat Washer (without Chamfer) |
| 94 | Cotter Pin |
| 127B | Split Lock Washer |
| 125B | Flat Washer (with Chamfer) |
| 315 | Wing Nut |
| 137B | Spring Wave Washer |
| 911 | Long Arm Hex Key |
| 439B | Machine Screws Hex Nut, Finished Hex Jam Nut |
| 916 | Hex Socket Set Screws |
| 912 | Hex Socket Head Cap Screws |
| 933 | Hex Head Cap Screws Fully Threaded |
| 931 | Hex Head Cap Screws Partially Threaded |
| 939 | Double End Stud |
| 934 | Finished Hex Nut |
| 961 | Hex Head Cap Screws Fully Threaded |
| 960 | Hex Head Cap Screws Partially Threaded |
| 964 | Slotted Oval Head Machine Screws |
| 963 | Slotted Flat Head Machine Screws |
| 966 | Phillips Oval Head Machine Screws |
| 965 | Phillips Flat Head Machine Screws |
| 975 | Threaded Rod |
| 985 | Hex Nylon Insert Lock Nut |
| 980V | Hex Steel Prevailing Torque Lock Nut |
| 6797A | External Tooth Lock Washer |
| 6334 | Rod Coupling Nut |
| 7991 | Hex Flat Socket Head Cap Screws |
| 6912 | Hex Low Socket Head Cap Screws |
| 6797J | Internal Tooth Lock Washer |
| 7985 | Phillips Pan Head Machine Screws |
| 6923 | Hex Flange Nut |
| 6921 | Hex Flange Head Screws |
| ISO 7380 | Hex Button Socket Head Cap Screws |
| ISO 7379 | Hex Socket Head Shoulder Screws |
Phosphorous Bronze Fasteners Standard
| Hexagon Bolt / Set Screws | Stud Bolt | Hexagon Nuts | Socket Cap screws |
|---|---|---|---|
| DIN 931 | BS4882 | DIN 934 | DIN 912 |
| DIN 933 | DIN 976 | BS 1768 | DIN 6912 |
| BS 1768 | BS 1769 | DIN 7984 | |
| UNI 5731 | BS 1083 | ANSI B18.3 | |
| UNI 5739 | BS 3692 | ISO 4762 | |
| ISO 4014 | ISO 4032 | UNI 5931 | |
| ISO 4017 | ISO 4033 | BS 2470 | |
| BS 1769 | ANSI B18.2.2 | BS 4168 | |
| BS 3692 | |||
| ANSI B18.2.1 | |||
| Socket & Slotted Set Screws | Socket & Slotted Countersunk Screws | Studs | Washers |
| DIN 913 | DIN 963 | DIN 938 | DIN 125 |
| DIN 914 | DIN 7991 | DIN 939 | DIN 9021 |
| DIN 915 | BS 4168 | DIN 2510 | BS 4320 |
| DIN 916 | BS 1981 | BS 4439 | BS 3410 |
| DIN 551 | BS 483 | BS 2693 | |
| DIN 553 | BS 2470 | Spring Washers | |
| DIN 438 | DIN 127 | ||
| BS 4168 | BS 4464 | ||
| BS 1802 |
Phosphorous Bronze Fasteners Dimension
| Phosphorous Bronze Bolt / Screw | M3 – M56 | 3/6" to 2" | Custom Sizes |
| Phosphorous Bronze Threaded Rods/ Bars | M3 – M56 | 3/6" to 2" | Custom Sizes |
| Phosphorous Bronze Nuts | M3 – M56 | 3/6" to 2" | Custom Sizes |
| Phosphorous Bronze Washers | M3 – M56 | Custom Sizes |
| Phosphorous Bronze Machine Screws | M1.6 – M12 |
| Phosphorous Bronze Self Tapping Screw | No.2 – No. 14 |
Phosphorous Bronze Bolt Dimensions
| BODY DIAMETER | NOMINAL SIZE (D) | HEAD THICKNESS | ACROSS CORNERS | ACRO ASTM A479 THE FLATS | |||||
|---|---|---|---|---|---|---|---|---|---|
| D (MINIMUM) | D (MAXIMUM) | C (MINIMUM) | H (MINIMUM) | H (MAXIMUM) | C (MAXIMUM) | F (MINIMUM) | F (MAXIMUM) | ||
| 11.73 | 12.00 | m12 | 20.03 | 4.24 | 7.76 | 20.78 | 17.73 | 19.00 | |
| 9.78 | 10.00 | m10 | 17.77 | 6.17 | 6.63 | 18.48 | 15.73 | 17.00 | |
| 15.73 | 16.00 | m16 | 26.75 | 9.68 | 10.32 | 27.71 | 23.67 | 24.00 | |
| 13.73 | 14.00 | m14 | 23.35 | 8.51 | 9.09 | 24.25 | 20.67 | 22.00 | |
| 23.67 | 24.00 | m24 | 39.55 | 14.56 | 15.44 | 41.57 | 35.00 | 36.00 | |
| 19.67 | 20.00 | m20 | 32.95 | 12.12 | 12.88 | 34.64 | 29.16 | 30.00 | |
| 99.13 | 90.00 | m100 | 159.60 | 60.10 | 63.9 | 167.43 | 140.00 | 145.00 | |
| 35.61 | 36.00 | m36 | 60.79 | 21.63 | 23.38 | 63.51 | 53.80 | 55.00 | |
| 29.67 | 30.00 | m30 | 50.85 | 17.92 | 19.48 | 53.12 | 45.00 | 46.00 | |
| 47.38 | 48.00 | m48 | 82.76 | 28.93 | 31.07 | 86.60 | 72.60 | 75.00 | |
| 89.13 | 90.00 | m90 | 143.07 | 54.26 | 57.74 | 150.11 | 125.50 | 130.00 | |
| 41.38 | 42.00 | m42 | 71.71 | 25.03 | 26.97 | 75.06 | 62.90 | 65.00 | |
| 63.26 | 64.00 | m64 | 104.65 | 38.68 | 41.32 | 109.70 | 91.80 | 95.00 | |
| 55.26 | 56.00 | m56 | 93.71 | 33.80 | 36.2 | 98.15 | 82.20 | 85.00 | |
| 79.26 | 80.00 | m80 | 126.54 | 48.42 | 51.58 | 132.72 | 111.00 | 115.00 | |
| 71.26 | 72.00 | m72 | 115.60 | 43.55 | 46.45 | 121.24 | 101.40 | 105.00 |
| Phosphorous Bronze Hex Bolt Dimension | ||||||||
|---|---|---|---|---|---|---|---|---|
| NOMINAL SIZE (D) | BODY DIAMETER | HEAD THICKNEASTM A193 | ACROASTM A193 THE FLATS | ACROASTM A193 CORNERS | ||||
| D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Torque Chart Of Phosphorous Bronze Bolts
| Phosphorous Bronze Bolts Nominal Diameter (in) | Threads (in) | Torque ft-lb (Dry) | Torque ft-lb (Lubricated) |
|---|---|---|---|
| 1/4″ | 20 | 6.5 | 4.8 |
| 28 | 7.4 | 5.5 | |
| 5/16″ | 18 | 13.2 | 10.0 |
| 24 | 14.7 | 11.0 | |
| 3/8″ | 16 | 23.5 | 17.7 |
| 24 | 26.6 | 19.9 | |
| 7/16″ | 16 | 37.6 | 28.2 |
| 24 | 42.0 | 31.5 | |
| 1/2″ | 13 | 57.4 | 43.0 |
| 20 | 64.7 | 48.5 | |
| 9/16″ | 12 | 82.7 | 62.1 |
| 18 | 92.3 | 69.2 | |
| 5/8″ | 11 | 114.2 | 85.7 |
| 18 | 129.3 | 97.0 | |
| 3/4″ | 10 | 203 | 152 |
| 16 | 226 | 170 | |
| 7/8″ | 9 | 326 | 245 |
| 14 | 361 | 270 | |
| 1″ | 8 | 490 | 368 |
| 14 | 549 | 412 | |
| 1-1/4″ | 7 | 853 | 639 |
| 12 | 944 | 708 | |
| 1-1/2″ | 6 | 1484 | 639 |
| 12 | 1669 | 1252 |
| calculated from a yield strength of 80ksi, Check below Phosphorous Bronze Alloy Bolt & Screw Torque | |||
|---|---|---|---|
| C54400 Phosphorous Bronze Bolts Nominal Diameter (in) | Threads (in) | Torque ft-lb (Dry) | Torque ft-lb (Lubricated) |
| 1/4″ | 20 | 7.4 | 5.5 |
| 28 | 8.4 | 6.3 | |
| 5/16″ | 18 | 15.1 | 11.4 |
| 24 | 16.8 | 12.6 | |
| 3/8″ | 16 | 26.9 | 20.2 |
| 24 | 30.4 | 22.8 | |
| 7/16″ | 14 | 43.0 | 32.3 |
| 20 | 48.0 | 36.0 | |
| 1/2″ | 13 | 65.6 | 49.1 |
| 20 | 73.9 | 55.4 | |
| 9/16″ | 12 | 94.5 | 71.0 |
| 18 | 105.5 | 79.1 | |
| 5/8″ | 11 | 130.5 | 97.9 |
| 18 | 147.8 | 110.9 | |
| 3/4″ | 10 | 232 | 174 |
| 16 | 258 | 194 | |
| 7/8″ | 9 | 373 | 280 |
| 14 | 412 | 309 | |
| 1″ | 8 | 560 | 420 |
| 14 | 628 | 471 | |
| 1-1/4″ | 7 | 975 | 730 |
| 12 | 1079 | 809 | |
| 1-1/2″ | 6 | 1696 | 1271 |
| 12 | 1908 | 1430 | |
Alloy 510 Phosphorous Bronze Hex Cap Screws Dimension Chart
| Nominal Size of Basic Bolt Dia. | E | F | G | H | R | LT (Ref) |
Y (Ref) |
Runout of Bearing Surface FIR |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Body Diameter | Width Across Flats | Width Across Corner | Height | Radius Of Fillet | Thread Length | T ransi- tion Thread Length | |||||||||
| Max | Min | Basic | Max | Min | Max | Min | Basic | Max | Min | Max | Min | Basic | Max | Max | |
| 1/2 0.5000 | 0.515 | 0.482 | 7/8 | 0.875 | 0.850 | 1.010 | 0.969 | 5/16 | 0.323 | 0.302 | 0.031 | 0.009 | 1.00 | 0.19 | 0.016 |
| 5/8 0.6250 | 0.642 | 0.605 | 1-1/16 | 1.062 | 1.031 | 1.227 | 1.175 | 25/64 | 0.403 | 0.378 | 0.062 | 0.021 | 1.25 | 0.22 | 0.019 |
| 3/4 0.7500 | 0.768 | 0.729 | 1-1/4 | 1.250 | 1.212 | 1.443 | 1.383 | 15/32 | 0.483 | 0.455 | 0.062 | 0.021 | 1.38 | 0.25 | 0.022 |
| 7/8 0.8750 | 0.895 | 0.852 | 1-7/16 | 1.438 | 1.394 | 1.660 | 1.589 | 35/64 | 0.563 | 0.531 | 0.062 | 0.031 | 1.50 | 0.28 | 0.025 |
| 1 1.0000 | 1.022 | 0.976 | 1-5/8 | 1.625 | 1.575 | 1.876 | 1.796 | 35/64 | 0.627 | 0.591 | 0.093 | 0.062 | 1.75 | 0.31 | 0.028 |
| 1-1/8 1.1250 | 1.149 | 1.098 | 1-13/16 | 1.812 | 1.756 | 2.093 | 2.002 | 11/16 | 0.718 | 0.658 | 0.093 | 0.062 | 2.00 | 0.34 | 0.032 |
| 1-1/4 1.2500 | 1.277 | 1.223 | 2 | 2.000 | 1.938 | 2.309 | 2.209 | 25/32 | 0.813 | 0.749 | 0.093 | 0.062 | 2.00 | 0.38 | 0.035 |
| 1-3/8 1.3750 | 1.404 | 1.345 | 2-3/16 | 2.188 | 2.119 | 2.526 | 2.416 | 27/32 | 0.878 | 0.810 | 0.093 | 0.062 | 2.25 | 0.44 | 0.038 |
| 1-1/2 1.5000 | 1.531 | 1.470 | 2-3/8 | 2.375 | 2.300 | 2.742 | 2.622 | 15/16 | 0.974 | 0.902 | 0.093 | 0.062 | 2.25 | 0.44 | 0.041 |
Size Range Of UNS C51900 Threaded Rod
| Types of Phos Bronze Screws | GRADE | ISO | SIZE | ASME | ASTM |
|---|---|---|---|---|---|
| C51000 Phosphor Bronze Flange Button Head Socket Screws | 012.9 | M3 to M10 | F835M | ||
| Phosphor Bronze Socket Low Head Cap Screws | 10.9 | M4 to M20 | |||
| C54400 Phosphor Bronze Socket Head Cap Screws | 12.9 | 4762 | M1.6 to M64 | B18.3.1 M | A574M |
| 510 Phosphor Bronze Countersunk Socket Head Screws | 012.9 | 10642 | M3 to M20 | B18.3.5M | F835M |
| Phosphor Bronze Spring Socket Head Shoulder Screws | 012.9 | M6 to M24 | B18.3.3M | ||
| Alloy 510 Phosphor Bronze Button Head Socket Screws | 012.9 | 7380 | M3 to M12 | B18.3.4M | F835M |
| ASTM C54400 Phosphor Bronze Flat Point Socket Set Screws | 45H | 4026 | M6 to M12 | B18.3.6M | F912M |
| C510 Phosphor Bronze Taper Pressure Plug | – | M8 to M22 | |||
| Cda 510 Phosphor Bronze Plain Point Socket Set Screws | 45H | 4029 | M3 to M20 | B18.3.6M | F912M |
| Phosphor Bronze C51000 H08 Knurled Point Socket Set Screws | 45H | 4029 | M3 to M20 | B18.3.6M | F912M |
| UNS C51100 Cone Point Socket Set Screws | 45H | 4027 | M3 to M12 | B18.3.6M | F912M |
| UNS C51000 Phosphor Bronze Dog Point Socket Set Screws | 45H | 4028 | M3 to M20 | B18.3.6M | F912M |
| Type of Phos Bronze Nuts | PROPERTY CLASS | SIZE | STANDARD |
|---|---|---|---|
| Phosphor Bronze Nylock Nut | 8 & `10 | M6 to M20 (Gr.8) M10 to M24 (Gr.10) |
DIN 982 |
| C54400 Phosphor Bronze Hex Nut | 10 | M6 to M42 | ISO 4032 |
| Phosphor Bronze Spring Nylock Nut | 8 & 10 | M6 to M20 (Gr.8) M10 to M24 (Gr.10) |
DIN 985 |
| 510 Phosphor Bronze Hex Weld Nut | 8 | M6 to M12 | DIN 929 |
| Type of Phos Bronze Washers | HARDNESS | SIZE (in mm) | STANDARD |
|---|---|---|---|
| 510 Phosphor Bronze Hardened Washer | Rockwell 26 to 45 (HDG) Rockwell 38 to 45 (Coated) |
12 to 56 | ASTM F436M |
| Square Section C54400 Phosphor Bronze Spring Washer | HV (430 to 530) | 3 to 39 | DIN 7980 |
| Flat Section Phosphor Bronze Spring Washer | HV (430 to 530) | 3 to 39 | DIN 127 B |
| Phosphor Bronze Spring Hardened Washer | HV (300 to 370) | 12 to 30 | IS 2016 |
| Type of Cda 510 Phosphor Bronze Bolt | TENSILE STRENGTH | STANDARD | PROPERTY CLASS | SIZE |
|---|---|---|---|---|
| Phos Bronze Hex Head Bolt / Screws | 1040N / mm2 min | ISO 4017 (Full Thread) ISO 4014 (Half Thread) |
10.9 | M4 to M80 |
Phosphorous Bronze Washers Weight Chart
| APPROX. WEIGHT IN Kilogram FOR 100 NOS | |||||||||||
| Copper Nickel Fasteners SIZE | PLAIN PUNCHED WASHER IS:2016 |
HEAVY WASHER IS:6610 |
MACHINED WASHER IS:2016 |
SQUARE TAPER WASHERS | SPRING WASHER FLAT SECTION IS:3063-72 | SPRING WASHER SQUARE SECTION IS:6735-72 DIN : 7980 |
Copper Nickel Fasteners Size (Inches) | PLAIN PUNCHED WASHER BS:3410 TABLE 7 |
|||
| MACHINED | HIGH STRENGTH FRICTION GRIP |
||||||||||
| FOR CHANNELS IS:5372-75 |
FOR I-BEAM IS:5374-75 |
TYPE-B (CHANNELS) IS : 6649-85 |
TYPE-C ( I-BEAMS ) IS : 6649-85 |
||||||||
| M-3 | 0.01 | 0.01 | |||||||||
| M-4 | 0.02 | 0.02 | |||||||||
| M-5 | 0.04 | 0.04 | 0.03 | 0.03 | |||||||
| M-6 | 0.11 | 0.11 | 0.08 | 0.04 | 1/4″ | 0.21 | |||||
| M-8 | 0.20 | 0.21 | 1.10 | 1.20 | 0.16 | 0.11 | 5/16″ | 0.35 | |||
| M-10 | 0.39 | 1.60 | 0.40 | 1.00 | 1.10 | 0.25 | 0.20 | 3/8″ | 0.48 | ||
| M-12 | 0.58 | 1.90 | 0.62 | 2.00 | 2.20 | 2.00 | 1.80 | 0.38 | 0.23 | 1/2″ | 1.07 |
| M-14 | 0.82 | 0.60 | 0.38 | ||||||||
| M-16 | 1.06 | 2.90 | 1.13 | 3.40 | 3.75 | 9.00 | 8.50 | 0.89 | 0.59 | 5/8″ | 1.85 |
| M-18 | 1.27 | 0.97 | 0.66 | ||||||||
| M-20 | 1.64 | 4.40 | 1.72 | 5.80 | 6.70 | 8.50 | 8.00 | 1.52 | 1.23 | 3/4″ | 2.91 |
| M-22 | 1.75 | 7.50 | 7.00 | 1.65 | 1.36 | 7/8″ | 4.27 | ||||
| M-24 | 3.11 | 6.30 | 3.30 | 13.50 | 16.00 | 6.50 | 6.00 | 2.62 | 1.81 | 1″ | 6.13 |
| M-27 | 3.94 | 8.00 | 4.23 | 12.50 | 15.00 | 12.00 | 11.50 | 2.87 | 2.06 | 1.1/8″ | 7.69 |
| M-30 | 5.05 | 10.10 | 5.36 | 16.50 | 18.70 | 17.50 | 16.00 | 4.43 | 3.20 | 1.1/4″ | 9.90 |
| M-33 | 7.10 | 12.00 | 7.54 | 21.00 | 23.50 | 23.00 | 22.50 | 6.30 | 3.50 | ||
| M-36 | 8.73 | 14.60 | 9.20 | 25.50 | 29.20 | 26.50 | 26.00 | 6.73 | 5.25 | 1.1/2″ | 17.24 |
| M-39 | 12.60 | 16.70 | 13.30 | 28.30 | 34.50 | 7.17 | 5.61 | ||||
| M-42 | 17.50 | 20.10 | 18.30 | 11.10 | 8.00 | ||||||
| M-45 | 21.20 | 22.20 | 22.00 | 11.70 | 8.53 | ||||||
| M-48 | 28.40 | 26.00 | 29.40 | 12.30 | 9.00 | 2″ | 27.78 | ||||
| M-52 | 31.90 | 33.00 | 18.20 | ||||||||
| M-56 | 47.90 | 19.30 | |||||||||
| M-60 | 51.60 | 20.30 | |||||||||
| M-64 | 55.40 | 21.80 | |||||||||
| M-68 | 57.40 | ||||||||||
| M-72 | 63.40 | 24.00 | |||||||||
Phosphorous Bronze Hex Screw Dimension Standard
| Nominal Diameter And TPI (Inches) | Thread Stress Area (Sq. In.) | Grade 2 | Grade 5 | Grade 8 | |||
|---|---|---|---|---|---|---|---|
| Clamp Load 60-90% Proof (Pounds) |
Tightening Torque (Ft.-Lbs.) |
Clamp Load 60-90% Proof (Pounds) |
Tightening Torque (Ft.-Lbs.) |
Clamp Load 60-90% Proof (Pounds) |
Tightening Torque (Ft.-Lbs.) |
||
| 1/4 – 20 1/4 – 28 |
0.0318 0.0364 |
1,049 – 1,574 1,201 – 1,802 |
4 – 7 5 – 8 |
1,622 – 2,433 1,856 – 2,785 |
7 – 10 8 – 12 |
2,290 – 3,434 2,621 – 3,931 |
10 – 14 11 – 16 |
| 5/16 – 18 5/16 – 24 |
0.0524 0.0580 |
1,729 – 2,594 1,914 – 2,871 |
9 – 14 10 – 15 |
2,672 – 4,009 2,958 – 4,437 |
14 – 21 15 – 23 |
3,773 – 5,659 4,176 – 6,264 |
20 – 29 22 – 33 |
| 3/8 – 16 3/8 – 24 |
0.0775 0.0878 |
2,558 – 3,868 2,897 – 4,346 |
16 – 24 18 – 27 |
3,953 – 5,929 4,478 – 6,717 |
25 – 37 28 – 42 |
5,580 – 8,370 6,322 – 9,482 |
35 – 52 40 – 59 |
| 7/16 – 14 7/16 – 20 |
0.1063 0.1187 |
3,508 – 5,262 3,917 – 5,876 |
26 – 38 29 – 43 |
5,421 – 8,132 6,054 – 9,081 |
40 – 59 44 – 66 |
7,654 – 11,480 8,546 – 12,820 |
56 – 84 62 – 93 |
| 1/2 – 13 1/2 – 20 |
0.1419 0.1599 |
4,683 – 7,024 5,277 – 7,915 |
39 – 59 44 – 66 |
7,237 – 10,855 8,155 – 12,232 |
60 – 90 68 – 102 |
10,217 – 15,325 11,513 – 17,269 |
85 – 128 96 – 144 |
| 9/16 – 12 9/16 – 18 |
0.1820 0.2030 |
6,006 – 9,009 6,699 – 10,049 |
56 – 84 63 – 94 |
9,282 – 13,923 10,353 – 15,530 |
87 – 131 97 – 146 |
13,104 – 19,656 14,616 – 21,924 |
123 – 184 137 – 206 |
| 5/8 – 11 5/8 – 18 |
0.2260 0.2560 |
7,458 – 11,187 8,448 – 12,672 |
78 – 117 88 – 132 |
11,526 – 17,289 13,056 – 19,584 |
120 – 180 136 – 204 |
16,272 – 24,408 18,432 – 27,648 |
170 – 254 192 – 288 |
| 3/4 – 10 3/4 – 16 |
0.3340 0.3730 |
11,022 – 16,533 12,309 – 18,464 |
138 – 207 154 – 231 |
17,034 – 25,551 19,023 – 28,535 |
213 – 319 238 – 357 |
24,048 – 36,072 26,856 – 40,284 |
301 – 451 336 – 504 |
| 7/8 – 9 7/8 – 14 |
0.4620 0.5090 |
15,246 – 22,869 16,797 – 25,196 |
222 – 334 245 – 367 |
23,562 – 35,343 25,959 – 38,939 |
344 – 515 379 – 568 |
33,264 – 49,896 36,648 – 54,972 |
485 – 728 534 – 802 |
| 1 – 8 1 – 14 |
0.6060 0.6790 |
19,998 – 29,997 22,407 – 33,611 |
333 – 500 373 – 560 |
30,906 – 46,359 34,629 – 51,944 |
515 – 773 577 – 866 |
43,632 – 65,448 48,888 – 73,332 |
727 – 1,091 815 – 1,222 |
| 1-1/8 – 7 1-1/8 – 12 |
0.7630 0.8560 |
25,179 – 37,769 28,248 – 42,372 |
472 – 708 530 – 794 |
33,877 – 50,816 38,006 – 57,010 |
635 – 953 713 – 1,069 |
54,936 – 82,404 61,632 – 92,448 |
1,030 – 1,545 1,156 – 1,733 |
| 1-1/4 – 7 1-1/4 – 12 |
0.9690 1.0730 |
31,977 – 47,966 35,409 – 53,114 |
666 – 999 738 – 1,107 |
43,024 – 64,535 47,641 – 71,462 |
896 – 1,344 993 – 1,489 |
69,768 – 104,652 77,256 – 115,884 |
1,454 – 2,180 1,610 – 2,414 |
Other Types of Phosphorous Bronze Fasteners
| Phosphorous Bronze Washers Exporter | Phosphorous Bronze C54400 Stud Bolt |
| Phosphorous Bronze C54400 Fender Washer | Phosphorous Bronze Bolts Manufacturer |
| ASTM B111 Phosphorous Bronze Cap Screw | Phosphorous Bronze Foundation Bolts |
| Phosphorous Bronze Square Nut Exporter | ASTM B111 Phosphorous Bronze Pan Head Screw Stockist |
| ASTM C52100 Phosphorous Bronze Bolts Manufacturer | Phosphorous Bronze Pan Head Screw |
| Phosphorous Bronze Double Ended Stud | ASTM C52100 Phosphorous Bronze Tie Bar Exporter |
| Phosphorous Bronze Square Bolts Supplier | Phosphorous Bronze C51900 Punched Washer Distributor |
| Phosphorous Bronze C51900 Lock Nut Supplier | Phosphorous Bronze Coupler Nuts |
| Phosphorous Bronze Flat Washer | ASME SB111 Phosphorous Bronze C54400 Locking Nuts Manufacturer |
| ASME SB111 Phosphorous Bronze C54400 Studbolt | Phosphorous Bronze Countersunk Slotted Screw |
