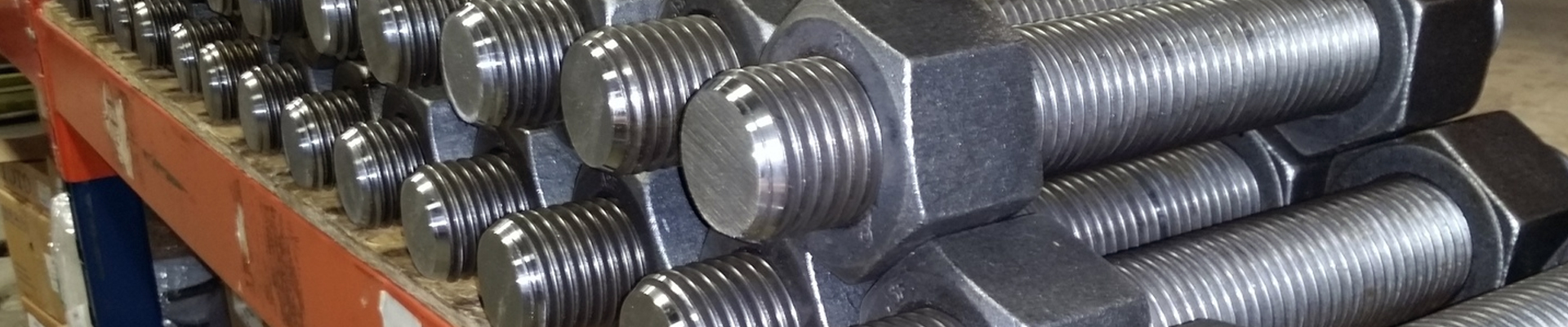

Stud Bolts
Stainless Steel threaded Rod, Super Duplex Steel Stud Bolts, Alloy Steel Drywall Stud, Fully Threaded Stud Bolts Suppliers in India.
Ranfit Metal & Alloys is a distinguished trader and stockist of Stud Bolts, which has options of different lengths and can be made available as per industry standards. We assure our clients that this Stainless Steel Stud Bolts is quality tested on predefined parameters to meet the international standards. Carbon Steel Stud Bolts has features like Corrosion resistance, Smooth edges, Accurate dimensions, High tensile strength, and more. Additionally, clients can opt for custom specifications for Super Duplex Steel Stud Bolts according to the requirements. In tune with industry standard, we provide this Inconel Alloy Stud Bolts in different customized options and industry leading prices. Available in various sizes and finishes, these Monel Alloy Stud Bolts are fabricated from finest quality raw material like stainless steel, mild steel and others.
The high chromium and nickel contents in Nickel Alloy Stud Bolts provide comparable corrosion resistance, superior resistance to oxidation and the retention of a larger fraction of room temperature strength than the common austenitic alloys. We ensure that this Hastelloy Alloy Stud Bolts is put through thorough industrial qualities which are stringent in nature. Our Incoloy Alloy Stud Bolts are available in varied specification that meets on precise necessities of our clients. We offer choice of different surface conditions for Alloy 20 Stud Bolts like polishing, milling, grinding, and others. These Copper Nickel Stud Bolts are highly used in various industries, owing to their strength and durability.
Duplex Concrete Screw, Nickel Alloy tie rod, Titanium Gr.2 tie bar, Hastelloy B3 Threaded Studs Wholesaler Supplier in Mumbai, India.
Stud Bolts Specification
| Stud Bolt size | M02 to M33, Custom Sizes |
|---|---|
| Stud Bolts Length | 3 mm to 200 mm |
| Stud Bolt | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard of Stud Bolts | DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5 |
| Form of Stud Bolts | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin, etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Popular Types of Stud Bolt | Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Stud Bolts | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Stud Bolts | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Packing of Stud Bolts | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Stud Bolts Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Stud Bolts finishing | Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
| Stainless Steel Stud | AISI 302, 304, 304L,316, 316L, 310, 317, 317L, 321, 347, 410, 420,904L etc. |
| Alloy Steel Stud | ASTM / ASME A/SA 193 / 194 B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M |
| Carbon Steel Stud | ASTM A307, A193 |
| Duplex & Super Duplex Steel Stud | ASTM / ASME A815 UNS No. S31803, UNS No. S 32205, UNS No. S 31254, UNS No. S 31550, UNS No. S 32750, and UNS No. S 32760 |
| Nickel Alloy Stud | ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472 UNS 2200 (NICKEL 200) / UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3) |
Types of Stud Bolts
Tap End Stud Bolts
Double End Stud Bolt
Fully Threaded Stud Bolts
Stud Bolts with Reduced Shank
Flange Stud Bolts
Wheel Stud Bolt
Reduced Shank
Weld Studs
Double Ended Stud Bolts Weights
| Metric Studs Bolts Weights | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| STUD BOLT LENGTH (in mm) | M10 | M12 | M14 | M16 | M20 | M22 | M24 | M30 | M36 | M39 |
| 60 | 5,6 | 8,1 | 12 | 15,6 | ||||||
| 70 | 6,1 | 8,9 | 13 | 16,9 | ||||||
| 80 | 6,6 | 9,6 | 14 | 18,2 | 32,5 | |||||
| 90 | 7,1 | 10,3 | 15 | 19,6 | 34,5 | 45,5 | ||||
| 100 | 7,6 | 11 | 16 | 21 | 36,7 | 47,2 | 54,2 | |||
| 110 | 8,1 | 11,7 | 17 | 22,2 | 38,7 | 48,3 | 58,2 | |||
| 150 | 10,1 | 14,9 | 20,8 | 27,5 | 46,9 | 58,5 | 69,2 | 121 | 192 | 237 |
| 160 | 10,6 | 15,6 | 21,8 | 29,1 | 49 | 61 | 72,2 | 126 | 199 | 245 |
| 170 | 16,4 | 22,8 | 30,4 | 51,1 | 63,5 | 75,2 | 130 | 206 | 253 | |
| 200 | 34,5 | 56,2 | 71 | 84 | 144 | 226 | 278 | |||
| 210 | 35,8 | 58,5 | 73,5 | 88,4 | 149 | 233 | 286 | |||
| 230 | 38,5 | 62,6 | 78,6 | 94,4 | 159 | 247 | 302 | |||
| 240 | 39,8 | 64,7 | 81,2 | 97,4 | 164 | 253 | 310 | |||
| 250 | 41,1 | 66,8 | 83,7 | 100,4 | 172 | 260 | 319 | |||
| 260 | 68,8 | 86,3 | 103,4 | 177 | 267 | 327 | ||||
| 270 | 70,9 | 88,8 | 106,4 | 182 | 274 | 335 | ||||
| 280 | 73 | 91,4 | 109,4 | 187 | 281 | 343 | ||||
| 290 | 75 | 93,9 | 112,4 | 192 | 291 | 360 | ||||
| 300 | 77,1 | 96,5 | 115,4 | 196 | 298 | 368 | ||||
| 320 | 101,6 | 121,3 | 206 | 312 | 380 | |||||
| 360 | 133,3 | 224 | 340 | 411 | ||||||
| 380 | 234 | 353 | 428 | |||||||
| 400 | 243 | 367 | 444 | |||||||
| 420 | 252 | 381 | 460 | |||||||
| 460 | 271 | 408 | 493 | |||||||
| 480 | 281 | 422 | 509 | |||||||
| 500 | 290 | 436 | 526 | |||||||
| Imperial Weight Chart | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| STUD BOLT LENGTH (in mm) | M10 | M12 | M14 | M16 | M20 | M22 | M24 | M30 | M36 | M39 |
| 60 | 5,6 | 8,1 | 12 | 15,6 | ||||||
| 70 | 6,1 | 8,9 | 13 | 16,9 | ||||||
| 80 | 6,6 | 9,6 | 14 | 18,2 | 32,5 | |||||
| 90 | 7,1 | 10,3 | 15 | 19,6 | 34,5 | 45,5 | ||||
| 100 | 7,6 | 11 | 16 | 21 | 36,7 | 47,2 | 54,2 | |||
| 110 | 8,1 | 11,7 | 17 | 22,2 | 38,7 | 48,3 | 58,2 | |||
| 150 | 10,1 | 14,9 | 20,8 | 27,5 | 46,9 | 58,5 | 69,2 | 121 | 192 | 237 |
| 160 | 10,6 | 15,6 | 21,8 | 29,1 | 49 | 61 | 72,2 | 126 | 199 | 245 |
| 170 | 16,4 | 22,8 | 30,4 | 51,1 | 63,5 | 75,2 | 130 | 206 | 253 | |
| 200 | 34,5 | 56,2 | 71 | 84 | 144 | 226 | 278 | |||
| 210 | 35,8 | 58,5 | 73,5 | 88,4 | 149 | 233 | 286 | |||
| 230 | 38,5 | 62,6 | 78,6 | 94,4 | 159 | 247 | 302 | |||
| 240 | 39,8 | 64,7 | 81,2 | 97,4 | 164 | 253 | 310 | |||
| 250 | 41,1 | 66,8 | 83,7 | 100,4 | 172 | 260 | 319 | |||
| 260 | 68,8 | 86,3 | 103,4 | 177 | 267 | 327 | ||||
| 270 | 70,9 | 88,8 | 106,4 | 182 | 274 | 335 | ||||
| 280 | 73 | 91,4 | 109,4 | 187 | 281 | 343 | ||||
| 290 | 75 | 93,9 | 112,4 | 192 | 291 | 360 | ||||
| 300 | 77,1 | 96,5 | 115,4 | 196 | 298 | 368 | ||||
| 320 | 101,6 | 121,3 | 206 | 312 | 380 | |||||
| 360 | 133,3 | 224 | 340 | 411 | ||||||
| 380 | 234 | 353 | 428 | |||||||
| 400 | 243 | 367 | 444 | |||||||
| 420 | 252 | 381 | 460 | |||||||
| 460 | 271 | 408 | 493 | |||||||
| 480 | 281 | 422 | 509 | |||||||
| 500 | 290 | 436 | 526 | |||||||
Stud Bolts Dimension Chart
| Diameter | Diameter in mm | Diameter in inch | Nut Sizes |
|---|---|---|---|
| M12 | 12 | 0.4724 | 19 |
| M10 | 10 | 0.3937 | 17 |
| M14 | 14 | 0.5512 | 22 |
| M18 | 18 | 0.7087 | 27 |
| M16 | 16 | 0.6299 | 24 |
| M20 | 20 | 0.7874 | 30 |
| M24 | 24 | 0.9449 | 36 |
| M22 | 22 | 0.8661 | 32 |
| M27 | 27 | 1.063 | 41 |
| M33 | 33 | 1.2992 | 50 |
| M30 | 30 | 1.1811 | 46 |
| M36 | 36 | 1.4173 | 55 |
| M42 | 42 | 1.6535 | 65 |
| M39 | 39 | 1.5354 | 60 |
| M45 | 45 | 1.7717 | 70 |
| M52 | 52 | 2.0472 | 80 |
| M48 | 48 | 1.8898 | 75 |
| M56 | 56 | 2.2047 | 85 |
| M64 | 64 | 2.5197 | 95 |
| M60 | 60 | 2.3622 | 90 |
| M68 | 68 | 2.6772 | 100 |
| M76 | 76 | 2.9921 | 110 |
| M72 | 72 | 2.8346 | 105 |
| M80 | 80 | 3.1496 | 115 |
| M90 | 90 | 3.5433 | 130 |
| M85 | 85 | 3.3464 | 120 |
| M100 | 100 | 3.937 | 145 |
| M160 | 160 | 6.2992 | 230 |
| M125 | 125 | 4.9212 | 180 |
| M110 | 110 | 4.3307 | 155 |
| M140 | 140 | 5.5118 | 200 |
ANSI and/or ASME Standards Stud Bolts
| Description | Standard | Measurement System |
|---|---|---|
| Continuous Thread Stud Bolts | ANSI/ASME B18.31.2 | Inch Series |
| Stud Bolts with Chamfered End for Flange Bolting | ANSI/ASME B16.5 | Inch Series |
| Welding Studs / Weld Studs | DIN 525 | Metric |
| Double End Stud Bolts / Double Ended Studs | DIN 835 | Metric |
| Double End Stud Bolts with Thread Engagement Length Equals to 1 x Diameter | DIN 938 | Metric |
| Double End Stud Bolts with Thread Engagement Length Equals to 1.25 x Diameter | DIN 939 | Metric |
| Double End Stud Bolts with Thread Engagement Length Equals to 2.5 x Diameter | DIN 940 | Metric |
| Double End Studs With Thread Engagement Length Equals to 2D | DIN 949-1 | Metric |
| Double End Studs With Thread Engagement Length Equals to 2.5D | DIN 949-2 | Metric |
| Plain End Stud Bolts / Threaded Rods | DIN 975 | Inch Series |
| Plain End Stud Bolts / Threaded Rods | DIN 976 | Metric |
| Double End Studs / Stud Bolts | DIN 2509 | Metric |
| Double End Stud Bolts With Reduced Shank | DIN 2510 L, DIN 2510 Z, DIN 2510 K, DIN 2510 ZU/KU, DIN 2510 GP, DIN 2510 GQ, DIN 2510 GR, DIN 2510 GS, DIN 2510 HP | Metric |
| Studs / Stud Bolts | BS 2693 | Inch Series |
| Stud Bolts | BS 3692 | Metric |
| Double End Stud Bolts With Thread Engagement Length Equals to 1.5 x Diameter | BS 4439 | Metric |
| Stud Bolts | IS 1862 | Metric |
| Clamping Studs | IS 13178 | Metric |
Stud Bolts Forms & Availability
| Products | Size | |
|---|---|---|
| SS Fully Threaded Stud Bolts | Stainless Steel Tap End Stud Bolts | M02 to M33, Custom Sizes |
| Carbon Steel Double End Stud Bolts | Alloy Steel Stud Bolts with Reduced Shank | |
| Incoloy Reduced Shank | Titanium Flange Stud Bolts | |
| Nickel Flange Bolting | Alloy 20 Weld Studs | |
| Hastelloy Threaded Stud Bolts | Titanium Threaded Studs | |
| Cu-Ni Continuous Thread Stud Bolt | Monel Partial Threaded Stud Bolt | |
| SMO 254 Reduced Shank Stud Bolt | Inconel Allen Heavy Stud Bolts | |
