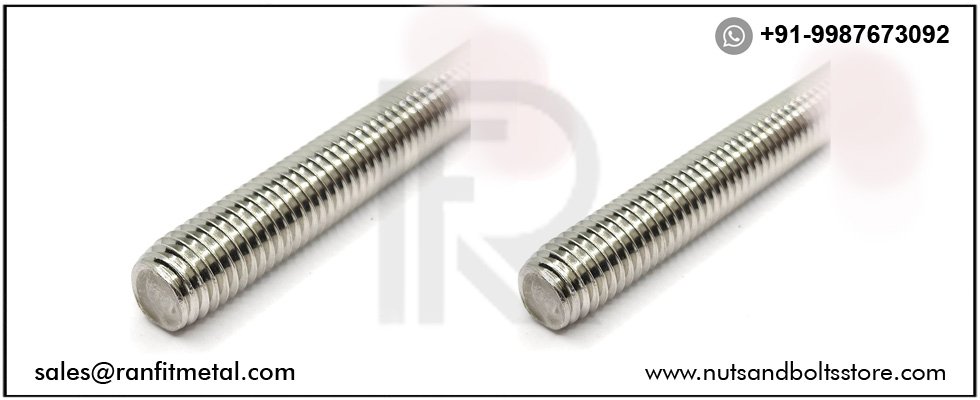

Hex Fully Threaded End Stud Bolts
Super Duplex Threaded End Stud Bolts Price List, Full Threadd Nickel Alloy Stud Bolt, High Tensile Alloy Steel Fully Threaded Stud Bolt, Titanium Flange Threaded End Stud Manufacturer, Stainless Steel Hexagonal Fully Threaded End Stud, SS Heavy Fully Threaded Stud Bolt in India.
Hastelloy Expansion Threaded End Stud Bolt Exporter, Inconel Fully Threaded End Heavy Bolt Supplier, Stainless Steel Fully Threaded End Stud Bolts, Copper Nickel Heavy Hexagonal Threaded End Stud Bolt Sizes in Mumbai, India.
Fully Threaded End Bolts Specification
| Stud Bolt size | M02 to M33, Custom Sizes |
|---|---|
| Stud Bolts Length | 3 mm to 200 mm |
| Stud Bolt | METRIC, BSW, BSF, UNF, UNC, or as required |
| Standard of Stud Bolts | DIN 976, DIN 2509, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 525, DIN 835, DIN 949-2, DIN 975, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5 |
| Form of Stud Bolts | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | Tata Steel, Dhamm Steel, JSPL, Mukund Steel, Usha Martin, etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Popular Types of Stud Bolt | Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Stud Bolts, Fully Threaded Stud Bolts, Flange Stud Bolts, Flange Bolting, Weld Studs |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Stud Bolts | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Stud Bolts | Phillips, Six-Lobe, Phillips/Slot, Slotted etc |
| Packing of Stud Bolts | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating |
Cadmium Coating Teflon Coating Zinc Coating Ptfe Coated Stud Bolts Phosphate Coating Hot Dipped Galvanizing Coating Xylon Coating |
| Stud Bolts finishing | Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
| Stainless Steel Stud | AISI 302, 304, 304L,316, 316L, 310, 317, 317L, 321, 347, 410, 420,904L etc. |
| Alloy Steel Stud | ASTM / ASME A/SA 193 / 194 B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M |
| Carbon Steel Stud | ASTM A307, A193 |
| Duplex & Super Duplex Steel Stud | ASTM / ASME A815 UNS No. S31803, UNS No. S 32205, UNS No. S 31254, UNS No. S 31550, UNS No. S 32750, and UNS No. S 32760 |
| Nickel Alloy Stud | ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472 UNS 2200 (NICKEL 200) / UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3) |
Equivalent Grade of SS Threaded End Stud Bolt
| Grade | Country | 316 L | 304 | 316 | 304 L | 310 | 410 |
|---|---|---|---|---|---|---|---|
| UNS | North America | S31603 | S30400 | S31600 | S30403 | S31000 | S41000 |
| EN | European | 1.4404 | 1.4301 | 1.4401 | 1.4306 | 1.4841 | 1.4006 |
| BS | British | BS 970 | BS 970 | BS 970 | BS 970 | BS 970 | BS 970 |
| ASTM | America | ASTM A 320 Ge B8M | ASTM A 193 Gr B8 | ASTM A 193 Gr B8M | ASTM A 320 Ge B8 | ASTM A 479 | |
| DIN | German | X 2 CrNiMo 17 13 2 | X 5CrNi1810 | X 5 CrNiMo 17 13 2 | X 2CrNi1911 | X 12 CrNi 25 21 | X 10Cr13 |
SS Fully Threaded End Stud Size Chart
| Dia | M8 | M3 | M5 | M4 | M6 | |
|---|---|---|---|---|---|---|
| Head Thickness | Max | 1.40 | 1.40 | 1.40 | 1.40 | 1.40 |
| Min | 0.80 | 0.70 | 0.70 | 0.70 | 0.70 | |
| Head OD (+/- 0.2) | Nom | 9.00 | 4.50 | 6.50 | 5.50 | 7.50 |
| Max | 8.80 | 4.30 | 6.30 | 5.30 | 7.30 | |
| Min | 9.20 | 4.70 | 6.70 | 5.70 | 7.70 | |
| length (+/- 0.05) | Nom | 0.85 | 0.55 | 0.80 | 0.55 | 0.80 |
| Max | 0.80 | 0.50 | 0.75 | 0.50 | 0.75 | |
| Min | 0.90 | 0.60 | 0.85 | 0.60 | 0.85 | |
| Dia (+/- 0.08) | Nom | 0.75 | 0.60 | 0.75 | 0.65 | 0.75 |
| Max | 0.67 | 0.52 | 0.67 | 0.57 | 0.67 | |
| Min | 0.83 | 0.68 | 0.83 | 0.73 | 0.83 |
Types of Screw
Hexagonal Fully Threaded End Stud Bolt Forms & Availability
| Products | Size | |
|---|---|---|
| Nickel Flat Fully Threaded End Flange Stud Bolts | Alloy Wedge Fully Threaded End Stud Bolts | M 02 to M 160, Custom Sizes |
| Carbon Steel Internal Hex Fully Threaded End Heavy Stud Bolts | Alloy Steel Concrete Hexagonal Stud Bolts | |
| Cu-Ni Fully Threaded End Forged Stud Bolts | Titanium Fully Threaded End Thread Stud Bolts | |
| Incoloy Hexagon Fully Threaded End Head Stud Bolts | M12 Hastelloy External Fully Threaded End Stud Bolts | |
| SMO 254 Full Thread Hexagonal Fully Threaded End Stud Bolt | Monel Hex Fully Threaded End Bolt Stud | |
| SS Fully Threaded End Stud Bolts | Stainless Steel Hollow Fully Threaded End Stud Bolts | |
| Titanium High Tensile Fully Threaded End Stud Bolts | Inconel External Fully Threaded End Stud Bolts | |
