Monel 400 Fasteners

Monel 400 Fasteners, Monel® Alloy 400 Foundation Bolts, Monel UNS N04400 Threaded Stud, Nickel Alloy 400 Structural Bolts Supplier & Exporter in India.

Ranfit Metal & Alloys is a distinguished exporter and manufacturer of Monel Alloy 400 Fasteners, which can only be hardened by cold working. Monel 400 Nuts is a group of nickel alloys, primarily composed of nickel and copper, with small amounts of carbon, iron, manganese, and silicon. The proportions of copper and nickel used to make Monel 400 Bolts are the same as that found in the nickel ore found in Ontario mines. Monel 400 Stud Bolts provides a lower cost alternative to commercially pure Nickel due to the Copper content. Monel 400 Stud Bolts is a nickel-copper single-phase alloy most commonly supplied in a hot worked and annealed condition. Monel 400 Washers has high strength and excellent corrosion resistance in a range of media including sea water and hydrofluoric acid. Monel 400 Screws is used for chemical, marine engineering, and hydrocarbon processing equipment.

Monel 400 Round Bars is a nickel-copper and solid-solution alloy that is hardenable only by cold working. Monel 400 Bars is good for sea water applications. Monel 400 Rods is well known for its high strength and corrosion resistant properties. A nickel-copper alloy, Monel UNS N04400 Fasteners combines high strength and corrosion resistance. Monel WNR 2.4360 Fasteners has low corrosion rate in flowing seawater, therefore it is widely used in marine applications. Nickel-Alloy 400 Fasteners is resistant to seawater and steam at high temperatures.

ASTM F593 Alloy 400 Nut, Monel 400 Alloy Hex Head Nut, Monel 400 Hex Cap Screws, Monel DIN N04400 U Bolts Manufacturer in India.

Monel 400 Fasteners Specification

Grade	Monel 400 (UNS N04400)
Monel Alloy 400 Fasteners Specifications	ASTM F593, F594, F1554 / ASME SF593, F594, F1554
Monel Alloy 400 Fasteners size	Bolt / Screw Size : M3 - M56 \| 3/6" to 2" \| Custom Sizes Nuts Size : M3 - M56 \| 3/6" to 2" \| Custom Sizes Washers Size : M3 - M56 \| 3/6" to 2" \| Custom Sizes Machine Screws Size : M1.6 - M12 Self Tapping Screw Size : No.2 - No. 14
Monel Alloy 400 Fasteners Length	3 mm to 400 mm
Monel Alloy 400 Studs, Bolts, Threads	UNF, BSW, BSF, METRIC, UNC, or as required
Standard of Monel 400 Fasteners	DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard Monel Alloy 400 Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Monel Alloy 400 Hex nuts
Form of Monel Alloy 400 Fasteners	Hex, Threading, Square, Round as per Gauge Etc.
Raw materials Source	JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc.
Threads Configuration	ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Certification	Dual Certified As per ASTM & ASME Codes
Dimensions	DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3
Threads	Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically
Test Certificate of Monel Alloy 400 Bolting	as per EN 10204 / 3.1 Manufacturer Test Certificate
Additional Certifications	PED 97/23/EC Certified, Merkblatt AD 4000 W2 Certified
Production process	M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC
Head drive of Monel Alloy 400 Bolts	Six-Lobe,Phillips,Phillips/Slot, Slotted etc
Packing of Monel Alloy 400 Fasteners	IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Surface Coating	Ptfe Coated Monel Alloy 400 Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating
Monel Alloy 400 Fasteners finishing	Monel Alloy 400 : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Monel, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, Monel plated, anodizing, plated zinc-Monel Zinc (blue, black, yellow, white), black oxide,

Monel 400 Fasteners Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Monel 400	2.4360	N04400	NW 4400	NA 13	МНЖМц 28-2,5-1,5	NU-30M	NiCu30Fe

Chemical Composition of Monel 400 Fasteners

Grade	C	Mn	Si	S	Cu	Fe	Ni
Monel 400	0.30 max	2.00 max	0.50 max	0.024 max	28.00 – 34.00	2.50 max	63.00 min

Mechanical Properties of Monel 400 Fasteners

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Monel 400	8.8 g/cm3	1350 °C (2460 °F)	Psi – 80,000 , MPa – 550	Psi – 35,000 , MPa – 240	40 %

Types of Monel 400 Fasteners

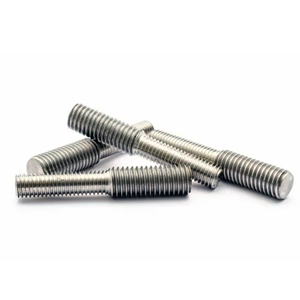

Monel 400 Stud Bolts

Monel 400 Star Washers

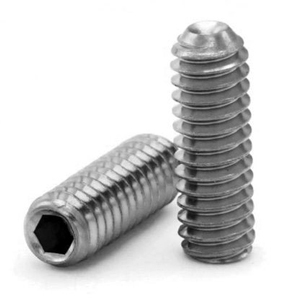

Monel 400 Socket Set Screw

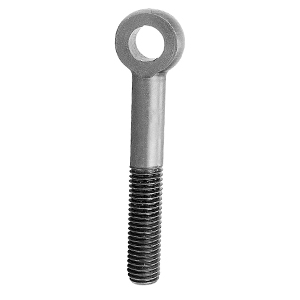

Monel 400 Eye Bolts

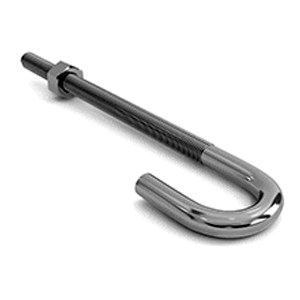

Monel 400 J Bolts

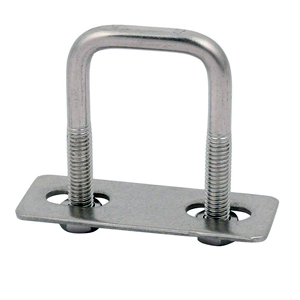

Monel 400 Square U-Bolts

Monel 400 Stud Anchor

Monel 400 Screws

Monel 400 Dowel Pins

Monel 400 Threaded Hanger Bolt

Monel 400 Hexagon Cap Screw

Monel 400 Nuts

Monel 400 Bolts

Monel 400 Washers

Monel 400 Threaded Inserts

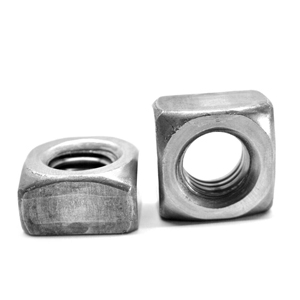

Monel 400 Square Nuts

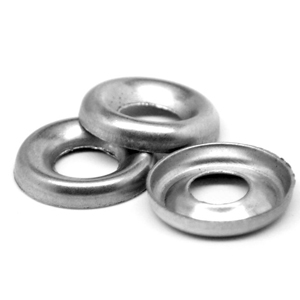

Monel 400 Countersunk Washers

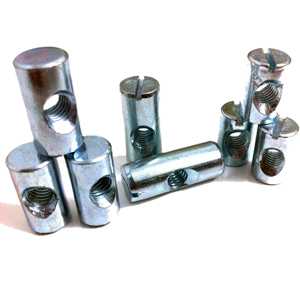

Monel 400 Barrel Nuts

ASTM B160 / Monel 400 Fasteners Forms & Availability

Products		Size
ASTM B164 / B163 400 Monel Alloy Stud Bolt	ASTM B164 / B163 400 Monel Monel® Alloy Bolts	Sizes M3 - M56 \| 3/6" to 2"
ASTM B164 / B163 400 Monel Alloy Punched Washer	ASTM B164 / B163 400 Monel Alloy Pan Head Screw
ASTM B164 / B163 400 Monel Square Nut	ASTM B164 / B163 400 Monel Alloy Insert Nuts
ASTM B164 / B163 400 Monel Alloy Welding Studs	ASTM B164 / B163 400 Monel Alloy Pan Head Screw
ASTM B164 / B163 400 Monel Cap Screw	ASTM B164 / B163 400 Monel Foundation Bolts
ASTM B164 / B163 400 Monel Alloy Threaded Rod	ASTM B164 / B163 400 Monel Hex Head Bolts
ASTM B164 / B163 400 Monel Nuts	ASTM B164 / B163 400 Monel Washers
ASTM B164 / B163 400 Monel Alloy Fender Washer	ASTM B164 / B163 400 Monel Monel® Alloy Lock Nut
ASTM B164 / B163 400 Monel Alloy Countersunk Slotted Screw	ASTM B164 / B163 400 Monel Alloy Double Ended Stud

Monel 400 Hex Bolt Dimensions

Nominal Size (D)	Body Diameter		Head Thickness ASTM B166		Acro ASTM B166 The Flats		Acro ASTM B166 Corners
	D (MAX)	D (MIN)	H (MAX)	H (MIN)	F (MAX)	F (MIN)	C (MAX)	C (MIN)
m10	10.00	9.78	6.63	6.17	17.00	15.73	18.48	17.77
m12	12.00	11.73	7.76	4.24	19.00	17.73	20.78	20.03
m14	14.00	13.73	9.09	8.51	22.00	20.67	24.25	23.35
m16	16.00	15.73	10.32	9.68	24.00	23.67	27.71	26.75
m20	20.00	19.67	12.88	12.12	30.00	29.16	34.64	32.95
m24	24.00	23.67	15.44	14.56	36.00	35.00	41.57	39.55
m30	30.00	29.67	19.48	17.92	46.00	45.00	53.12	50.85
m36	36.00	35.61	23.38	21.63	55.00	53.80	63.51	60.79
m42	42.00	41.38	26.97	25.03	65.00	62.90	75.06	71.71
m48	48.00	47.38	31.07	28.93	75.00	72.60	86.60	82.76
m56	56.00	55.26	36.2	33.80	85.00	82.20	98.15	93.71
m64	64.00	63.26	41.32	38.68	95.00	91.80	109.70	104.65
m72	72.00	71.26	46.45	43.55	105.00	101.40	121.24	115.60
m80	80.00	79.26	51.58	48.42	115.00	111.00	132.72	126.54
m90	90.00	89.13	57.74	54.26	130.00	125.50	150.11	143.07
m100	90.00	99.13	63.9	60.10	145.00	140.00	167.43	159.60

Monel 400 Bolts Weight Chart

MM THREADS AS PER IS 1363/67
APPROXIMATE WEIGHT IN KGS FOR 100 NOS
LENGTH	DIAMETER
LENGTH	M 5	M 6	M 8	M 10	M 12	M 14	M 16	M 18	M 20	M 22
16 mm	0.448	0.743	1.590	3.211
20 mm	0.598	0.812	1.711	3.411	4.892
25 mm	0.660	0.897	1.871	3.660	5.252	8.170
30 mm	0.737	1.010	2.070	3.912	5.574	9.690	10.707		18.657
35 mm	0.804	1.120	2.271	4.223	5.974	10.000	11.416	16.026	19.608
40 mm	0.881	1.230	2.470	4.533	6.410	10.288	12.107	16.667	20.747
45 mm	0.958	1.340	2.671	4.840	6.859	10.504	12.821	17.241	21.739
50 mm	1.030	1.450	2.870	5.155	7.299	11.261	13.624	17.857	22.727	28.409
55 mm		1.560	3.071	5.464	7.740	11.628	14.409	18.868	23.810	30.120
60 mm		1.670	3.270	5.774	8.183	12.255	15.244	20.000	25.126	32.051
65 mm		1.781	3.472	6.083	8.621	12.626	16.026	21.008	26.455	34.014
70 mm		1.890	3.671	6.394	9.058	12.987	16.835	22.124	27.778	35.461
75 mm		2.000	3.873	6.702	9.506	13.228	17.606	23.256	29.070	39.063
80 mm		2.111	4.072	7.013	10.000	13.889	18.248	24.510	30.303	40.000
90 mm			4.472	7.634	10.917	14.925	19.841	26.042	33.113	41.667
100 mm			4.873	8.251	11.820	16.340	21.459	27.778	35.714	46.296
110 mm				8.881	12.723	17.730	23.041	31.250	38.168	47.170
120 mm				9.506	13.624	18.797	24.631	32.895	40.984	50.000
130 mm				10.101	14.535	20.000	26.316	34.722	43.478	52.632
140 mm				10.707	15.432	20.833	27.933	35.461	46.296	55.556
150 mm				11.312	16.340	22.222	29.412	37.594	48.544	58.824
160 mm				11.905	17.241	24.272	31.056	40.984	50.505	61.728
170 mm				12.500	18.116		32.680		53.191	64.935
180 mm				13.123	19.011	26.882	34.247		55.556	67.568
190 mm				13.736	19.920		35.971		58.140	70.423
400 mm				14.327	20.833	29.586	37.594	49.020	60.976	73.529
220 mm				15.528	22.624		40.650		65.789	79.365
240 mm				16.722	24.510		43.860		71.429	84.746
250 mm				17.301	25.381		45.455		74.627	87.719
260 mm				17.921	26.316		47.170		76.923	90.909
280 mm				19.157	28.090		50.505		81.967	98.039
300 mm				20.325	29.940		53.763		87.719	104.167
320 mm					31.646		56.818		92.593
340 mm					33.557		60.241		98.039
360 mm					35.211		63.291		104.167
380 mm					37.037		66.667		108.696
400 mm					39.063		69.444		113.636

Monel 400 Nuts Dimensions

Nominal Size or Basic Major Thread Diameter		F			G		H
		Width Across Flats			Width Across Corners		Thickness
		Basic	Max	Min	Max	Min	Basic	Max	Min
1/4	.2500	1/2	.500	.488	.577	.556	15/64	.250	.218
5/16	.3125	9/16	.562	.546	.650	.622	19/64	.314	.280
3/8	.3750	11/16	.688	.669	.794	.763	23/64	.377	.341
7/16	.4375	3/4	.750	.728	.866	.830	27/64	.441	.403
1/2	.5000	7/8	.875	.850	1.010	.969	31/64	.504	.464
9/16	.5625	15/16	.938	.909	1.083	1.037	35/64	.568	.526
5/8	.6250	1-1/16	1.062	1.031	1.227	1.175	39/64	.631	.587
3/4	.7500	1-1/4	1.250	1.212	1.443	1.382	47/64	.758	.710
7/8	.8750	1-7/16	1.438	1.394	1.660	1.589	55/64	.885	.833
1	1.0000	1-5/8	1.325	1.575	1.876	1.796	63/64	1.012	.956
1-1/8	1.1250	1-13/16	1.812	1.756	2.093	2.002	1-7/64	1.139	1.079
1-1/4	1.2500	2	2.000	1.938	2.309	2.209	1-7/32	1.251	1.187
1-3/8	1.3750	2-3/16	2.188	2.119	2.526	2.416	1-11/32	1.378	1.460
1-1/2	1.5000	2-3/8	2.375	2.300	2.742	2.622	1-15/32	1.505	1.433
1-5/8	1.6250	2-9/16	2.562	2.481	2.959	2.828	1-19/32	1.632	1.556
1-3/4	1.7500	2-3/4	2.750	2.662	3.175	3.035	1-23/32	1.759	1.679
2	2.0000	3-1/8	3.125	3.025	3.608	3.449	1-31/32	2.013	1.925
2-1/4	2.2500	3-1/2	3.500	3.388	4.041	3.862	2-13/64	2.251	2.155
2-1/2	2.5000	3-7/8	3.875	3.750	4.474	4.275	2-29/64	2.505	2.401
2-3/4	2.7500	4-1/4	4.250	4.112	4.907	4.688	2-45/64	2.759	2.647
3	3.0000	4-5/8	4.625	4.475	5.340	5.102	2-61/64	3.013	2.893
3-1/4	3.2500	5	5.000	4.838	5.774	5.515	3-3/16	3.252	3.124
3-1/2	3.5000	5-3/8	5.375	5.400	6.207	5.928	3-7/16	3.506	3.370
3-3/4	3.7500	5-3/4	5.750	5.562	6.640	6.341	3-11/16	3.670	3.616
4	4.0000	6-1/8	6.125	5.925	7.073	6.755	3-15/16	4.014	3.862

ASTM / DIN Specification of Monel Fasteners

ASTM B164	ASTM B163	ASTM F2281
ASTM B164M	ASTM B163M	ASTM A962
ASTM A320	ASTM F593-13a	ASTM A962M
ASTM A320M	ASTM F594-15
DIN 580	DIN 6914	DIN 6921
DIN 582	DIN 3570	DIN 603
DIN 444	DIN 7990	DIN 2510
DIN 939	DIN 1B	DIN 976
DIN 933	DIN 529	DIN 912
DIN 931	DIN 6325

Monel 400 Fasteners Standard

Hexagon Bolt / Set Screws	Stud Bolt	Hexagon Nuts	Socket Cap screws
DIN 931	BS4882	DIN 934	DIN 912
DIN 933	DIN 976	BS 1768	DIN 6912
BS 1768		BS 1769	DIN 7984
UNI 5731		BS 1083	ANSI B18.3
UNI 5739		BS 3692	ISO 4762
ISO 4014		ISO 4032	UNI 5931
ISO 4017		ISO 4033	BS 2470
BS 1769		ANSI B18.2.2	BS 4168
BS 3692
ANSI B18.2.1
Socket & Slotted Set Screws	Socket & Slotted Countersunk Screws	Studs	Washers
DIN 913	DIN 963	DIN 938	DIN 125
DIN 914	DIN 7991	DIN 939	DIN 9021
DIN 915	BS 4168	DIN 2510	BS 4320
DIN 916	BS 1981	BS 4439	BS 3410
DIN 551	BS 483	BS 2693
DIN 553	BS 2470		Spring Washers
DIN 438			DIN 127
BS 4168			BS 4464
			BS 1802

Monel 400 Flat Washer Dimension Chart

Size	Inside Diameter	Outside Diameter	Thickness
#2	3/32"	1/4"	.020"
#4	1/8"	5/16"	1/32"
#8	3/16"	7/16"	3/64"
#10	7/32"	1/2"	3/64"
#6	5/32"	3/8"	3/64"
1/4	9/32"	5/8"	1/16"
3/8	13/32"	13/16"	1/16"
7/16	15/32"	59/64"	1/16"
1/2	17/32"	1-1/16"	3/32"
9/16	19/32"	1-3/16"	3/32"
5/16	11/32"	11/16"	1/16"
1-3/4	1-7/8"	4"	3/16"
5/8	21/32"	1-5/16"	3/32"
3/4	13/16"	1-1/2"	9/64"
7/8	15/16"	1-3/4"	9/64"
1"	1-1/16"	2"	9/64"
1-1/8	1-3/16"	2-1/4"	9/64"
1-1/4	1-5/16"	2-1/2"	5/32"
1-1/2	1-7/16"	3"	3/16"
1-5/8	1-3/4"	3-3/4"	3/16"
2	2-1/8"	4-1/2"	3/16"

Monel 400 Plain Washer Dimension

Size	Inside Diameter	Outside Diameter	Thickness
3/16	1/4"	9/16"	3/64"
1/4	5/16"	3/4"	1/16"
3/8	7/16"	1"	5/64"
7/16	1/2"	1-1/4"	5/64"
1/2	9/16"	1-3/8"	7/64"
9/16	5/8"	1-1/2"	7/64"
5/8	11/16"	1-3/4"	9/64"
3/4	13/16"	2"	5/32"
5/16	3/8"	7/8"	5/64"
7/8	15/16"	2-1/4"	1/64"
1	1-1/16"	2-1/2"	11/64"
1-1/8	1-1/4"	2-3/4"	11/64"
1-1/4	1-3/8"	3"	11/64"
1-3/8	1-1/2"	3-1/4"	3/16"
1-5/8	1-3/4"	3-3/4"	3/16"
1-3/4	1-7/8"	4"	3/16"
2	2-1/8"	4-1/2"	3/16"
2-1/2	2-5/8"	4-1/2"	3/16"
3	3-1/8"	5-1/2"	9/32"
1-1/2	1-5/8"	3-1/2"	3/16"

Monel 400 Washers Sizes

Size	USS			SAE
Size	Inside Diameter (A)	Outside Diameter (B)	Thickness (C)	Inside Diameter (A)	Outside Diameter (B)	Thickness (C)

#2	-	-	-	3/32"	1/4"	0.020"
#4	-	-	-	1/8"	5/16"	0.032"
#6	-	-	-	5/32"	3/8"	0.049"
#8	-	-	-	3/16"	7/16"	0.049"
#10	-	-	-	7/32"	1/2"	0.049"
#12	-	-	-	1/4"	9/16"	0.065"
1/4"	5/16"	0.734"	0.065"	9/32"	5/8"	0.065"
5/16"	3/8"	7/8"	0.083"	11/32"	11/16"	0.065"
3/8"	7/16"	1"	0.083"	13/32"	13/16"	0.065"
7/16"	1/2"	1-1/4"	0.083"	15/32"	15/16"	0.065"
1/2"	9/16"	1-3/8"	0.109"	17/32"	1-1/16"	0.095"
9/16"	5/8"	1-15/32"	0.109"	19/32"	1-5/32"	0.095"
5/8"	11/16"	1-3/4"	0.134"	21/32"	1-5/16"	0.095"
3/4"	13/16"	2"	0.148"	13/16"	1-15/32"	0.134"
7/8"	15/16"	2-1/4"	0.165"	15/16"	1-3/4"	0.134"
1"	1-1/16"	2-1/2"	0.165"	1-1/16"	2"	0.134"
1-1/8"	1-1/4"	2-3/4"	0.165"	-	-	-
1-1/4"	1-3/8"	3"	0.165"	-	-	-
1-3/8"	1-1/2"	3-1/4"	0.180"	-	-	-
1-1/2"	1-5/8"	3-1/2"	0.180"	-	-	-
1-5/8"	1-3/4"	3-3/4"	0.180"	-	-	-
1-3/4"	1-7/8"	4"	0.180"	-	-	-
2"	2-1/8"	4-1/2"	0.213"	-	-	-

Monel 400 Stud Bolt Size Chart

Class 150 Flanges ASME B16.5 (Stud bolt sizes)						Length of Stud Bolts
NPS	Outside Diameter of Flange	The diameter of Bolt Circle	The diameter of Bolt Holes	Number of Bolts	Diameter of Bolts	Raised Face 0.06 in	Ring Joint
1/2	3 1/2	2 3/8	5/8	4	1/2	2 1/4	–
3/4	3 7/8	2 3/4	5/8	4	1/2	2 1/2	–
1	4 1/4	3 1/8	5/8	4	1/2	2 1/2	3
1 1/4	4 5/8	3 1/2	5/8	4	1/2	2 3/4	3 1/4
1 1/2	5	3 7/8	5/8	4	1/2	2 3/4	3 1/4
2	6	4 3/4	3/4	4	5/8	3 1/4	3 3/4
2 1/2	7	5 1/2	3/4	4	5/8	3 1/2	4
3	7 1/2	6	3/4	4	5/8	3 1/2	4
3 1/2	8 1/2	7	3/4	8	5/8	3 1/2	4
4	9	7 1/2	3/4	8	5/8	3 1/2	4
5	10	8 1/2	7/8	8	3/4	3 3/4	4 1/4
6	11	9 1/2	7/8	8	3/4	4	4 1/2
8	13 1/2	11 3/4	7/8	8	3/4	4 1/4	4 3/4
10	16	14 3/4	1	12	7/8	4 1/2	5
12	19	17	1	12	7/8	4 3/4	5 1/4
14	21	18 3/4	1 1/8	12	1	5 1/4	5 3/4
16	23 1/2	21 1/4	1 1/8	16	1	5 1/4	5 3/4
18	25	22 3/4	1 1/4	16	1 1/8	5 3/4	6 1/4
20	27 1/2	25	1 1/4	20	1 1/8	6 1/4	6 3/4
24	32	29 1/2	1 1/4	20	1 1/4	6 3/4	7 1/4
Class 300 Flanges ASME B16.5						Length of Stud Bolts
NPS	Outside Diameter of Flange	The diameter of Bolt Circle	The diameter of Bolt Holes	Number of Bolts	Diameter of Bolts	Raised Face 0.06 in	Ring Joint
1/2	3 3/4	2 5/8	5/8	4	1/2	2 1/2	3
3/4	4 5/8	3 1/4	3/4	4	5/8	3	3 1/2
1	4 7/8	3 1/2	3/4	4	5/8	3	3 1/2
1 1/4	5 1/4	3 7/8	3/4	4	5/8	3 1/4	3 3/4
1 1/2	6 1/8	4 1/2	7/8	4	3/4	3 1/2	4
2	6 1/2	5	3/4	8	5/8	3 1/2	4
2 1/2	7 1/2	5 7/8	7/8	8	3/4	4	4 1/2
3	8 1/4	6 5/8	7/8	8	3/4	4 1/4	4 3/4
3 1/2	9	7 1/4	7/8	8	3/4	4 1/4	5
4	10	7 7/8	7/8	8	3/4	4 1/2	5
5	11	9 1/4	7/8	8	3/4	4 3/4	5 1/4
6	12 1/2	10 5/8	7/8	12	3/4	4 3/4	5 1/2
8	15	13	1	12	7/8	5 1/2	6
10	17 1/2	15 1/4	1 1/8	16	1	6 1/4	6 3/4
12	20 1/2	17 3/4	1 1/4	16	1 1/8	6 3/4	7 1/4
14	23	20 1/4	1 1/4	20	1 1/8	7	7 1/2
16	25 1/2	22 1/2	1 3/8	20	1 1/4	7 1/2	8
18	28	24 3/4	1 3/8	24	1 1/4	7 3/4	8 1/4
20	30 1/2	27	1 3/8	24	1 1/4	8	8 3/4
24	36	32	1 5/8	24	1 1/2	9	10

Monel 400 Stud Bolt Torque Chart

Flange Size	B16.5 Class 150 RF/ Ring Gaskets					B16.5 Class 150 FF/ Full Face Gaskets
	Torque / Round (ft-lbs)			Stud Bolts Tighten Sequence		Torque / Round (ft-lbs)			Stud Bolts Tighten Sequence
	1st	2nd	Final	Dwg/No.	Bolt Size	1st	2nd	Final	*Dwg/No.**	Bolt Size
1/2″	10	20	30	4-bolt	1/2″	20	40	60	4-bolt	1/2″
3/4″	13	27	40	4-bolt	1/2″	20	40	60	4-bolt	1/2″
1″	15	30	50	4-bolt	1/2″	20	40	60	4-bolt	1/2″
1-1/4″	20	40	60	4-bolt	1/2″	20	40	60	4-bolt	1/2″
1-1/2″	20	40	60	4-bolt	1/2″	20	40	60	4-bolt	1/2″
2″	40	80	120	4-bolt	5/8″	40	80	120	4-bolt	5/8″
2-1/2″	40	80	120	4-bolt	5/8″	40	80	120	4-bolt	5/8″
3″	40	80	120	4-bolt	5/8″	40	80	120	4-bolt	5/8″
3-1/2″	40	80	120	8-bolt	5/8″	40	80	120	8-bolt	5/8″
4″	40	80	120	8-bolt	5/8″	40	80	120	8-bolt	5/8″
5″	60	120	201	8-bolt	3/4″	60	120	201	8-bolt	3/4″
6″	60	120	201	8-bolt	3/4″	60	120	201	8-bolt	3/4″
8″	60	120	201	8-bolt	3/4″	60	120	201	8-bolt	3/4″
10″	95	190	320	12-bolt	7/8″	95	190	320	12-bolt	7/8″
12″	95	190	320	12-bolt	7/8″	95	190	320	12-bolt	7/8″
14″	147	294	490	12-bolt	1″	147	294	490	12-bolt	1″
16″	147	294	490	16-bolt	1″	147	294	490	16-bolt	1″
18″	213	426	710	16-bolt	1-1/8″	213	426	710	16-bolt	1-1/8″
20″	213	426	710	20-bolt	1-1/8″	213	426	710	20-bolt	1-1/8″
24″	300		1,000	20-bolt	1-1/4″	300		1,000	20-bolt	1-1/4″

ANSI and/or ASME Standards Monel Fasteners(inch series)

ASME B18.1.1	Small Solid Rivets	ASME B18.8.1	Clevis Pins and Cotter Pins
ASME B18.1.2	Large Rivets	ASME B18.8.2	Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins
ASME B18.2.1	Square and Hex Bolts and Screws	ASME B18.9	Plow Bolts
ASME B18.2.2	Square and Hex Nuts	ASME B18.10	Track Bolts and Nuts
ASME B18.2.6	Fasteners for use in Structural Applications	ASME B18.11	Miniature Screws
ASME B18.3	Socket Cap, Shoulder and Set Screws	ASME B18.13	Screws and Washer Assemblies (Sems)
ASME B18.5	Round Head Bolts	ASME B18.15	Forged Eyebolts
ASME B18.6.2	Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws	ASME B18.17	Wing Nuts, Thumb Screws and Wing Screws
ASME B18.6.3	Machine Screws and Machine Screws Nuts	ASME B18.21.1	Lock Washers
ASME B18.6.4	Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws	ASME B18.22.1	Plain Washers
ASME B18.7	General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps	ASME B18.23.1	Beveled Washers

Other Types of Monel 400 Fasteners

Alloy 400 Nuts	400 Monel Alloy Bolts
Monel 400 Hex Head Bolt	Monel UNS N04400 Socket Cap Screw
Monel UNS N04400 Carriage Bolt	Monel EN NiCu30Fe Flange Bolt
ASME SA160 Monel 400 Elevator Bolt	ASTM A160 400 Monel Machine Bolt
Monel® Alloy 400 NA 13 Fasteners Supplier	Type Monel Alloy 400 Bolted Joints
ASTM A160 Monel 400 Bolted Joints	ASME SA160 400 Monel Alloy Fastener Supplier
Monel DIN 2.4360 Flat Washers Dealer	Monel GOST МНЖМц 28-2,5-1,5 Machine Fasteners
Monel Alloy 400 Hex Set Screw	Grade 400 Monel Industrial Fasteners
ASTM F59 Monel Alloy 400 Coupling Nut	UNS N04400 Monel Wing Nuts
Monel JIS NW 4400 Mushroom Head Square Neck Bolts	Monel DIN 2.4360 Allen Cap Screw Stockists

Monel 400 Fasteners Manufacturer & Exporter
