Monel 400 Washers
Monel UNS N04400 Sqaure Washer, Monel® Alloy 400 Spring Washer, 400 Monel Round Washers, Nickel Alloy 400 Slot Washers Suppliers in India.
Ranfit Metal & Alloys is a distinguished exporter and distributor of Monel Alloy 400 Washers, which is used extensively in (for pipe) piping. Monel 400 Flat Washers has excellent corrosion resistance in a wide range of acidic & alkaline environments. Monel 400 Lock Washers also performs well in marine and other non-oxidizing chloride solutions. Monel 400 Sealing Washers has superb corrosion resistance, particularly in neutral and alkaline salts. Monel 400 Split Washers can be used in temperatures up to 1000 Degree F. The conventional machining techniques used on iron alloys may be used for Monel 400 Machine Washers. As a solution strengthened material, Monel 400 Slot Washers display good strength, toughness and corrosion resistance at temperatures up to 400 Degree C. Monel 400 Star Washers can be fabricated readily by hot- and cold-working, machining, and welding. Monel 400 Spring Washers is only hardenable through cold working, rather than heat treatment. Monel 400 Wire Spring Washers is characterized by good general corrosion resistance, good weldability and moderate to high strength.
Monel 400 Flat Spring Washers has excellent resistance to many corrosive environments. Nickel-Alloy 400 Washers also has excellent resistance to stress-corrosion cracking in most freshwaters. Monel UNS N04400 Washers is used in petroleum distillation tower internals, pumps and valve internals, fasteners and fittings. Monel WNR 2.4360 Washers retains excellent mechanical properties at sub-zero temperatures. Monel WNR 2.4361 Washers is used in many fields, especially marine and chemical processing.
Monel Alloy 400 Star Washers, Monel WERKSTOFF NR. 2.4360 Flat Washers, Alloy 400 Dome Tooth Washer, Monel NW 4400 Spring Washers Supplier & Exporter in India.
Monel 400 Washers Specification
| Grade | Monel 400 (N04400) |
|---|---|
| ASTM/ASME Specifications | ASTM B164 / ASME SB 166 |
| Monel 400 Washer size | M02 to M33, Custom Sizes |
| Monel 400 Washers Length | 3 mm to 400 mm |
| Monel 400 Washer | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard of Washers | DIN 125A, DIN 125B, DIN 127B, DIN 137B, DIN 6797A, DIN 6797J, ISO 7089, DIN 7980, DIN 127 B, IS 4006, ASTM F436M, ASME B18.13, ASME B18.21.1, ASME B18.22.1, ASME B18.23.1 |
| Form of Washers | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin, etc. |
| Monel 400 Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Popular Types of Washer | Star Washer, Flat Washer, Lock Washer, Slot Washer, Machine Washer, Sealing Washer, Split Washer, Dome Tooth Washer, Countersunk Washer, Tab Washers, Spherical Washer, Square Washer, Spring Washer, Round Washers, Square Washers etc. |
| Monel 400 Washers Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Washers | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 4000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Washers | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Packing of Washers | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Washers Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Washers finishing | Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, Monel plated, anodizing, plated zinc-Monel Zinc (blue, black, yellow, white), black oxide, |
Monel 400 Washers Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Chemical Composition of Monel 400 Washers
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
Mechanical Properties of Monel 400 Washers
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
Types of Monel 400 Washers

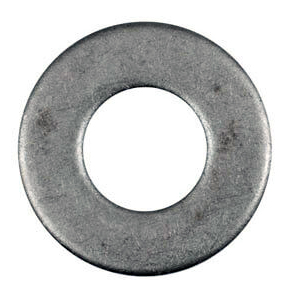

Monel 400 Machine Washers

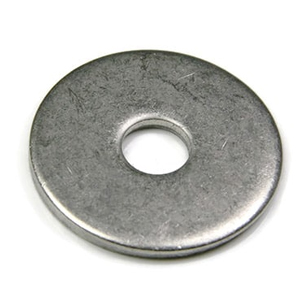

Monel 400 Flat Washers

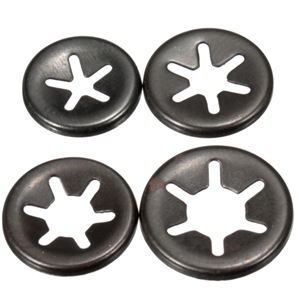

Monel 400 Star Washers

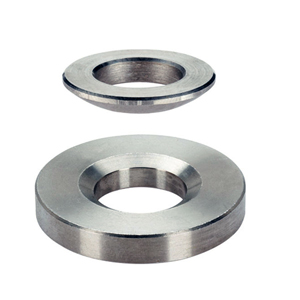

Monel 400 Spherical Washer
Monel 400 Sealing Washers
Monel 400 Tab Washers
Monel 400 Taper Washers
Monel 400 Tooth Lock Washers
Monel 400 Lock Washer

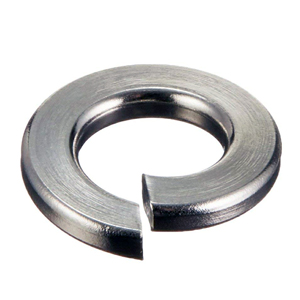

Monel 400 Split Lock Washer
Monel 400 Belleville Washers
Monel 400 Cup Washers
Monel 400 Washers Forms & Availability
| Products | Size | |
|---|---|---|
| Monel 400 Flat Washer | Monel 400 Split Lock Washer | M02 to M33, Custom Sizes |
| Monel 400 Spring Wave Washer | Monel 400 External Tooth Lock Washer | |
| Monel 400 Internal Tooth Lock Washer | Monel 400 Weight Chart (Plain Washer) | |
| Monel 400 Square Section Spring Washer | Monel 400 Flat Section Spring Washer | |
| Monel 400 Hardened Washer | Monel 400 Hardened Steel Washer | |
| Monel 400 Lock Washers | Monel 400 Plain Washers | |
| Monel 400 Beveled Washers | Monel 400 Allen Star Washers | |
ANSI And/Or ASME Standards Washers (Inch Series)
| Description | Standard | Measurement System |
|---|---|---|
| Lock Washers | ANSI/ASME B18.21.1 | Inch Series |
| Lock Washers | ANSI/ASME B18.21.1M | Metric |
| Plain Washers | ANSI/ASME B18.22.1 | Inch Series |
| Plain Washers | ANSI/ASME B18.22M | Metric |
| Heavy Helical Spring Lock Washers | ANSI/ASME B18.21.1 | Inch Series |
| Extra Duty Helical Spring Lock Washers | ANSI/ASME B18.21.1 | Inch Series |
| High Collar Helical Spring Lock Washers | ANSI/ASME B18.21.1 | Inch Series |
| Internal Tooth Lock Washers | ANSI/ASME B18.21.1 | Inch Series |
| Heavy Internal Tooth Lock Washers | ANSI/ASME B18.21.1 | Inch Series |
| External Tooth Lock Washers | ANSI/ASME B18.21.1 | Inch Series |
| Countersunk External Tooth Lock Washers | ANSI/ASME B18.21.1 | Inch Series |
| Internal External Tooth Lock Washers | ANSI/ASME B18.21.1 | Inch Series |
| Tab Washers With Long Tab | DIN 93 | Metric |
| Plain Flat Washers | DIN 125A / ISO 7089 | Metric |
| Plain Flat Washers | DIN 125B / ISO 7090 | Metric |
| Plain Flat Washers Without Chamfer | DIN 126 | Metric |
| Spring Lock Washers, Form A | DIN 127A | Metric |
| Spring Lock Washers, Form B | DIN 127B | Metric |
| Curved Spring Lock Washers | DIN 128 A | Metric |
| Waved Spring Lock Washers | DIN 128 B | Metric |
| Tab Lock Washers With External Tab | DIN 432 | Metric |
| Square Taper Washers | DIN 434 | Metric |
| Square Bevel Washers | DIN 435 | Metric |
| Square Washers | DIN 436 | Metric |
| Large Plain Washers for Wood Construction | DIN 440 / ISO 7094 | Metric |
| Internal Tab Washers | DIN 462 | Metric |
| Tab Washers with Long Tab and Wing | DIN 463 | Metric |
| Flat Washers for Clevis Pins | DIN 1440 / ISO 8738 | Metric |
| Disc Spring Washers | DIN 2093 | Metric |
| Conical Spring Washers (Belleville Type) | DIN 6796 | Metric |
| Conical Spring Washers | ISO 10670 | Metric |
| Plain Flat Washers | ISO 7091 | Metric |
| Plain Washers for Cheese Head Screws | ISO 7092 | Metric |
| Large Plain Washers OD=3D | ISO 7093 | Metric |
| Round Machined Washers | IS 4006 | Metric |
| Round Punched Washers for Hexagonal Bolts | IS 4006 | Metric |
| Round Punched Washers for Cheese Head Screws | IS 4006 | Metric |
| Spring Lock Washers | IS 6735 | Metric |
Property Class
| For Bolts & Screws | A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H |
| For Nuts | A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040 |
| For SHCS | F837B, F837C, F837E, F837 |
| For Threaded Rods | A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2 |
Monel 400 Flat Washer Dimension Chart
| Size | Inside Diameter | Outside Diameter | Thickness |
|---|---|---|---|
| #2 | 3/32" | 1/4" | .020" |
| #4 | 1/8" | 5/16" | 1/32" |
| #8 | 3/16" | 7/16" | 3/64" |
| #10 | 7/32" | 1/2" | 3/64" |
| #6 | 5/32" | 3/8" | 3/64" |
| 1/4 | 9/32" | 5/8" | 1/16" |
| 3/8 | 13/32" | 13/16" | 1/16" |
| 7/16 | 15/32" | 59/64" | 1/16" |
| 1/2 | 17/32" | 1-1/16" | 3/32" |
| 9/16 | 19/32" | 1-3/16" | 3/32" |
| 5/16 | 11/32" | 11/16" | 1/16" |
| 1-3/4 | 1-7/8" | 4" | 3/16" |
| 5/8 | 21/32" | 1-5/16" | 3/32" |
| 3/4 | 13/16" | 1-1/2" | 9/64" |
| 7/8 | 15/16" | 1-3/4" | 9/64" |
| 1" | 1-1/16" | 2" | 9/64" |
| 1-1/8 | 1-3/16" | 2-1/4" | 9/64" |
| 1-1/4 | 1-5/16" | 2-1/2" | 5/32" |
| 1-1/2 | 1-7/16" | 3" | 3/16" |
| 1-5/8 | 1-3/4" | 3-3/4" | 3/16" |
| 2 | 2-1/8" | 4-1/2" | 3/16" |
Monel 400 Plain Washer Dimension
| Size | Inside Diameter | Outside Diameter | Thickness |
|---|---|---|---|
| 3/16 | 1/4" | 9/16" | 3/64" |
| 1/4 | 5/16" | 3/4" | 1/16" |
| 3/8 | 7/16" | 1" | 5/64" |
| 7/16 | 1/2" | 1-1/4" | 5/64" |
| 1/2 | 9/16" | 1-3/8" | 7/64" |
| 9/16 | 5/8" | 1-1/2" | 7/64" |
| 5/8 | 11/16" | 1-3/4" | 9/64" |
| 3/4 | 13/16" | 2" | 5/32" |
| 5/16 | 3/8" | 7/8" | 5/64" |
| 7/8 | 15/16" | 2-1/4" | 1/64" |
| 1 | 1-1/16" | 2-1/2" | 11/64" |
| 1-1/8 | 1-1/4" | 2-3/4" | 11/64" |
| 1-1/4 | 1-3/8" | 3" | 11/64" |
| 1-3/8 | 1-1/2" | 3-1/4" | 3/16" |
| 1-5/8 | 1-3/4" | 3-3/4" | 3/16" |
| 1-3/4 | 1-7/8" | 4" | 3/16" |
| 2 | 2-1/8" | 4-1/2" | 3/16" |
| 2-1/2 | 2-5/8" | 4-1/2" | 3/16" |
| 3 | 3-1/8" | 5-1/2" | 9/32" |
| 1-1/2 | 1-5/8" | 3-1/2" | 3/16" |
Monel 400 Washers Sizes
| Size | USS | SAE | ||||
|---|---|---|---|---|---|---|
| Inside Diameter (A) |
Outside Diameter (B) |
Thickness (C) |
Inside Diameter (A) |
Outside Diameter (B) |
Thickness (C) |
|
| #2 | - | - | - | 3/32" | 1/4" | 0.020" |
| #4 | - | - | - | 1/8" | 5/16" | 0.032" |
| #6 | - | - | - | 5/32" | 3/8" | 0.049" |
| #8 | - | - | - | 3/16" | 7/16" | 0.049" |
| #10 | - | - | - | 7/32" | 1/2" | 0.049" |
| #12 | - | - | - | 1/4" | 9/16" | 0.065" |
| 1/4" | 5/16" | 0.734" | 0.065" | 9/32" | 5/8" | 0.065" |
| 5/16" | 3/8" | 7/8" | 0.083" | 11/32" | 11/16" | 0.065" |
| 3/8" | 7/16" | 1" | 0.083" | 13/32" | 13/16" | 0.065" |
| 7/16" | 1/2" | 1-1/4" | 0.083" | 15/32" | 15/16" | 0.065" |
| 1/2" | 9/16" | 1-3/8" | 0.109" | 17/32" | 1-1/16" | 0.095" |
| 9/16" | 5/8" | 1-15/32" | 0.109" | 19/32" | 1-5/32" | 0.095" |
| 5/8" | 11/16" | 1-3/4" | 0.134" | 21/32" | 1-5/16" | 0.095" |
| 3/4" | 13/16" | 2" | 0.148" | 13/16" | 1-15/32" | 0.134" |
| 7/8" | 15/16" | 2-1/4" | 0.165" | 15/16" | 1-3/4" | 0.134" |
| 1" | 1-1/16" | 2-1/2" | 0.165" | 1-1/16" | 2" | 0.134" |
| 1-1/8" | 1-1/4" | 2-3/4" | 0.165" | - | - | - |
| 1-1/4" | 1-3/8" | 3" | 0.165" | - | - | - |
| 1-3/8" | 1-1/2" | 3-1/4" | 0.180" | - | - | - |
| 1-1/2" | 1-5/8" | 3-1/2" | 0.180" | - | - | - |
| 1-5/8" | 1-3/4" | 3-3/4" | 0.180" | - | - | - |
| 1-3/4" | 1-7/8" | 4" | 0.180" | - | - | - |
| 2" | 2-1/8" | 4-1/2" | 0.213" | - | - | - |
Monel 400 Washers Weight Chart
| APPROX. WEIGHT IN KGS FOR 100 NOS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SIZE | PLAIN PUNCHED WASHER IS:4006 |
HEAVY WASHER IS:6610 |
MACHINED WASHER IS:4006 |
SQUARE | TAPER | WASHERS | SPRING WASHER FLAT SECTION IS:3063-72 | SPRING WASHER SQUARE SECTION IS:6735-72 DIN : 7980 |
Size (Inches) | PLAIN PUNCHED WASHER BS:3410 TABLE 7 |
|||
| MACHINED | HIGH STRENGTH FRICTION GRIP |
||||||||||
| FOR CHANNELS IS:5372-75 |
FOR I-BEAM IS:5374-75 |
TYPE-B (CHANNELS) IS : 6649-85 |
TYPE-C ( I-BEAMS ) IS : 6649-85 |
||||||||
| M-3 | 0.01 | 0.01 | |||||||||
| M-4 | 0.02 | 0.02 | |||||||||
| M-5 | 0.04 | 0.04 | 0.03 | 0.03 | |||||||
| M-6 | 0.11 | 0.11 | 0.08 | 0.04 | 1/4" | 0.21 | |||||
| M-8 | 0.20 | 0.21 | 1.10 | 1.20 | 0.16 | 0.11 | 5/16" | 0.35 | |||
| M-10 | 0.39 | 1.60 | 0.40 | 1.00 | 1.10 | 0.25 | 0.20 | 3/8" | 0.48 | ||
| M-12 | 0.58 | 1.90 | 0.62 | 2.00 | 2.20 | 2.00 | 1.80 | 0.38 | 0.23 | 1/2" | 1.07 |
| M-14 | 0.82 | 0.60 | 0.38 | ||||||||
| M-16 | 1.06 | 2.90 | 1.13 | 3.40 | 3.75 | 9.00 | 8.50 | 0.89 | 0.59 | 5/8" | 1.85 |
| M-18 | 1.27 | 0.97 | 0.66 | ||||||||
| M-20 | 1.64 | 4.40 | 1.72 | 5.80 | 6.70 | 8.50 | 8.00 | 1.52 | 1.23 | 3/4" | 2.91 |
| M-22 | 1.75 | 7.50 | 7.00 | 1.65 | 1.36 | 7/8" | 4.27 | ||||
| M-24 | 3.11 | 6.30 | 3.30 | 13.50 | 16.00 | 6.50 | 6.00 | 2.62 | 1.81 | 1" | 6.13 |
| M-27 | 3.94 | 8.00 | 4.23 | 12.50 | 15.00 | 12.00 | 11.50 | 2.87 | 2.06 | 1.1/8" | 7.69 |
| M-30 | 5.05 | 10.10 | 5.36 | 16.50 | 18.70 | 17.50 | 16.00 | 4.43 | 3.20 | 1.1/4" | 9.90 |
| M-33 | 7.10 | 12.00 | 7.54 | 21.00 | 23.50 | 23.00 | 22.50 | 6.30 | 3.50 | ||
| M-36 | 8.73 | 14.60 | 9.20 | 25.50 | 29.20 | 26.50 | 26.00 | 6.73 | 5.25 | 1.1/2" | 17.24 |
| M-39 | 12.60 | 16.70 | 13.30 | 28.30 | 34.50 | 7.17 | 5.61 | ||||
| M-42 | 17.50 | 20.10 | 18.30 | 11.10 | 8.00 | ||||||
| M-45 | 21.20 | 22.20 | 22.00 | 11.70 | 8.53 | ||||||
| M-48 | 28.40 | 26.00 | 29.40 | 12.30 | 9.00 | 2" | 27.78 | ||||
| M-52 | 31.90 | 33.00 | 18.20 | ||||||||
| M-56 | 47.90 | 19.30 | |||||||||
| M-60 | 51.60 | 20.30 | |||||||||
| M-64 | 55.40 | 21.80 | |||||||||
| M-68 | 57.40 | ||||||||||
| M-72 | 63.40 | 24.00 | |||||||||
