Super Duplex Steel UNS S32750 & S32760 Stud Bolts
Super Duplex Steel S32750 Double Ended Stud, SDSS UNS S32760 Double Ended Stud, Super Duplex 2507 Threaded Studs, ASTM A479 Super Duplex Steel S32750 Threaded Rod Suppliers in India.
Ranfit Metal & Alloys is a known supplying and stockist firm that offers a wide range of Super Duplex 2507 Stud Bolts, which has low permeability and non-magnetic down to -135 Degree C (-210 Degree F). This increased alloy purity in Super Duplex Stainless Steel 2507 Stud Bolts limits the likelihood of hard non-metallic inclusion that can increase machining difficulty, processing times and ultimately part failures. Stainless 2507 Stud Bolts has high retention of properties at elevated temperatures, along with good resistance to non-oxidizing acids, alkalis and salts. Aluminum and copper in Alloy 2507 Stud Bolts may be selectively oxidized during heating, leaving a magnetic nickel-rich film on the outside of the piece. Solution annealing in Super Duplex UNS S32750 Stud Bolts will affect solution of any phases that will later affect the age hardening process.
Super Duplex UNS S32760 Stud Bolts is used in Oil and Gas (pump shafts, drill collars and instruments, impellers, and valves), and also in Electronic components and sensors. Pumps and valves for Super Duplex Stainless Steel S32750 Stud Bolts used in the manufacture of perchlorethylene and chlorinated plastics. However, Super Duplex Stainless Steel S32760 Stud Bolts is possible to develop a magnetic layer on the surface of the material during processing. The combination of low magnetic permeability, high strength and good corrosion resistance has been used to advantage in a number of applications for Super Duplex Steel 2507 Stud Bolts, notably oil-well surveying equipment and electronic components.
Super Duplex Stainless Steel S32750 Metric Thread Stud Bolt, SDSS WERKSTOFF NR. 1.4410 Super Duplex SAF 2507 Rough Forged Stud Bolts, ASME SA479 Super Duplex Grade S32760 Tap End Stud Bolts Supplier & Exporter in India.
Super Duplex Steel UNS S32750 & S32760 Stud Bolts Specification
| Grade | Super Duplex Steel 2507 ( UNS S32750/S32760) |
|---|---|
| Super Duplex Steel 2507 Stud Bolt size | M02 to M33, Custom Sizes |
| Super Duplex Steel 2507 Stud Bolts Length | 3 mm to 200 mm |
| Super Duplex Steel 2507 Stud Bolt | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard of Stud Bolts | DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13218, ANSI/ASME B18.31.2, ANSI/ASME B16.5 |
| Form of Super Duplex Steel 2507 Stud Bolts | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin, etc. |
| Super Duplex Steel 2507 Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Popular Types of Stud Bolt | Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs |
| Super Duplex Steel 2507 Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Stud Bolts | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Stud Bolts | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Packing of Stud Bolts | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Stud Bolts Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Stud Bolts finishing | Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
Super Duplex Steel UNS S32750 & S32760 Stud Bolt Equivalent Grades
| Super Duplex | Common Name | Related Specifications | ||
|---|---|---|---|---|
| European DIN | UNS | ASTM/ASME | ||
| Super Duplex Steel | SAF 2507® | 1.4410 | S32750/S32760 | A479 / SA479 / F53 |
Chemical Composition of Super Duplex Steel 2507 Stud Bolt
| Grade | C | N | P | Si | Mn | Mo | Fe | Cr | S | Ni |
| S32750/S32760 | 1.0 | 0.03 | 0.02 | 2.0 | 3.0 – 3.5 | 22.0 – 23.0 | 0.03 | 4.5 – 6.5 | 0.14 – 0.2 | Bal |
Mechanical Properties of Super Duplex Steel 2507 Stud Bolt
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) | Hardness Rockwell C (HR C) |
| UNS S32750/S32760 | 795 | 550 | 15 | 32max |
Types of Super Duplex Steel UNS S32750 & S32760 Stud Bolt

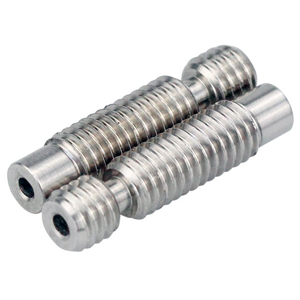

Super Duplex Steel UNS S32750 & S32760 Tap End Stud Bolts
Super Duplex Steel UNS S32750 & S32760 Double End Stud Bolt

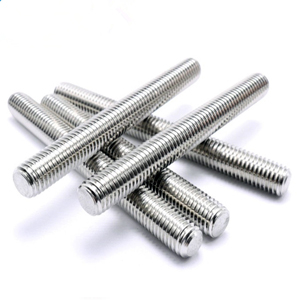

Super Duplex Steel UNS S32750 & S32760 Fully Threaded Stud Bolts

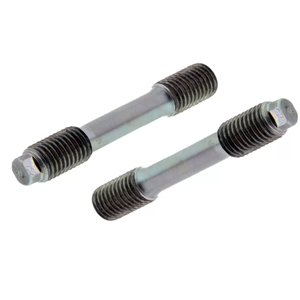

Super Duplex Steel UNS S32750 & S32760 Stud Bolts with Reduced Shank

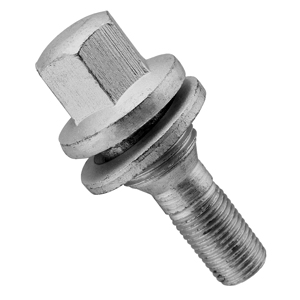

Super Duplex Steel UNS S32750 & S32760 Flange Stud Bolts
Super Duplex Steel UNS S32750 & S32760 Tie Bar

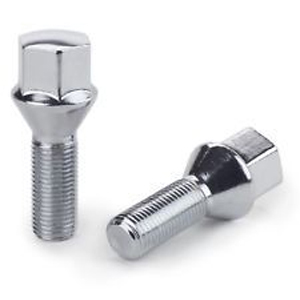

Super Duplex Steel UNS S32750 & S32760 Wheel Lug Stud Bolt

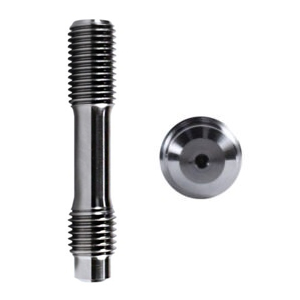

Super Duplex Steel UNS S32750 & S32760 Reduced Shank
Super Duplex Steel UNS S32750 & S32760 Weld Studs
Super Duplex Steel 2507 Stud Bolt Forms & Availability
| Products | Size | |
|---|---|---|
| Super Duplex Steel UNS S32750 & S32760 Fully Threaded Stud Bolts | Super Duplex Steel UNS S32750 & S32760 Tap End Stud Bolts | M02 to M33, Custom Sizes |
| Super Duplex Steel UNS S32750 & S32760 Double End Stud Bolts | Super Duplex Steel UNS S32750 & S32760 Stud Bolts with Reduced Shank | |
| Super Duplex Steel UNS S32750 & S32760 Reduced Shank | Super Duplex Steel UNS S32750 & S32760 Flange Stud Bolts | |
| Super Duplex Steel UNS S32750 & S32760 Flange Bolting | Super Duplex Steel UNS S32750 & S32760 Weld Studs | |
| Super Duplex Steel UNS S32750 & S32760 Threaded Stud Bolts | Super Duplex Steel UNS S32750 & S32760 Threaded Studs | |
| Super Duplex Steel UNS S32750 & S32760 Continuous Thread Stud Bolt | Super Duplex Steel UNS S32750 & S32760 Partial Threaded Stud Bolt | |
| Super Duplex Steel UNS S32750 & S32760 Reduced Shank Stud Bolt | Super Duplex Steel UNS S32750 & S32760 Allen Heavy Stud Bolts | |
ANSI And/Or ASME Standards Stud Bolt (Inch Series)
| Description | Standard | Measurement System |
|---|---|---|
| Continuous Thread Stud Bolts | ANSI/ASME B18.31.2 | Inch Series |
| Stud Bolts with Chamfered End for Flange Bolting | ANSI/ASME B16.5 | Inch Series |
| Welding Studs / Weld Studs | DIN 525 | Metric |
| Double End Stud Bolts / Double Ended Studs | DIN 835 | Metric |
| Double End Stud Bolts with Thread Engagement Length Equals to 1 x Diameter | DIN 938 | Metric |
| Double End Stud Bolts with Thread Engagement Length Equals to 1.25 x Diameter | DIN 939 | Metric |
| Double End Stud Bolts with Thread Engagement Length Equals to 2.5 x Diameter | DIN 940 | Metric |
| Double End Studs With Thread Engagement Length Equals to 2D | DIN 949-1 | Metric |
| Double End Studs With Thread Engagement Length Equals to 2.5D | DIN 949-2 | Metric |
| Plain End Stud Bolts / Threaded Rods | DIN 975 | Inch Series |
| Plain End Stud Bolts / Threaded Rods | DIN 976 | Metric |
| Double End Studs / Stud Bolts | DIN 2509 | Metric |
| Double End Stud Bolts With Reduced Shank | DIN 2510 L, DIN 2510 Z, DIN 2510 K, DIN 2510 ZU/KU, DIN 2510 GP, DIN 2510 GQ, DIN 2510 GR, DIN 2510 GS, DIN 2510 HP | Metric |
| Studs / Stud Bolts | BS 2693 | Inch Series |
| Stud Bolts | BS 3692 | Metric |
| Double End Stud Bolts With Thread Engagement Length Equals to 1.5 x Diameter | BS 4439 | Metric |
| Stud Bolts | IS 1862 | Metric |
| Clamping Studs | IS 13218 | Metric |
Property Class
| For Bolts & Screws | A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H |
| For Nuts | A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040 |
| For SHCS | F837B, F837C, F837E, F837 |
| For Threaded Rods | A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2 |
Super Duplex Steel 2507 Stud Bolt Size Chart
| Class 150 Flanges ASME B16.5 (Stud bolt sizes) | Length of Stud Bolts | |||||||
|---|---|---|---|---|---|---|---|---|
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in |
Ring Joint | |
| 1/2 | 3 1/2 | 2 3/8 | 5/8 | 4 | 1/2 | 2 1/4 | – | |
| 3/4 | 3 7/8 | 2 3/4 | 5/8 | 4 | 1/2 | 2 1/2 | – | |
| 1 | 4 1/4 | 3 1/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 1 1/4 | 4 5/8 | 3 1/2 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 1 1/2 | 5 | 3 7/8 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 2 | 6 | 4 3/4 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 2 1/2 | 7 | 5 1/2 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 | 7 1/2 | 6 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 1/2 | 8 1/2 | 7 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 4 | 9 | 7 1/2 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 5 | 10 | 8 1/2 | 7/8 | 8 | 3/4 | 3 3/4 | 4 1/4 | |
| 6 | 11 | 9 1/2 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 8 | 13 1/2 | 11 3/4 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 10 | 16 | 14 3/4 | 1 | 12 | 7/8 | 4 1/2 | 5 | |
| 12 | 19 | 17 | 1 | 12 | 7/8 | 4 3/4 | 5 1/4 | |
| 14 | 21 | 18 3/4 | 1 1/8 | 12 | 1 | 5 1/4 | 5 3/4 | |
| 16 | 23 1/2 | 21 1/4 | 1 1/8 | 16 | 1 | 5 1/4 | 5 3/4 | |
| 18 | 25 | 22 3/4 | 1 1/4 | 16 | 1 1/8 | 5 3/4 | 6 1/4 | |
| 20 | 27 1/2 | 25 | 1 1/4 | 20 | 1 1/8 | 6 1/4 | 6 3/4 | |
| 24 | 32 | 29 1/2 | 1 1/4 | 20 | 1 1/4 | 6 3/4 | 7 1/4 | |
| Class 300 Flanges ASME B16.5 | Length of Stud Bolts | |||||||
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in |
Ring Joint | |
| 1/2 | 3 3/4 | 2 5/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 3/4 | 4 5/8 | 3 1/4 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 | 4 7/8 | 3 1/2 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 1/4 | 5 1/4 | 3 7/8 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 1 1/2 | 6 1/8 | 4 1/2 | 7/8 | 4 | 3/4 | 3 1/2 | 4 | |
| 2 | 6 1/2 | 5 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 2 1/2 | 7 1/2 | 5 7/8 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 3 | 8 1/4 | 6 5/8 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 3 1/2 | 9 | 7 1/4 | 7/8 | 8 | 3/4 | 4 1/4 | 5 | |
| 4 | 10 | 7 7/8 | 7/8 | 8 | 3/4 | 4 1/2 | 5 | |
| 5 | 11 | 9 1/4 | 7/8 | 8 | 3/4 | 4 3/4 | 5 1/4 | |
| 6 | 12 1/2 | 10 5/8 | 7/8 | 12 | 3/4 | 4 3/4 | 5 1/2 | |
| 8 | 15 | 13 | 1 | 12 | 7/8 | 5 1/2 | 6 | |
| 10 | 17 1/2 | 15 1/4 | 1 1/8 | 16 | 1 | 6 1/4 | 6 3/4 | |
| 12 | 20 1/2 | 17 3/4 | 1 1/4 | 16 | 1 1/8 | 6 3/4 | 7 1/4 | |
| 14 | 23 | 20 1/4 | 1 1/4 | 20 | 1 1/8 | 7 | 7 1/2 | |
| 16 | 25 1/2 | 22 1/2 | 1 3/8 | 20 | 1 1/4 | 7 1/2 | 8 | |
| 18 | 28 | 24 3/4 | 1 3/8 | 24 | 1 1/4 | 7 3/4 | 8 1/4 | |
| 20 | 30 1/2 | 27 | 1 3/8 | 24 | 1 1/4 | 8 | 8 3/4 | |
| 24 | 36 | 32 | 1 5/8 | 24 | 1 1/2 | 9 | 10 | |
Super Duplex Steel 2507 Double Ended Stud Bolts Weights
| Metric Studs Bolts Weights | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| STUD BOLT LENGTH (in mm) | M10 | M12 | M14 | M16 | M20 | M22 | M24 | M30 | M36 | M39 |
| 60 | 5,6 | 8,1 | 12 | 15,6 | ||||||
| 70 | 6,1 | 8,9 | 13 | 16,9 | ||||||
| 80 | 6,6 | 9,6 | 14 | 18,2 | 32,5 | |||||
| 90 | 7,1 | 10,3 | 15 | 19,6 | 34,5 | 45,5 | ||||
| 100 | 7,6 | 11 | 16 | 21 | 36,7 | 47,2 | 54,2 | |||
| 110 | 8,1 | 11,7 | 17 | 22,2 | 38,7 | 48,3 | 58,2 | |||
| 150 | 10,1 | 14,9 | 20,8 | 27,5 | 46,9 | 58,5 | 69,2 | 121 | 192 | 237 |
| 160 | 10,6 | 15,6 | 21,8 | 29,1 | 49 | 61 | 72,2 | 126 | 199 | 245 |
| 170 | 16,4 | 22,8 | 30,4 | 51,1 | 63,5 | 75,2 | 130 | 206 | 253 | |
| 200 | 34,5 | 56,2 | 71 | 84 | 144 | 226 | 278 | |||
| 210 | 35,8 | 58,5 | 73,5 | 88,4 | 149 | 233 | 286 | |||
| 230 | 38,5 | 62,6 | 78,6 | 94,4 | 159 | 247 | 302 | |||
| 240 | 39,8 | 64,7 | 81,2 | 97,4 | 164 | 253 | 310 | |||
| 250 | 41,1 | 66,8 | 83,7 | 100,4 | 172 | 260 | 319 | |||
| 260 | 68,8 | 86,3 | 103,4 | 177 | 267 | 327 | ||||
| 270 | 70,9 | 88,8 | 106,4 | 182 | 274 | 335 | ||||
| 280 | 73 | 91,4 | 109,4 | 187 | 281 | 343 | ||||
| 290 | 75 | 93,9 | 112,4 | 192 | 291 | 360 | ||||
| 300 | 77,1 | 96,5 | 115,4 | 196 | 298 | 368 | ||||
| 320 | 101,6 | 121,3 | 206 | 312 | 380 | |||||
| 360 | 133,3 | 224 | 340 | 411 | ||||||
| 380 | 234 | 353 | 428 | |||||||
| 400 | 243 | 367 | 444 | |||||||
| 420 | 252 | 381 | 460 | |||||||
| 460 | 271 | 408 | 493 | |||||||
| 480 | 281 | 422 | 509 | |||||||
| 500 | 290 | 436 | 526 | |||||||
| Imperial Weight Chart | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| STUD BOLT LENGTH (in mm) | M10 | M12 | M14 | M16 | M20 | M22 | M24 | M30 | M36 | M39 |
| 60 | 5,6 | 8,1 | 12 | 15,6 | ||||||
| 70 | 6,1 | 8,9 | 13 | 16,9 | ||||||
| 80 | 6,6 | 9,6 | 14 | 18,2 | 32,5 | |||||
| 90 | 7,1 | 10,3 | 15 | 19,6 | 34,5 | 45,5 | ||||
| 100 | 7,6 | 11 | 16 | 21 | 36,7 | 47,2 | 54,2 | |||
| 110 | 8,1 | 11,7 | 17 | 22,2 | 38,7 | 48,3 | 58,2 | |||
| 150 | 10,1 | 14,9 | 20,8 | 27,5 | 46,9 | 58,5 | 69,2 | 121 | 192 | 237 |
| 160 | 10,6 | 15,6 | 21,8 | 29,1 | 49 | 61 | 72,2 | 126 | 199 | 245 |
| 170 | 16,4 | 22,8 | 30,4 | 51,1 | 63,5 | 75,2 | 130 | 206 | 253 | |
| 200 | 34,5 | 56,2 | 71 | 84 | 144 | 226 | 278 | |||
| 210 | 35,8 | 58,5 | 73,5 | 88,4 | 149 | 233 | 286 | |||
| 230 | 38,5 | 62,6 | 78,6 | 94,4 | 159 | 247 | 302 | |||
| 240 | 39,8 | 64,7 | 81,2 | 97,4 | 164 | 253 | 310 | |||
| 250 | 41,1 | 66,8 | 83,7 | 100,4 | 172 | 260 | 319 | |||
| 260 | 68,8 | 86,3 | 103,4 | 177 | 267 | 327 | ||||
| 270 | 70,9 | 88,8 | 106,4 | 182 | 274 | 335 | ||||
| 280 | 73 | 91,4 | 109,4 | 187 | 281 | 343 | ||||
| 290 | 75 | 93,9 | 112,4 | 192 | 291 | 360 | ||||
| 300 | 77,1 | 96,5 | 115,4 | 196 | 298 | 368 | ||||
| 320 | 101,6 | 121,3 | 206 | 312 | 380 | |||||
| 360 | 133,3 | 224 | 340 | 411 | ||||||
| 380 | 234 | 353 | 428 | |||||||
| 400 | 243 | 367 | 444 | |||||||
| 420 | 252 | 381 | 460 | |||||||
| 460 | 271 | 408 | 493 | |||||||
| 480 | 281 | 422 | 509 | |||||||
| 500 | 290 | 436 | 526 | |||||||
Super Duplex Steel 2507 Stud Bolt Torque Chart
| Flange Size |
B16.5 Class 150 RF/ Ring Gaskets | B16.5 Class 150 FF/ Full Face Gaskets | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | |||||||
| 1st | 2nd | Final | Dwg/No. | Bolt Size | 1st | 2nd | Final | Dwg*/No. | Bolt Size | |
| 1/2″ | 10 | 20 | 30 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 3/4″ | 13 | 27 | 40 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1″ | 15 | 30 | 50 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/4″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 2-1/2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3-1/2″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 4″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 5″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 6″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 8″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 10″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 12″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 14″ | 147 | 294 | 490 | 12-bolt | 1″ | 147 | 294 | 490 | 12-bolt | 1″ |
| 16″ | 147 | 294 | 490 | 16-bolt | 1″ | 147 | 294 | 490 | 16-bolt | 1″ |
| 18″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ |
| 20″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ |
| 24″ | 300 | 600 | 1,000 | 20-bolt | 1-1/4″ | 300 | 600 | 1,000 | 20-bolt | 1-1/4″ |
Super Duplex Steel UNS S32750 & S32760 Stud Bolts Dimension
| Diameter | Diameter in mm | Diameter in inch | Nut Sizes |
|---|---|---|---|
| M12 | 12 | 0.4724 | 19 |
| M10 | 10 | 0.3937 | 17 |
| M14 | 14 | 0.5512 | 22 |
| M18 | 18 | 0.7087 | 27 |
| M16 | 16 | 0.6299 | 24 |
| M20 | 20 | 0.7874 | 30 |
| M24 | 24 | 0.9449 | 36 |
| M22 | 22 | 0.8661 | 32 |
| M27 | 27 | 1.063 | 41 |
| M33 | 33 | 1.2992 | 50 |
| M30 | 30 | 1.1811 | 46 |
| M36 | 36 | 1.4173 | 55 |
| M42 | 42 | 1.6535 | 65 |
| M39 | 39 | 1.5354 | 60 |
| M45 | 45 | 1.7717 | 70 |
| M52 | 52 | 2.0472 | 80 |
| M48 | 48 | 1.8898 | 75 |
| M56 | 56 | 2.2047 | 85 |
| M64 | 64 | 2.5197 | 95 |
| M60 | 60 | 2.3622 | 90 |
| M68 | 68 | 2.6772 | 100 |
| M76 | 76 | 2.9921 | 110 |
| M72 | 72 | 2.8346 | 105 |
| M80 | 80 | 3.1496 | 115 |
| M90 | 90 | 3.5433 | 130 |
| M85 | 85 | 3.3464 | 120 |
| M100 | 100 | 3.937 | 145 |
| M160 | 160 | 6.2992 | 230 |
| M125 | 125 | 4.9212 | 180 |
| M110 | 110 | 4.3307 | 155 |
| M140 | 140 | 5.5118 | 200 |
Other Types of Super Duplex Steel 2507 Stud Bolts
| SDSS UNS S32750 Threaded Rod | Super Duplex Steel S32750 Studs |
| Super Duplex Steel S32760 Tie Rod | SDSS UNS S32760 Stud Bolts |
| ASTM A479 SDSS S32750 Double Ended Stud | SDSS WNR. NR. 1.4410 Threaded Studs |
| SDSS WNR. NR. 1.4410 Studs | ASTM A479 SDSS S32750 Threaded Studs |
| Super Duplex Grade S32750 Double Ended Stud | Super Duplex 2507 Double Ended Stud |
| Super SAF 2507 Hex Stud | Super Duplex Grade S32760 Stud Bolts |
| ASME SA479 Super Duplex Steel S32750 Double Ended Stud | Super Duplex Steel UNS S32750 Hex Studs |
| Super Duplex Steel UNS S32760 Threaded Stud | ASME SA479 Super Duplex Steel S32760 Threaded rod |
| S32750 Super Duplex Steel Double Ended Stud | Super Duplex Stainless Steel S32750 Stud Bolts |
| Super Duplex Stainless Steel S32760 Threaded Stud | S32760 Super Duplex Steel Class A Double Ended Stud |
