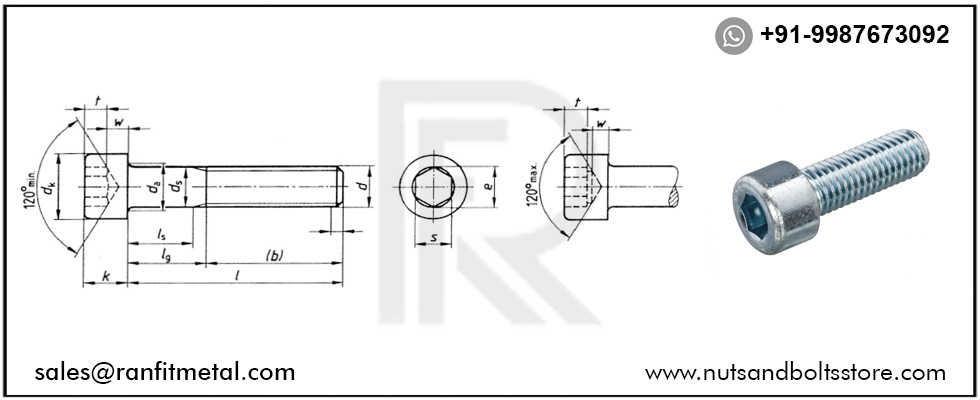

DIN 912 Dimensions Chart
dimensions in mm
| Size (d1) | Thread Pitch | Head Diameter (d2) | Head Height (k) | Key Size (s) | Key Engagement (t) | |||
|---|---|---|---|---|---|---|---|---|
| Min | Max | Min | Max | Min | Max | Nominal | ||
| M1.4 | 0.30 | 2.46 | 2.74 | 1.26 | 1.40 | 1.320 | 1.360 | 0.6 |
| M1.6 | 0.35 | 2.86 | 3.14 | 1.46 | 1.60 | 1.520 | 1.560 | 0.7 |
| M2 | 0.40 | 3.62 | 3.98 | 1.86 | 2.00 | 1.520 | 1.560 | 1 |
| M2.5 | 0.45 | 4.32 | 4.68 | 2.36 | 2.50 | 2.020 | 2.060 | 1.1 |
| M3 | 0.50 | 5.32 | 5.68 | 2.86 | 3.00 | 2.520 | 2.580 | 1.3 |
| M4 | 0.70 | 6.78 | 7.22 | 3.82 | 4.00 | 3.020 | 3.080 | 2 |
| M5 | 0.80 | 8.28 | 8.72 | 4.82 | 5.00 | 4.020 | 4.095 | 2.5 |
| M6 | 1.00 | 9.78 | 10.22 | 5.70 | 6.00 | 5.020 | 5.140 | 3 |
| M8 | 1.25 | 12.73 | 13.27 | 7.64 | 8.00 | 6.020 | 6.140 | 4 |
| M10 | 1.50 | 15.73 | 16.27 | 9.64 | 10.00 | 8.025 | 8.175 | 5 |
| M12 | 1.75 | 17.73 | 18.27 | 11.57 | 12.00 | 10.025 | 10.175 | 6 |
| M14 | 2.00 | 20.67 | 21.33 | 13.57 | 14.00 | 12.032 | 12.212 | 7 |
| M16 | 2.00 | 23.67 | 24.33 | 15.57 | 16.00 | 14.032 | 14.212 | 8 |
| M18 | 2.50 | 26.67 | 27.33 | 17.57 | 18.00 | 14.032 | 14.212 | 9 |
| M20 | 2.50 | 29.67 | 30.33 | 19.48 | 20.00 | 17.050 | 17.230 | 10 |
| M22 | 2.50 | 32.61 | 33.39 | 21.48 | 22.00 | 17.050 | 17.230 | 11 |
| M24 | 3.00 | 35.61 | 36.39 | 23.48 | 24.00 | 19.050 | 19.275 | 12 |
| M27 | 3.00 | 39.61 | 40.39 | 26.48 | 27.00 | 19.065 | 19.275 | 13.5 |
| M30 | 3.50 | 44.61 | 45.39 | 29.48 | 30.00 | 22.065 | 22.275 | 15.5 |
| M33 | 3.50 | 49.61 | 50.39 | 32.38 | 33.00 | 24.065 | 24.275 | 18 |
| M36 | 4.00 | 53.54 | 54.56 | 35.38 | 36.00 | 27.065 | 27.275 | 19 |
| M39 | 4.00 | 57.54 | 58.46 | 38.38 | 39.00 | 27.065 | 27.275 | 22 |
| M42 | 4.50 | 62.54 | 63.46 | 41.38 | 42.00 | 32.080 | 32.330 | 24 |
| M45 | 4.50 | 66.54 | 67.46 | 44.38 | 45.00 | 32.080 | 32.330 | 24 |
| M48 | 5.00 | 71.54 | 72.46 | 47.38 | 48.00 | 36.080 | 36.330 | 28 |
| M56 | 5.50 | 93.46 | 84.54 | 55.26 | 56.00 | 41.080 | 41.330 | 34 |
| M64 | 6.00 | 95.46 | 96.54 | 63.26 | 64.00 | 46.080 | 46.330 | 38 |
| M72 | 6.00 | 107.46 | 108.54 | 71.26 | 72.00 | 55.100 | 55.400 | 43 |
| M80 | 6.00 | 119.46 | 120.54 | 79.26 | 80.00 | 65.100 | 65.400 | 48 |
| M90 | 6.00 | 134.37 | 135.63 | 89.13 | 90.00 | 75.100 | 75.400 | 54 |
| M100 | 6.00 | 149.37 | 150.63 | 99.13 | 100 | 85.120 | 85.470 | 60 |
