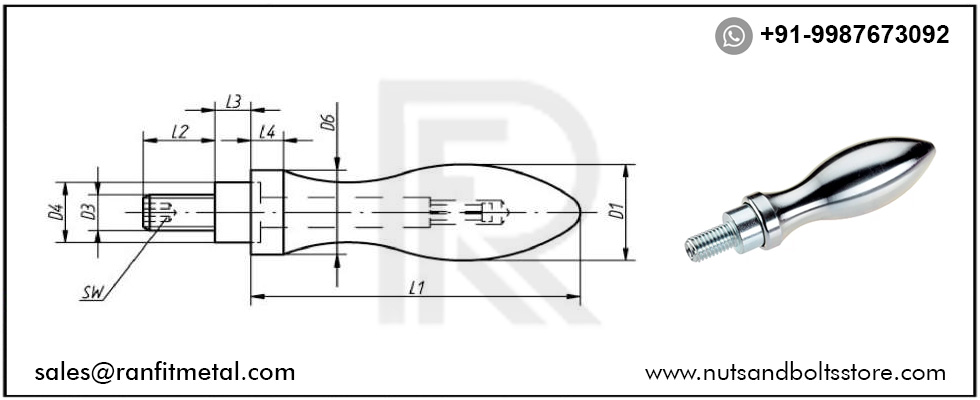

DIN 98 Handles Rotatable Dimensions Chart
dimensions in mm
| d1 | d2 (FormD) | d3 (Form E) | d4h13 | l1 | l2 | l3 | Held Hex |
|---|---|---|---|---|---|---|---|
| 16 | 7 | M6 | 10 | 49 | 11 | 5.5 | 3 |
| 20 | 8 | M8 | 13 | 61 | 13 | 6 | 4 |
| 25 | 10 | M10 | 16 | 75 | 14 | 8 | 5 |
| 32 | 13 | M12 | 20 | 95 | 21 | 10.5 | 6 |
| 36 | 16 | M16 | 22 | 106 | 26 | 11 | 8 |
