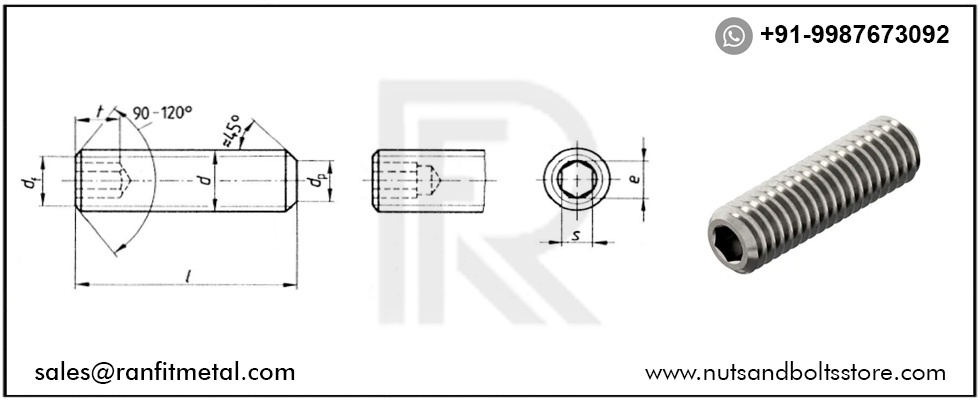

DIN 913 Fasteners
DIN 913 Hexagon Flat point Screw, DIN 913 socket set screws, DATA SHEET DIN 913, DIN 913 Hex Socket Flat Point Screws, DIN 913 Screw Set flat point, DIN 913 Set Screw, Full Thread Din 913 Flat Point Set Screw, DIN 913 Flat point Hex screw, Drive Set Screw DIN 913 Flat Point, DIN 913 Socket Set Screw, Din 913 Hexagon Flat Screw 12 mm 20 mm, Socket Screw Flat Point DIN 913-45H.
Din-913 Dimensions Chart, DIN-913 Specifications Sizes, DIN 913 dimensions, DIN 913 Material Supplier, Full Thread DIN 913 Screws, Din 913 Equivalent Material, DIN 913 standard PDF, Din 913 Fasteners, DIN 913 at Best Price in Mumbai, Drive Set DIN 913 Screw Set India.
DIN 913 Dimensions Chart
| Diameter | M1.4 | M1.6 | M1.8 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length | |||||||||||||||
| 2.5 | 0.018 | 0.019 | 0.030 | ||||||||||||
| 3 | 0.022 | 0.028 | 0.036 | 0.044 | 0.075 | ||||||||||
| 4 | 0.029 | 0.037 | 0.048 | 0.059 | 0.100 | 0.14 | |||||||||
| 5 | 0.036 | 0.046 | 0.060 | 0.074 | 0.125 | 0.18 | 0.255 | 0.42 | |||||||
| 6 | 0.043 | 0.056 | 0.072 | 0.089 | 0.150 | 0.22 | 0.38 | 0.54 | 0.74 | ||||||
| 8 | 0.119 | 0.199 | 0.31 | 0.53 | 0.78 | 1.09 | 1.88 | ||||||||
| 10 | 0.148 | 0.249 | 0.40 | 0.68 | 1.02 | 1.44 | 2.51 | ||||||||
| 12 | 0.49 | 0.83 | 1.26 | 1.79 | 3.14 | 4.73 | |||||||||
| 16 | 0.67 | 1.13 | 1.74 | 2.49 | 4.40 | 6.73 | 9.5 | ||||||||
| 20 | 0.85 | 1.43 | 1.22 | 3.19 | 5.66 | 8.71 | 12.3 | 20.9 | |||||||
| 25 | 2.82 | 4.07 | 7.25 | 11.2 | 15.9 | 27.4 | 41.4 | ||||||||
| 30 | 4.95 | 8.84 | 13.7 | 19.5 | 34.0 | 51.7 | 70.3 | ||||||||
| 35 | 5.83 | 10.40 | 16.2 | 23.1 | 40.5 | 62.0 | 85.3 | ||||||||
| 40 | 12.00 | 18.7 | 26.7 | 47.1 | 72.3 | 100 | |||||||||
| 45 | 82.6 | 115 | |||||||||||||
| 50 | 92.9 | 130 | |||||||||||||
| 55 | 145 | ||||||||||||||
| 60 | 160 |
Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
