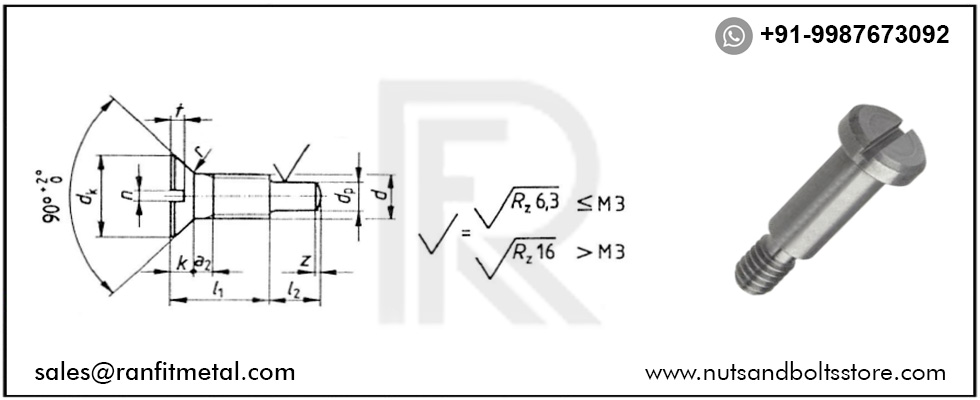

DIN 925 Dimensions Chart
| Screw Thread d |
M1.4 | M1.6 | M2 | M2.5 | M3 | |
|---|---|---|---|---|---|---|
| P | Pitch | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 |
| dk | max=nominal size | 2.6 | 3 | 3.8 | 4.7 | 5.6 |
| min | 2.35 | 2.75 | 3.5 | 4.4 | 5.3 | |
| dp | max=nominal size | 0.8 | 0.8 | 1.2 | 1.5 | 2 |
| min | 0.775 | 0.775 | 1.175 | 1.475 | 1.975 | |
| k | max | 0.84 | 0.96 | 1.2 | 1.5 | 1.65 |
| n | Nominal Size | 0.3 | 0.4 | 0.5 | 0.6 | 0.8 |
| max | 0.5 | 0.6 | 0.7 | 0.8 | 1 | |
| min | 0.36 | 0.46 | 0.56 | 0.66 | 0.86 | |
| t | max | 0.4 | 0.45 | 0.6 | 0.7 | 0.85 |
| min | 0.28 | 0.32 | 0.4 | 0.5 | 0.6 | |
All measurements in millimeters (mm)
