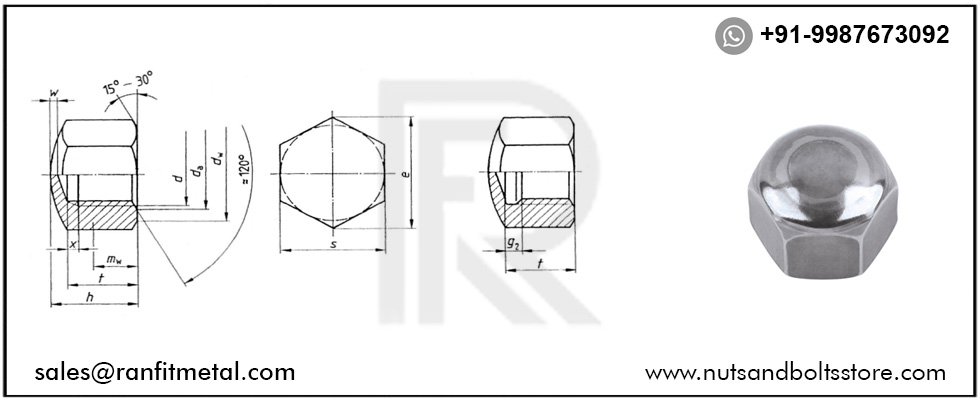

DIN 917 Dimensions Chart
Nominal Diameter |
Pitch | Across Flat (s) |
A/C (e) |
Height |
(t) | (w) |
|||
|---|---|---|---|---|---|---|---|---|---|
| - | - | Min | Max | Min | Min | Max | Min | Max | Min |
| 4 MM | 0.70 | 6.78 | 7.66 | 7.66 | 5.20 | 5.50 | 4.16 | 4.64 | 1.00 |
| 5 MM | 0.80 | 7.78 | 8.79 | 8.79 | 6.64 | 7.00 | 4.96 | 5.44 | 1.00 |
| 6 MM | 1.00 | 9.78 | 11.05 | 11.05 | 8.64 | 9.00 | 6.71 | 7.29 | 1.50 |
| 8 MM | 1.25 | 12.73 | 14.38 | 14.38 | 11.57 | 12.00 | 9.21 | 9.79 | 2.00 |
| 10 MM | 1.50 | 16.73 | 18.90 | 18.90 | 13.57 | 16.00 | 10.65 | 11.35 | 2.00 |
| 12 MM | 1.75 | 18.67 | 21.10 | 21.10 | 15.57 | 20.00 | 13.15 | 13.85 | 2.00 |
| 14 MM | 2.00 | 21.67 | 24.49 | 24.49 | 17.57 | 18.00 | 14.65 | 15.35 | 2.00 |
| 16 MM | 2.00 | 23.67 | 26.75 | 26.75 | 19.48 | 20.00 | 16.65 | 17.35 | 2.00 |
| 18 MM | 2.50 | 26.16 | 29.56 | 29.56 | 21.48 | 22.00 | 18.58 | 19.42 | 2.00 |
| 20 MM | 2.50 | 29.16 | 32.95 | 32.95 | 24.48 | 15.00 | 20.58 | 21.42 | 2.50 |
All measurements in millimeters (mm)
