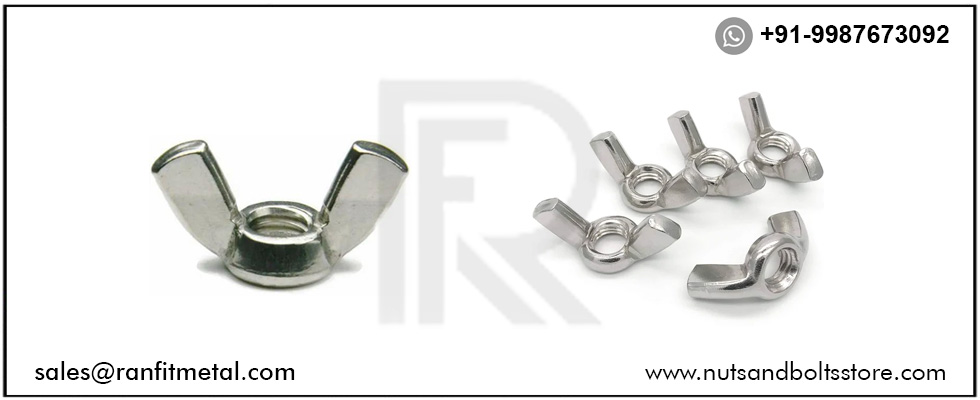

Wing Nuts / Wing Bolt
304 Stainless Steel Wing Nuts Manufacturer, Duplex Industrial Wing Nut, Alloy Steel Wing Polished Nuts, Nickel Alloy Wing Custom Bolt, 4mm SS Wing Nuts Price, Forged Wing Nuts Sizes, Super Duplex Polished Wing Nuts, 12mm High Tensile Wing Nuts, Polished Titanium Wing Nut, Size 8mm - 10mm Wing Nut, Heavy Wing Bolt Price List in India.
We are involved in present a high-class series of Hastelloy Alloy Wing Nuts, which is developed by experts using the advanced techniques and optimum quality material. Monel Wing Nuts is an austenitic heat resistant alloy with excellent resistance to oxidation under mildly cyclic conditions through 2000 Degree F. Moreover, a team of our quality examiners conducts a series of quality tests on this Super Duplex Steel Wing Nuts to seek out any possible fault. Backed by rich industry experience and knowledge, we are engaged in manufacturing and supplying of clients a broad assortment of Inconel Alloy Nuts, which are checked properly to deliver defect free products to our valuable customers.
Ranfit Metal is a distributor and dealers of Stainless Steel Wing Nut, which are fabricated adhering to industry quality standards. In the manufacturing process of this Stainless Steel Wing Nuts, our team utilizes the finest grade component and advance technology. We are leading exporters of the high grade Alloy 20 Wing Polished Nuts that are made using the premium quality Steel. Carbon Steel Wing Nuts, Stainless Steel Industrial Wing Nuts, Alloy Wing Nuts can be made available in different sizes and can be offered in different wall thickness.
Being manufactured using the best grade stainless steel, our Nickel Alloy Wing Nuts, Stainless Steel Industrial Polished Wing Nuts is not only used in the country but are also widely used in the other international industrial platforms. Some of the features of Incoloy Alloy Wing Nuts include wide application usage in areas like construction engineering, shipbuilding, container manufacturing, and others.
Buy Online Stainless Steel Wing Zinc Coated Nut, Hastelloy Wing Nut Supplier in Mumbai, M6 - M100 Mm Wing Industrial Nut Price List, Cupro Nickel Wing Heavy Nuts, High Tensile Steel Industrial Wing Bolt, Custom Wing Nuts Size, Inconel Polished Wing Nut Exporter, M6 To M36 SS Wing Bolt Price, Incoloy Stud Wing Bolt Dealer, Broaching Heavy Wing Nuts, Brass Wing Nuts Price, Monel Thread Wing Nut, SS Wing Bolt Sizes India.
Wing Nuts Specification
| Wing Nut size | Size : M3 - M56 | 3/6" to 2" | Custom Sizes |
|---|---|
| Wing Nut Type | UNF, BSW, BSF, METRIC, UNC, or as required |
| Wing Round Nuts Length | 3 mm to 200 mm |
| Standard of Wing NutBolt |
ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ASME B18.5 ANSI B 28.2.4 1M ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Wing nuts |
| Form of Wing Nuts | Threading, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Dhamm Steel, Usha Martin, Mukund Steel, Tata Steel, etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Popular Types of Wing Nut | Wing Nut, Polished Wing Nut |
| Thread Wing NutBolt | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Dimensions of Wing Nut | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Test Certificate of Wing Bolt | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process of Wing nut | M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Wing Nuts | Six-Lobe, Slotted, Phillips, Phillips/Slot, etc |
| Packing of Wing Nuts | IN BULK: Small Boxs / carton / pallet, canton, pallet, or customer request |
| Wing Nut Surface Coating |
Ptfe Coated Nuts Cadmium Coating Teflon Coating Zinc Coating Phosphate Coating Hot Dipped Galvanizing Coating Xylon Coating |
| Wing Nuts finishing | Sherardized, Coatings & Finishes : Self-Colour, some special one like DACROMET Geometry and Mechanically Applied coating, Hot Dip Galvanised (HDG), Passivated, Bright Zinc Plated (BZP), Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
| Carbon Steel Heavy Wing Nuts | ASTM A307, A193 |
| Stainless Steel Wing Nuts | AISI 302, 304, 304L,316, 316L, 310, 317, 317L, 321, 347, 410, 420,904L etc. |
| Nickel Alloy Industrial Wing Nuts | ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472 UNS 2200 (NICKEL 200) / UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3) |
| Alloy Steel Wing Nuts | ASTM / ASME A/SA 193 / 194 B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M |
| Duplex & Super Duplex Steel Wing Nuts | ASTM / ASME A815 UNS No. S31803, UNS No. S 32205, UNS No. S 31254, UNS No. S 31550, UNS No. S 32750, and UNS No. S 32760 |
Wing Bolt Dimensions Chart
| Thread Size |
Base Dia. |
Wd. | Ht. | |
| Zinc-Plated Steel | ||||
|---|---|---|---|---|
| 1 | 4-40 | 21/64" | 3/4" | 3/8" |
| 1 | 6-32 | 19/64" | 5/8" | 3/8" |
| 1 | 8-32 | 13/32" | 7/8" | 1/2" |
| 1 | 10-24 | 13/32" | 7/8" | 1/2" |
| 1 | 10-32 | 13/32" | 7/8" | 1/2" |
| 1 | 12-24 | 31/64" | 1 1/8" | 1/2" |
| 1 | 1/4"-20 | 31/64" | 1 1/8" | 1/2" |
| 1 | 1/4"-28 | 31/64" | 1 1/8" | 1/2" |
| 1 | 5/16"-18 | 9/16" | 1 1/4" | 5/8" |
| 1 | 5/16"-24 | 9/16" | 1 1/4" | 5/8" |
| 1 | 3/8"-16 | 11/16" | 1 3/8" | 3/4" |
| 1 | 3/8"-24 | 45/64" | 1 1/2" | 3/4" |
| 1 | 7/16"-14 | 7/8" | 1 7/8" | 7/8" |
| 1 | 7/16"-20 | 15/16" | 2" | 1" |
| 1 | 1/2"-13 | 7/8" | 1 7/8" | 7/8" |
| 1 | 1/2"-20 | 15/16" | 2" | 1" |
| 1 | 5/8"-11 | 1 5/32" | 2 3/4" | 1 3/8" |
| 1 | 3/4"-10 | 1 5/32" | 2 3/4" | 1 3/8" |
| 2 | 1/4"-20 | 1/2" | 1 3/8" | 5/8" |
| 3 | 1/4"-20 | 5/8" | 1 1/8" | 3/4" |
| 3 | 1/4"-20 | 3/4" | 1" | 1/2" |
| 3 | 1/4"-20 | 7/8" | 1 1/2" | 5/8" |
| 3 | 5/16"-18 | 7/8" | 1 1/2" | 5/8" |
| 3 | 5/16"-18 | 7/8" | 1 5/8" | 1" |
| 3 | 3/8"-16 | 7/8" | 1 5/8" | 1" |
| 9 | 6-32 | 13/32" | 3/4" | 3/8" |
| 9 | 8-32 | 13/32" | 3/4" | 3/8" |
| 9 | 10-24 | 33/64" | 7/8" | 1/2" |
| 9 | 10-32 | 33/64" | 7/8" | 1/2" |
| 9 | 1/4"-20 | 39/64" | 1 1/8" | 1/2" |
| 9 | 3/8"-16 | 53/64" | 1 3/8" | 5/8" |
| Zinc-Plated Iron | ||||
| 2 | 3/8"-16 | 5/8" | 1 5/8" | 7/8" |
| 2 | 1/2"-13 | 13/16" | 2 1/4" | 1" |
| Black Ultra-Corrosion-Resistant Coated Steel | ||||
| 1 | 6-32 | 23/64" | 3/4" | 3/8" |
| 1 | 8-32 | 13/32" | 7/8" | 1/2" |
| 1 | 10-24 | 13/32" | 7/8" | 1/2" |
| 1 | 10-32 | 13/32" | 7/8" | 1/2" |
| 1 | 1/4"-20 | 15/32" | 1 1/8" | 5/8" |
| 1 | 5/16"-18 | 9/16" | 1 1/4" | 5/8" |
| 1 | 3/8"-16 | 5/8" | 1 1/2" | 3/4" |
Sizes of Stainless Steel Wing Bolt
Thread Size |
Base Dia. |
Wd. | Ht. | |
18-8 Stainless Steel |
||||
|---|---|---|---|---|
| 1 | 6-32 | 13/32" | 3/4" | 1/2" |
| 1 | 8-32 | 13/32" | 7/8" | 1/2" |
| 1 | 10-24 | 13/32" | 7/8" | 1/2" |
| 1 | 10-32 | 13/32" | 7/8" | 1/2" |
| 1 | 12-24 | 1/2" | 1 1/8" | 5/8" |
| 1 | 1/4"-20 | 31/64" | 1 1/8" | 5/8" |
| 1 | 1/4"-28 | 31/64" | 1 1/8" | 5/8" |
| 1 | 5/16"-18 | 35/64" | 1 1/4" | 5/8" |
| 1 | 5/16"-24 | 35/64" | 1 1/4" | 5/8" |
| 1 | 3/8"-16 | 43/64" | 1 1/2" | 3/4" |
| 1 | 3/8"-24 | 45/64" | 1 1/2" | 3/4" |
| 1 | 7/16"-14 | 15/16" | 2" | 1" |
| 1 | 7/16"-20 | 15/16" | 2" | 1" |
| 1 | 1/2"-13 | 29/32" | 2" | 1" |
| 1 | 1/2"-20 | 29/32" | 2" | 1" |
| 1 | 5/8"-11 | 1 5/32" | 2 1/4" | 1 1/2" |
| 1 | 5/8"-18 | 1 5/32" | 2 5/8" | 1 1/4" |
| 1 | 3/4"-10 | 1 5/32" | 2 3/4" | 1 1/2" |
| 1 | 3/4"-16 | 1 5/32" | 2 3/4" | 1 1/2" |
| 2 | 3/8"-16 | 1 1/4" | 3 1/2" | 1 1/2" |
| 2 | 1/2"-13 | 1 1/4" | 3 1/2" | 1 1/2" |
| 2 | 5/8"-11 | 1 1/4" | 3 1/2" | 1 1/2" |
| 2 | 3/4"-10 | 1 1/4" | 3 1/2" | 1 1/2" |
Equivalent Grade of Stainless Steel Wing Bolt
| Grade | Country | 310 | 304 | 304 L | 316 L | 316 | 410 |
|---|---|---|---|---|---|---|---|
| UNS | North America | S31000 | S30400 | S30403 | S31603 | S31600 | S41000 |
| ASTM | America | ASTM A 479 | ASTM A 193 Gr B8 | ASTM A 320 Ge B8 | ASTM A 320 Ge B8M | ASTM A 193 Gr B8M | |
| BS | British | BS 970 | BS 970 | BS 970 | BS 970 | BS 970 | BS 970 |
| EN | European | 1.4841 | 1.4301 | 1.4306 | 1.4404 | 1.4401 | 1.4006 |
| DIN | German | X 12 CrNi 25 21 | X 5CrNi1810 | X 2CrNi1911 | X 2 CrNiMo 17 13 2 | X 5 CrNiMo 17 13 2 | X 10Cr13 |
Types of Stainless Steel Industrial Nuts
SS Wing Nuts Forms & Availability
| Products | Size | |
|---|---|---|
| SS Wing Nuts | Stainless Steel Wing Polished Nuts | Sizes M3 - M56 | 3/6" to 2" |
| Carbon Steel Custom Wing Bolt | Alloy Steel Plain Ring Bolt | |
| Incoloy Wing Round Nuts | Titanium Plain Wing Bolt | |
| Hastelloy Plain Wing Rivet | Titanium Wing Nuts | |
| Nickel Welded Wing Bolt | Alloy 20 Wing Nut | |
| Cu-Ni Welded Wing Bolt | Monel Industrial Wing Nut | |
| SMO 254 Heavy Wing Nuts | Inconel Shoulder Wing Bolt | |
Types of Standard Wing Nuts
| Alloy 20 Custom Wing Nuts | Cupro Nickel 90-10 Wing Nut |
| Incoloy 800H Wing Nuts | ASTM A350 CS LF2 Wing Nuts |
| UNS C70600 Wing Nuts | 2 Inch SS Heavy Wing Nuts |
| Incoloy® alloy 20 Wing Nuts | Alloy 254 Industrial Wing Nuts |
| Super Duplex Steel Plain Wing Bolt Dimensions | Duplex Steel Shoulder Ring Bolt |
| Super Duplex 2507 Wing Nuts Stockist | Titanium Welded Wing Bolt at Best Price |
| Ti Alloy Grade 2 Standard Wing Nuts | Ti 3.7035 Forged Wing Nuts |
| High Tensile Steel Wing Bolt Stockholder | Threaded Heavy Wing Nut Price list |
| 5inch Stainless Steel Wing Nuts Bolt | Duplex steel 2205 Wing Nut |
| Wing Nut Supplier in Mumbai | Welded Wing Bolt Manufacturer in India |
