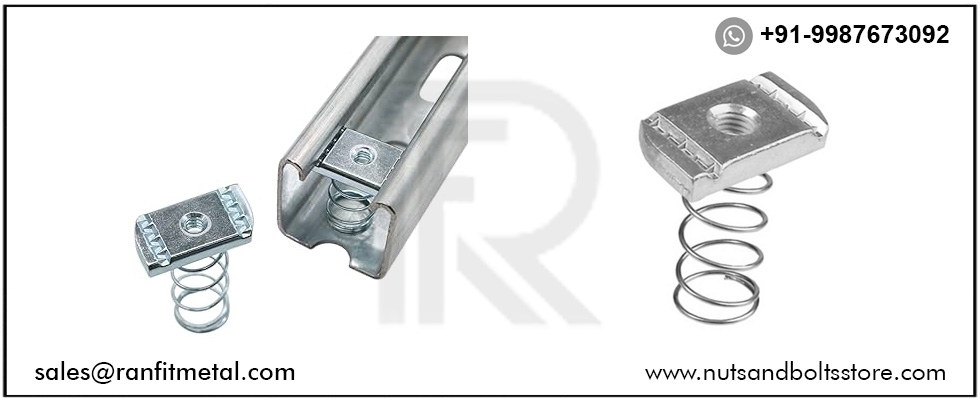

Spring Channel Nut, Spring Nuts
SS Spring Channel Nuts, Nickel Alloy Custom Spring Nuts, 304 Stainless Steel Spring Channel Nut, Forged Spring Nuts Sizes, Duplex Industrial Spring Nut, Titanium Spring Channel Nut List, Alloy Steel Spring Nuts, 12mm 4mm Metal Heavy Spring Bolt Size, SS Spring Nut Manufacturer, Super Duplex Spring Channel Nuts Price, High Tensile Spring Nuts in India.
RANFIT METAL are manufacturers, dealers, exporters and wholesale supplier of the high quality grade SS Spring Nutbolt, Duplex Steel Spring Channel Nuts that are made using the premium quality Steel. In the manufacturing process of this SS Spring Nuts, our team utilizes the finest grade component and advance technology. We are engaged in manufacturing and supplying of clients a broad assortment of Inconel Alloy Spring Nuts, which are checked properly to deliver defect free products to our valuable customers.
We are manufacturer, dealers and distributor of Stainless Steel Spring Nut, which are fabricated adhering to industry quality standards. Some of the features of Alloy Spring Nuts include wide application usage in areas like container manufacturing, shipbuilding, construction engineering, and others.
Manufactured using the top one class grade stainless steel, duplex steel, carbon steel, alloy steel, Nickel Alloy Spring Spring Nuts, Stainless Steel Spring Channel Nuts is not only used in the country but are also widely used in the other international industrial platforms. Moreover, a team of our quality examiners conducts a series of quality tests on this Super Duplex Steel Spring Channel Nuts to seek out any possible fault.
We are involved in present a high-class series of Alloy Spring Channel Nuts, which is developed by experts using the advanced techniques and optimum quality material. Duplex Steel, Carbon Steel Spring Nuts, SS Industrial Spring Nuts, Alloy Spring Channel Nuts can be made available in different sizes and can be offered in different wall thickness.
SS Spring Nut Sizes, M6 - M100 Mm SS Spring Nut Price, Spring Industrial Nut Price List, Custom Spring Nuts Price, SS 304 Heavy Spring Channel Nuts, Incoloy Stud Spring Nut Dealer, Inconel Spring Channel Nut, M6 To M36 Buy Online Hastelloy Spring Nut, Monel Spring Spring Nut in Mumbai, Cupro Nickel Spring Nuts Exporter, Stainless Steel Spring Channel Nut, Brass Spring Nuts Supplier India.
Spring Channel Nut Specification
| Spring Nut size | Size : M3 - M56 | 3/6" to 2" | Custom Sizes |
|---|---|
| Standard of Spring Nut |
UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ANSI – American National Standards Institute ISO : JIS standards, ISO 4033, ISO 4032, DIN : DIN 934, DIN 931, DIN 970, DIN 933 ASME B18.5 ANSI B 28.2.4 1M ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Spring Nuts |
| Thread Spring Channel Nut | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Head drive of Slot Nuts | Six-Lobe, Spring, Phillips, Phillips/Slot, etc |
| Dimensions of Spring Nut | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Spring Nut Type | UNF, BSW, BSF, METRIC, UNC, or as required |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Popular Types of Spring Nut | Spring Nut, Polished Spring Nut |
| Raw materials Source | JSPL, Usha Martin, Dhamm Steel, Mukund Steel, Tata Steel, etc. |
| Spring Nuts finishing | Sherardized, Coatings & Finishes : Self-Colour, some special one like DACROMET Geometry and Mechanically Applied coating, Bright Zinc Plated (BZP), Dacroment, nickel plated, Hot Dip Galvanised (HDG), Passivated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
| Spring Channel Nuts Length | 3 mm to 200 mm |
| Form of Spring Channel Nuts | Threading, Spring as per Gauge Etc. |
| Production process of Spring Nut | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Duplex & Super Duplex Steel Spring Nuts | ASTM / ASME A815 UNS No. S31803, UNS No. S 32205, UNS No. S 31254, UNS No. S 31550, UNS No. S 32750, and UNS No. S 32760 |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Carbon Steel Spring Nuts | ASTM A307, A193 |
| Packing of Spring Channel Nuts | IN BULK: Small Boxs / carton / pallet, canton, pallet, or customer request |
| Nickel Alloy Industrial Spring Nuts | ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472 UNS 2200 (NICKEL 200) / UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3) |
| Stainless Steel Spring Channel Nuts | AISI 302, 304, 304L,316, 316L, 310, 317, 317L, 321, 347, 410, 420,904L etc. |
| Test Certificate of Spring Channel Nut | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Spring Lock Nut Surface Coating |
Hot Dipped Galvanizing Coating Xylon Coating Cadmium Coating Zinc Coating Phosphate Coating Ptfe Coated Nuts Teflon Coating |
| Alloy Steel Spring Nuts | ASTM / ASME A/SA 193 / 194 B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M |
Spring Nut Dimensions Chart
| d | a nom | e max | emin | k min | k max | h |
|---|---|---|---|---|---|---|
| M4 | 5.0000 | 9.0000 | 8.5000 | 2.7000 | 3.0000 | 6.5000 |
| M5 | 6.0000 | 10.0000 | 9.5000 | 3.5000 | 4.0000 | 8.0000 |
| M6 | 8.0000 | 13.0000 | 12.5000 | 5.5000 | 6.0000 | 10.0000 |
| M8 | 10.0000 | 15.0000 | 14.5000 | 5.5000 | 6.0000 | 12.0000 |
| M10 | 12.0000 | 18.0000 | 17.5000 | 6.5000 | 7.0000 | 14.0000 |
| M12 | 14.0000 | 22.0000 | 21.5000 | 7.8000 | 8.0000 | 16.0000 |
| M16 | 18.0000 | 28.0000 | 27.5000 | 9.5000 | 10.0000 | 20.0000 |
| M20 | 22.0000 | 35.0000 | 34.5000 | 13.5000 | 14.0000 | 28.0000 |
| M24 | 28.0000 | 44.0000 | 43.0000 | 17.0000 | 18.0000 | 36.0000 |
| M30 | 36.0000 | 54.0000 | 53.0000 | 21.0000 | 22.0000 | 44.0000 |
| M36 | 42.0000 | 65.0000 | 64.0000 | 25.0000 | 26.0000 | 52.0000 |
| M42 | 48.0000 | 75.0000 | 74.0000 | 29.0000 | 30.0000 | 60.0000 |
| M48 | 54.0000 | 85.0000 | 84.0000 | 33.0000 | 34.0000 | 70.0000 |
Sizes of Stainless Steel Spring Channel Nut
| Thread Size (A) | Table Slot B (mm) | Total Height (C) (in) |
D (in) | Total Length (E) (in) |
Total Width (F) (in) |
|---|---|---|---|---|---|
| 1/4-20 | 0.3138.00 | 0.250 | 3/16 | 0.563 | 0.563 |
| 1/4-20 | 0.37510.00 | 0.375 | 7/32 | 0.563 | 0.563 |
| 5/16-18 | 0.37510.00 | 0.375 | 1/4 | 0.625 | 0.875 |
| 5/16-18 | 0.43812.00 | 0.500 | 7/32 | 0.688 | 0.875 |
| 5/16-18 | 0.50013.00 | 0.500 | 9/32 | 0.875 | 0.875 |
| 3/8-16 | 0.43812.00 | 0.500 | 7/32 | 0.688 | 0.875 |
| 3/8-16 | 0.50013.00 | 0.500 | 9/32 | 0.875 | 0.875 |
| 3/8-16 | 0.56315.00 | 0.625 | 11/32 | 0.875 | 1.125 |
| 7/16-14 | 0.50013.00 | 0.500 | 9/32 | 0.875 | 0.875 |
| 7/16-14 | 0.50013.00 | 0.375 | 7/32 | 0.750 | 0.875 |
| 1/2-13 | 0.56315.00 | 0.625 | 11/32 | 0.875 | 1.125 |
| 1/2-13 | 0.62516.00 | 0.625 | 11/32 | 1.000 | 1.125 |
| 1/2-13 | 0.62516.00 | 0.750 | 3/8 | 1.125 | 1.125 |
| 1/2-13 | 0.68818.00 | 0.750 | 7/16 | 1.125 | 1.250 |
| 1/2-13 | 0.75020.00 | 0.750 | 15/32 | 1.250 | 1.250 |
| 5/8-11 | 0.68818.00 | 0.750 | 7/16 | 1.125 | 1.250 |
| 5/8-11 | 0.75020.00 | 0.750 | 15/32 | 1.250 | 1.250 |
| 5/8-11 | 0.81321.00 | 1.000 | 9/16 | 1.250 | 1.500 |
| 3/4-10 | 0.81321.00 | 1.000 | 9/16 | 1.250 | 1.500 |
| 3/4-10 | 0.87523.00 | 1.000 | 9/16 | 1-1/2 | 1.500 |
| 3/4-10 | 1.00026.00 | 1.000 | 5/8 | 1.625 | 1.750 |
| 3/4-10 | 1.00026.00 | 1.500 | 3/4 | 1.750 | 1.750 |
| 3/4-10 | 1.06327.00 | 1.125 | 11/16 | 1.625 | 2.000 |
| 7/8-9 | 1.00026.00 | 1.000 | 5/8 | 1.625 | 1.750 |
| 7/8-9 | 1.06327.00 | 1.125 | 11/16 | 1.625 | 2.000 |
| Thread Size (A) | Table Slot B (mm) | Total Height (C) (in) |
D (in) | Total Length (E) (in) |
Total Width (F) (in) |
| 7/8-9 | 1.12529.00 | 1.500 | 3/4 | 1.750 | 2.000 |
| 7/8-9 | 1.31334.00 | 1.250 | 15/16 | 2.000 | 2.000 |
| 1-8 | 1.06327.00 | 1.125 | 11/16 | 1.625 | 2.000 |
| 1-8 | 1.12529.00 | 1.500 | 3/4 | 1.750 | 2.000 |
| 1-8 | 1.25032.00 | 1.250 | 7/8 | 2.000 | 2.000 |
| 1-8 | 1.31334.00 | 1.250 | 15/16 | 2.000 | 2.000 |
| 1-1/4-7 | 1.37536.00 | 1.750 | 1 1/8 | 2-1/2 | 2.500 |
| 1/4-20 | 0.37510.00 | 0.375 | 1/4 | 0.625 | 0.875 |
| 5/16-18 | 0.43812.00 | 0.500 | 7/32 | 0.750 | 1.000 |
| 3/8-16 | 0.43812.00 | 0.500 | 7/32 | 0.750 | 1.000 |
| 3/8-16 | 0.50013.00 | 0.500 | 9/32 | 0.875 | 1.000 |
| 3/8-16 | 0.56315.00 | 0.625 | 11/32 | 0.875 | 1.000 |
| 3/8-16 | 0.62516.00 | 0.625 | 3/8 | 1.000 | 1.000 |
| 3/8-16 | 0.62516.00 | 0.875 | 7/16 | 1.188 | 1.188 |
| 1/2-13 | 0.56315.00 | 0.625 | 11/32 | 0.875 | 1.000 |
| 1/2-13 | 0.62516.00 | 0.625 | 3/8 | 1.000 | 1.000 |
| 1/2-13 | 0.62516.00 | 0.875 | 7/16 | 1.188 | 1.188 |
| 1/2-13 | 0.68818.00 | 0.750 | 13/32 | 1.125 | 1.125 |
| 5/8-11 | 0.68818.00 | 0.750 | 13/32 | 1.125 | 1.125 |
| 5/8-11 | 0.75020.00 | 0.750 | 1/2 | 1.250 | 1.125 |
| 5/8-11 | 0.81321.00 | 1.000 | 9/16 | 1.375 | 1.500 |
| 3/4-10 | 0.81321.00 | 1.000 | 9/16 | 1.375 | 1.500 |
| 3/4-10 | 0.81321.00 | 1.000 | 17/32 | 1.250 | 1.500 |
| 3/4-10 | 0.87523.00 | 1.000 | 5/8 | 1-1/2 | 1.500 |
| 3/4-10 | 1.00026.00 | 1.250 | 3/4 | 1-1/2 | 1.500 |
| Thread Size (A) | Table Slot B (mm) | Total Height (C) (in) |
D (in) | Total Length (E) (in) |
Total Width (F) (in) |
| 7/8-9 | 1.00026.00 | 1.500 | 3/4 | 1.750 | 1.500 |
| 7/8-9 | 1.06327.00 | 1.500 | 3/4 | 1.750 | 1.500 |
| 7/8-9 | 1.12529.00 | 1.500 | 3/4 | 1.750 | 1.500 |
| 1-8 | 1.12529.00 | 1.500 | 3/4 | 1.750 | 1.750 |
Equivalent Grade of Stainless Steel Spring Nut
| Grade | Country | 310 | 304 | 304 L | 316 L | 316 | 410 |
|---|---|---|---|---|---|---|---|
| UNS | North America | S31000 | S30400 | S30403 | S31603 | S31600 | S41000 |
| ASTM | America | ASTM A 479 | ASTM A 193 Gr B8 | ASTM A 320 Ge B8 | ASTM A 320 Ge B8M | ASTM A 193 Gr B8M | |
| BS | British | BS 970 | BS 970 | BS 970 | BS 970 | BS 970 | BS 970 |
| EN | European | 1.4841 | 1.4301 | 1.4306 | 1.4404 | 1.4401 | 1.4006 |
| DIN | German | X 12 CrNi 25 21 | X 5CrNi1810 | X 2CrNi1911 | X 2 CrNiMo 17 13 2 | X 5 CrNiMo 17 13 2 | X 10Cr13 |
Types of Stainless Steel Nuts
SS Channel Spring Nut Forms & Availability
| Products | Size | |
|---|---|---|
| SS Spring Nuts | Stainless Steel Spring Channel Nuts | Sizes M3 - M56 | 3/6" to 2" |
| Carbon Steel Custom Spring Nut | Alloy Steel Spring Nut | |
| Nickel Spring Spring Nut | Alloy 20 Spring Nut | |
| Incoloy Spring Nuts | Titanium Spring Channel Nut | |
| Cu-Ni Industrial Spring Nut | Monel Spring Nut | |
| SMO 254 Heavy Nuts | Inconel Shoulder Spring Nut | |
| Hastelloy Spring Channel Nut | Titanium Spring Nuts | |
