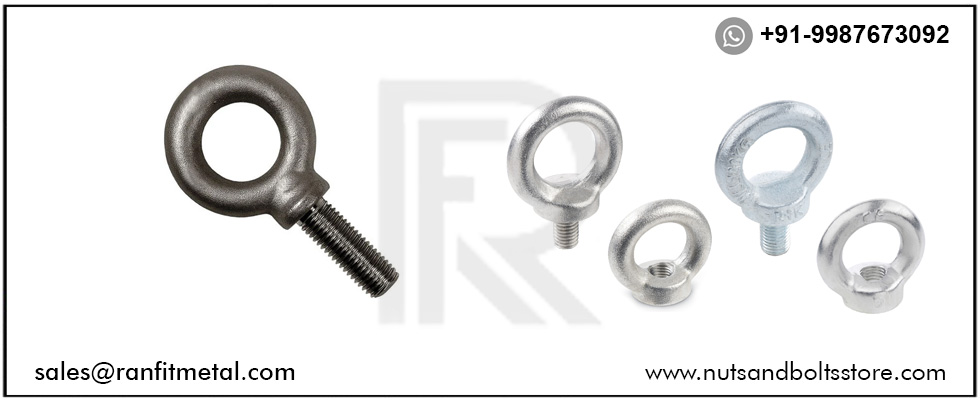

Forged Eye Bolts / Eye Lag Bolts
SS Collared Eye Bolts at Best Price in India, Duplex Heavy Eyelet Screws, Steel Eye Galvanized Bolts, 12mm High Tensile Eye Lag Bolts, M3-M20 Alloy Steel Lag Eye Bolts, Nickel Alloy Threaded Bolt, SS Lifting Eye Bolt Price List, Super Duplex Steel Concrete Forged Eye Bolts, Titanium Eye Bolt Manufacturer in India.
We have gained rich industry experience in the field of supplying a huge gamut of E Bolt Fastners. Metal Bolts and High Tensile Eye Anchors Bolts can be avail in various sizes, grade and materials of duplex steel, incoloy, hastelloy, alloy steel, copper nickel, stainless steel, super duplex steel, inconel, monel, titanium, carbon steel, brass alloys, gun metal, bronze alloys, etc.
We are one of the leading manufacturer, supplier and exporter of high quality carbon steel, alloy steel, duplex steel, high nickel alloy, inconel, monel, hastelloy, alloy 20, copper nickel, titanium, brass, stainless steel Roofing Eye Bolts, ss hexaonal Bolt, forged heavy hexaon Bolt High Tensile Steel Hex Bolts, heavy hex Bolt in Mumbai, India.
Owing to unbeatable performance, high quality and highly durable nature, these stainless steel fasteners products are highly demanded in the national and international market. Known for their resistance against corrosion, seamless finish, dimensional accuracy and sturdy construction, these ss fasteners Eye Bolt products are available with us in various dimensions, grades and sizes.
M33 Incoloy Forged Eye Bolt, M3 Cupro Nickel Coarse Threaded Eye Bolts, Inconel Foundation Ring Eye Bolts Exporter, SS Eye Count Screws Price, M20 Hastelloy Flange Thread Eye Bolts, High Quality M12 Eye Neck Bolts Dealer, Buy Monel Eye Head Bolts, Brass Countersunk Ribbed Eyelet Screws, Inconel Foundation Eye Bolts Exporter, 310 Stainless Steel Swing bolts. Eye Bolt Sizes, SS Eye Head Bolts Supplier in Mumbai, India.
Eye Bolts Specification
| Standards of Eye Bolts | DIN, ASTM, BS and all International Standards |
| Eye Bolt Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Heavy Eye Bolt Length | 3 mm to 200 mm |
| Eye Bolt Surface Coating |
Teflon Coating Cadmium Coating Xylon Coating Zinc Coating Ptfe Coated Bolts Phosphate Coating Hot Dipped Galvanizing Coating |
| Concrete Eye Bolts finishing | Coatings & Finishes : some special one like DACROMET Geometry and Mechanically Applied coating, Passivated, Bright Zinc Plated (BZP), Sherardized, Dacroment, nickel plated, Hot Dip Galvanised (HDG), Self-Colour, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
| Types Of Eye Bolt | Eye Bolt, Heavy Hex Bolt, M12 Eye Bolt, Flange Eye Bolt, Eye Anchor Bolts, Eye Lag Bolt. |
| Die forging Eye Hook Bolts | Open die forging, Closed die forging, and Hand forging. |
| Threads Eye Bolt | UNF, BSF, Metric, BSW, UNC and as per costumers required. |
| Stainless Steel Eye Bolts | AISI 304L, 302, 304, 310, 321, 347, 317L, 316, 316L, 317, 410, 420, 904L etc. |
| Alloy Steel Eye Bolts | ASTM / ASME A/SA 193 / 194 B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M |
| Carbon Steel Eye Bolts | ASTM A307, A193 |
| Duplex & Super Duplex Steel Eye Bolts | ASTM / ASME A815 UNS No. S31803, UNS No. S 32205, UNS No. S 31254, UNS No. S 31550, UNS No. S 32750, and UNS No. S 32760 |
| Nickel Alloy Eye Bolts | ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472 UNS 2200 (NICKEL 200) / UNS 2201 (NICKEL 201), UNS 8825 (INCONEL 825), UNS 6625 (INCONEL 625), UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), UNS 4400 (MONEL 400), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3) |
| Application of Eye Head Bolt |
|
Stainless Steel Lifting Eye Bolt
| D1 | H | B | D3 | D2 | D4 | K |
|---|---|---|---|---|---|---|
| M24 | 90 | 36 | 50 | 90 | 50 | 20 |
| M48 | 168 | 68 | 100 | 166 | 90 | 38 |
| M52 | 187 | 78 | 110 | 184 | 100 | 42 |
| M27 | 109 | 45 | 65 | 108 | 60 | 24 |
| M30 | 109 | 45 | 65 | 108 | 60 | 24 |
| M14 | 62 | 27 | 35 | 63 | 35 | 14 |
| M42 | 147 | 63 | 85 | 144 | 80 | 32 |
| M45 | 168 | 68 | 100 | 166 | 90 | 38 |
| M16 | 62 | 27 | 35 | 63 | 35 | 14 |
| M20 | 71 | 30 | 40 | 72 | 40 | 16 |
| M22 | 90 | 36 | 50 | 90 | 50 | 20 |
| M56 | 187 | 78 | 110 | 184 | 100 | 42 |
| M64 | 208 | 90 | 120 | 206 | 110 | 48 |
| M33 | 128 | 54 | 75 | 126 | 70 | 28 |
| M36 | 128 | 54 | 75 | 126 | 70 | 28 |
| M6 | 27.5 | 12 | 19 | 27 | 14 | 6.5 |
| M72 | 260 | 100 | 150 | 260 | 140 | 60 |
| M80 | 298 | 112 | 170 | 296 | 160 | 68 |
| M8 | 36 | 13 | 20 | 36 | 20 | 8 |
| M10 | 45 | 17 | 25 | 45 | 25 | 10 |
| M12 | 53 | 20.5 | 30 | 54 | 30 | 12 |
| M100 | 330 | 130 | 190 | 330 | 180 | 75 |
Steel SA 193 Gr B7 Eye Bolt Sizes
| Size (A x Pitch x B) ( mm ) |
Shoulder Diameter (H) ( mm ) |
Inside Eye Diameter (D) ( mm ) |
Outside Eye Diameter (C) ( mm ) |
Overall Length (E) ( mm ) |
Shoulder Thickness (G) ( mm ) |
||
|---|---|---|---|---|---|---|---|
| 12 x 1.75 | x | 24 | 23 | 30 | 54 | 92.4 | 4 |
| 12 x 1.75 | x | 38 | 23 | 30 | 54 | 106.4 | 4 |
| 14 x 2.0 | x | 28 | 24.6 | 33 | 58 | 99.4 | 5.6 |
| 14 x 2.0 | x | 44.5 | 24.6 | 33 | 58 | 115.9 | 5.6 |
| 42 x 4.5 | x | 95 | 65.1 | 73 | 152.4 | 282.6 | 8.7 |
| 45 x 4.5 | x | 84 | 65.1 | 73 | 152.4 | 271.6 | 10.3 |
| 45 x 4.5 | x | 95 | 65.1 | 73 | 152.4 | 282.6 | 10.3 |
| 7 x 1.0 | x | 14 | 15.1 | 22 | 36.5 | 60.9 | 4 |
| 7 x 1.0 | x | 28.5 | 15.1 | 22 | 36.5 | 75.4 | 4 |
| 16 x 2.0 | x | 44.5 | 26.2 | 35 | 65 | 125.4 | 5.6 |
| 18 x 2.5 | x | 36 | 30.2 | 38 | 71.5 | 124.7 | 5.6 |
| 18 x 2.5 | x | 51 | 30.2 | 38 | 71.5 | 139.7 | 5.6 |
| 8 x 1.25 | x | 16 | 16.7 | 25 | 43 | 72.4 | 4 |
| 8 x 1.25 | x | 31.7 | 16.7 | 25 | 43 | 88.1 | 4 |
| 10 x 1.5 | x | 20 | 19.8 | 27 | 46 | 81 | 4 |
| 10 x 1.5 | x | 35 | 19.8 | 27 | 46 | 96 | 4 |
| 20 x 2.5 | x | 40 | 34.9 | 41 | 81 | 140.2 | 6.4 |
| 20 x 2.5 | x | 57 | 34.9 | 41 | 81 | 157.2 | 6.4 |
| 22 x 2.5 | x | 44 | 39.7 | 46 | 90.4 | 155.1 | 7.1 |
| 22 x 2.5 | x | 63.5 | 39.7 | 46 | 90.4 | 174.6 | 7.1 |
| 24 x 3.0 | x | 48 | 39.7 | 46 | 90.4 | 159.1 | 7.1 |
| 24 x 3.0 | x | 63.5 | 39.7 | 46 | 90.4 | 174.6 | 7.1 |
| 27 x 3.0 | x | 48 | 44.5 | 51 | 103 | 174.9 | 7.1 |
| 27 x 3.0 | x | 70 | 44.5 | 51 | 103 | 196.9 | 7.1 |
| 30 x 3.5 | x | 60 | 49.2 | 55 | 112.7 | 198.3 | 7.1 |
| 30 x 3.5 | x | 76 | 49.2 | 55 | 112.7 | 214.3 | 7.1 |
| 36 x 4.0 | x | 72 | 55.6 | 63 | 131.8 | 229.9 | 7.1 |
| 36 x 4.0 | x | 89 | 55.6 | 63 | 131.8 | 246.9 | 7.1 |
| 42 x 4.5 | x | 84 | 65.1 | 73 | 152.4 | 271.6 | 8.7 |
| 16 x 2.0 | x | 32 | 26.2 | 35 | 65 | 112.9 | 5.6 |
| 6 x 1.0 | x | 12 | 13.5 | 19 | 30 | 50.9 | 4 |
| 6 x 1.0 | x | 25.4 | 13.5 | 19 | 30 | 64.3 | 4 |
| 48 x 5.0 | x | 96 | 74.6 | 82 | 174.6 | 294.8 | 11.9 |
| 48 x 5.0 | x | 101.6 | 74.6 | 82 | 174.6 | 310.4 | 11.9 |
Equivalent Grade of SS Eye Bolt
| Grade | Country | 304 L | 304 | 310 | 316 L | 316 | 410 |
|---|---|---|---|---|---|---|---|
| UNS | North America | S30403 | S30400 | S31000 | S31603 | S31600 | S41000 |
| ASTM | America | ASTM A 320 Ge B8 | ASTM A 193 Gr B8 | ASTM A 479 | ASTM A 320 Ge B8M | ASTM A 193 Gr B8M | |
| BS | British | BS 970 | BS 970 | BS 970 | BS 970 | BS 970 | BS 970 |
| EN | European | 1.4306 | 1.4301 | 1.4841 | 1.4404 | 1.4401 | 1.4006 |
| DIN | German | X 2CrNi1911 | X 5CrNi1810 | X 12 CrNi 25 21 | X 2 CrNiMo 17 13 2 | X 5 CrNiMo 17 13 2 | X 10Cr13 |
Types of Bolts
Foundation Eye Bolts Forms & Availability
| Products | Size | |
|---|---|---|
| SS Eye Flat Head Bolts | Stainless Steel Eye Bolts | M 02 to M 160, Custom Sizes |
| Titanium Eye Swing bolts | Alloy Steel Lag Eye Bolts | |
| Incoloy Eye Ring Bolts | Titanium Flat Head Eye Bolts | |
| Cu-Ni Eye Forged Bolt | Monel High Tensile Eye Headed Bolts | |
| Hastelloy Galvanized Lifting Eye Bolt | Carbon Steel Threaded Eye Bolt | |
| Inconel Eye Lag Bolts | Alloy 20 Concrete Eye Bolts | |
| SMO 254 Fully Threaded Eye Head Bolts | Nickel Decorative Anchor Eye Bolts | |
