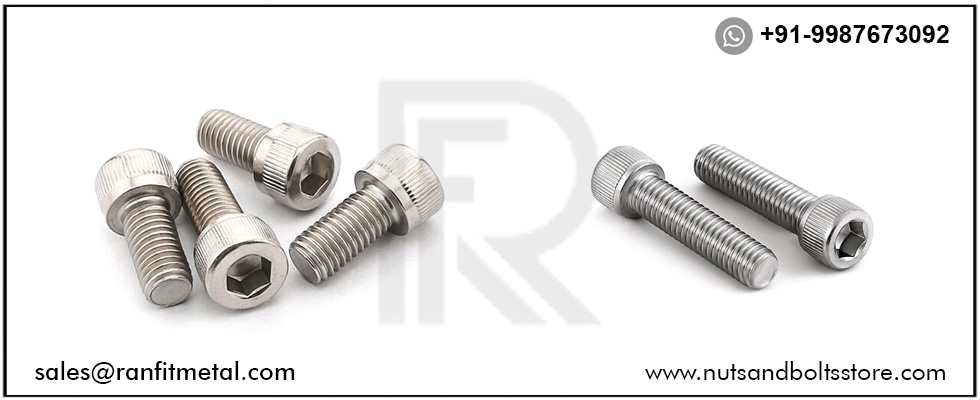

Allen Cap Bolt / Cap Head Bolt
Super Duplex Steel Allen Cap Bolt, SS Full Thread Cap Bolt, High Tensile Allen Bolts, Titanium Allen Cap Head Bolt, 12mm Stainless Steel Cap Bolt, Allen Cap Bolt Price List, M3-M20 Alloy Steel Head Cap Bolt, Nickel Alloy Allen Cap Head Bolt, Duplex Heavy Cap Bolt Manufacturer in India.
We are one of the leading manufacturer, exporter and dealer, supplier of stainless steel allen cap head bolt in mumbai, India. Known for their resistance against corrosion, seamless finish, dimensional accuracy and sturdy construction, these ss allen bolt products are available with us in various dimensions, grades and sizes. Metal Bolts and High Tensile hex boltscan be avail in various sizes, grade and materials of duplex steel, incoloy, hastelloy, alloy steel, copper nickel, stainless steel, super duplex steel, inconel, monel, titanium, carbon steel, brass alloys, gun metal, bronze alloys, etc. As mention below:
Owing to unbeatable performance, excellent quality and highly durable nature, these stainless steel fasteners products are highly demanded in the national and international market. high quality carbon steel, alloy steel, duplex steel, high nickel alloy, inconel, monel, hastelloy, alloy 20, copper nickel, titanium, brass, allen cap head bolt, ss hexaonal bolt, forged heavy hexaon bolt High Tensile Steel Hex Bolts, heavy hex bolt in Mumbai, India.
High Quality Hastelloy Allen Bolt, Buy Stainless Steel Socket Cap Bolt, M20 Inconel Allen Cap Bolt Exporter, M33 Cap Bolt Dealer, Monel Cap Head Bolt, Brass Forged Allen Socket Cap Bolt, SS Allen Head Bolt Sizes, M3 Incoloy Socket Head Allen Bolt, Cupro Nickel Hex Head Allen Bolt, SS Allen Cap Bolt Price Supplier in Mumbai, India.
Allen Cap Head Bolt Specification
| Standards of Allen Cap Bolt | DIN, ASTM, BS and all International Standards |
| Allen Bolt Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Heavy Allen Bolt Length | 3 mm to 200 mm |
| Cap Allen Bolt Surface Coating |
Xylon Coating Zinc Coating Teflon Coating Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Bolts Phosphate Coating |
| Types Of Allen Bolt | Allen Cap Bolt, Allen Head Bolt, Socket Allen Bolt |
| Allen Cap Bolt finishing | Coatings & Finishes : Hot Dip Galvanised (HDG), Self-Colour, Passivated, Bright Zinc Plated (BZP), Sherardized, Dacroment, nickel plated, some special one like DACROMET Geometry and Mechanically Applied coating, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
| Die forging Head Allen Bolt | Closed die forging, Open die forging, and Hand forging. |
| Allen Cap Bolt | Metric, BSW, BSF, UNC, UNF, and as per costumers required. |
| Stainless Steel Allen Bolts | AISI 302, 304, 304L,316, 316L, 310, 317, 317L, 321, 347, 410, 420, 904L etc. |
| Duplex & Super Duplex Steel Allen Bolt | ASTM / ASME A815 UNS No. S31803, UNS No. S 32205, UNS No. S 31254, UNS No. S 31550, UNS No. S 32750, and UNS No. S 32760 |
| Carbon Steel Cap Bolts | ASTM A307, A193 |
| Alloy Steel Allen Cap Bolts | ASTM / ASME A/SA 193 / 194 B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M |
| Nickel Alloy Hex Cap Bolt | ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472 UNS 2200 (NICKEL 200) / UNS 2201 (NICKEL 201), UNS 8825 (INCONEL 825), UNS 4400 (MONEL 400), UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), UNS 10276 (HASTELLOY C 276), UNS 6625 (INCONEL 625), UNS 8020 (ALLOY 20 / 20 CB 3) |
| Application of Cap Allen Bolt |
|
Dimensional Chart of SS Allen Cap Head Bolt
| Metric (d) |
Thread Length (b) |
Head diameter | Head high | Socket width | Socket Depth (t min.) |
||||
|---|---|---|---|---|---|---|---|---|---|
| (dk max.) | (dk min.) | (k max.) | (k min.) | (s Nom.) | (s min.) | (s max.) | |||
| M 3 | 18,0 | 5,5 | 5,32 | 3,0 | 2,86 | 2,5 | 2,52 | 2,58 | 1,3 |
| M 4 | 20,0 | 7,0 | 6,78 | 4,0 | 3,82 | 3,0 | 3,02 | 3,08 | 2,0 |
| M 5 | 22,0 | 8,5 | 8,28 | 5,0 | 4,82 | 4,0 | 4,02 | 4,095 | 2,5 |
| M 6 | 24,0 | 10,0 | 9,78 | 6,0 | 5,7 | 5,0 | 5,02 | 5,14 | 3,0 |
| M 8 | 28,0 | 13,0 | 12,73 | 8,0 | 7,64 | 6,0 | 6,025 | 6,14 | 3,5 |
| M 10 | 32,0 | 16,0 | 15,73 | 10,0 | 9,64 | 8,0 | 8,025 | 8,175 | 4,0 |
| M 12 | 36,0 | 18,0 | 17,73 | 12,0 | 11,57 | 10,0 | 10,025 | 10,175 | 5,0 |
| M 14 | 40,0 | 21,0 | 20,67 | 14,0 | 13,57 | 12,0 | 12,032 | 12,212 | 6,0 |
| M 16 | 44,0 | 24,0 | 23,67 | 16,0 | 15,57 | 14,0 | 14,032 | 14,212 | 7,0 |
| M 20 | 52,0 | 30,0 | 29,67 | 20,0 | 19,48 | 17,0 | 17,05 | 17,23 | 8,0 |
| M 24 | 60,0 | 36,0 | 35,61 | 24,0 | 23,48 | 19,0 | 19,065 | 19,275 | 10,0 |
| M 27 | 66,0 | 40,0 | 39,61 | 27,0 | 26,48 | 19,0 | 19,065 | 19,275 | 12,0 |
| M 30 | 72,0 | 45,0 | 44,61 | 30,0 | 29,48 | 22,0 | 22,065 | 22,275 | 13,5 |
Stainless Steel Allen Bolt
| Diameter | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| Head Diam | 5.5 | 7.5 | 8.5 | 10 | 13 | 16 | 18 |
| Head Height | 3.5 | 4 | 5 | 6 | 8 | 10 | 12 |
| Pitch | 0.5 | 0.7 | 0.8 | 1.0 | 1.25 | 1.5 | 1.75 |
| Key Size | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 |
Equivalent Grade of SS Allen Head Bolt
| Grade | Country | 304 L | 304 | 310 | 316 L | 316 | 410 |
|---|---|---|---|---|---|---|---|
| BS | British | BS 970 | BS 970 | BS 970 | BS 970 | BS 970 | BS 970 |
| UNS | North America | S30403 | S30400 | S31000 | S31603 | S31600 | S41000 |
| ASTM | America | ASTM A 320 Ge B8 | ASTM A 193 Gr B8 | ASTM A 479 | ASTM A 320 Ge B8M | ASTM A 193 Gr B8M | |
| DIN | German | X 2CrNi1911 | X 5CrNi1810 | X 12 CrNi 25 21 | X 2 CrNiMo 17 13 2 | X 5 CrNiMo 17 13 2 | X 10Cr13 |
| EN | European | 1.4306 | 1.4301 | 1.4841 | 1.4404 | 1.4401 | 1.4006 |
Types of Bolts
Allen Cap Bolt Forms & Availability
| Products | Size | |
|---|---|---|
| SS Allen Cap Bolt | Stainless Steel Allen Bolt | M 02 to M 160, Custom Sizes |
| Nickel Allen Bolts | Alloy 20 Allen Cap Bolt | |
| SMO 254 Head Socket Cap Bolt | Inconel Head Allen Bolt | |
| Hastelloy Head Forged Bolts | Titanium Cap Thread Bolts | |
| Carbon Steel Heavy Cap Bolt | Alloy Steel Allen Head Bolt | |
| Incoloy Cap Head Bolts | Titanium Allen Head Cap Bolt | |
| Cu-Ni Socket Head Bolts | Monel Head Cap Bolt | |
