Stainless Steel SMO 254 Fasteners
Stainless Steel SMO 254 Fasteners, SMO 254 Fasteners, 6 Moly 254 Industrial Fasteners, UNS S31254 Fasteners Wholesaler Suppliers in India.
Ranfit Metal & Alloys is a renowned manufacturer and trader of SS SMO 254 Fasteners, which provides higher corrosion resistance and higher strength. Stainless Steel SMO 254 Nuts can be used in a wide variety of industries including chemical, food processing, marine, nuclear, etc. Phosphorus has a strongly embrittling effect in these Stainless Steel SMO 254 Bolts and decreases weldability (hot shortness and crack formation). Stainless Steel SMO 254 Washers has twice the yield strength at room temperature compared to other alloys. Stainless Steel SMO 254 Screws has very good mechanical properties at both elevated and sub-zero temperatures. Even after extreme forming, Stainless Steel SMO 254 Stud Bolts stays non-magnetic. Stainless Steel SMO 254 Round Bars has machinability characteristics that are similar to other austenitic alloys.
Stainless Steel SMO 254 Bars is often used for mechanical components in nuclear installations, along with in boat shafting, rigging and bolting. Unlike many austenitic alloys, Stainless Steel SMO 254 Rods does not become magnetic when cold worked or cooled to sub-zero temperatures. Stainless Steel 254 SMO Fasteners is high strength austenitic alloy and has good corrosion resistance. Stainless Steel 254 SMO Nuts is nonmagnetic as annealed and after severe cold work. With its outstanding corrosion resistance, Stainless Steel 254 SMO Bolts is an effective alloy for use in the petroleum, nuclear, chemical, marine, and so on. Stainless Steel 254 SMO Washers is developed for use in seawater and other aggressive chloride-bearing media.
ASTM B479 SMO 254 Hex Domed Cap Nuts, 254 SMO Threaded Stud, Alloy 254 Washers, SMO DIN 1.4547 Bolt Supplier & Exporter in India.
Stainless Steel SMO 254 Fasteners Specification
| 254 Fasteners Specifications | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
|---|---|
| 254 6 Moly Fasteners size | Bolt / Screw Size : M3 - M56 | 3/6" to 2" | Custom Sizes Nuts Size : M3 - M56 | 3/6" to 2" | Custom Sizes Washers Size : M3 - M56 | 3/6" to 2" | Custom Sizes Machine Screws Size : M1.6 - M12 Self Tapping Screw Size : No.2 - No. 14 |
| 6 Moly 254 Fasteners Length | 3 mm to 200 mm |
| 6 Moly 254 Studs, Bolts, Threads | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard of SMO 254 Fasteners |
DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard 6 Moly 254 Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 6 Moly 254 Hex nuts |
| Form of 6 Moly 254 Fasteners | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of 6 Moly 254 Bolting | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of 6 Moly 254 Bolts | Six-Lobe,Phillips,Phillips/Slot, Slotted etc |
| Packing of 6 Moly 254 Fasteners | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating |
Ptfe Coated SMO 254 Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| SMO 254 Fasteners finishing |
SMO : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Stainless Steel, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
Stainless Steel SMO 254 Fasteners Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | SIS | GOST | AFNOR | EN |
| SMO 254 | 1.4547 | S31254 | - | 2378 | - | Z1 CNDU 20.18.06Az | X1CrNiMoCuN20-18-7 |
Chemical Composition of Stainless Steel SMO 254 Fasteners
| Grade | % | Ni | Cr | Mo | Cu | N | C | Mn | Si | P | S |
| SMO 254 | Min. | 17.5 | 19.5 | 6 | 0.5 | 0.18 | |||||
| Max. | 18.5 | 20.5 | 6.5 | 1 | 0.22 | 0.02 | 1 | 0.8 | 0.03 | 0.01 |
Mechanical Properties of Stainless Steel SMO 254 Fasteners
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SMO 254 | 8.0 g/cm3 | 1320-1390 ℃ | 650 | 300 | 35 % |
Types of Stainless Steel SMO 254 Fasteners

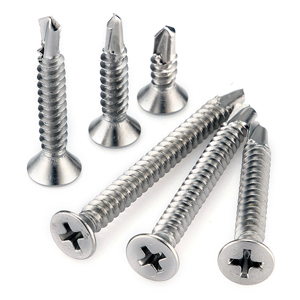

Stainless Steel SMO 254 Self Drilling Screws

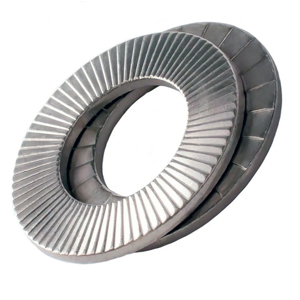

Stainless Steel SMO 254 Nord Lock Washers

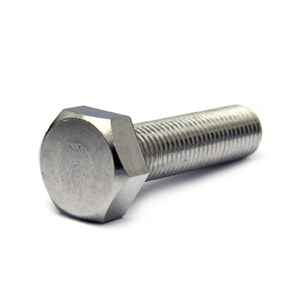

Stainless Steel SMO 254 Hex Bolts
Stainless Steel SMO 254 Dowel Pins

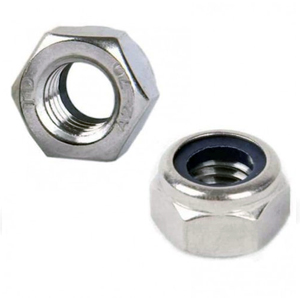

Stainless Steel SMO 254 Lock Nuts

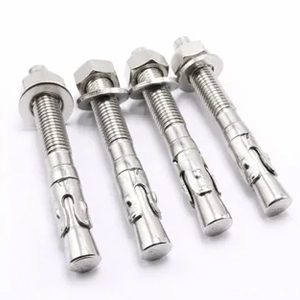

Stainless Steel SMO 254 Anchor Bolts

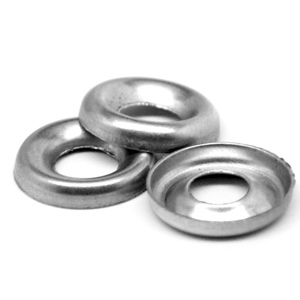

Stainless Steel SMO 254 Countersunk Washers

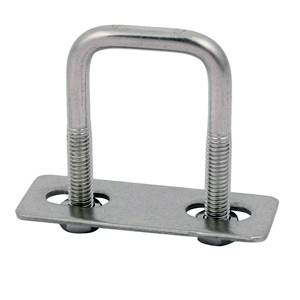

Stainless Steel SMO 254 Square U-Bolts
Stainless Steel SMO 254 Eye Bolts

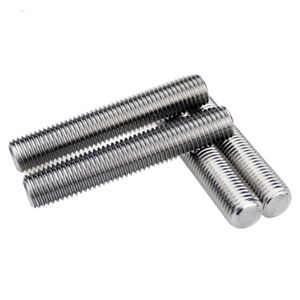

Stainless Steel SMO 254 Threaded Rod

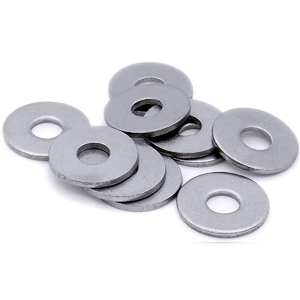

Stainless Steel SMO 254 Flat Washers

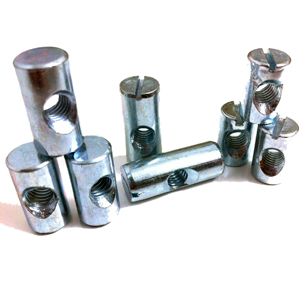

Stainless Steel SMO 254 Barrel Nuts

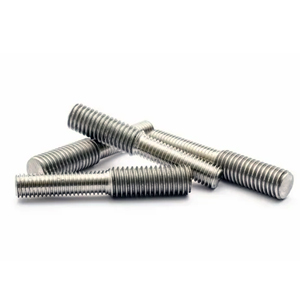

Stainless Steel SMO 254 Stud Anchors

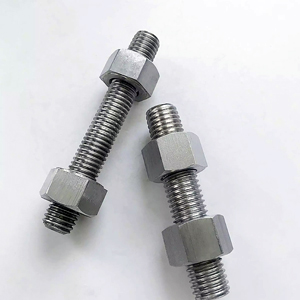

Stainless Steel SMO 254 Stud Bolts

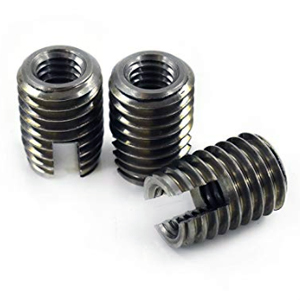

Stainless Steel SMO 254 Threaded Inserts

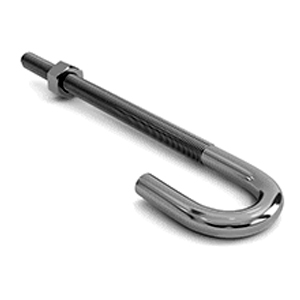

Stainless Steel SMO 254 J Type Bolt

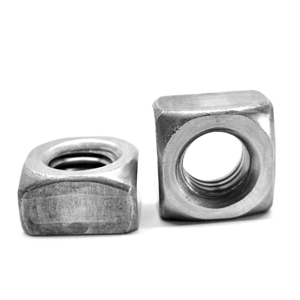

Stainless Steel SMO 254 Square Nuts

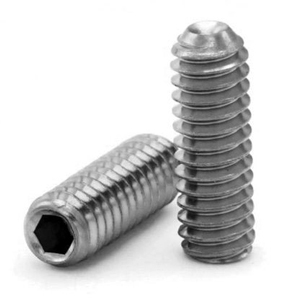

Stainless Steel SMO 254 Socket Set Screw
Stainless Steel SMO 254 Fasteners Forms & Availability
| Products | Size | |
|---|---|---|
| ASTM A479 254 6 Moly Stud Bolt | ASTM A479 254 6 Moly Bolts | Sizes M3 - M56 | 3/6" to 2" |
| ASTM A479 254 6 Moly Punched Washer | ASTM A479 254 SMO Pan Head Screw | |
| ASTM A479 254 Stainless Square Nut | ASTM A479 254 6 Moly Insert Nuts | |
| ASTM A479 254 6 Moly Welding Studs | ASTM A479 254 6 Moly Pan Head Screw | |
| ASTM A479 254 Stainless Cap Screw | ASTM A479 254 Stainless Foundation Bolts | |
| ASTM A479 254 6 Moly Threaded Rod | ASTM A479 254 Stainless Hex Head Bolts | |
| ASTM A479 254 Stainless Nuts | ASTM A479 254 Stainless Washers | |
| ASTM A479 254 6 Moly Fender Washer | ASTM A479 254 6 Moly Lock Nut | |
| ASTM A479 254 6 Moly Countersunk Slotted Screw | ASTM A479 254 6 Moly Double Ended Stud | |
ASTM / DIN Specification of Stainless Steel SMO 254 Fasteners
| ASTM A479 | ASTM A194 | ASTM F2281 |
| ASTM A479M | ASTM A194M | ASTM A962 |
| ASTM A320 | ASTM F593-13a | ASTM A962M |
| ASTM A320M | ASTM F594-15 | |
| DIN 580 | DIN 6914 | DIN 6921 |
| DIN 582 | DIN 3570 | DIN 603 |
| DIN 444 | DIN 7990 | DIN 2510 |
| DIN 939 | DIN 1B | DIN 976 |
| DIN 933 | DIN 529 | DIN 912 |
| DIN 931 | DIN 6325 |
Property Class
| For Bolts & Screws | A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H |
| For Nuts | A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040 |
| For SHCS | F837B, F837C, F837E, F837 |
| For Threaded Rods | A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2 |
Stainless Steel SMO 254 Fasteners Standard
| Hexagon Bolt / Set Screws | Stud Bolt | Hexagon Nuts | Socket Cap screws |
|---|---|---|---|
| DIN 931 | BS4882 | DIN 934 | DIN 912 |
| DIN 933 | DIN 976 | BS 1768 | DIN 6912 |
| BS 1768 | BS 1769 | DIN 7984 | |
| UNI 5731 | BS 1083 | ANSI B18.3 | |
| UNI 5739 | BS 3692 | ISO 4762 | |
| ISO 4014 | ISO 4032 | UNI 5931 | |
| ISO 4017 | ISO 4033 | BS 2470 | |
| BS 1769 | ANSI B18.2.2 | BS 4168 | |
| BS 3692 | |||
| ANSI B18.2.1 | |||
| Socket & Slotted Set Screws | Socket & Slotted Countersunk Screws | Studs | Washers |
| DIN 913 | DIN 963 | DIN 938 | DIN 125 |
| DIN 914 | DIN 7991 | DIN 939 | DIN 9021 |
| DIN 915 | BS 4168 | DIN 2510 | BS 4320 |
| DIN 916 | BS 1981 | BS 4439 | BS 3410 |
| DIN 551 | BS 483 | BS 2693 | |
| DIN 553 | BS 2470 | Spring Washers | |
| DIN 438 | DIN 127 | ||
| BS 4168 | BS 4464 | ||
| BS 1802 |
ANSI and/or ASME Standards Stainless Steel SMO 254 Fasteners(inch series)
| ASME B18.1.1 | Small Solid Rivets | ASME B18.8.1 | Clevis Pins and Cotter Pins |
|---|---|---|---|
| ASME B18.1.2 | Large Rivets | ASME B18.8.2 | Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins |
| ASME B18.2.1 | Square and Hex Bolts and Screws | ASME B18.9 | Plow Bolts |
| ASME B18.2.2 | Square and Hex Nuts | ASME B18.10 | Track Bolts and Nuts |
| ASME B18.2.6 | Fasteners for use in Structural Applications | ASME B18.11 | Miniature Screws |
| ASME B18.3 | Socket Cap, Shoulder and Set Screws | ASME B18.13 | Screws and Washer Assemblies (Sems) |
| ASME B18.5 | Round Head Bolts | ASME B18.15 | Forged Eyebolts |
| ASME B18.6.2 | Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws | ASME B18.17 | Wing Nuts, Thumb Screws and Wing Screws |
| ASME B18.6.3 | Machine Screws and Machine Screws Nuts | ASME B18.21.1 | Lock Washers |
| ASME B18.6.4 | Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws | ASME B18.22.1 | Plain Washers |
| ASME B18.7 | General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps | ASME B18.23.1 | Beveled Washers |
Stainless Steel SMO 254 Fasteners Dimension
| Stainless Steel SMO 254 Bolt / Screw | M3 – M56 | 3/6" to 2" | Custom Sizes |
| Stainless Steel SMO 254 Threaded Rods/ Bars | M3 – M56 | 3/6" to 2" | Custom Sizes |
| Stainless Steel SMO 254 Nuts | M3 – M56 | 3/6" to 2" | Custom Sizes |
| Stainless Steel SMO 254 Washers | M3 – M56 | Custom Sizes |
| Stainless Steel SMO 254 Machine Screws | M1.6 – M12 |
| Stainless Steel SMO 254 Self Tapping Screw | No.2 – No. 14 |
Stainless Steel SMO 254 Bolt Dimensions
| Nominal Size (D) | Body Diameter | Head Thickness ASTM A193 | Acro ASTM A193 The Flats | Acro ASTM A193 Corners | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Stainless Steel SMO 254 Bolt Torque Specifications
| Bolt Size Inches or # | Threads Per Inch | Standard Dry Torque in Inch-Pounds | |||||
|---|---|---|---|---|---|---|---|
| #2 | 56 | 2.5 | 2.6 | ||||
| 64 | 3.0 | 3.2 | |||||
| #3 | 48 | 3.9 | 4.0 | ||||
| 56 | 4.4 | 4.6 | |||||
| #4 | 40 | 5.2 | 5.5 | ||||
| 48 | 6.6 | 6.9 | |||||
| #5 | 40 | 7.7 | 8.1 | ||||
| 44 | 9.4 | 9.8 | |||||
| #6 | 32 | 9.6 | 10.1 | ||||
| 40 | 12.1 | 12.7 | |||||
| #8 | 32 | 19.8 | 20.7 | ||||
| 36 | 22.0 | 23.0 | |||||
| #10 | 24 | 22.8 | 23.8 | ||||
| 32 | 31.7 | 33.1 | |||||
| 1/4 | 20 | 75.2 | 78.8 | ||||
| 28 | 94.0 | 99.0 | |||||
| 5/16 | 18 | 132 | 138 | ||||
| 24 | 142 | 147 | |||||
| 3/8 | 16 | 236 | 247 | ||||
| 24 | 259 | 271 | |||||
| 7/16 | 14 | 376 | 393 | ||||
| 20 | 400 | 418 | |||||
| 1/2 | 13 | 517 | 542 | ||||
| 20 | 541 | 565 | |||||
| 9/16 | 12 | 682 | 713 | ||||
| 18 | 752 | 787 | |||||
| 5/8 | 11 | 1110 | 1160 | ||||
| 18 | 1244 | 1301 | |||||
| 3/4 | 10 | 1530 | 1582 | ||||
| 16 | 1490 | 1558 | |||||
| 7/8 | 9 | 2328 | 2430 | ||||
| 14 | 2318 | 2420 | |||||
| 1 | 8 | 3440 | 3595 | ||||
| 14 | 3110 | 3250 | |||||
| 1 1/8 | 7 | 413 | 432 | ||||
| 12 | 390 | 408 | |||||
| 1 1/4 | 7 | 523 | 546 | ||||
| 12 | 480 | 504 | |||||
| 1 1/2 | 6 | 888 | 930 | ||||
| 12 | 703 | 732 | |||||
Stainless Steel SMO 254 Nuts Dimension
| Nominal Size or Basic Major Thread Diameter | F | G | H | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Width Across Flats | Width Across Corners | Thickness | |||||||
| Basic | Max | Min | Max | Min | Basic | Max | Min | ||
| 1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | .226 | .212 |
| 5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
| 3/8 | .3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | .337 | .479 |
| 7/16 | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
| 1/2 | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
| 9/16 | .5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | .496 | .473 |
| 5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
| 3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
| 7/8 | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.ASTM A194 GR. 8 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2.356 | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
Other Types of Stainless Steel SMO 254 Fasteners
| ASTM B479 SMO 254 Self Drilling Screws | ANSI B18.2 SMO 254 Fine Fasteners |
| SMO UNS S31254 Foundation Fasteners Supplier | SMO DIN 1.4547 Fasteners Manufacturer |
| SMO EN X1CrNiMoCuN20-18-7 Anchor Fasteners | ASTM B479 SMO 254 Hex Head Screw |
| ASME SB479 SMO 254 Sheet Metal Fasteners | 254 SMO Industrial Fasteners |
| 254 SMO Head Square Neck Bolts | SMO EN X1CrNiMoCuN20-18-7 Bolts |
| SMO DIN 1.4547 Finished Hex Nut | ASME SB479 SMO 254 Elevator Bolts |
| 6 Moly 254 Jam Nuts Exporter | SMO 254 Nuts Manufacturer |
| Suppliers of 254 SMO Draw Bolts | 6 Moly 254 Concrete Screws |
| Type of SMO 254 Long Nut Stocks | Wrought Austenitic SMO 254 Heavy Studs |
| ANSI B18.2 SMO 254 Fender Washers | SMO UNS S31254 Industrial Studs |
